900kg Electric Lifting Device Pure Copper Motor IP67 Waterproof DC12V Electric Lifting For Off-road Vehicles ATV Yachts

Application
This product can be used for off-road vehicles, agricultural vehicles, ATV sports vehicles, yachts, and other special vehicles. Vehicle self-rescue can be carried out in harsh environments such as snow, swamps, sand, beaches, and muddy mountain roads, and may also be carried out under other conditions, such as clearing obstacles, towing items, installing facilities, as well as hydrology, forestry, transportation, border defense, and other outdoor activities.


Specification
Material: Alloy Steel
Process: Spray Molding
Color: Black
Assembly Required: Yes
Motor Type: Pure Copper Motor
Voltage: DC12V
Power: 0.4KW
Current Consumption: 8-120 A
Waterproof Grade: IP67
Transmission Ratio: 153:1
Spare Speed: 4m/13.12ft/min
Max. Horizontal Traction Load: 900kg/1984.16lbs
Max. Vertical Lifting Capacity: 200kg/440.92lbs
Wire Rope Diameter: 4mm/0.16in
Rope Length: 6m/19.69ft
Installation Hole Spacing: 76mm/2.99in
Installation Aperture: 8.5mm/0.33in
Drum Size (D*H): 3.15*72mm/0.12*2.83in
Product Size: 26.8*11*10.5cm/10.55*4.33*4.13in
Package Size: 33*24*15cm/12.99*9.45*5.91in
Gross Weight: 5.8kg/12.79lbs
Net Weight: 5kg/11.02lbs

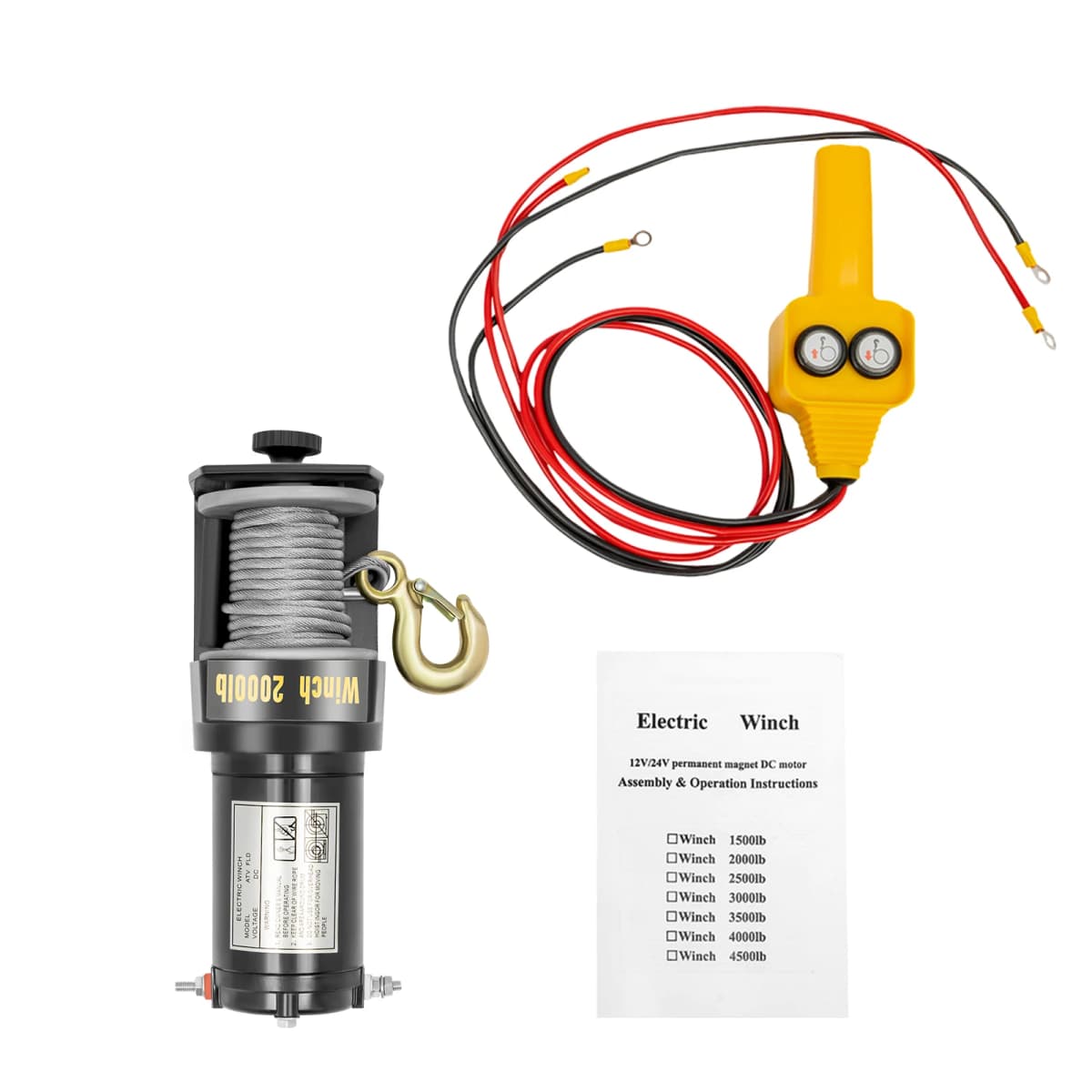

Package Included
1 * Electric Lifting Device
1 * Controller
1 * English Manual

Notes
1.Please read the operating manual completely before use. And pay particular attention to the safety instructions included.
2.Please turn off the power when wiring and turn it on again after the wiring is completed.
3.Please stay away from the area around the rope and drum when using.
4.Please do not apply this product to overhead cranes or for moving personnel.
5.When the load that needs to be lifted or pulled exceeds half of the load capacity of this product, we recommend using pulleys to double the rope.
6.When operating this product, pay attention to maintaining a specific distance to prevent injury caused by rope breakage
7.When using, check for any damage or loose parts of the product. The rope may not be collected neatly during dragging. Please do not use your hands or other objects to guide the rope collection. If the rope is stacked on one side of the drum, please rotate the product in the opposite direction, adjust the rotation angle, and after completing the drag, the rope can be released and rewound neatly.
8.The product should not be used continuously for more than one minute. Stopping for a while after use can protect the motor from overheating and prolong the product's lifespan.
9.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
