Upgraded Intercooler for BMW 135i 335i Z4 1M N54 / N55 E90 E91 E92/E93/E82 E88

Introduction：

Intercooler exchange device used on turbocharged and supercharged internal combustion engines to improve their volumetric efficiency by increasing intake air charge density through nearly isobaric cooling, which removes the heat of compression that occurs in any gas when its pressure is raised or its unit mass per unit volume is increased.

Application:

For BMW 1 Series 135i E82 / E88 2008-2013

For BMW 3 Series E90 / E91 / E92 / E93 335(x)i 2006-2012

For BMW 1M E82 2011-2013

For BMW Z4 E89 35i 35is 2009-2017

(Only for gas engine.)

Specification:

Core Length: 20

Core Height: 6" (lower side ), 8 " ( Taller side)

Core thickness: 5

Inlet / Outlet Size: 3.25

End to end length: Approx. 27

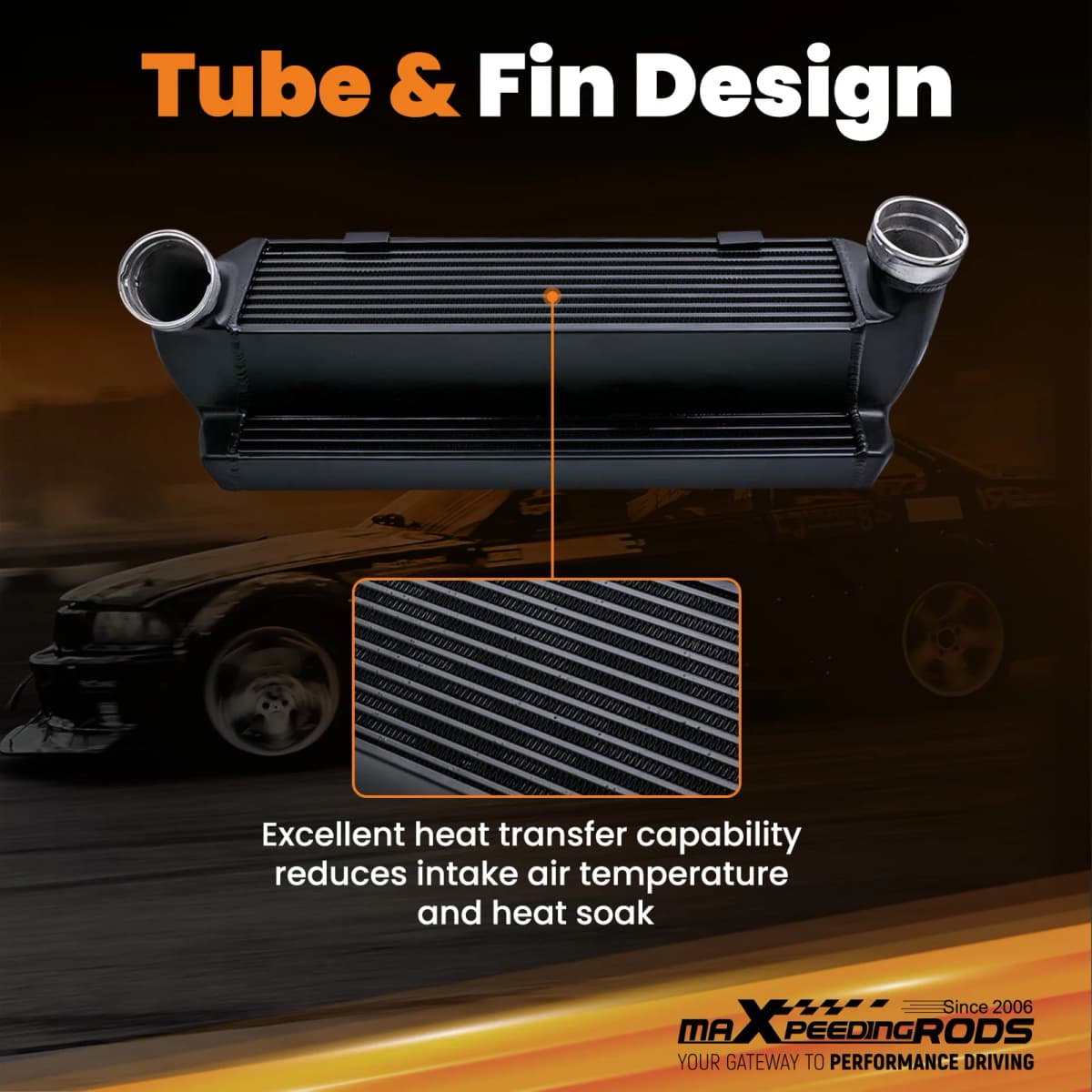

Core design:Tube and Fin

Intercooler dimensions: 520mm x 200mm x 145mm

Core dimensions: 510mm x 130mm x 110mm

Max horsepower capacity: 500HP+

Description：

5" Thickness core (approx. 2" thicker than the standard intercooler) stepped design.

Tube and Fin Design.

Power coated in black with aluminuim end tanks.

Additional rows at the front which increases the surface area.

Features:

* Direct replacement, Easy installation

* Made of High-quality material for long-lasting durability, Perfect match for the original car

* Stepped design

* Power coated in black with aluminuim end tanks

* Additional rows at the front which increases the surface area

Package Includes:

1 x Intercooler

Important Notice:

* For BMW 135i , 335i , Z4 35i put spacer below intercooler bracket; for BMW 1M , Z4 35is put spacer between intercooler bracket and mounting point of the vehicle.

* Professional installation is highly recommended (No Instruction Included).

* For any needs please contact us via message.
