Engine Cylinder Rebuild Kit for Kawasaki KX250F 2004-2008 11005-0005 77mm

Application:

for Kawasaki KX250F (KX250-N1) 2004

for Kawasaki KX250F (KX250-N2) 2005

for Kawasaki KX250F (KX250T6F) 2006

for Kawasaki KX250F (KX250T7F) 2007

for Kawasaki KX250F (KX250T8F) 2008

for Suzuki RM-Z250 K4 2004

for Suzuki RM-Z250 K5 2005

for Suzuki RM-Z250 K6 2006

OE/Part number:

Cylinder: 11005-0005, 11005-0037, 11005-0069, K1100-50005, K1100-50037

Cylinder Base Gasket: 11061-0025, K1106-10025

Cylinder Head Gasket: 11004-0090, K1100-40090

Piston: 13001-0052, K1300-10052, 13001-0088

Pin, Piston: 13002-0018, K1300-20018

Piston Ring Set: 13008-0028, K1300-80028

Circlips, Piston: 92033-1161, K9203-31161

110050005, 110050037, 110050069, K110050005

K110050037, 110610025, K110610025, 110040090

K110040090, 130010052, K130010052, 130010088

130020018, K130020018, 130080028, K130080028

920331161, K920331161

Specification:

Material: Ceramic

Type: Top End Rebuild Kit

Bore Type: Standard Bore

Bore Size: 77mm

Stroke: 53.6mm

Pin diameter: 16mm

Displacement: 249cc

Compression Ratio: 13.5:1

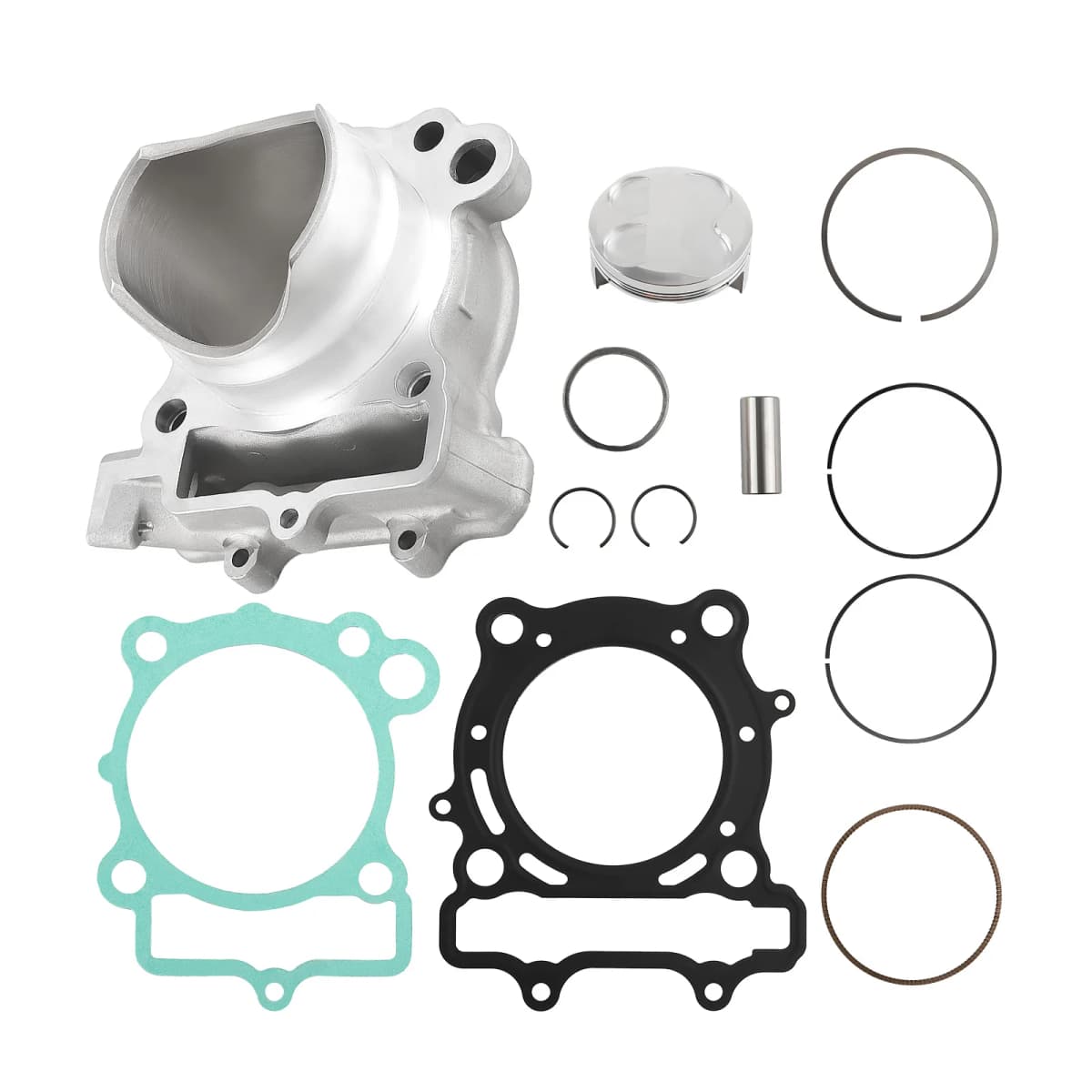

Package included:

1*Cylinder

1*Piston

1*Piston Ring Set

1*Wristpin

1*Circlip(2)

1*Cylinder Base Gasket

1*Cylinder Head Gasket

Feature:

PERFECT RESTORATION

Perfect restoration for cylinder issues including low compression and piston seizure. Get your bike back to peak performance with this comprehensive rebuild kit.

SUPERIOR DURABILITY

Premium anodized piston delivering exceptional heat resistance

Professional-grade gaskets engineered for maximum reliability

Standard 77mm bore size with 13.5:1 compression ratio

QUALITY ASSURANCE

Every component precisely manufactured to OEM specifications, ensuring perfect fit and optimal performance for your bike.

Note:

1. Fitment above is for reference only, please check the part number and the size of cylinder bore before you purchase.

2. Professional installation is highly recommended.

3. Please allow 1-3mm error due to manual measurement, thanks for understanding.

4. Please kindly understand that the actual color may slightly vary from presented pictures due to different monitor.
