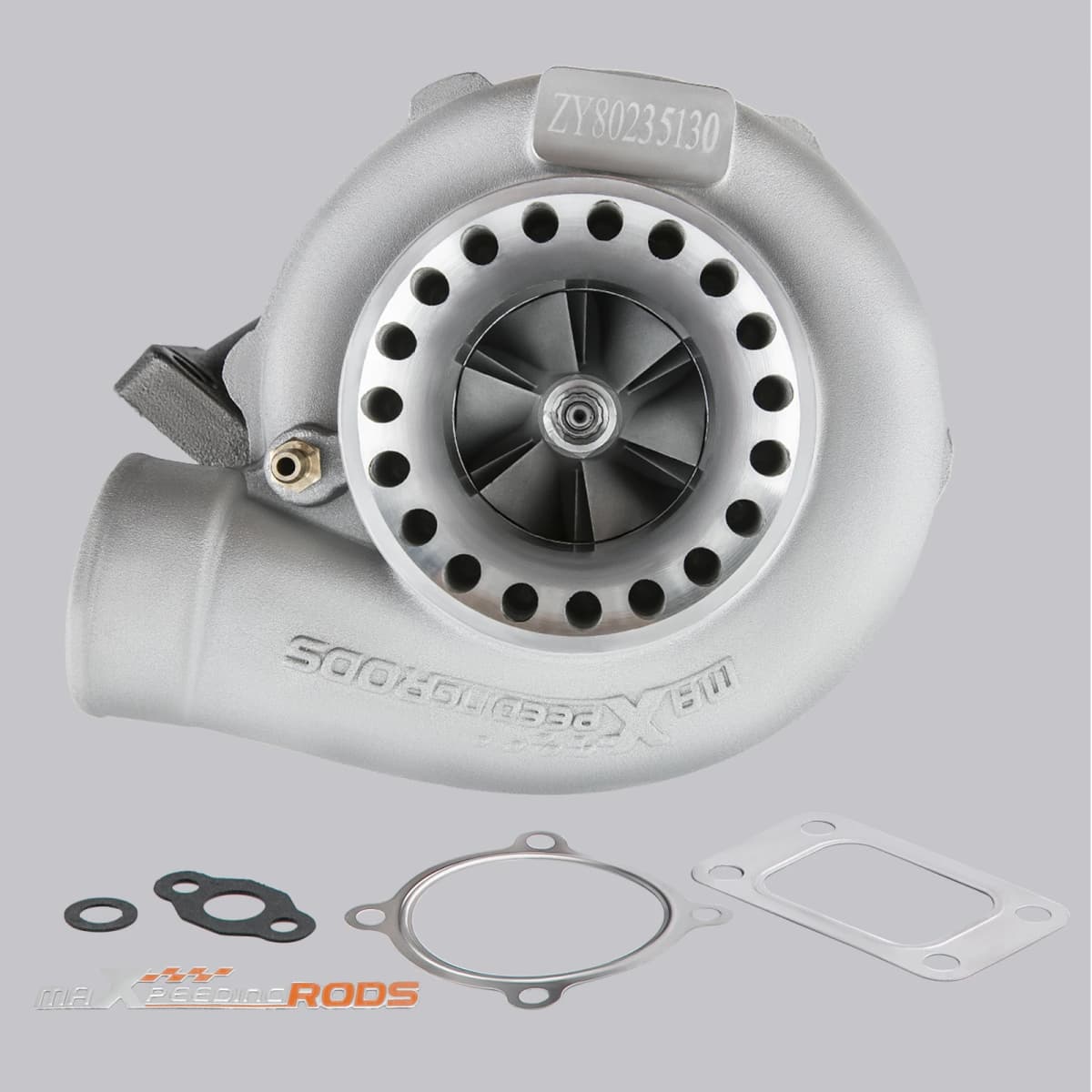

Upgrade T3T4 GT3582 GT30 A/R .70 Cold A/R .63 Compressor Turbine TurboCharger

Application：

Bigger HP Applications, perfect for all 4/6 cylinder and 2.5L-6.0L engines

Capable of Boosting Horse Power up to 600HP

for Honda K20, H22, F22 Engines

for Nissan SR20DET, RB20/25,

for Toyota 1JZ/2JZ, 7MGTE.

Also Works for Twin Turbos Applications for SBC, for LSx,

for Ford 4.6, 5.0 Engines

Note :This is universal application turbo, so modification might be required for some vehicles.

Please confirm that there is enough space in your car to install this turbo before purchasing.

This turbo features a T3 flange. To mate with T4 manifold, a T3-T4 adapter is required. The adapter extends the inlet assembly length. Please double-check available clearance prior to installation to avoid fitment issues.

Product Specific：

Turbine Side:

Exhaust Inlet Flange: T3 Flange

Exhaust Outlet Flange: 4-Bolt

Turbine Trim: 84.2

Turbine A/R: 0.63

Turbine Inducer Diameter: 68mm

Turbine Exducer Diameter: 62.4mm

Compressor Side:

Compressor Trim: 56.9

Compressor A/R: 0.7

Compressor Inducer Diameter: 61.5mm

Compressor Exducer Diameter: 81.5mm

Compress Inlet Size(Air intake): 4 inch (103.5mm)

Compressor Outlet Size: 2.5 inch (63.6mm)

Bearing Type: Floating/Journal Bearing

Thrust bearing: 270 degree

Cooling Type: Water + Oil Cooling

Horse Power: Up to 600HP

Turbo Type: Individual
