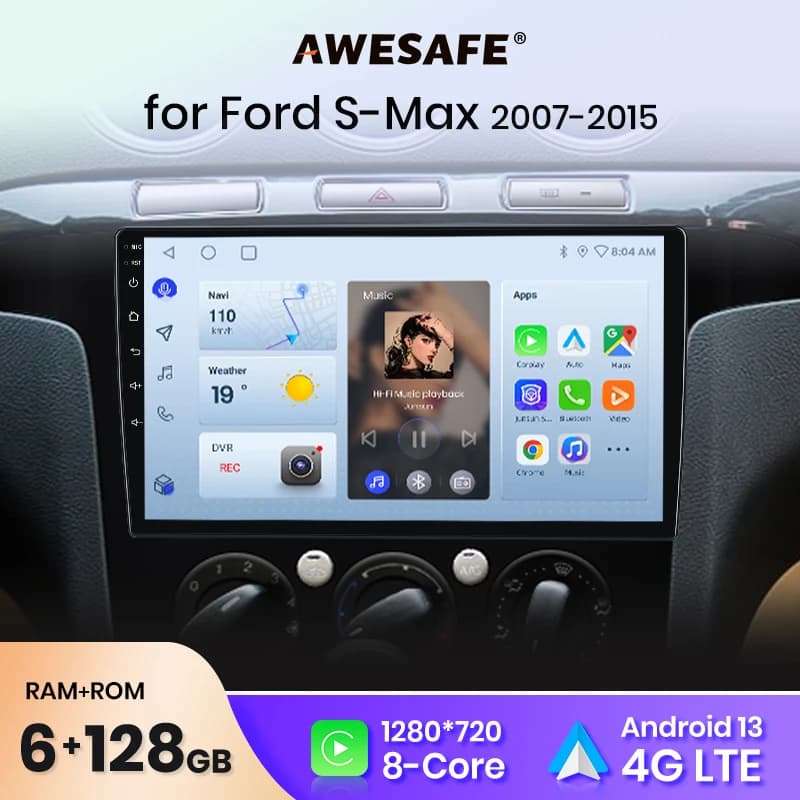

AWESAFE PX9 Plus Car Radio For S max S-Max 2007-2015 wireless CarPlay Android Auto No 2 din 2din DVD

AWESAFE PX9S funtion For ford S max S-Max 2007-2015

> 9 inch 2.5D capacitive screen + 8 Core (4 Core) 1.2 GHZ CPU + 1GB / 2GB / 4GB / 8GB DDR3 Flash (optional) + 16GB / 32GB / 64GB / 128GB memory (optional) + built-in 4G internet + GPS Navigation (Free Map Update) + Steering Wheel Control + Mirror Link + CarPlay + Android Auto + Bluetooth Compatible + Built-in Microphone + FM / AM + RDS + USB DVR ADAS Support + Europe DAB Function Support + 1080P Video Playback + HD 1024 * 600 + Tire Pressure Monitoring System + Support Voice Control (need to buy) + GPS tracking function (need to buy)

Reduce manual screen touchin during driving,

interesting interaction

YouTube, VK, Twitter, Skype, Facebook, Messenger, Linkedln,

Navitel, IGO Navigation, Spotify, Yandex, Yandex Map,

Waze, Google, Google Map, Netflix, Instagram

When the car shifts into reverse, the screen will switch to the rear view with parking lines automatically, help you to back up or park the car.

(The rear camera in the picture below is optional and better than normal.)

You can use navigate and other applications at the same time, such as listening to music or turning on ADAS functions ect.

Support up to 2TB hard- disk

Promotes Safe Driving ADAS System Distance warning

lane departure warning

Warm and important tips:

1). The device need to search satellite success first time, then it will update time,

2). Please understand that the system and preinstalled apps will take part memory; if install Russia map will take about 3GB; if install Europe map, system will take about 7GB;

1. How to use Carplay and Android Auto?

Carplay ：

Both of them are wired, and only can be connected with the 4Pin (with 4 small hole ) USB port, then click the APP ""Phonelink"" or ""Tlink"" in the radio;

Android Auto：

After purchasing the activation code, the customer service staff will send you the operation method and the activation code

2. How to set steering wheel controls?

1) If there is no canbus, please follow the steps below

①1+16GB：Clik Settings Control icon,as the picture shows

https://ae01.alicdn.com/kf/Hdd515243bc65428b89fec0f2f27828ccc.jpg

②PX9：Clik Control icon,as the picture shows

https://ae01.alicdn.com/kf/H5d52012903cb4a58a6d8347cbb76d2efE.jpg

③PX9S/PX9S pro：Settings→Car information→SWC ,as the picture shows

https://ae01.alicdn.com/kf/Hfcecbe6dbc0446d0bae293be583b65bft.jpg

2)if there is canbus in the package,please connect canbus first

（⚠Please note that the Canbus cable needs to be connected, not only to connect to Canbus, but also to connect to the back of the machine with another 8pin cable.）
