Aermotor TPMS Reset V2 Auto Tire Pressure Monitor Sensor TPMS Reset/Match/Activation Tool For TerminatorTPMS Reset Tool

Description

Report Item

usage method

1. Depressing the parking brake (manual transmission only)；

2. Set the ignition switch to the ON position and use the fault diagnostic or driver information center button to activate the tire pressure sensor read mode. If you hear the speaker beep twice, that read mode has been enabled. The left front turn signal will also light up.

3. Starting from the left front tire, Put the equipment in front of the tire near the sensor. Press and release the above button and wait for the speaker to emit a chirp.The result can be immediately to 60 seconds.Once the speaker is chirping, the sensor information is read and the turn signal to be read at the next position will light.Stop the cycle by pressing the following；

4. When the speaker is ringing and the right front turn signal light is on, the remaining three sensors repeat step 3 in

the following order: 4.1. Right before 4.2. Right rear 4.3.Left rear；

5. When the left rear sensor has been read and the speaker is also issued twice, the read process is completed and

the body control module also exits the read mode.

matters need attention

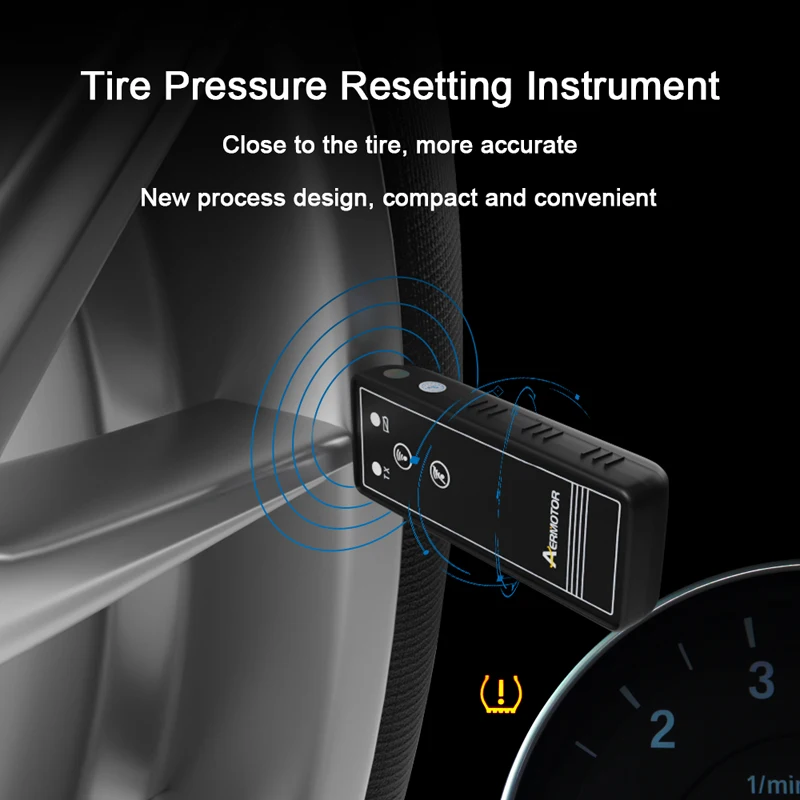

1.It is the position of the top of the device to the car tire, between the tires near the air cell and the hub, rather than against the air cell.

2.Different models have different waiting times for activate, ranging from about 5 to 60 seconds.

3.The original car with tire pressure sensor does not support manual reset, and the tire pressure reset operation should be performed with the help of the tire pressure reset instrument.

AERMotor ResetV2-Terminator Auto Tire Pressure Monitor Sensor:

Reset V2-Terminator offer functions activation, reset and match on the vehicles which comes with the tire pressure sensor up to Dec, 2017 year including for Mercedes Benz, for BMW, for Audi, for VW, for GM, for Ford, for Chrysler, for Renault, for Peugeot, for Citroen, for Fiat, for Iveco, for Land Rover, for Toyota, for Nissan, for Honda, for Mazda, for Mitsubishi, for Suzuki, for Subaru, for Hyundai, for Kia etc.

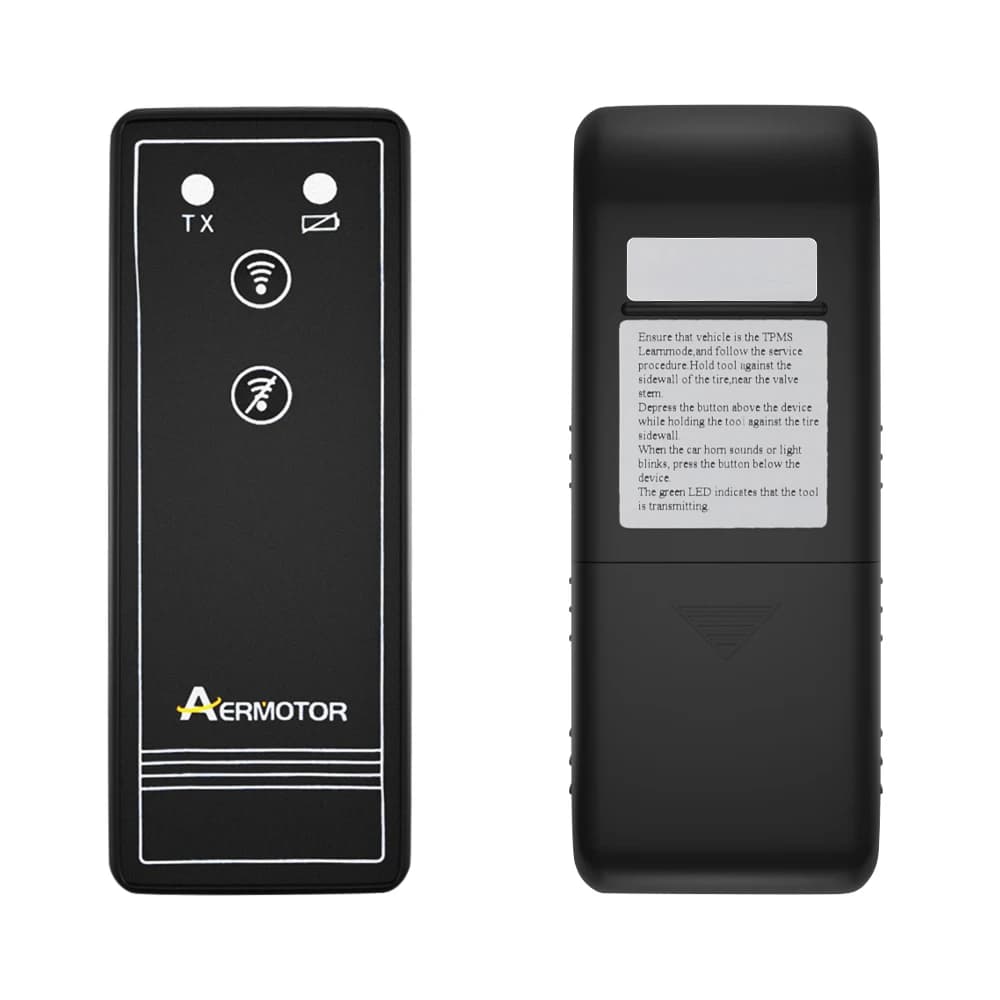

Button / Indicator meaning:

1: Send the matching signal

2: Low battery

3: Start matching

3: Matching complete

AERMotor ResetV2-Terminator Functions:

Activation

Reset

Match

How to use AERMotor ResetV2-Terminator?

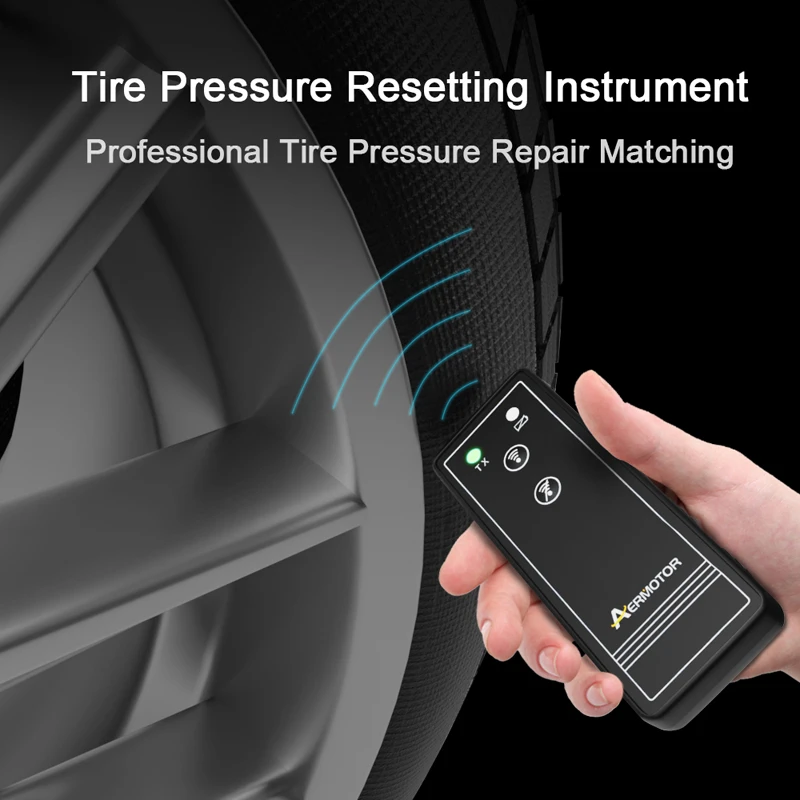

Ensure the vehicle is the TPMS Learn mode,and follow the service procedure.Hold tool against the sidewall of the tire,near the valve stem.

Depress the button on the top of the device while holding the tool against the tire sidewall.

When the car horn sounds, press the button below the device.

The green LED indicates that the tool is transmitting.

* Can work with all of the vehicles which comes with the tire pressure sensor before December, 2017 year.

Note:

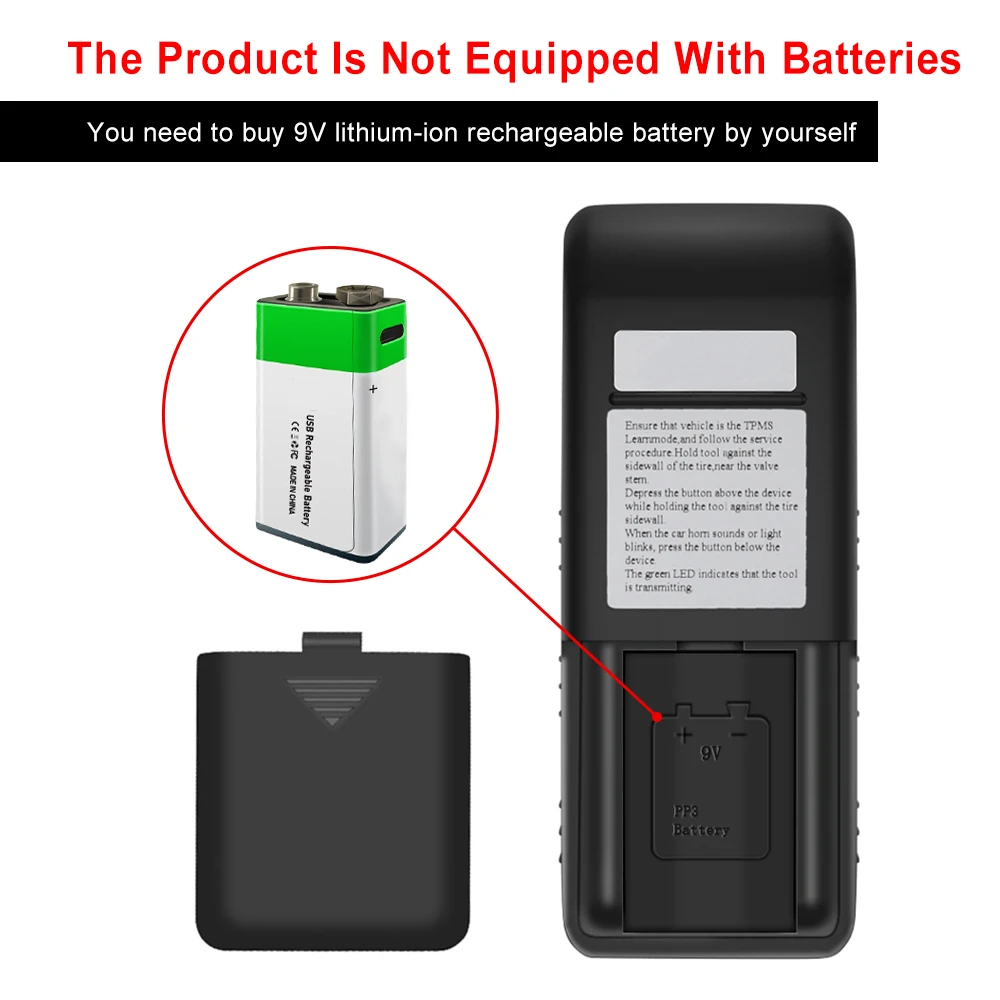

AERMotor Reset V2-Terminator doesn't come with the battery, the battery type is pp 3 battery 9V.
