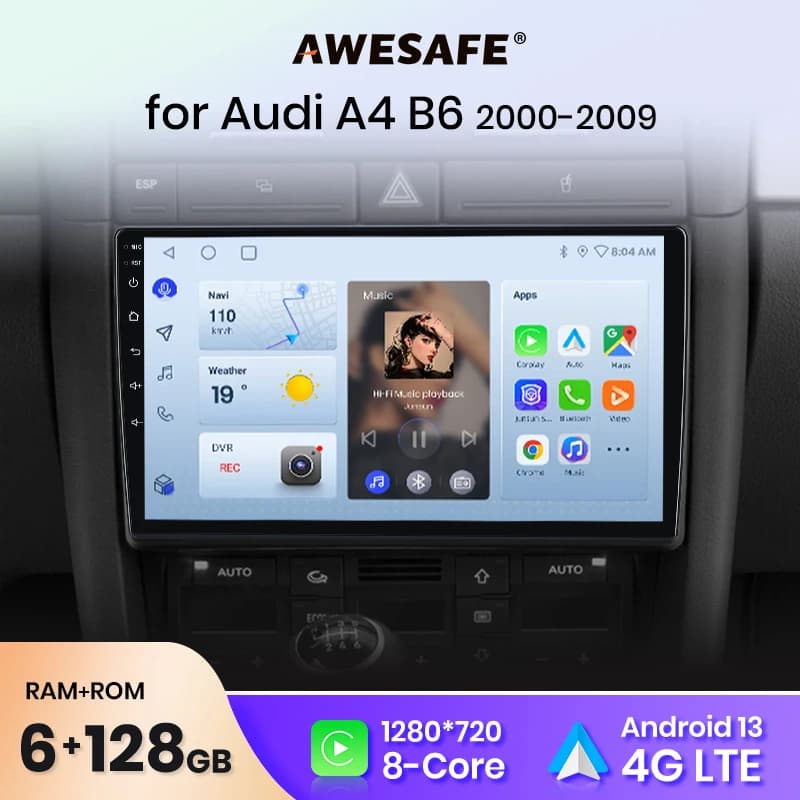

AWESAFE PX9 Plus Car Radio For Audi A4 B6 B7 2000 - 2009 Seat Exeo wireless CarPlay Android Auto No 2 din 2din DVD

Attention!

1.Type A is compatible with car Audi A4 B6 2000-2009;
Type B is compatible with car Seat Exeo.

PX9/ PX9S / PX9Spro radio for Audi A4 B6 2000-2009/Seat Exeo (2010)

> Support Android 11.0+ QLED+CarPlay/Android AutoS / PX9(PX9S / PX9Spro supports wireless carplay)+built-in 4G internet (Options)+ GPS Navigation (Free Map Update) + Steering Wheel Control + Mirror Link + DSP 48EQ + Split Screen Display + Bluetooth 5.0 Compatible + Built-in Microphone + FM / AM + RDS + USB DVR ADAS Support + Europe DAB Function Support + 1080P Video Playback + HD 1024 * 600 + Tire Pressure Monitoring System + Support Voice Control (need to buy) + GPS tracking function (need to buy).

> Optional functional hardware: ADAS DVR camera, tire pressure monitoring, OBD2, external microphone, RCA cable.

> Benefits: Same Day Issue/15 Days Free Return/2 Years Warranty Policy.

Reduce manual screen touchin during driving, interesting interaction

YouTube, VK, Twitter, Skype, Facebook, Messenger, Linkedln,

Navitel, navegación IGO, Spotify, Yandex, mapa Yandex,

Waze, Google, Google Map, Netflix, Instagram

When the car shifts into reverse, the screen will switch to the rear view with parking lines automatically, help you to back up or park the car.

(The rear camera in the picture below is optional and better than normal.)

You can use navigate and other applications at the same time, such as listening to music or turning on ADAS functions ect.

Support up to 2TB hard- disk

Promotes Safe Driving ADAS System Distance warning

lane departure warning

Warm and important tips:

1). The device need to search satellite success first time, then it will update time,
2). Please understand that the system and preinstalled apps will take part memory; if install Russia map will take about 3GB; if install Europe map, system will take about 7GB;

1. How to use Carplay and Android Auto?

Carplay ：
Both of them are wired, and only can be connected with the 4Pin (with 4 small hole ) USB port, then click the APP ""Phonelink"" or ""Tlink"" in the radio;
Android Auto：
After purchasing the activation code, the customer service staff will send you the operation method and the activation code

2. How to set steering wheel controls?

1) If there is no canbus, please follow the steps below
①1+16GB：Clik Settings Control icon,as the picture shows
https://ae01.alicdn.com/kf/Hdd515243bc65428b89fec0f2f27828ccc.jpg

②PX9：Clik Control icon,as the picture shows
https://ae01.alicdn.com/kf/H5d52012903cb4a58a6d8347cbb76d2efE.jpg

③PX9S：Settings→Car information→SWC ,as the picture shows
https://ae01.alicdn.com/kf/Hfcecbe6dbc0446d0bae293be583b65bft.jpg


2)if there is canbus in the package,please connect canbus first
（⚠Please note that the Canbus cable needs to be connected, not only to connect to Canbus, but also to connect to the back of the machine with another 8pin cable.）
then follow the steps below
①1+16GB：
Settings →factory→3368→Car Model→choose right car information→reboot
As the picture shows：
https://ae01.alicdn.com/kf/H6a1a227be2cf4e248dd1a0a5e274caf0F.jpg

②PX9：
Settings →system→Car Settings→8888→Model choose→choose right car information→reboot
As the picture shows：
https://ae01.alicdn.com/kf/He3da309960684f91b1ecbb192b7cde9c6.jpg

③PX9S：
Settings →car information→About device→⚙→8888 or 8878→can type→choose right car information→reboot
As the picture shows：
https://ae01.alicdn.com/kf/H4fd8c6c9f2fb4eeda50efaf2f9b87301i.jpg

3.How to change the Boot Logo ?

1+16GB: Click System Settings----Extended Settings----Enter the password 3368

PX9 and PX9S: Click System Settings----Factory Settings----Enter the password 8888


4.How to connect the rear camera ?

1)Red cable ① is connected to the backup light ""+""

2)black cable ② is connected to the backup light ""-""

3)The reversing detection cable ④（Brown color and pink）is connected to the red cable ③ which extending from the video input cable

4)⑤ cable does not need to be connected
