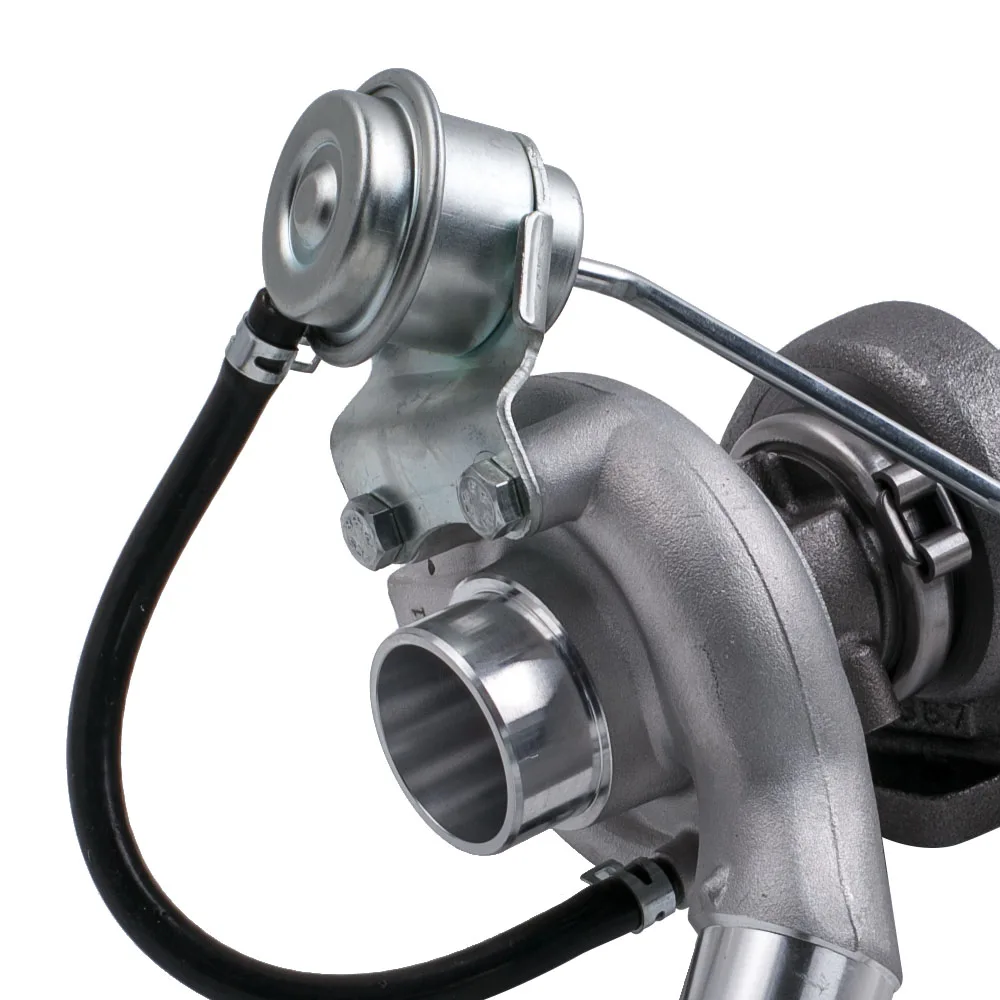

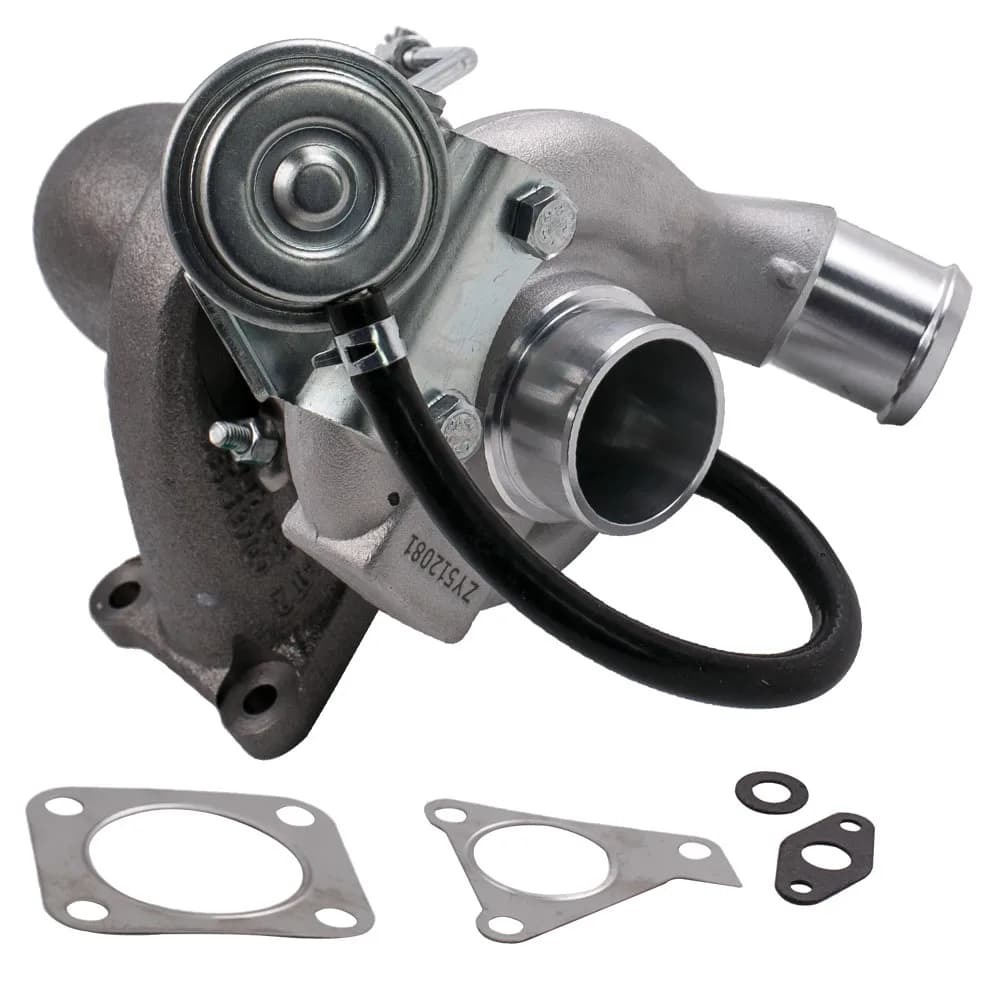

Complete Turbo for Ford Transit VI 2.2TDCI TD03 49131-05313 Turbocharger 1449556 49131-05310 49131-05313

TD03L4 TURBOCHARGER FOR FORD TRANSIT MK7 2.2 TURBO FWD 2006-2011 49131-05310

Note: This turbo does not have electronic actuator, if your old turbo have electronic plug, this item would not fit your application.

Application

for Ford Transit VI 2.2 TDCi 63kw 84ps 2006 -

for Ford Transit VI 2.2 TDCi 81kw 109ps/ 110ps 2006 -

for Ford Transit VI 2.2 TDCi 85kw 114ps/ 115ps 2006 -

（

do not fit for

Ford Transit VI 2.2TDCI 116ps-140ps )

Engine:

PUMA

Turbo Part Number & OEM Number

49131-05313; 49S31-05313; 49131-05312; 49131-05310;

6C1Q6K682CE; 6C1Q6K682CD; 1567327; 1449556; 49131-05300

Specification

Turbo Model : TD03 TD03L4

Engine :DURATORQ TDCI

Cooled Type: Oil cooled

Bearing Type: Journal Bearing

Thrust bearings: 270 Degrees

Condition: Brand New

*Product Material:

1. Turbine housing Ductile iron QT450-10 shell with high-temperature resistance up to 700 degrees Celsius

2. Steel Turbine Wheel:Made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900 degrees Celsius

3. Compressor housing:ZL104 aluminum with lightweight

4. compressor wheel/blades:Cast aluminium with good gas tightness and corrosion resistance

*Product Performance:

1. OEM-quality and size with little modification

2. Rich Experience In Turbo Production And Own Factory

3. Quality Assurance
