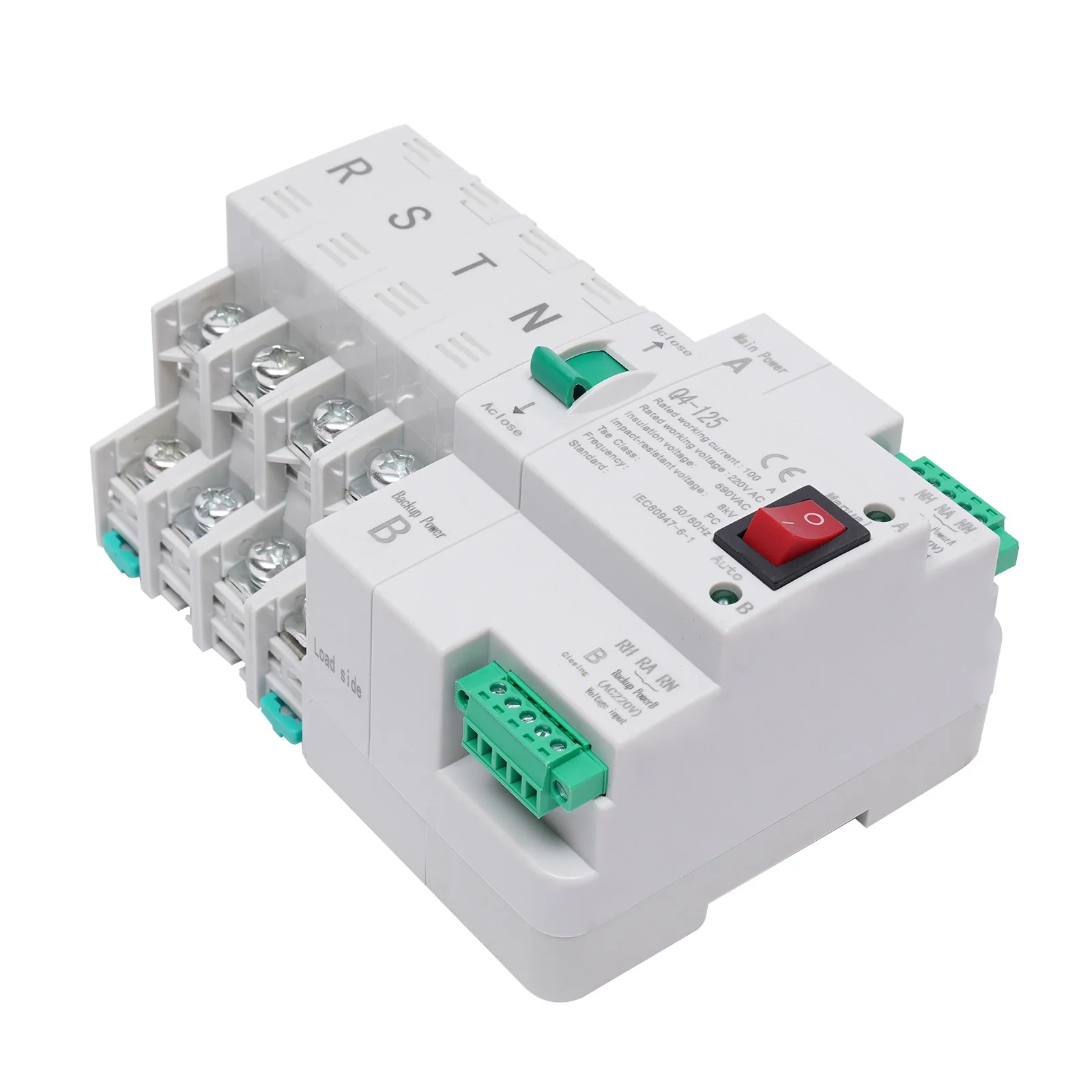

4P 100A Dual Power Transfer Switch Automatic Changeover Switch Conversion Time≤50ms Tse Class PC Used in Elevators, Firefightin

Specification

Color: White
Material: ABS
Process: Tin Plating

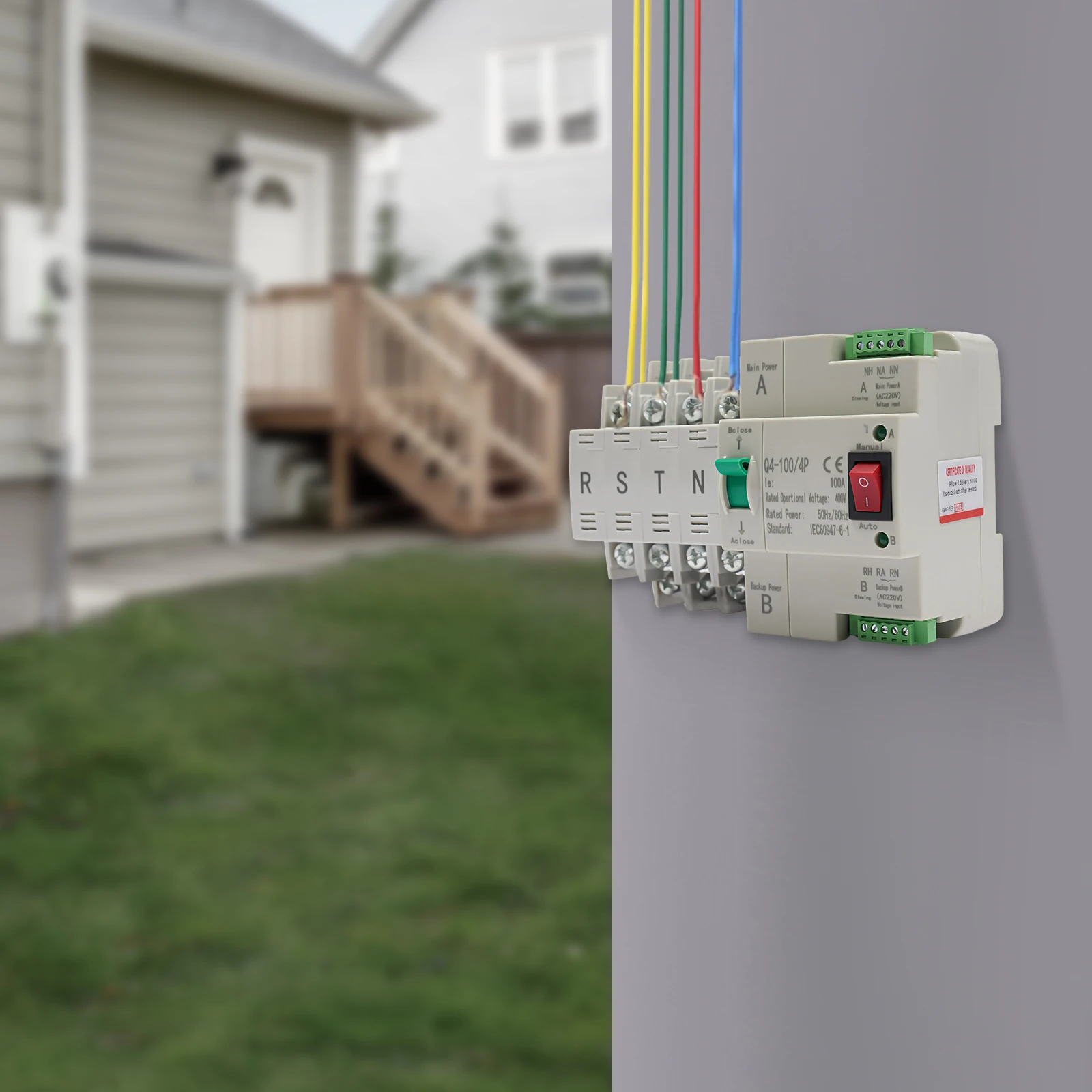

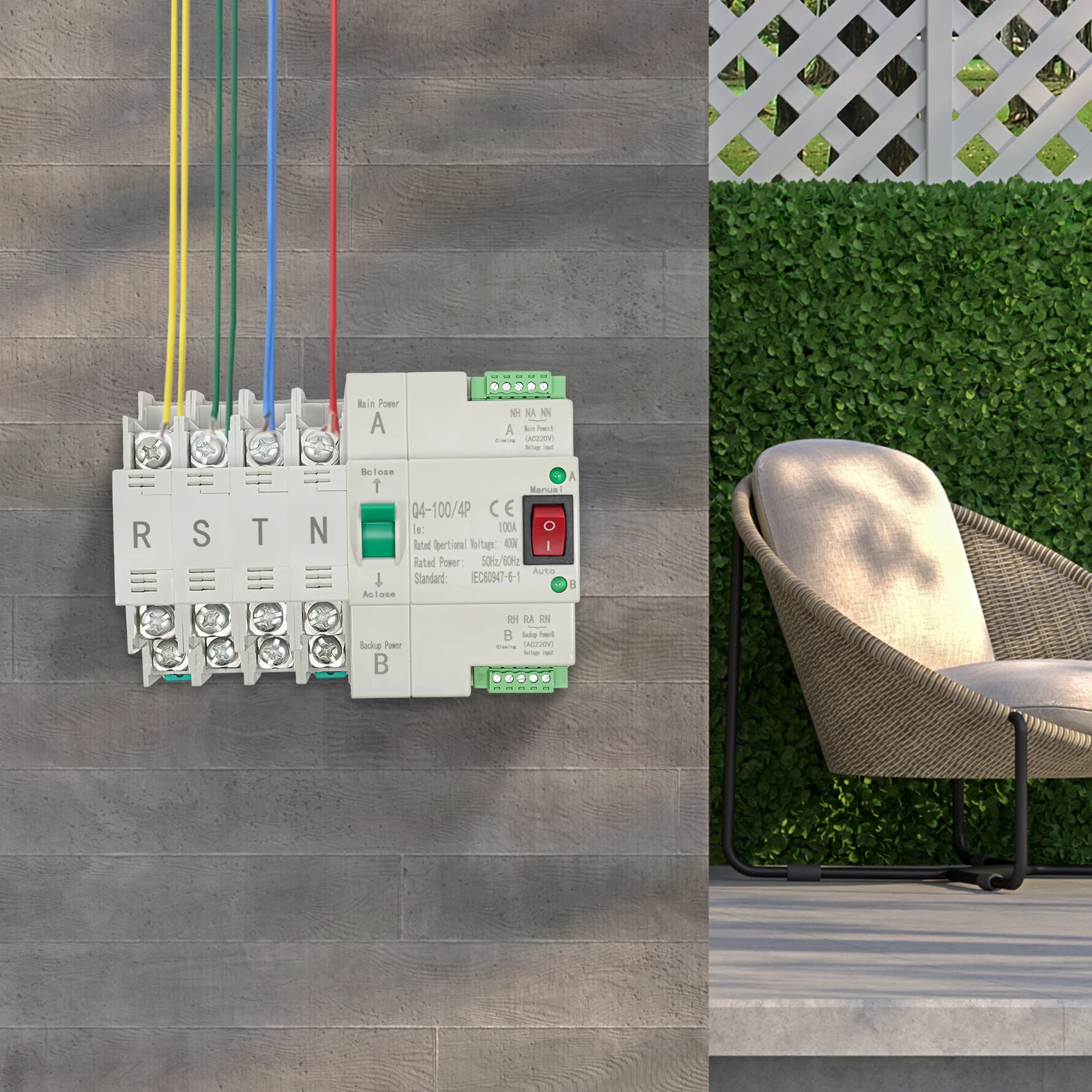

Mounting Type: Wall-mounted
Conversion Time: ≤50ms
Use Level: AC-33iB
Switching Mode: Self-injection and Self-recovery
Number of Measuring Rods: 4P
Rated Working Current: 100A
Rated Control Voltage: 220V AC
Insulation Voltage: 690VAC
Impact-resistant Voltage: 8kV
Tse Class: PC
Frequency: 50/60Hz
Standard: IEC60947-6-1
Gross Weight: 0.8kg/1.76 lbs
Net Weight: 0.76kg/1.68lbs
Product Size: 14.1*10.2*2.76cm/5.55*4.02*2.76 in
Package Size: 15*10.5*8.5cm/5.91*4.13*3.35in

Key Features

Build to Last: It is made of high-class ABS with a tin plating process, which is durable, impact-resistant and wear-resistant so it can withstand the test of time.

Powerful Function: In a voltage environment of 220V/380V, this product can switch the circuit load between the main power supply (line a) and the backup power supply (line b) at a speed of about ≤ 50ms, maintaining uninterrupted power and protecting the safety of the circuit load. The standard 1.38-inch rail installation is very convenient for connecting with air circuit breakers, further enhancing the safety of the circuit.

Economical and Practical: Installing this product on the circuit can help your circuit achieve safer and more automated operation, thereby avoiding damage caused by power outages, which is very practical and economical to use.

Thoughtful Design: This product combines self-injection and self-recovery mode and manual operation mode, which can automatically switch from the main power supply to the backup power supply, as well as manually switch. It is convenient for automated management and regular maintenance and repair.

Easy to Clean: Thanks to its smooth surface and simple construction, you can wipe the surface clean of stains with a dry rag.

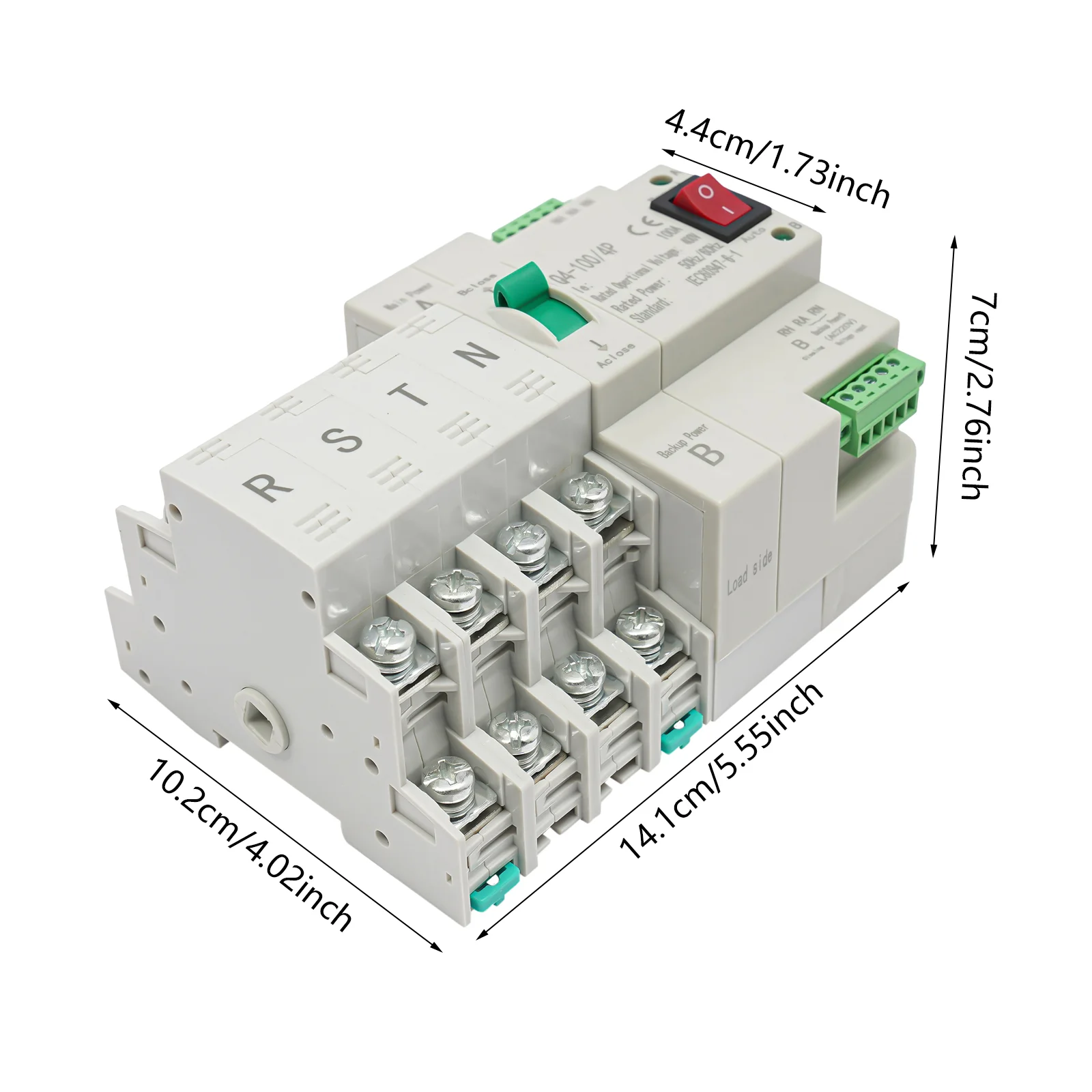

Space-saving: Its compact dimensions (5.55*4.02*2.76 inches) and wall-mounting features make it very space-saving when installed.

Ready to Go: The one-piece construction allows you to use it as soon as you receive it, which is very time-saving and convenient!

Customer Service: We aim to provide quality products and services. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.

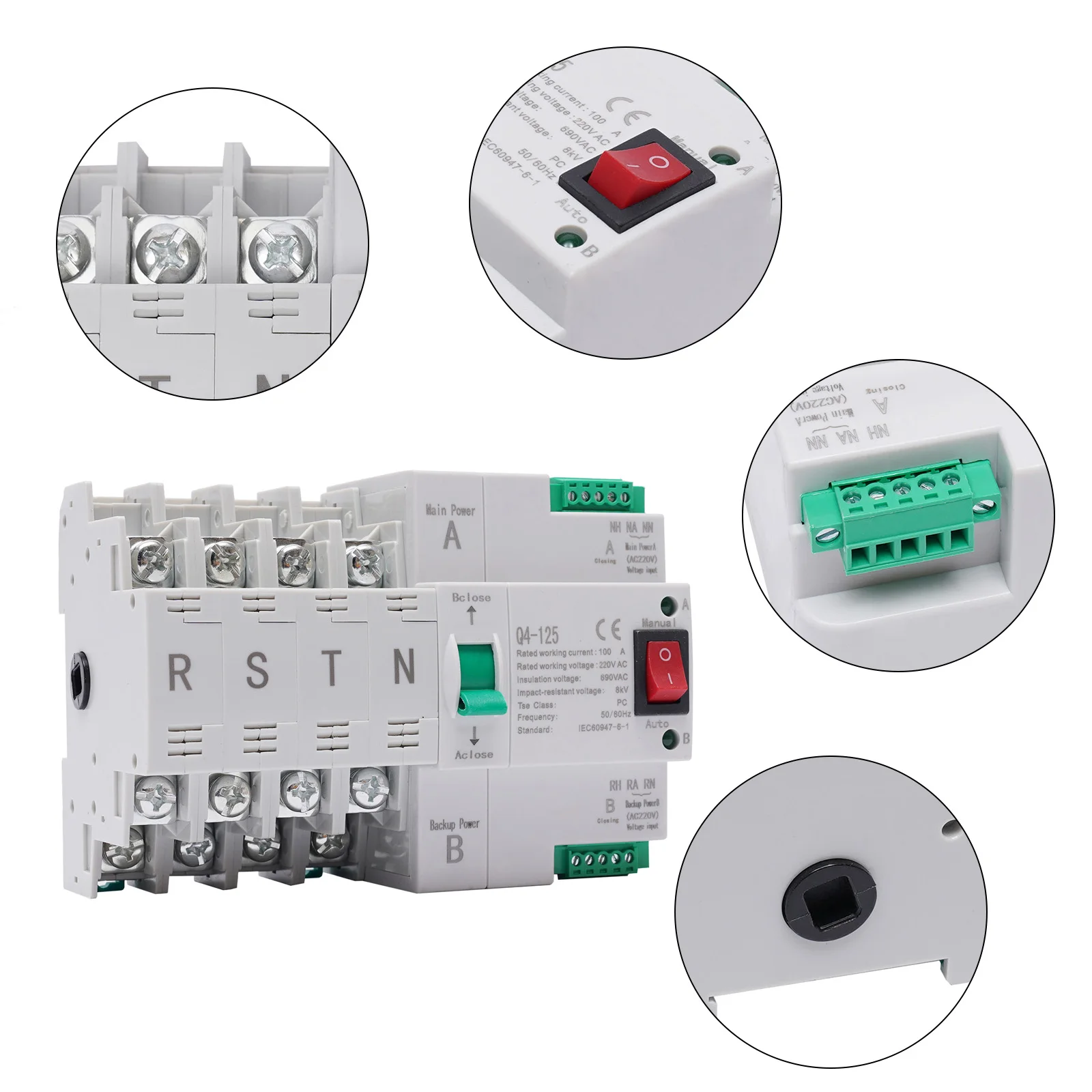

Details

One-touch Switch: It can facilitate you to switch the product on and off.

Round Edges: Smooth edges are not only comfortable to the touch, but also enhance safety in use.

Wiring Terminals: They are treated with tin plating, which have good conductivity, and are very easy to wire.

Application

It can be used in elevators, firefighting, monitoring, banking, industrial automation, meters, street lights, solar energy, inverters, UPS.

Package Included

1* Dual Power Transfer Switch
1* English User Manual

Notes

1.When a power supply fails (test normal A-phase voltage and standby A-phase voltage only, and test for loss of voltage or phase only), one or more load circuits from one power supply are automatically connected to the other power supply to ensure that the load circuits are properly powered.
2.Please do not install a switch with earth leakage protection above the product. If required, mount it below.
3.Please note that it cannot be switched at 110V AC, but only at 220V/380V AC.
4.Please read the English manual and labels on product carefully before use and pay particular attention to the safety instructions contained therein.
5.Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
