0.25KW 3 Inch Deep Well Pump Screw Pump Stainless Steel Submersible Water Pump Electric with 20m Cable, 1600L/H 2850RPM 220-240V

304 Stainless Steel Deep Well Water Pump 80m/262ft High Lift, 1" Outlet Deep Well Pump, 0.25KW Submersible Motor with IP68 Protection, 220-240V EU Plug Electric Screw Pump 1600L/H Flow Rate for Home Farm Garden Industrial Agriculture Irrigation Use - Quiet 20dB, Anti-Corrosion & Anti-Clog Design (7.5*52cm)

Designed with superior craftsmanship and advanced technology, our deep well water pump is made of high-quality material that can withstand high pressure and long-term stable operation in harsh environments. It can provide continuous and stable output of water with high head. Equipped with a high-efficiency motor, it realizes low energy consumption and high-efficiency energy conversion. It is designed to meet the diverse requirements of various types of deep well water extraction, agricultural irrigation, industrial water supply and fire water supply.

Key features

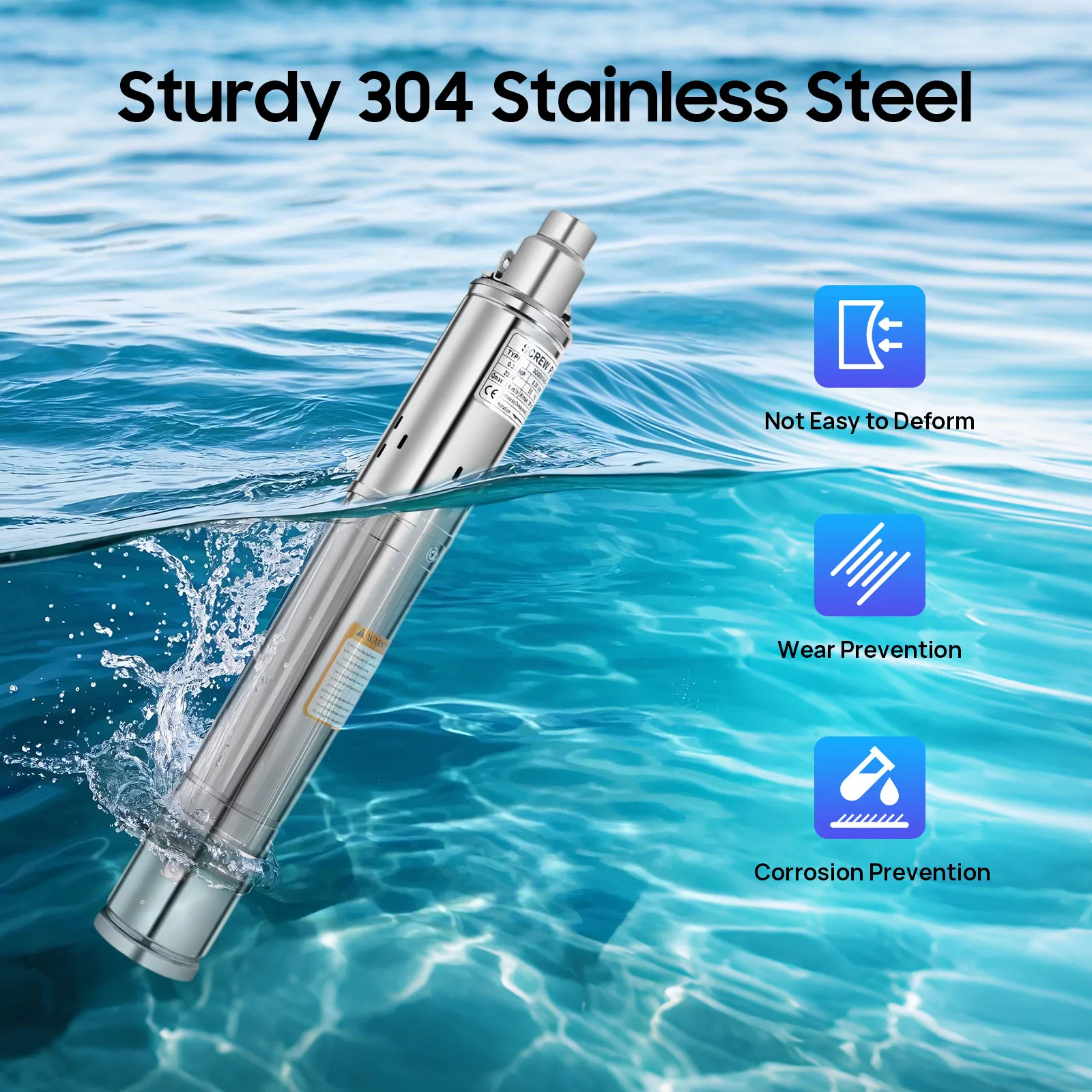

Sturdy and durable: The product is made of high quality 304 stainless steel, with polishing technology, with high strength, wear resistance, excellent waterproof properties and long service life.

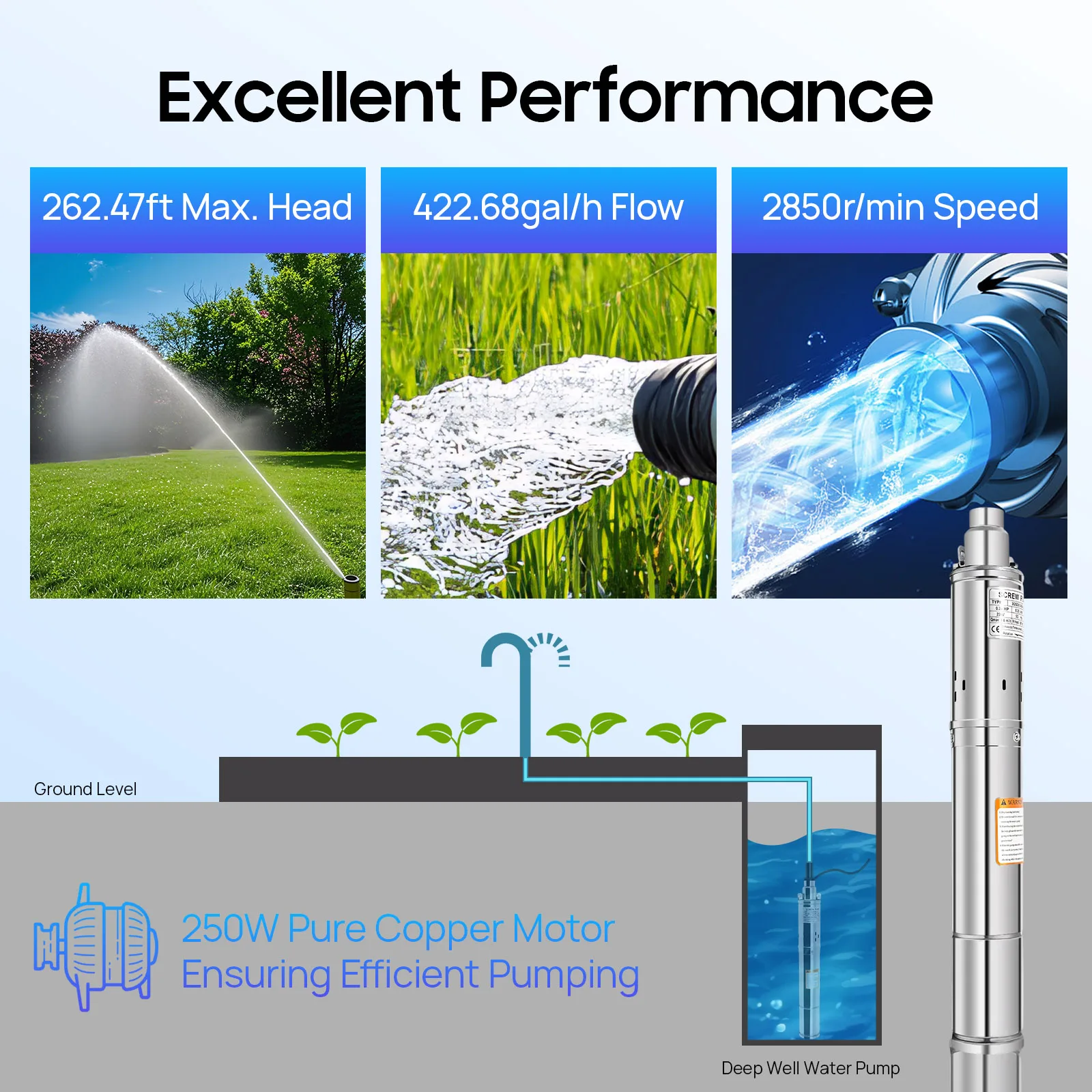

High efficiency: The 250W solid copper motor pumps water quickly at 2,850 rpm, which enables it to pump up to 262.47 ft of groundwater in a short time and increase your productivity.

Safe and reliable: The IP68 waterproof rating and automatic pump stop to protect against overheating prevent damage to the machine if it overheats, helping to extend its service life.

Good sealing performance: The standard thread and integrated structure ensure excellent sealing performance, allowing the machine to work efficiently and quietly.

Excellent performance: It has a high-performance thermoplastic impeller that provides high flow (422.68 g/h) and high head (262.47 ft). The fixed rotor is made of high silicon steel strip with high dimensional accuracy. The built-in check valve, stainless steel strainer and sealed bearing effectively retain and filter out contaminants so you don't have to worry.

Sophisticated design: This product is designed to aspirate from the bottom, maximizing liquid intake and eliminating the need for an aspirating sleeve.

Quiet operation: Thanks to the high-quality motor, this product operates at a low noise level of 20 dB (the equivalent of a whisper), providing you with a quiet working environment.

Easy to use: Thanks to the simple structure, you can easily operate this machine. You only need to place the deep pump in the well and then plug it in to pump out the water.

Customer support: Our goal is to provide high quality products and services. If you have any questions, please do not hesitate to contact us. We will reply as soon as possible and solve the problem for you.

Details

Fixed pull rings: The two pairs of fixed pull rings near the water outlet allow you to attach a rope to it to easily pull it out after use.

Pagoda-shaped water outlet: It is practical for connecting pipes and saves time and labor.

Snap ring spring: The base is equipped with a high-precision steel spring that is effective against compression, impact and deformation.

Oil seal with high toughness: It can protect the stable operation of the motor in an environment with high water pressure.

Application

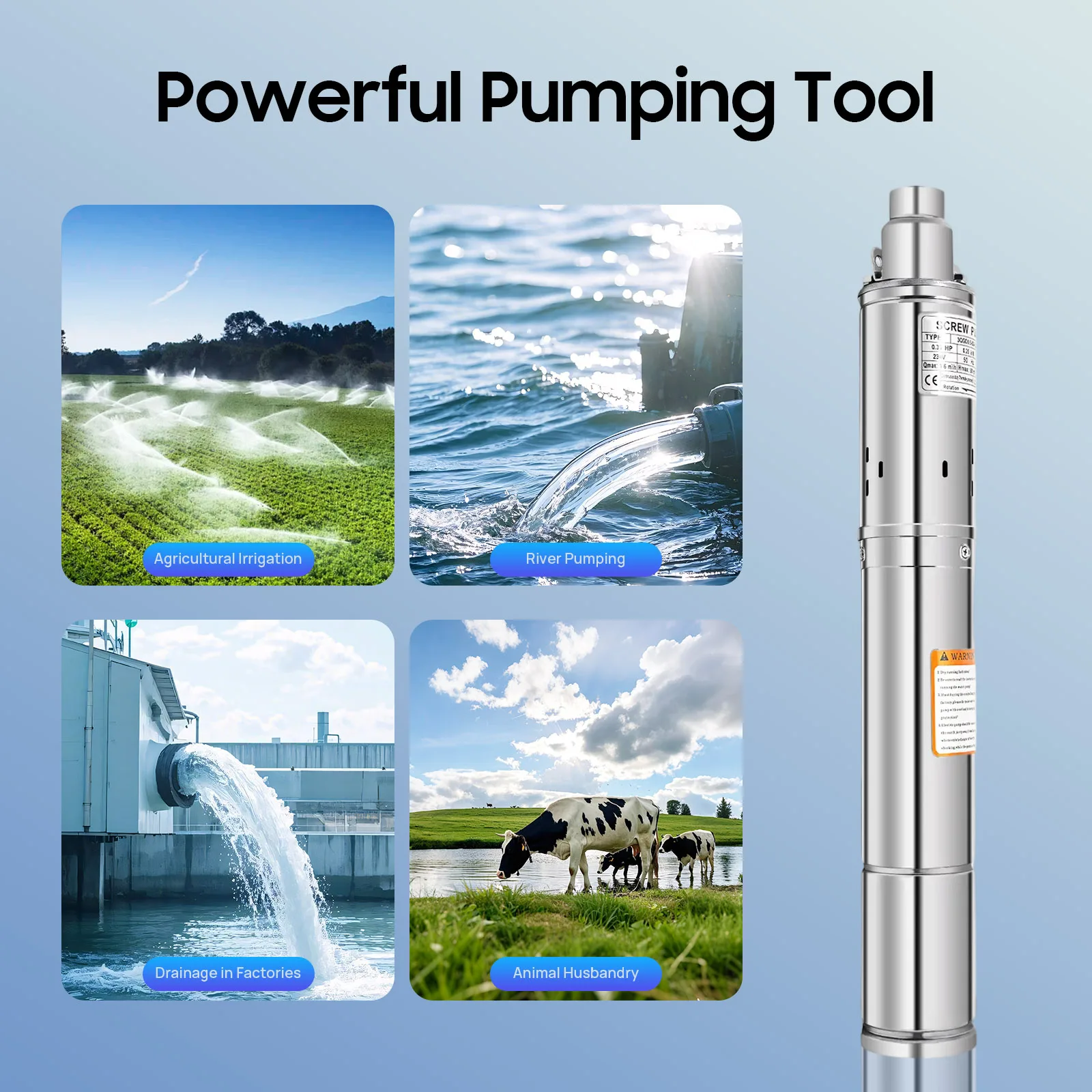

This product is suitable for extracting groundwater from deep wells, and can also be used in water lifting projects of rivers, reservoirs, canals, etc. It can be used for irrigation of farmland, water for people in mountainous areas, villages, houses, farms, mobile homes, cities, factories and railroads.

Technical data

Model: 3QGD0.5-50-0.25

Style: Modern

Color: Silver

Shape: Column-shaped

Material: 304 stainless steel

Process: Polishing

Power source: Electric with cable

Plug type: EU standard

Mounting required: Yes

Degree of protection: IP 68
Voltage: 220-240V, 50HZ
Power: 0.33HP/0.25KW
Max. Head: 80m/262.47 ft
Max. Flow rate: 1600L/422.68gal/h
Speed: 2850r/min
Cable length: 20m/65.62 ft
Number of impellers: 1
Noise: 20dB
Outlet diameter: 2.54cm/1 in
Applicable well diameter: ≥10.16cm/4 in

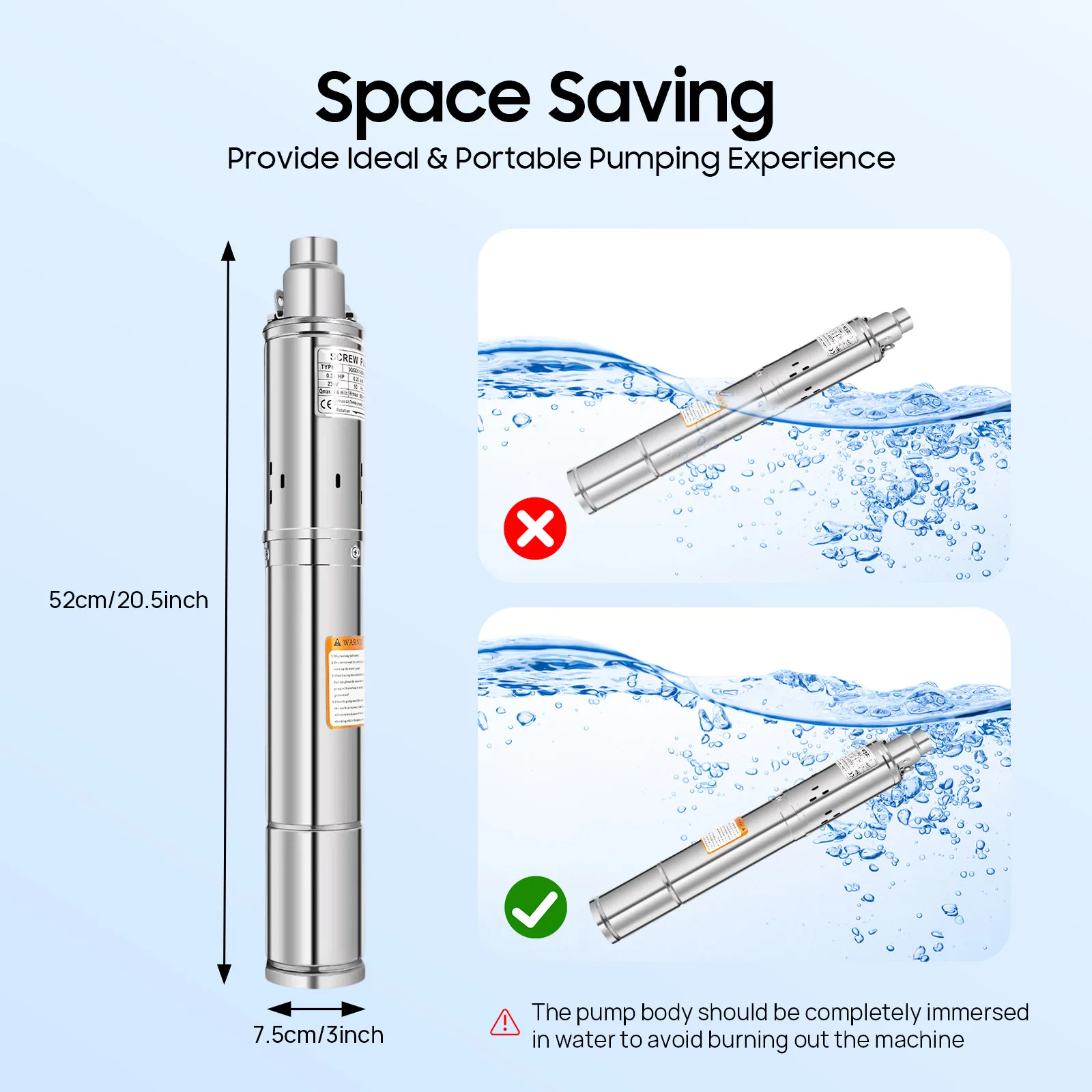

Product size (D*H): 7.5*52cm/3*20.5 in

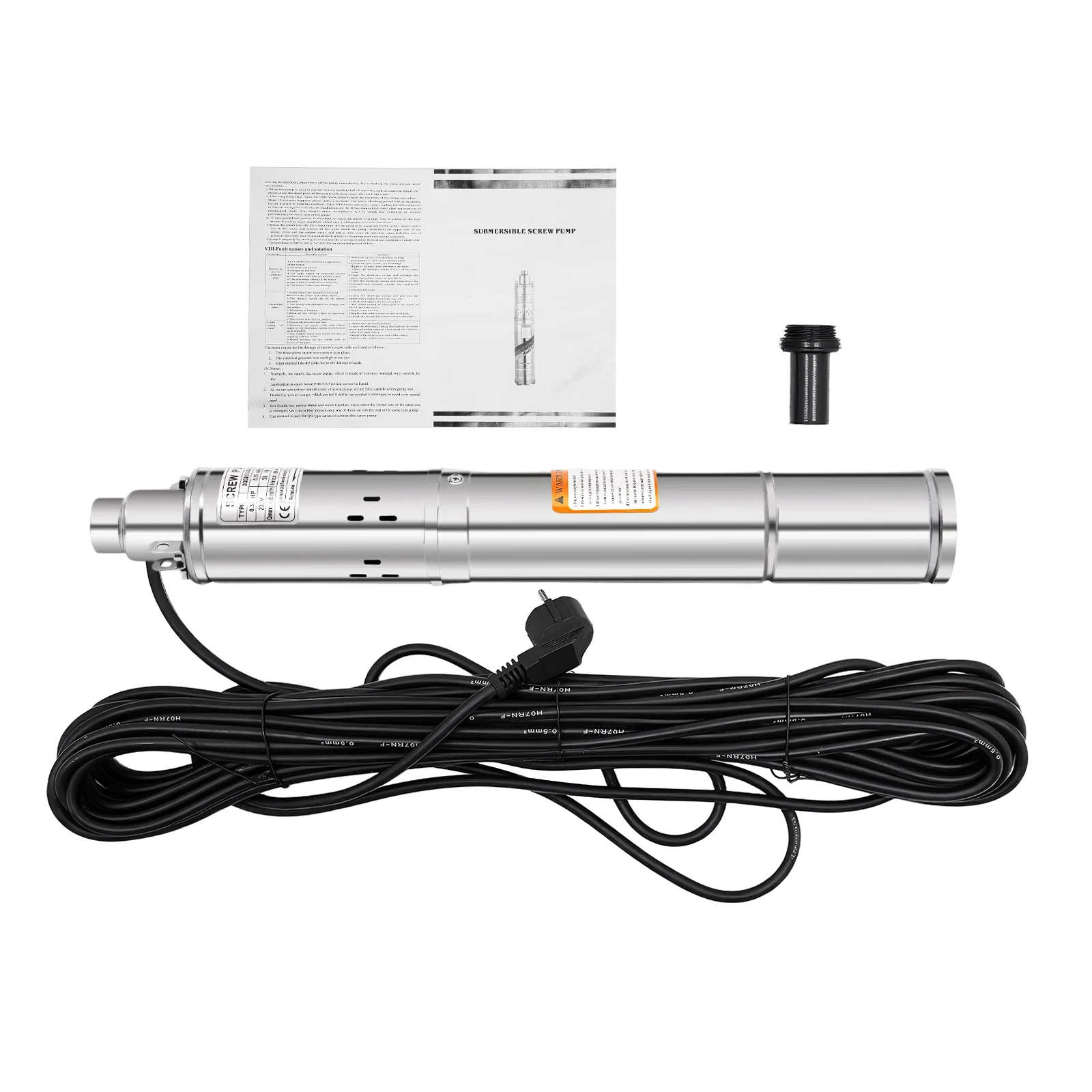

Package included
1* Deep well water pump

How is it installed?
1. wrap the adapter with PTFE tape (not included in the scope of delivery).
2 Attach the adapter to the socket.
3. attach the pump lifting cable (not included). Please note that the use of cables as lifting ropes is strictly prohibited!
4. secure with clamps (not included).
5. the installation is complete.

Notes
1 Please note that the pump must be installed vertically. Use without water is prohibited.
2. please note that the pumping speed depends on the depth at which the pump is immersed in the water and that the greater the depth, the lower the speed.
3. please note that this product is only suitable for pumping clear water, not oil, chemical raw materials and other liquids.
4. please note that for newly drilled wells with excessive particle deposits, we recommend placing a layer of gauze (not included) in front of the inlet of the filter screen.
5 Please note that the pump has a built-in non-return valve. However, this check valve is only intended to prevent water from flowing back into the pump and turning the impeller in the opposite direction; however, if the pump is to be used in a pressurized system, at least one external check valve is required in the piping.
6 Please note that touching the pump during operation is prohibited. Do not swim in water in which the pump is running and do not wash laundry to avoid electric shock. To avoid electric shock, lifting and pulling the cable is strictly prohibited. Disconnect the power supply when maintaining, moving or cleaning the electric pump.
7.please allow the slight color difference due to the shooting light and 1-3cm error due to manual measurement, and make sure you don't mind before you order.
