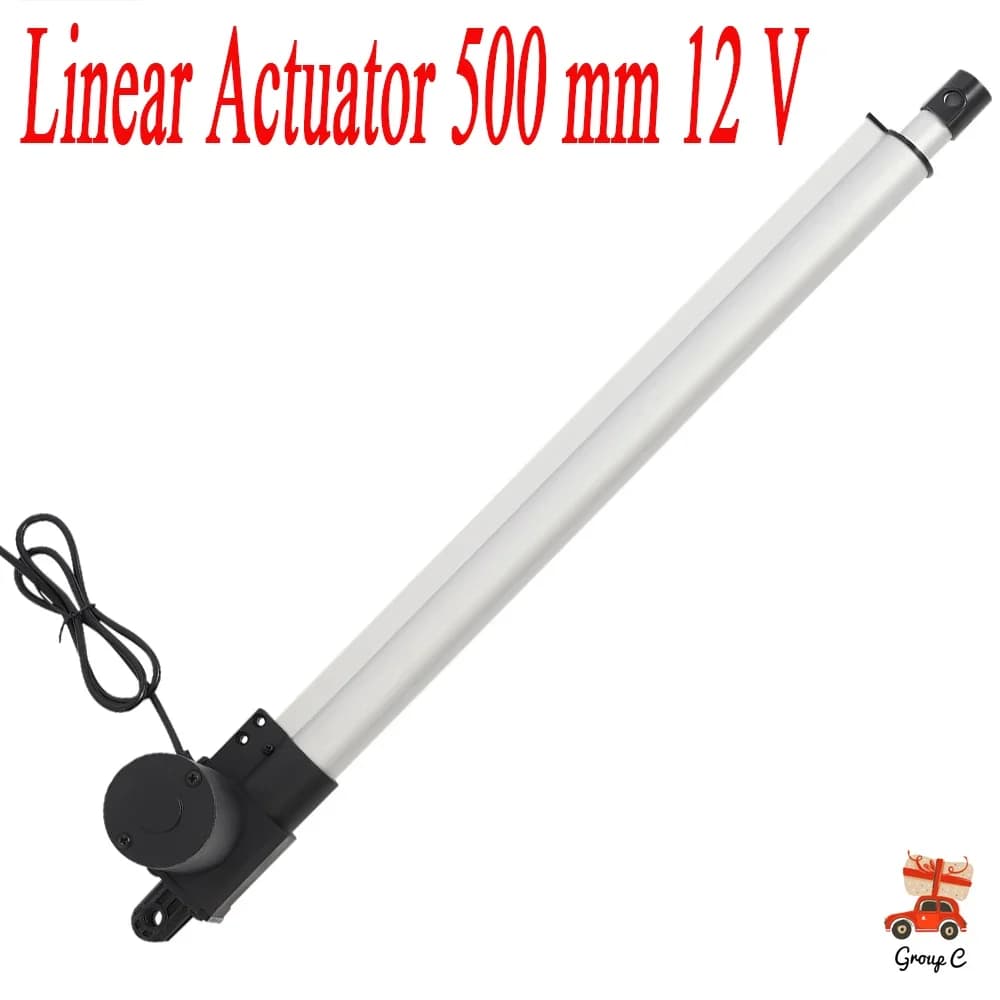

12V Linear Drive DC Linear Motor Linear Actuator 500 mm Hub Electric Motor, 600 kg Pressure, 400 kg Pull, IP44 Protection Class

Linear Actuator 12V DC500mm Specifications: l Voltage: DC12V l Standard Stroke: 5 00 Mm l Speed: 5mm/s l Maximum Push / Pull: 600kg( 60 00N) / 400kg( 40 00N) l Aluminium Outer Tube: Ø30 Mm l Aluminium Inner Tube: Ø24mm l Noise: 48db l Standard Protection Class：IP44 l Temperature: -5℃To＋50℃ Note: Please Check Before Purchasing Minimum Installation Size: 6 75mm (He Distance Between The Two Holes Before And After The Push Rod Is Fully Retracted) Fully Developed Product Dimensions: 11 75mm Net Weight:2.73kg Gross Weight:2.839kg Packages: l 1 x 5 00mm Linear Actuator l 1 x Set Of Accessories Features : l 12V DC Permanent Magnet Motor l Thrust Up To 6000 N In Push.And Up To 4000 N In Pull. l Elegant And Compact Design With Small Installation Dimensions l Built-In Limit Switches (Not Adjustable) l Steel Back Fixture l Noise Level 48 dB (A), Actuator Not Loaded. l Duty Cycle, Max 10% Or 2 Minutes Continuous Use Followed By 18minutes Not InUse. Application: Electric Nursing Bed, Operating Bed, Traction Bed, Massage Chair, Dental Chair, Electric Wheelchair, Electric Sofa, Electric Exhibition Stand, Electric Skylight, Human Engineering Furniture And Other Occasions That Need Linear Motion Actuator Are Installed Very Conveniently, Which Are Widely Used In Medical Treatment, Fire Protection, Home Furnishing, Electr ic Mechanical, Chemical Industry, Sanitary Ware, Leisure And Other Fields.
