Intercooler Turbo Cooler for Mercedes-Benz Sprinter 1500 2500 3500 9065010201

Application:

For Mercedes-Benz Sprinter 1500 2019-2019 L4 2.0L All Body StyleTo 10/26/2018; USA BUILT

For Mercedes-Benz Sprinter 1500 2019-2019 L4 2.0L All Body StyleTo 11/30/2018; Germany Built

For Mercedes-Benz Sprinter 2500 2014-2017 L4 2.1L All Body Style

For Mercedes-Benz Sprinter 2500 2019-2019 L4 2.0L All Body StyleTo 10/26/2018; USA BUILT

For Mercedes-Benz Sprinter 2500 2019-2019 L4 2.0L All Body StyleTo 11/30/2018; Germany Built

For Mercedes-Benz Sprinter 2500 2021-2022 L4 2.1L Extended Cargo Van

For Mercedes-Benz Sprinter 2500 2021-2022 L4 2.1L Standard Cargo Van

For Mercedes-Benz Sprinter 2500 2021-2022 V6 3.0L Extended Cargo Van

For Mercedes-Benz Sprinter 2500 2021-2022 V6 3.0L Standard Cargo Van

For Mercedes-Benz Sprinter 3500 2014-2017 L4 2.1L All Body Style

For Mercedes-Benz Sprinter 3500 2021-2022 L4 2.1L Extended Cargo Van

For Mercedes-Benz Sprinter 3500 2021-2022 L4 2.1L Standard Cargo Van

For Mercedes-Benz Sprinter 3500 2021-2022 V6 3.0L Extended Cargo Van

For Mercedes-Benz Sprinter 3500 2021-2022 V6 3.0L Standard Cargo Van

For Mercedes-Benz Sprinter 3500XD 2021-2022 L4 2.1L All Body Style

For Mercedes-Benz Sprinter 3500XD 2021-2022 V6 3.0L All Body Style

Note:

For Mercedes-Benz Sprinter 1500 & Sprinter 2500 2019 Fits Germany Built; To 11/30/2018

For Sprinter 1500 & 2500 2019 Fit USA Built To 10/26/2018

Part Number:

9065010201, A9065010201, 2E0145804A

Specification:

Type: Intercooler

Material: Aluminum, Plastic

Cooling Type: Air-cooled

Engine Type: Turbocharged

Core Height (IN): 7.99"

Core Length (IN): 25.2"

Core Thickness (IN): 2.52"

Inlet Diameter (IN): 2.20"

Outlet Diameter (IN): 2.20"

Top Header: 3.31" x 8.43"

Bottom Header: 3.31" x 8.43"

Condition: 100% Brand New

Warranty: 2 Years for any manufacture defects

Features:

1. Helps to reduce the intake air temperature of the engine.

2. Rugged aluminum core ensures durability while providing excellent heat transfer performance.

3. Compact tube and fin structure ensures better air flow and larger surfaces for increased heat exchange and improved heat dissipation efficiency.

4. Plastic tank is equipped with reinforced inner crossbars, reinforced inlets and outlets, and specially designed side panels to resist the stresses caused by high temperatures and mechanical tension.

5. Perfect fit and easy installation.

Installation Notes:

1. Align the installation holes with the fixed positions and use standard bolts for fastening.

2. When connecting the inlet and outlet ports with the engine hoses, they should be tight and there should be no air leakage.

3. Fix the pipelines and pipelines, and complete the installation.

Attention: During the installation of the intercooler, please do not damage the diffuser (fin) and damage the intercooler to ensure the heat dissipation capacity and sealing.

Package Includes:

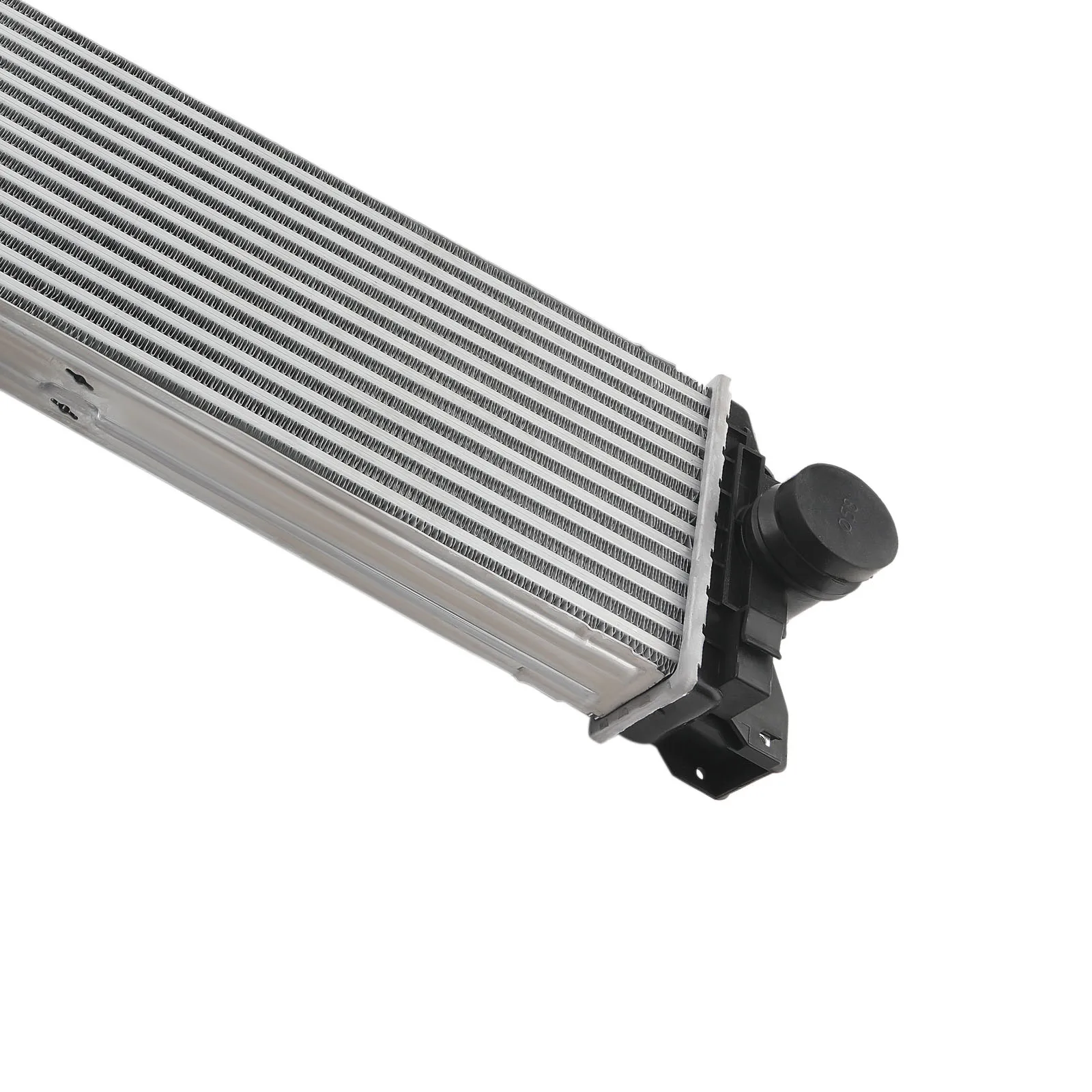

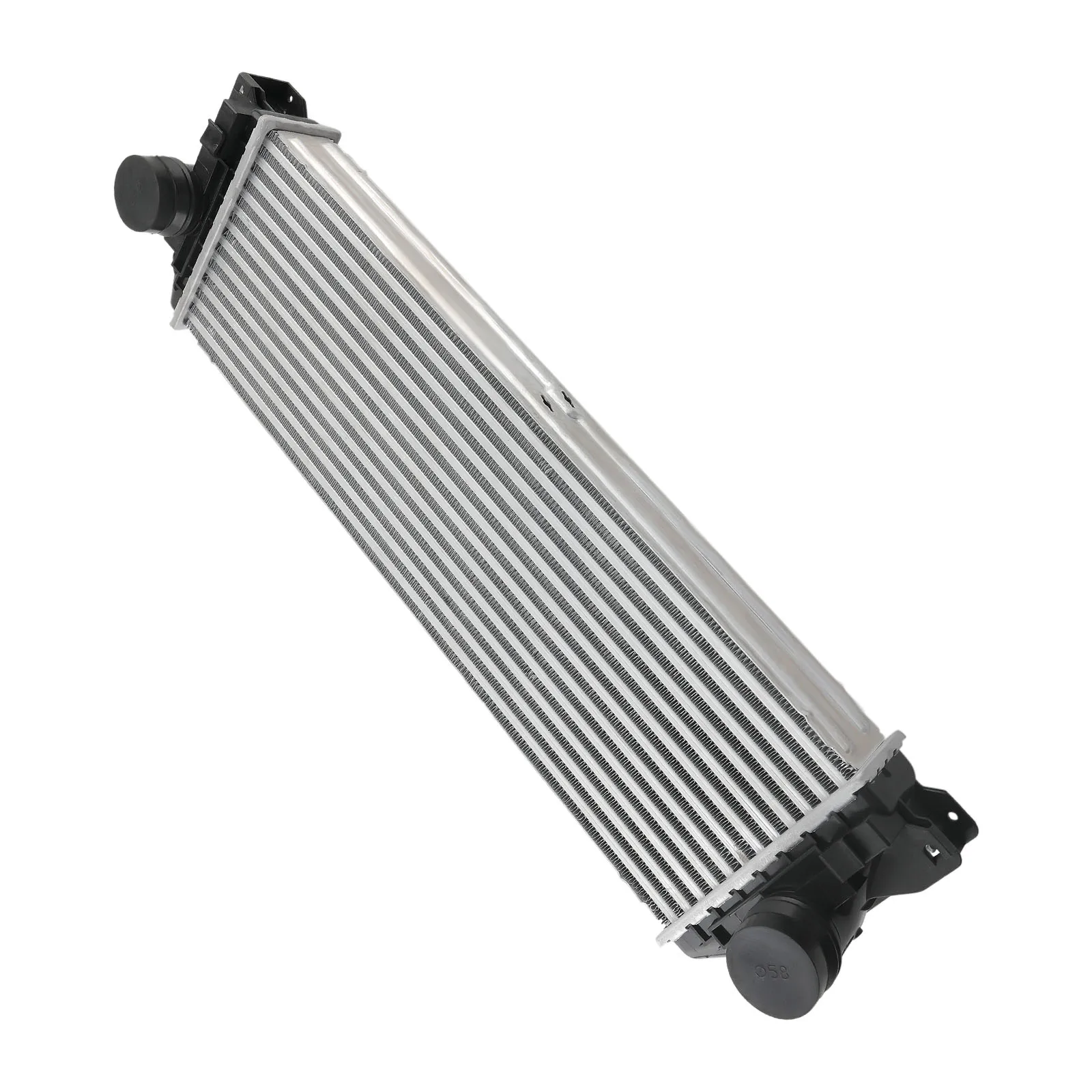

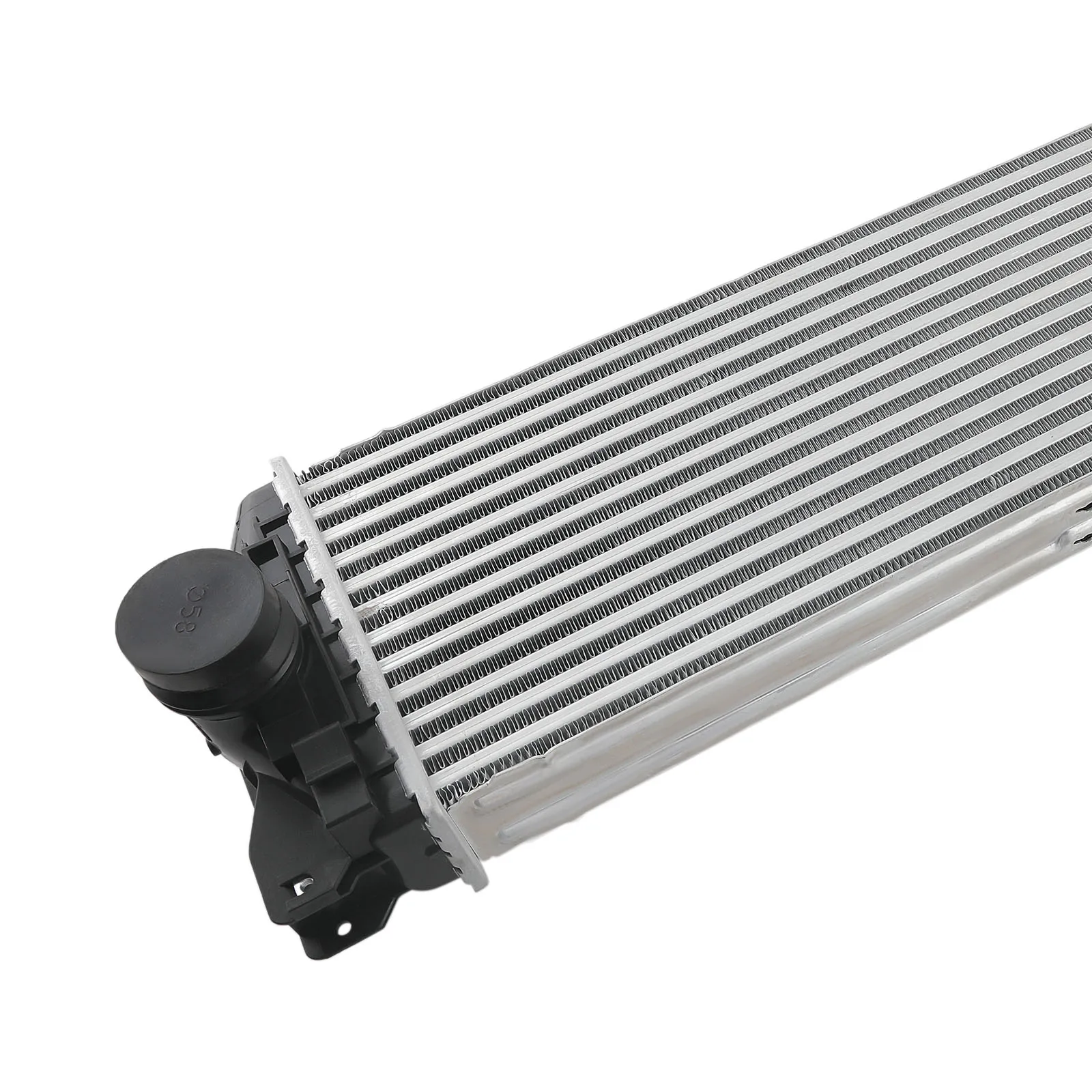

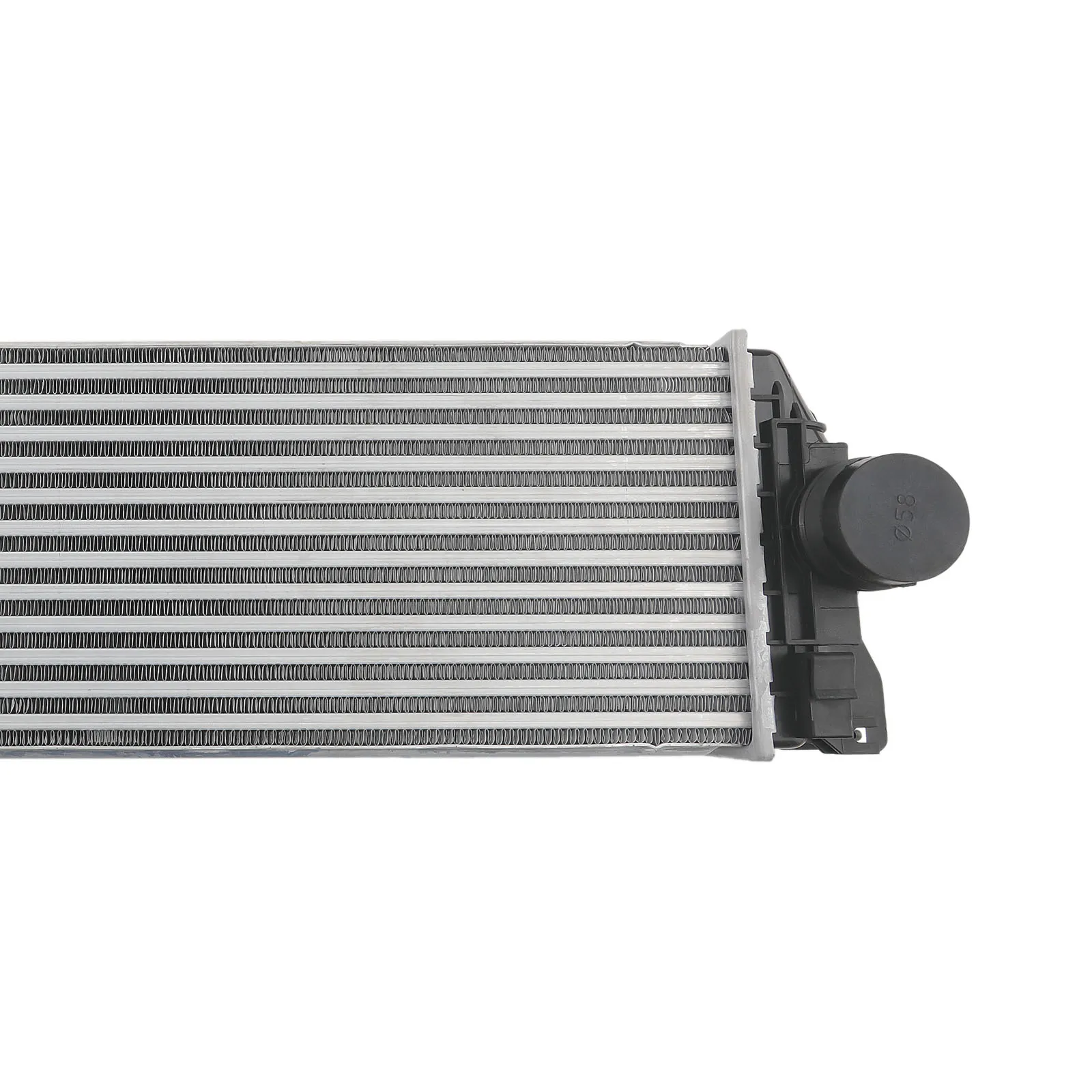

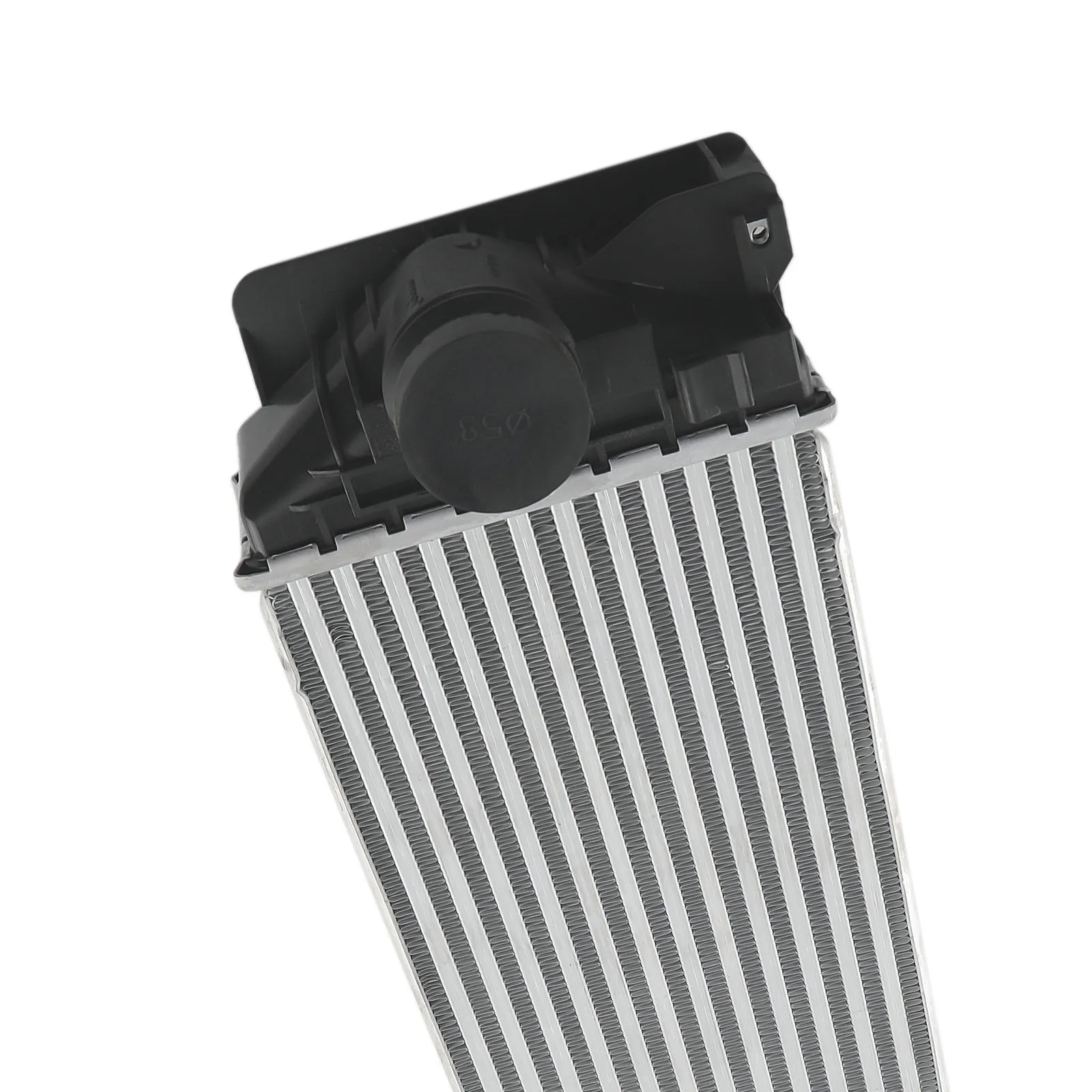

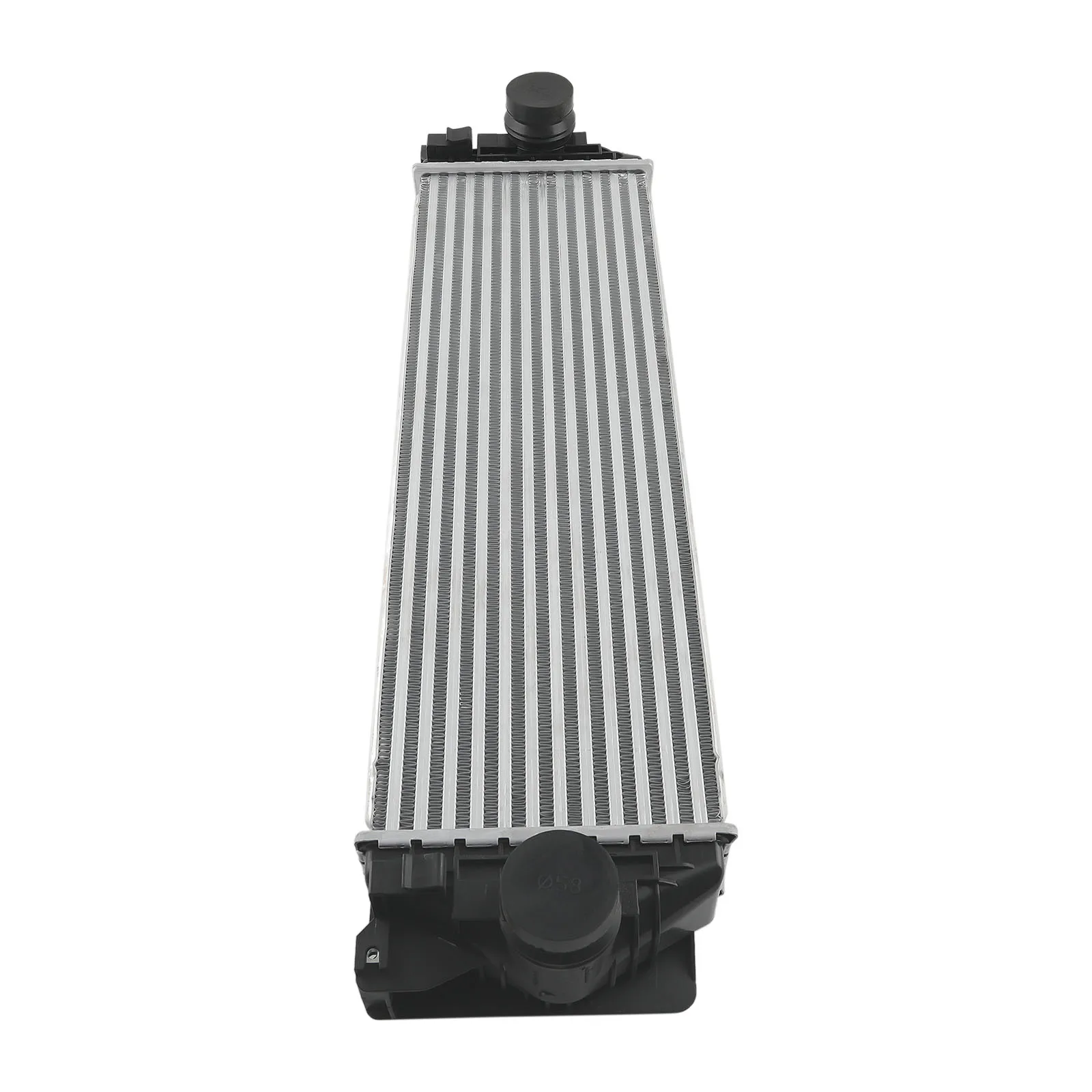

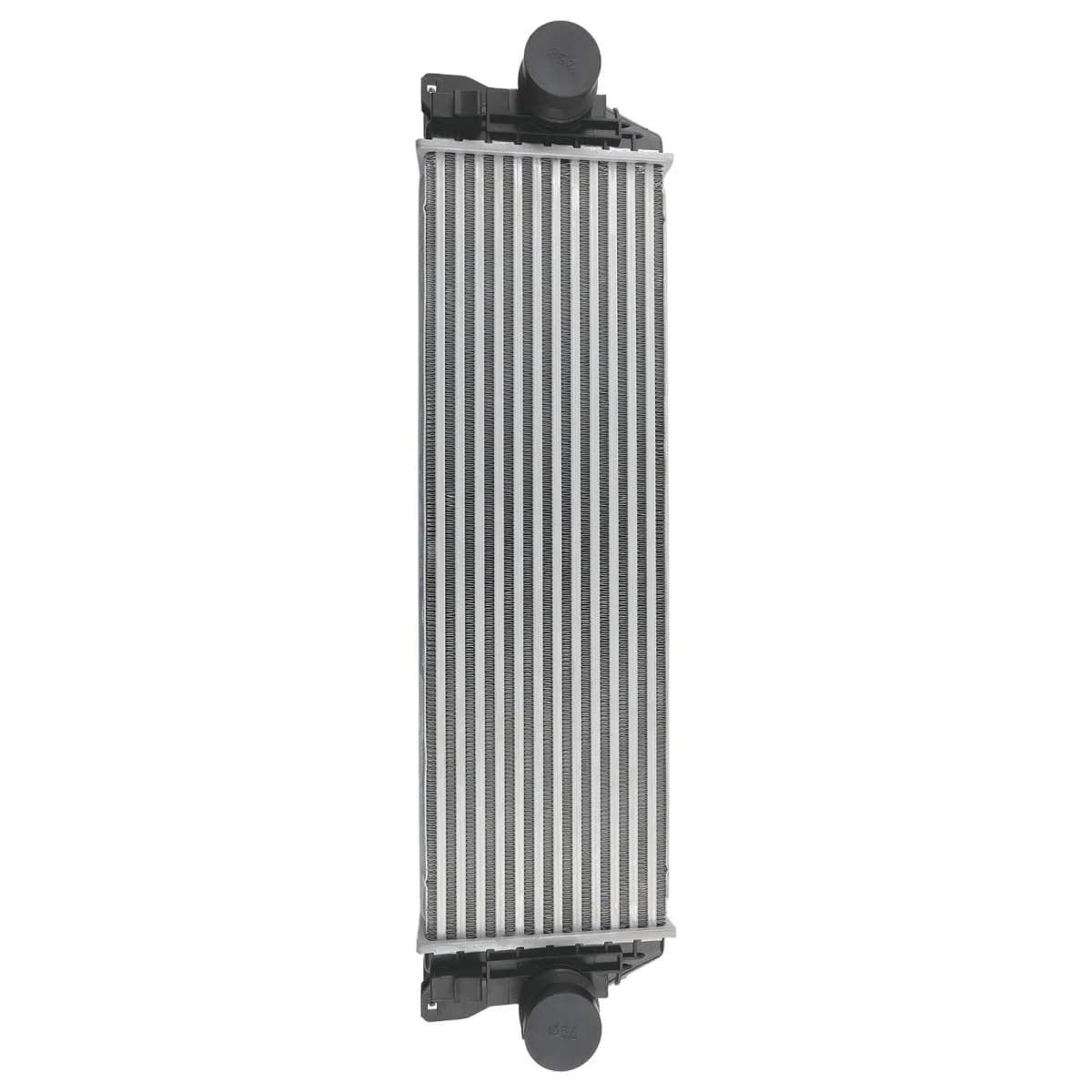

1 x Intercooler (Showing as the picture)

Notes:

*Even if your car is shown in the compatibility, pls also double check the fitment details and photos before ordering.

*No Instruction Included, professional installation is highly recommended.
