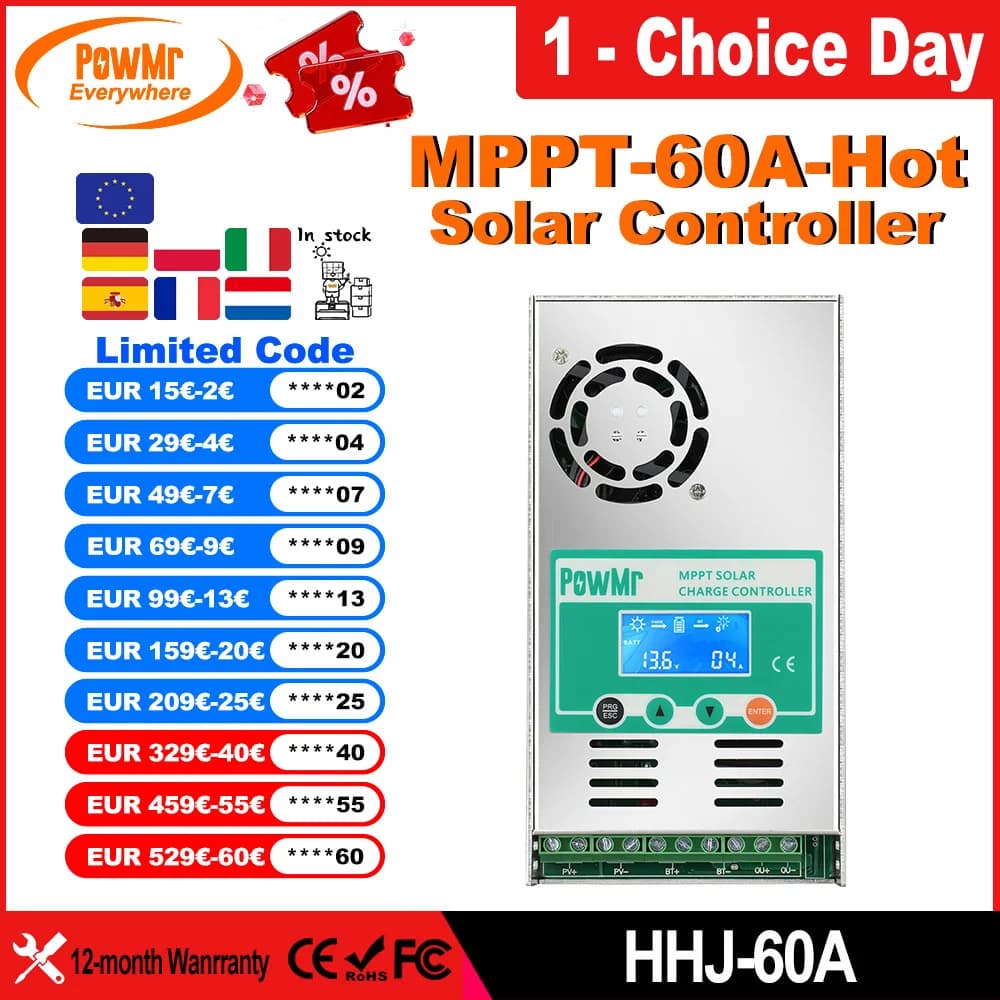

PowMr 60A MPPT Solar Charge Controller Work for 12V 24V 36V 48V Lithium Lead Acid Battery With LCD Display Max PV 160VDC Input

PowMr 60A MPPT Solar Charge Controller Work for 12V 24V 36V 48V Lithium Lead Acid Battery With LCD Display Max PV 160VDC Input

Overview:

This is a powerful and high-quality solar charger. You can charge various types of batteries and automatically identify the battery voltage. Simple operation, suitable for individuals, families, agriculture and animal husbandry.MPPT 60A This machine uses MPPT point tracking technology, MPPT series solar charge controller is based on an advanced maximum power point tracking(MPPT) technology developed,dedicated to the soalr system,the charge controller conversion efficiency up to 97%.

Featrue:

* MPPT 60A solar charge controller.

* 100% MPPT technology.

* Built-in DSP controller with high performance.

* Automatic switch for 12V/24V/36V/48Vbattery bank.

* 3-stage charging optimizes battery performance.

* Overcharge protection, Input PV polarity reverse protection, Output limited current protection, ver-temperature protection.

* Troubleshooting promotion function.

* Suitable for battery types such as sealed lead acid, vented gel and lithium battery, etc.

* Easy to be mounted.

Notes:The output terminal is for lamp only( 12V system less 60W, 24V/36V/48V system less 100W ),and it will be burnt if connecting to other loads. The output for battery is no polarity reverse protection.

Specification:

Model

HHJ-60A


Charging mode

MPPT Maximum power point tracking automatically

Charging

4-stage：constant current(MPPT), constant voltage(Absorption Voltage), floating charge, bulk charge

System type

DC12V/24V/36V/48V Recognition automatically

System voltage automatic

12V system (DC9V-DC15V) /24V system (DC18V-DC29V) /36V system (DC30V-DC39V) 48V system (DC40V~DC60V)

recognition

Soft start time

≤1S

Dynamic response and recovery time

100us

Max efficiency

≥98.1% (Voc is 1.5 or 2 times than battery, then it’s best efficiency)

PV utilization

≥99%

Input specification

Voc from PV( Make sure the Voc of PV meeting the requirement as right. Voc is 1.5 or 2 times than battery, then it’s best efficiency. )

12V system (DC20V~DC80V) 24V system (DC37V~DC105V)

36V system (DC50V~DC160V) 48V system (DC72V~DC160V)

maximum PV input voltage (Voc)

160VDC

The maximum PV input power

12V system (720W)

(The total power rated of PV can’t be over this watt that will break the controller.)

24V system (1440W)

36V system (2100W)

48V system (2800W)

Output specification

Selectable battery type(default is Sealed)

Vented/ Sealed / Gel / NiCd / Lithium battery(defined voltage for other battery by user)

Absorption Charging Voltage

Refer to Batteries charging reference

Floating Charging Voltage

Refer to Batteries charging reference

Overcharging protection voltage

12V system (15V) 24V system (30V) 36V system (45V) 48V system (60V)

Rated output current

60A

Temperature Coefficient

±0.02%/ centi-degree

Automatic temperature compensation

14.2V-（Max temperature-25 centi-degree）*0.3

Output voltage ripple-peak

100mV

Output voltage accuracy

≤±1%

Indicating

LCD display

See LCD display instruction

LED display

CPU working indicator

Protection function

Output over-voltage protection

See output specification

Input Anti-intrusion protection

yes

Temperature Protection

75 centi-degree

Temperature increased protection

Output power will reduce when it’s more 70
