Diesel Transfer Pump 550W 60L/Min 2800RPM Self Priming Fuel Pump with Flow Meter Nozzle for Vehicle Workshop Farm Tractor Refueling

Specifications

Material: Cast Iron, Copper, Steel, Cast Aluminum, PVC
Surface Treatment: Electroplating, Oxidation
Color: Red, Black
Style: ‎Piston
Instrument Unit: Liter
Motor Power: 550W
Voltage: 220V/60Hz
Max. Lift: 10m/32.8ft
Max. Suction: 5m/16.4ft
Accuracy: ± 1%
Speed: 2800rpm
Max Flow Rate of Pump: 60L/min
Max Operating Pressure: 50psi/3.5bar
Inlet Pipe Length: 2.06m/6.75ft
Outlet Pipe Length: 4.08m/13.38ft
Power Cord Length: 1.36m/4.46ft
Flow Meter Size(L*W*H): 14*14*8.5cm/5.51*5.51*3.34in
Gross Weight: 17.8kg/39.24lbs
Net Weight: 16.9kg/37.26lbs
Product Size: 30.5*20.5*34cm/12*8*13.38in
Package Size: 35*33*38.5cm/13.78*13*15.16in

Application

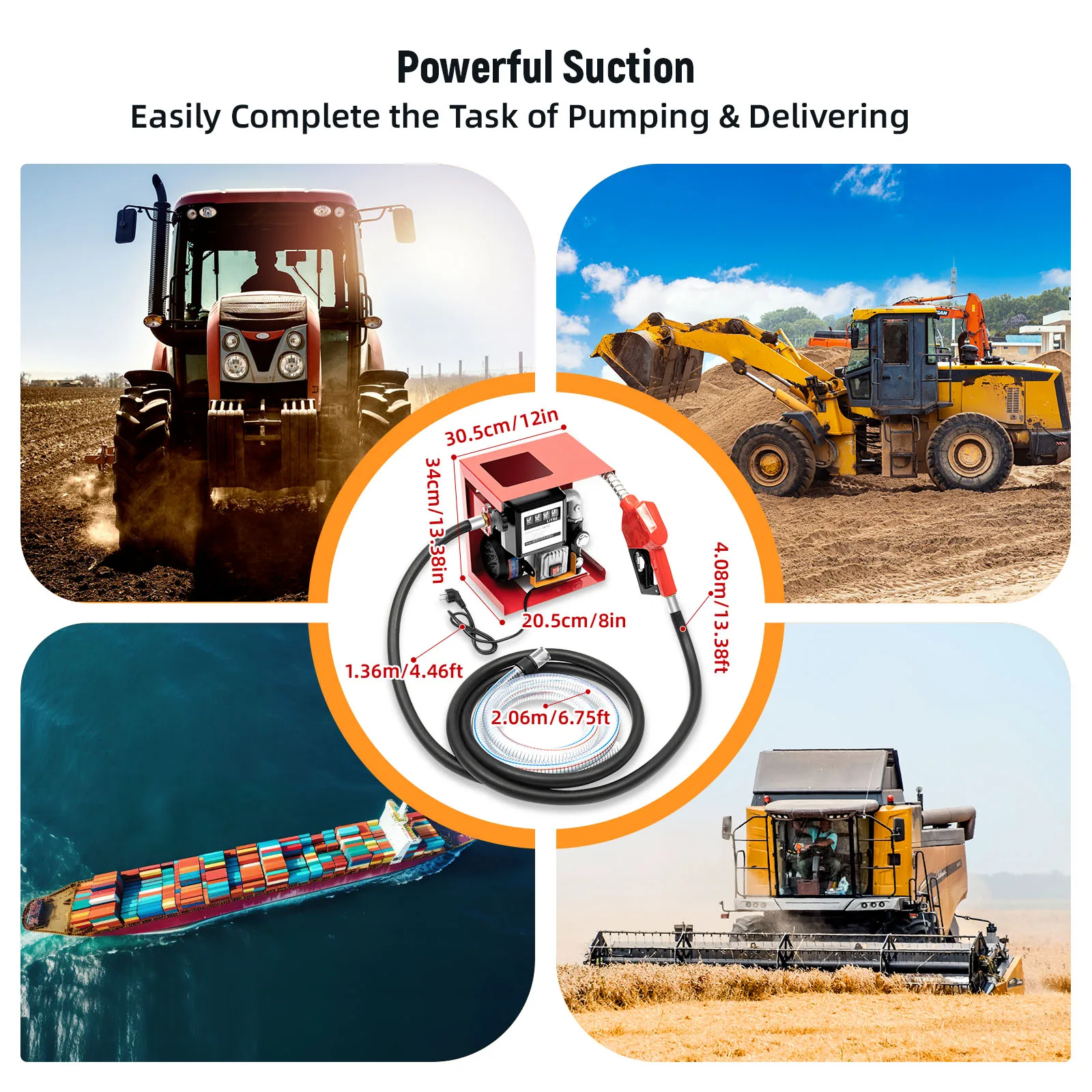

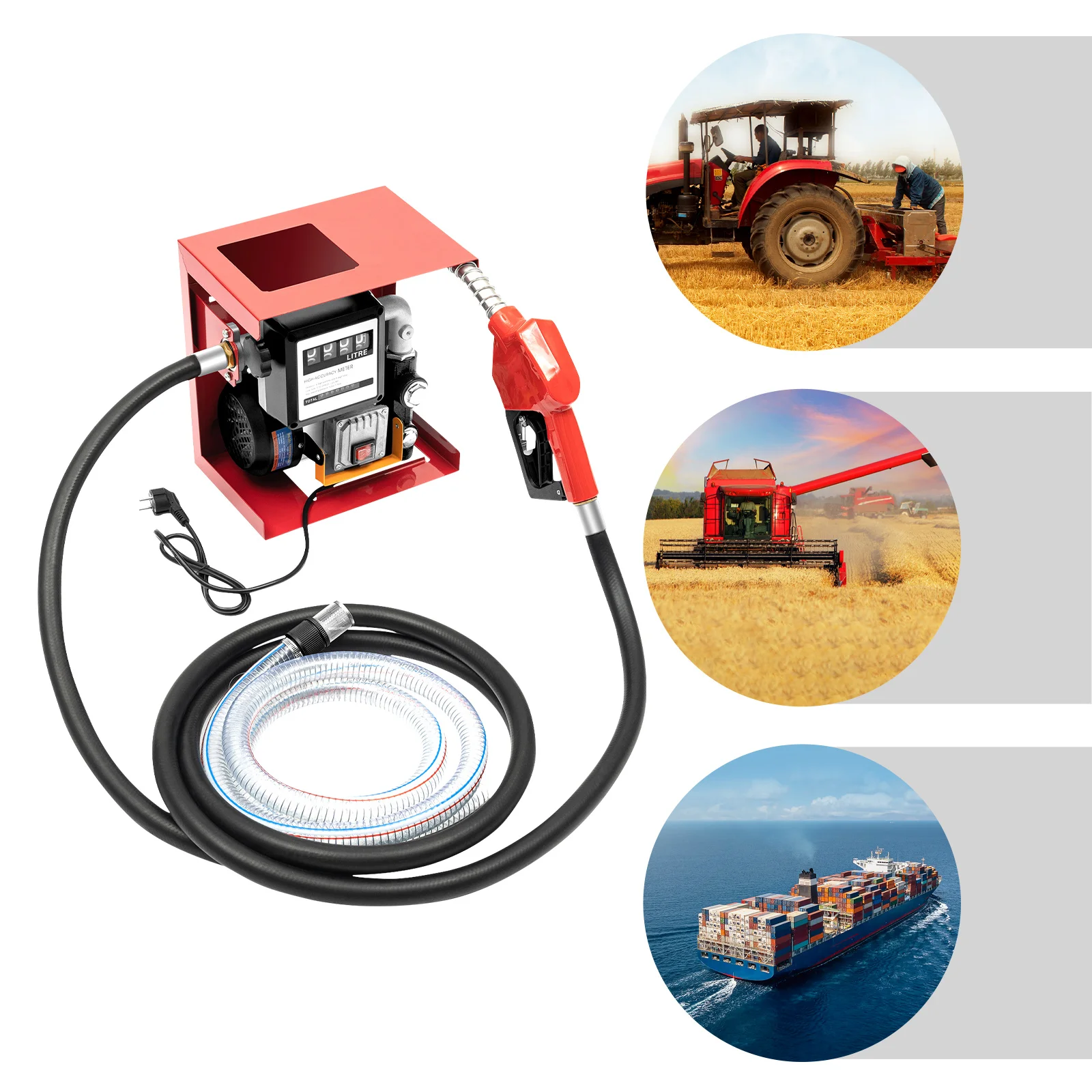

It can be used to pump diesel for automobiles, farms, cargo ships, tractors, excavators, bulldozers, rollers, cement mixers, elevators, trucks, fuel compressors, or other engineering machinery, mining machinery, and agricultural machinery.

Key Features

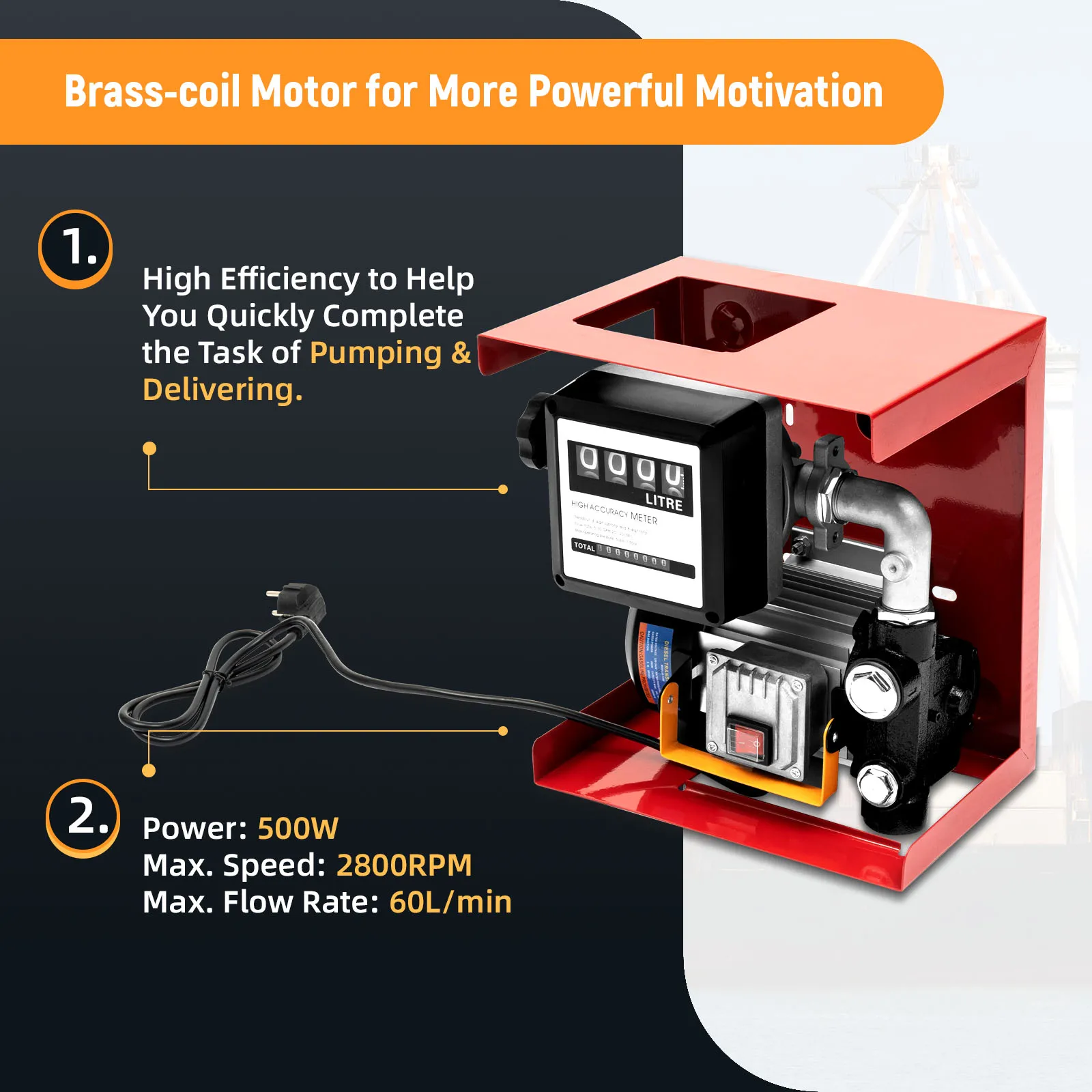

●High Flow Rate: The motor power is 550 watts and the maximum flow rate of the pump can reach 3600 liters per hour at 2800 rpm.
●Accurate Measurement: The flow meter of the diesel pump adopts a four-digit system of accurate counting, and an imported instrument inside to ensure high measurement accuracy of ±1%.
●Automatic Gun-jumping Function: This diesel pump has a nozzle with an automatic gun-jumping function, which makes the refueling process convenient, safe and reliable.
●Self-priming Function: This diesel pump can automatically suck oil, saving you time and effort.
●Anti-static and Cold-resistant Tube: The oil feed tube is made of silicone, which is anti-static, anti-hardening, and with a thick wall. It can also withstand coldness of minus 40 degrees.
●High-end Technology: The one-piece fuel dispenser assembly adopts the most advanced fueling equipment technology in China, making it sturdy and durable.
●Easy to Use: The motor pump has no separate accessories and therefore does not require assembly.

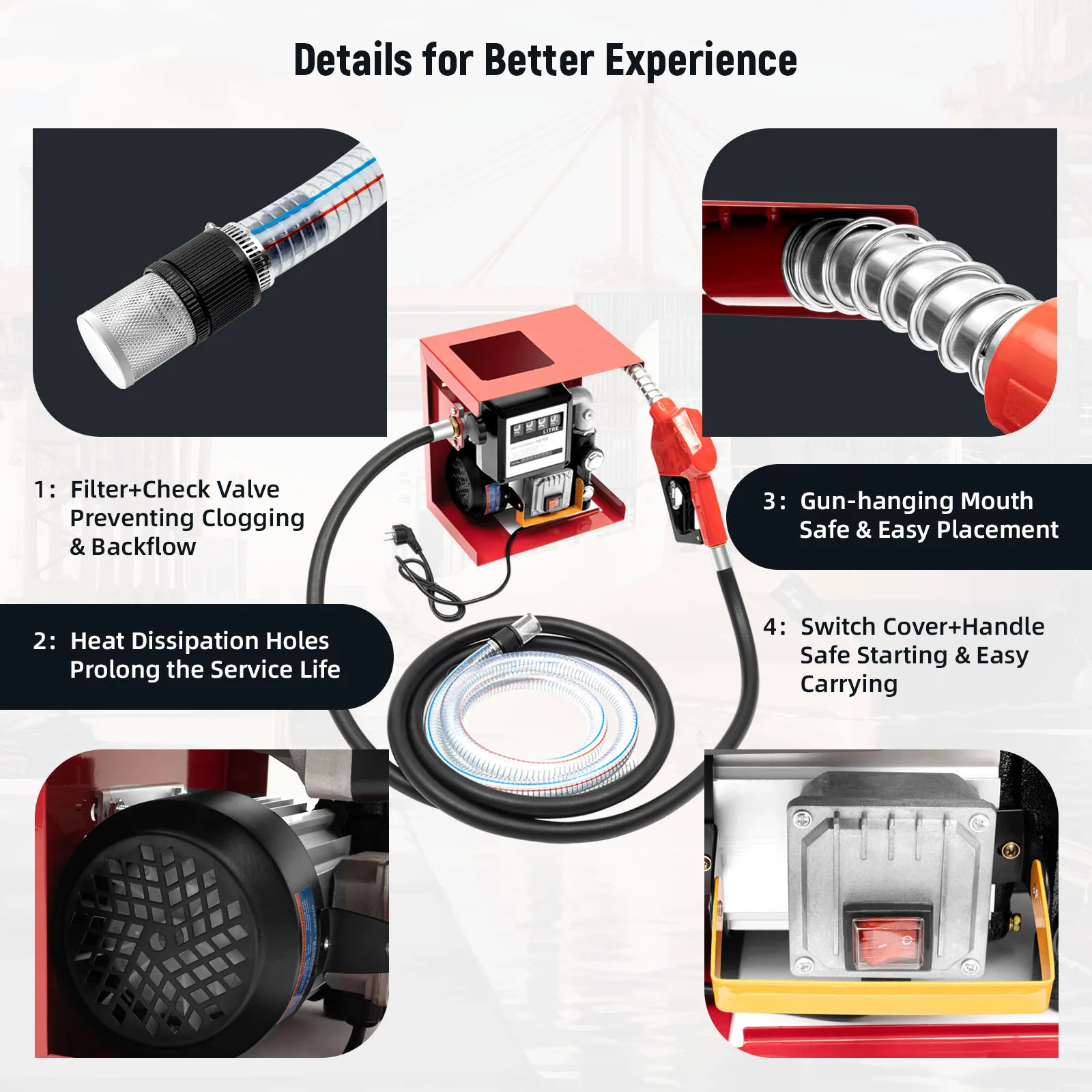

Details

Gun-hanging Mouth: It allows you to safely and easily place the oil gun during use, ensuring your safety and maintaining its lifespan.

Heat Dissipation Holes: The intensified heat dissipation holes are highly efficient so that the diesel pump does not get hot in continuous use to prolong the product's service life.

Package Included

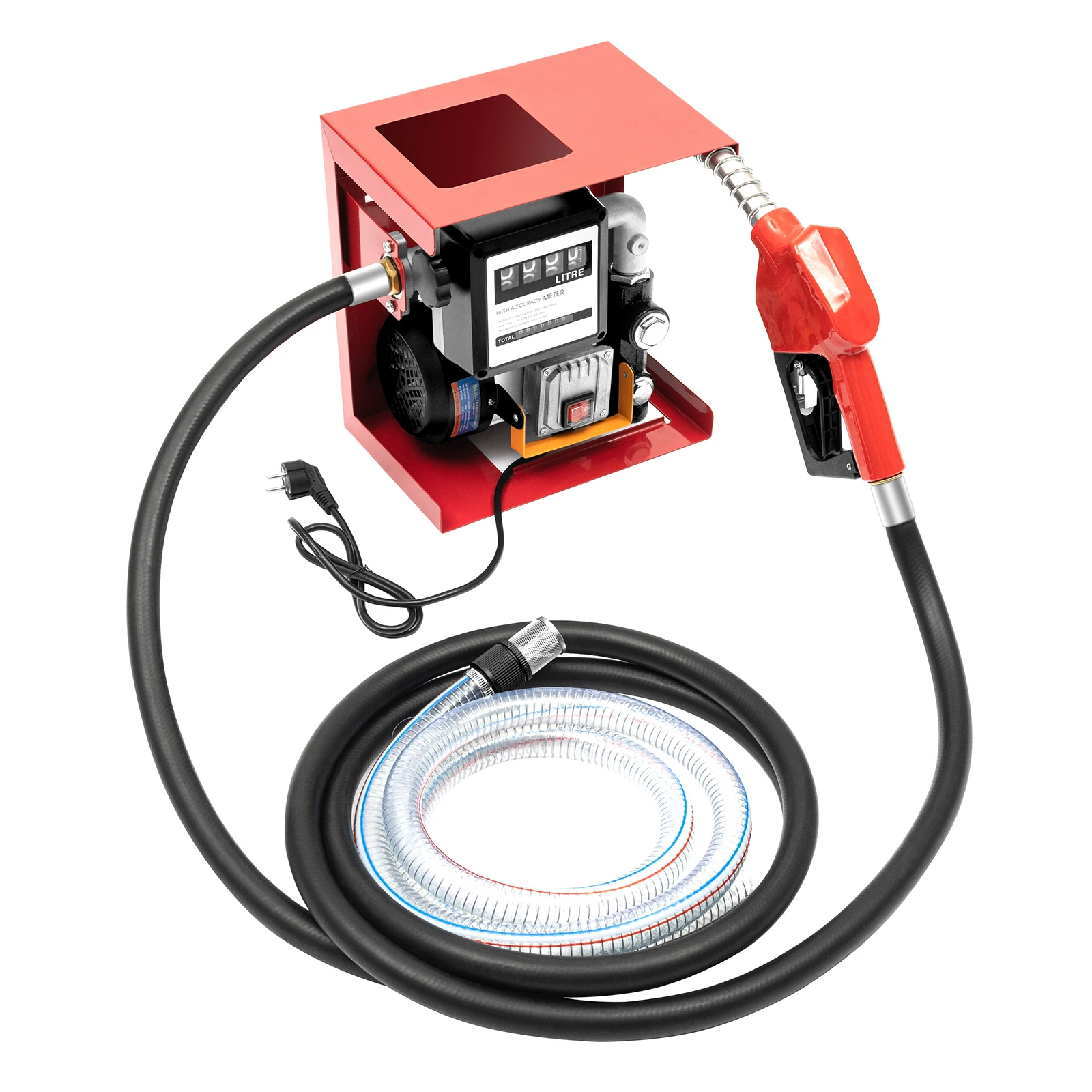

1*Diesel Transfer Pump
1*Oil Inlet Pipe
1*Oil Outlet Pipe
1*Oil Gun
All Accessories for Assembly

Notes

1.Please carefully read the manual and strictly follow the precautions to have a better experience.
2.Before using this product, please ensure that the power cables and all other equipment are in the correct working condition, and do not smoke or use this product in areas near open flames.
3.Please be careful not to move this product or remove the casing during operation.
4.Please protect the power socket of this product from water, rain, atmospheric media, and all other liquid sprays.
5.We recommend using this product between -30-40 ° C, otherwise, it may cause serious damage to the components. It is recommended to fix this product in a well-ventilated area and avoid direct sunlight.

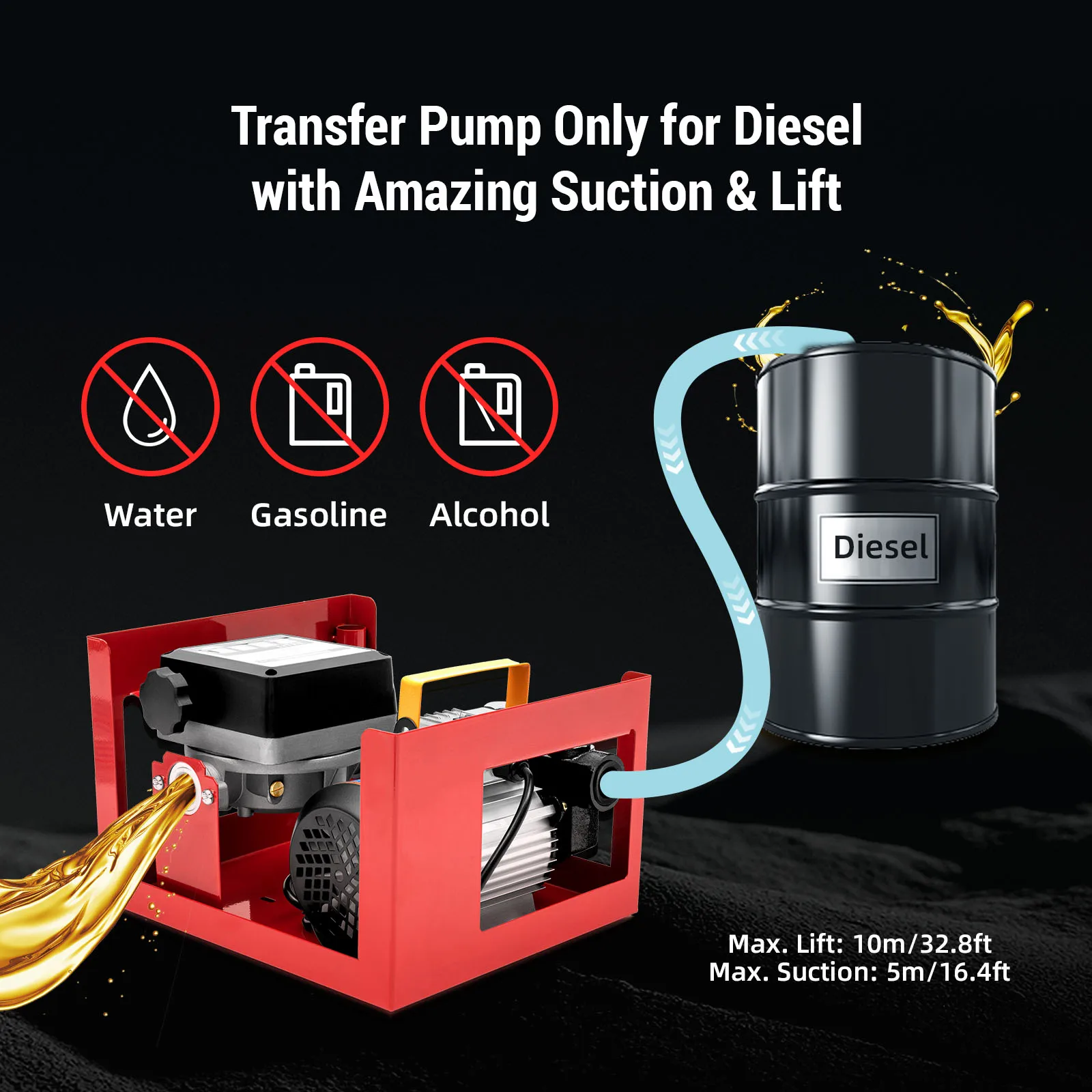

6.Please note that this product is only suitable for diesel, so gasoline, alcohol, or other liquids cannot be used in conjunction with this product.
7.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
