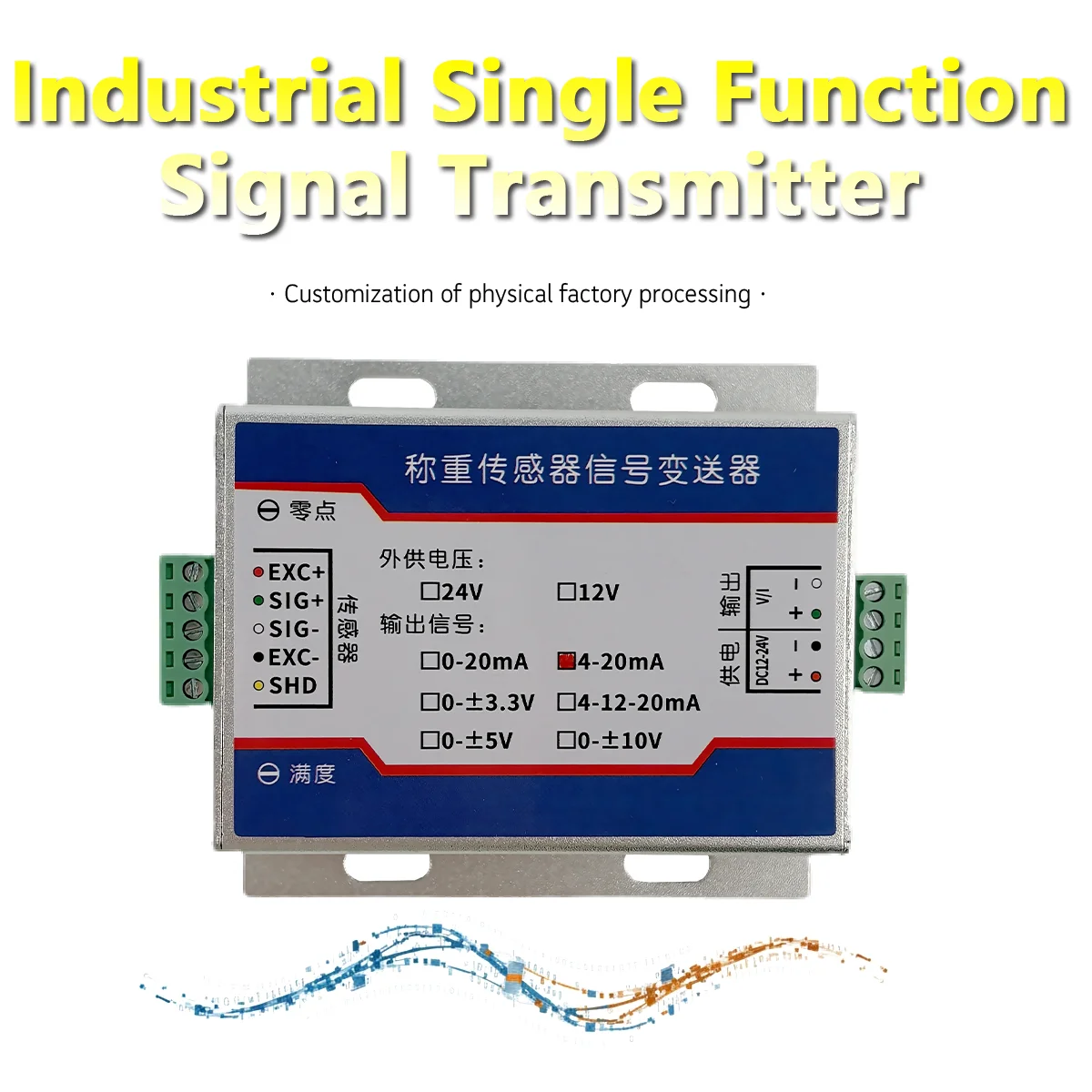

Load Cell Signal Transmitter 0-10V 4-20mA Output Strain Gauge Sensor Amplifier DC12-24V Aluminum Housing Amplifier Module

Main Features

Aluminum alloy housing, durable with strong anti-interference capability.

High-precision operational amplifier circuit with multiple filtering, ensuring excellent accuracy and stability.

Single selectable output mode (voltage or current).

Built-in high-performance DC-DC converter chip, minimizing the influence of power supply fluctuation for stable output.

Suitable for various strain gauge sensors such as load cells, force sensors, and torque sensors.

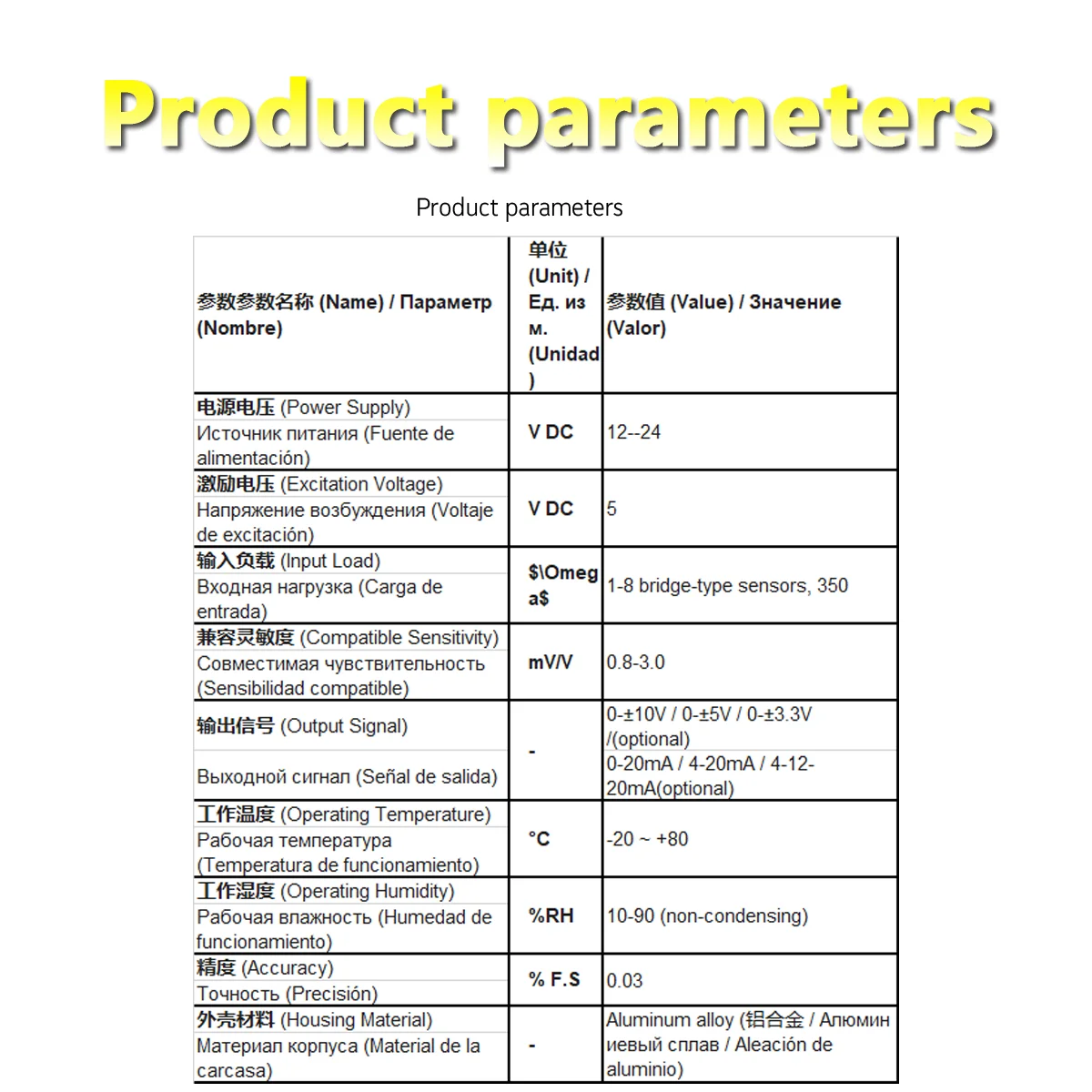

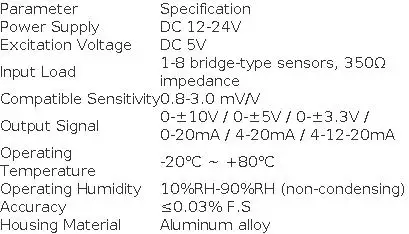

Technical Parameters

Working Voltage: DC 12–24V

Excitation Voltage: DC 5V

Input Load: 1–8 bridge-type sensors with 350Ω impedance

Supported Sensor Sensitivity: 0.8–3.0 mV/V

Output Signal (select one when ordering):

0–±10V

0–±5V

0–±3.3V

0–20mA

4–20mA

4–12–20mA

Operating Temperature Range: –20 ~ 80℃

Operating Humidity: 10%RH–90%RH (non-condensing)

Accuracy: Better than 0.03% F.S.
