S Beam S-Type Tension Compression Load Cell Dynamometer Set for Pull/Press Force Measurement, High Brightness 5-Digit Indicator

Due to the weight of small packages exceeding 2KG（4.41lb）, sensors, instruments, junction boxes, accessories, etc. can be selected separately for other ranges

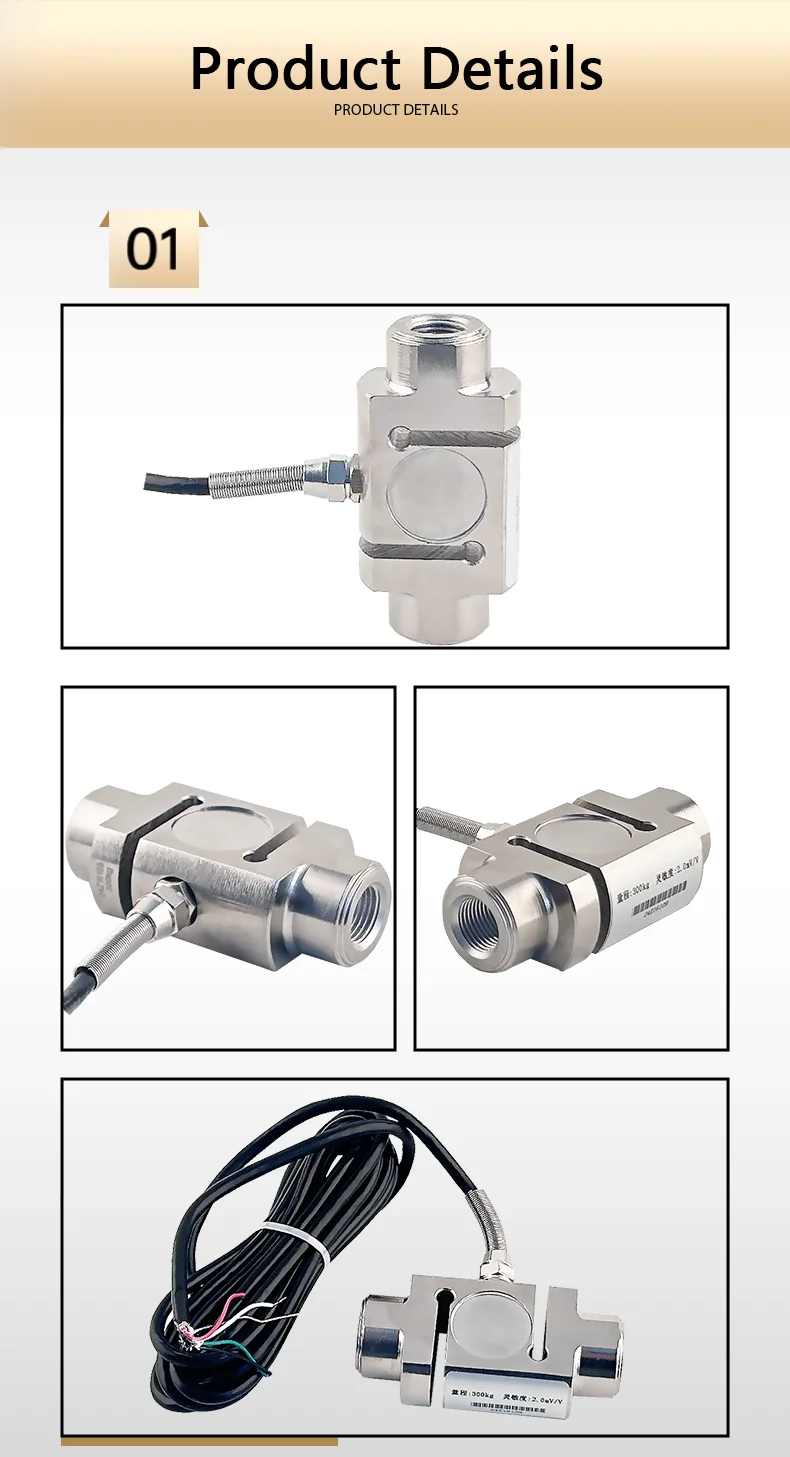

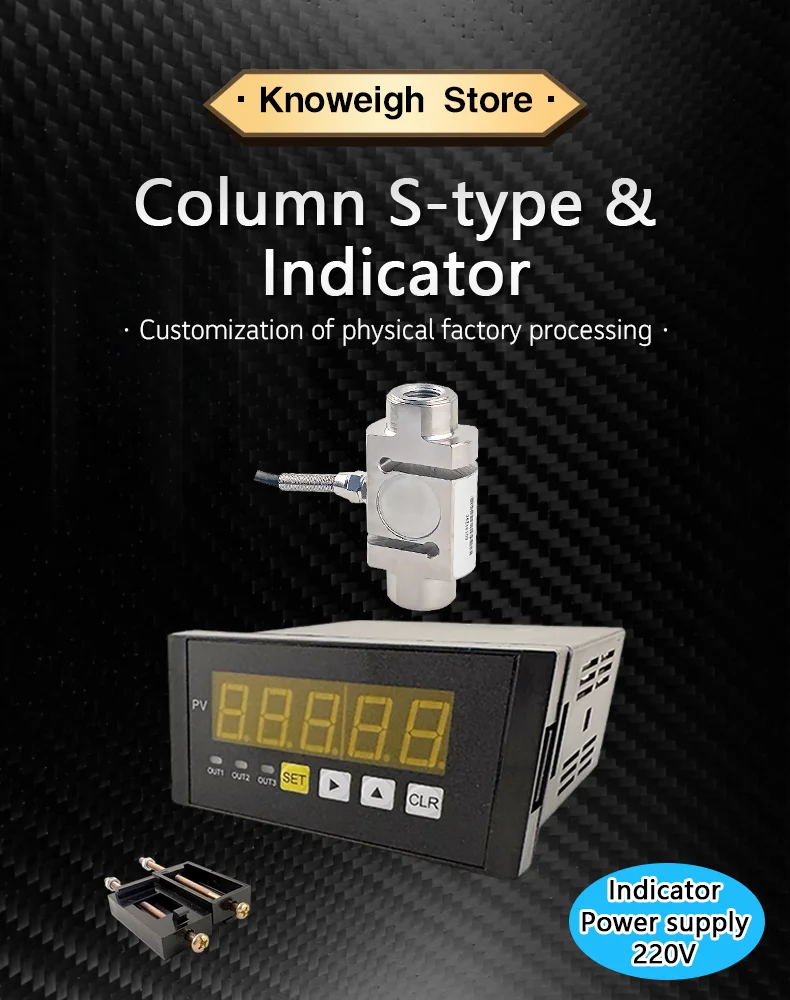

This kit includes an S-type tension/compression load cell and a 5-digit high brightness force indicator for industrial force measurement such as tension testing, compression testing, online force monitoring, fixtures, lifting/hoisting force feedback, and process control.

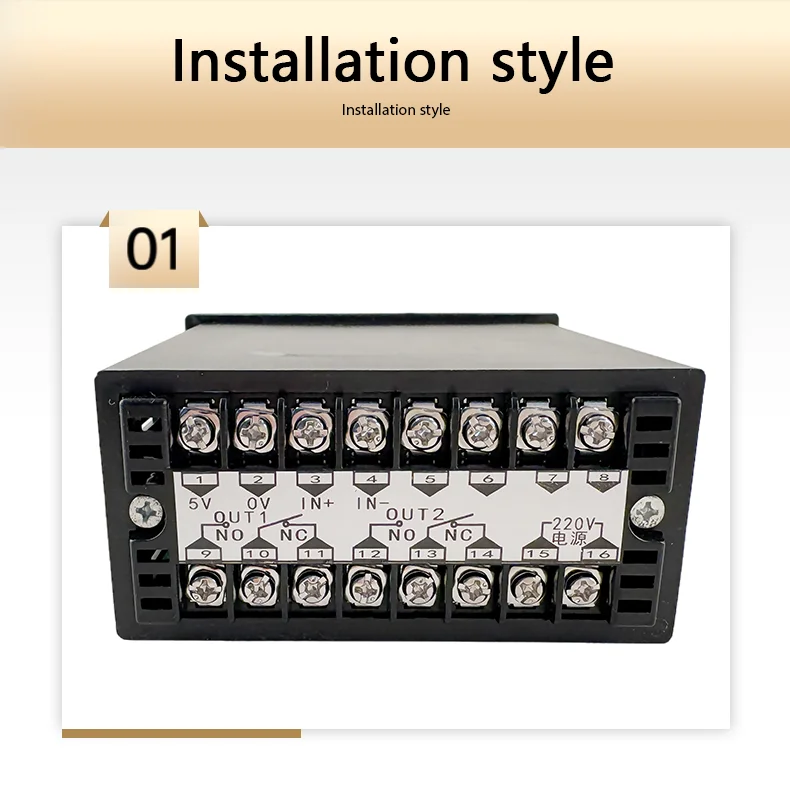

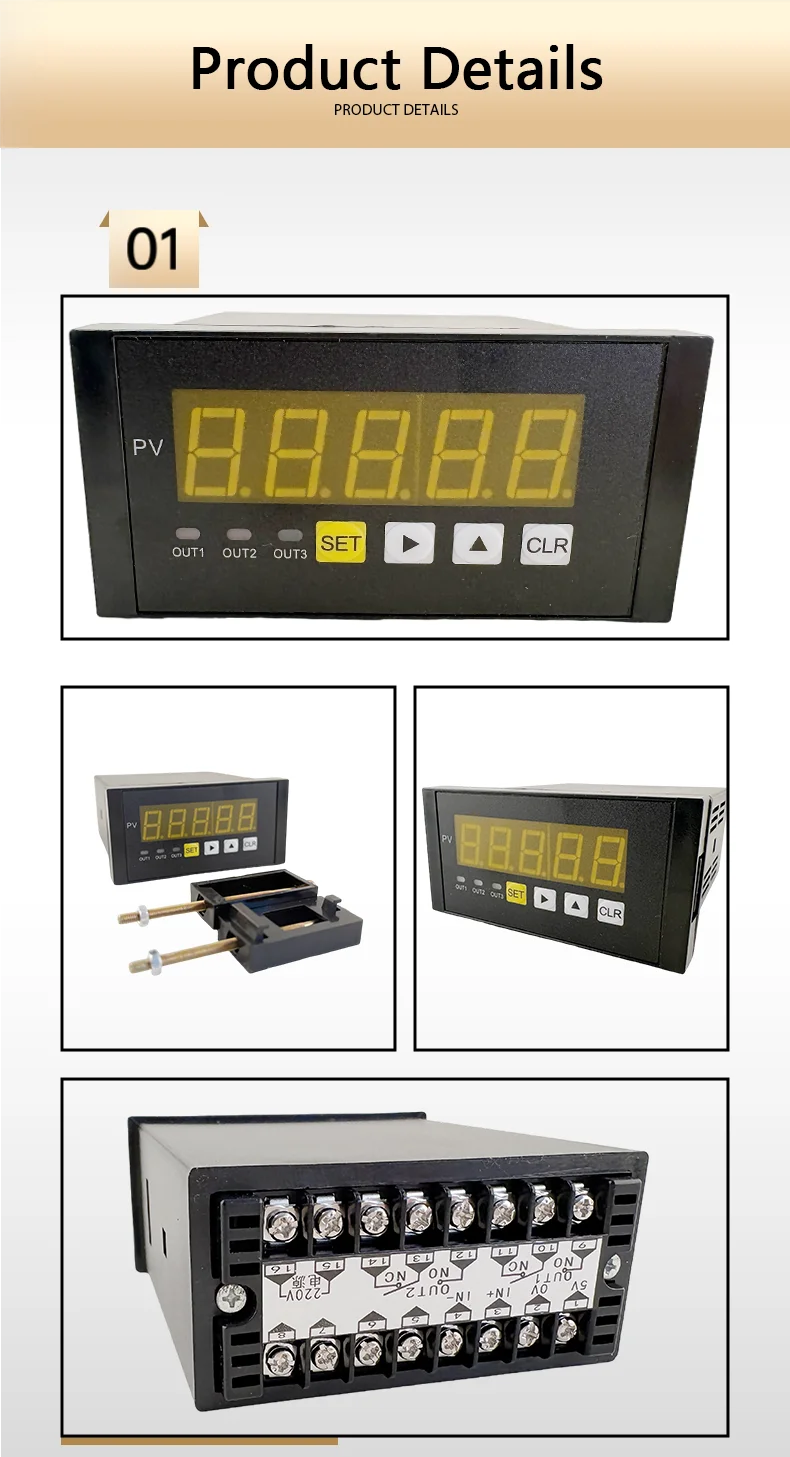

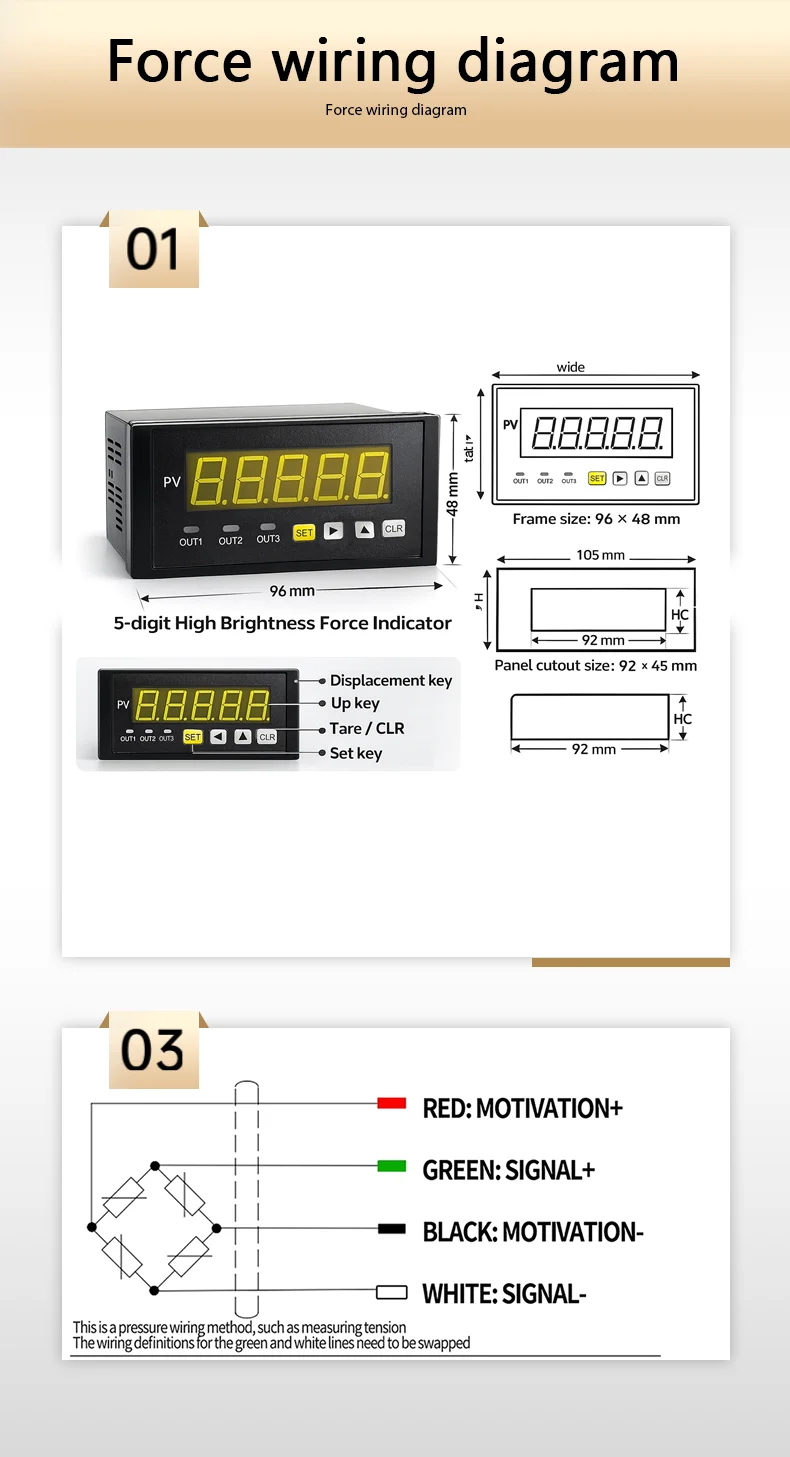

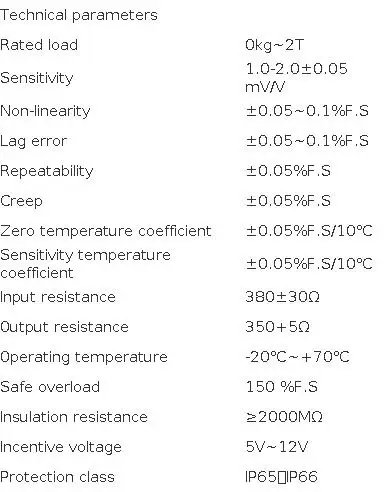

The load cell uses a 4-wire connection (Red/Black for excitation, Green/White for signal) and supports 5–12V excitation. The indicator is a panel-mount meter with 96×48mm frame size and 92×45mm cutout, powered by AC 220V for easy installation.

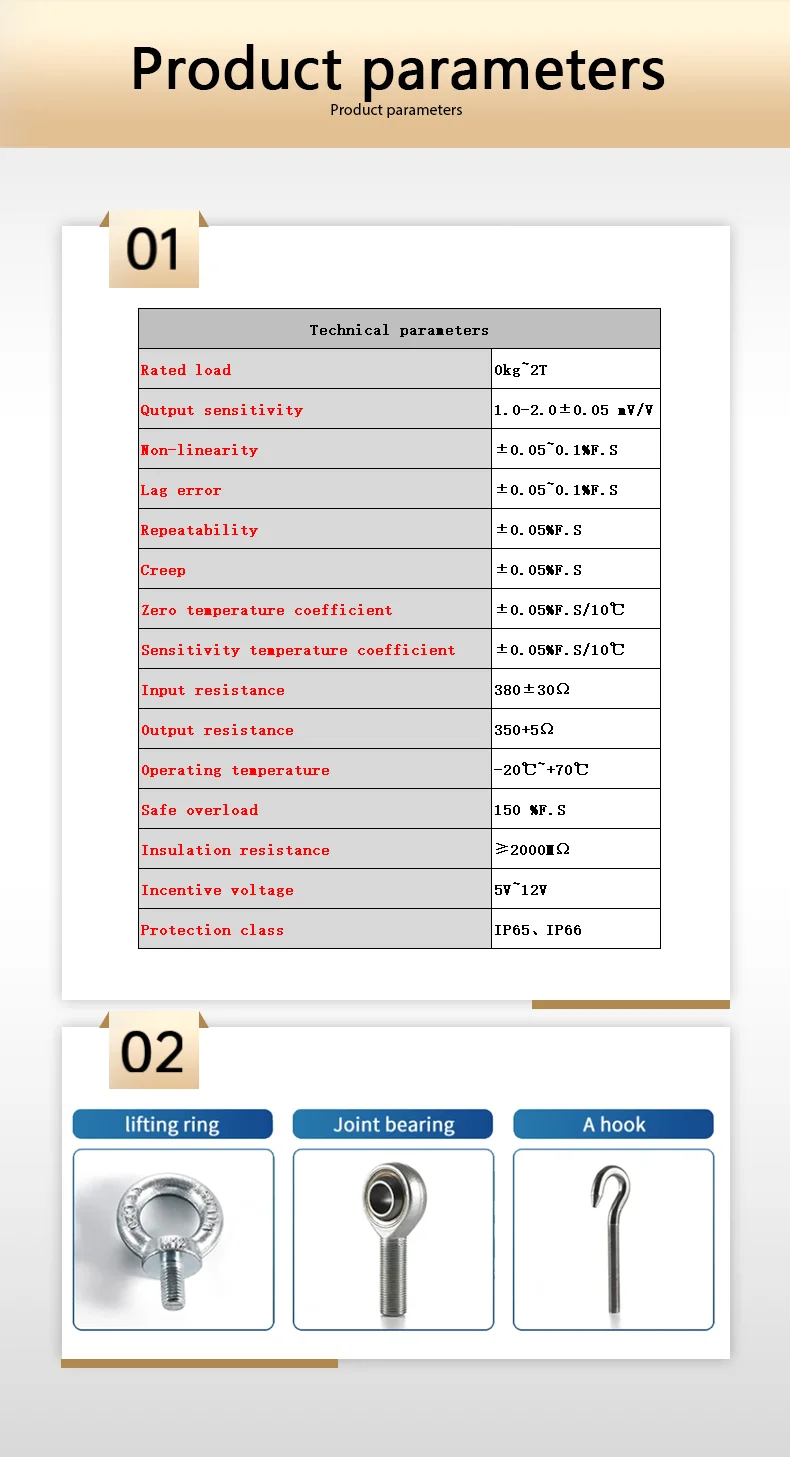

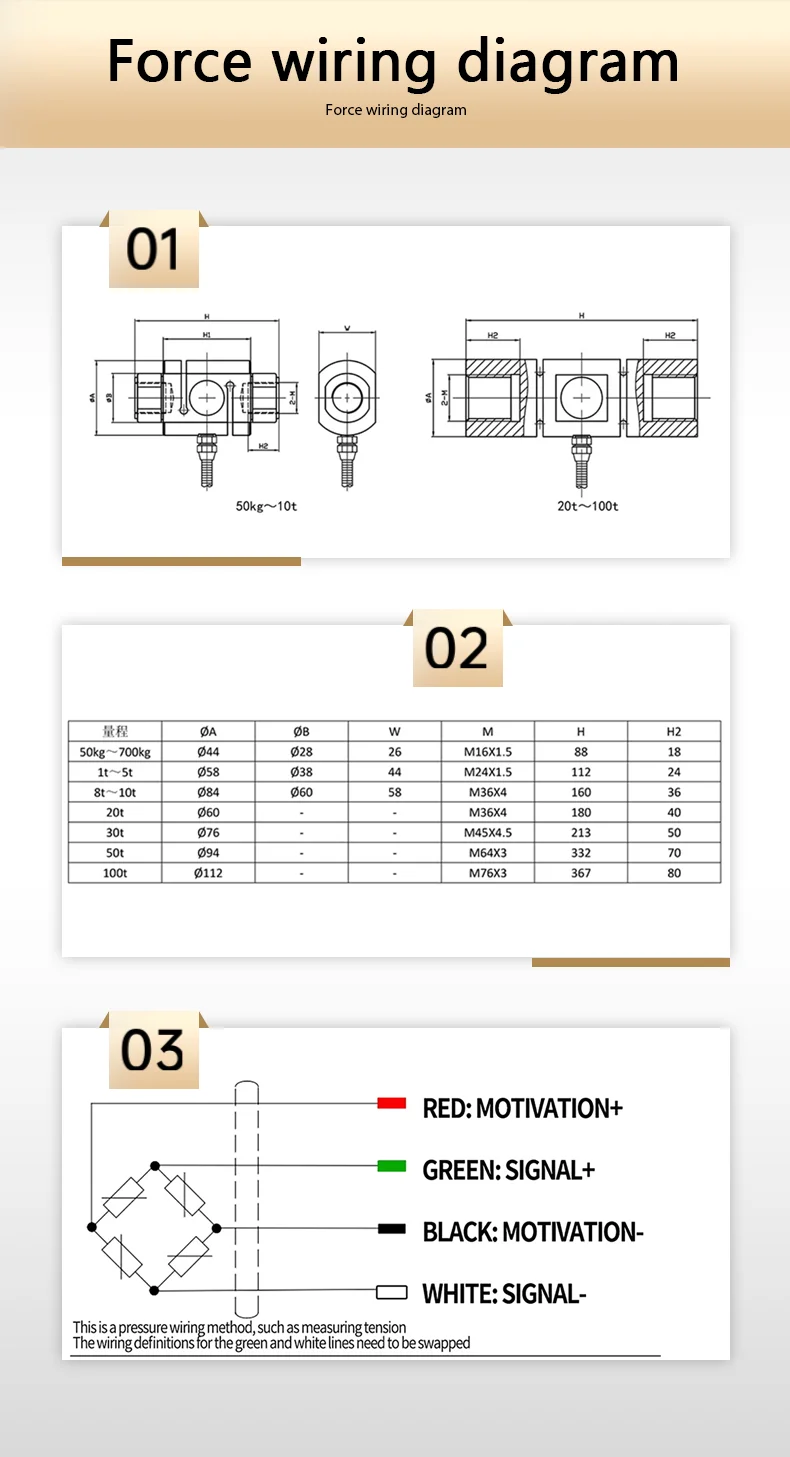

Multiple capacities are available from 50kg up to 100t, with different body dimensions and thread sizes (M16×1.5 to M76×3). Accessories such as lifting ring, rod end joint bearing, and hook help you build a force measurement setup quickly.

Note: If the display direction is reversed in certain tension wiring methods, swap the Green/White signal wires as needed.
