868MHz-895MHz 1W 881MHz filter RF Narrowband bandpass filter module CDMA800 TDMA signal mearsure filter RF BPF 881MHz module

The filter is a ceramic dielectric resonator type narrow-band band-pass filter, which can carry high power. The 1dB bandwidth is about 27MHz, and the cut-off characteristic is steep. For the signal test of CDMA800 and TDMA in the frequency range of 868-895 MHz, it can effectively filter out out-of-band signals, reduce noise and increase dynamic range.
Model: CRFB-881
Impedance: 50 Ohms
Center frequency: 881 MHz
Pass band (1dB bandwidth) : 868 ~ 895 MHz
Tape interpolation loss: <= 3.0dB (typical value: ~ 2.3dB)
Maximum load power: 1 W (30 dBm)
Interface: SMA-F, SMA-F (non-directional RF characteristics, input/output at both ends)
Frequency response diagram (marked as 3dB bandwidth) :

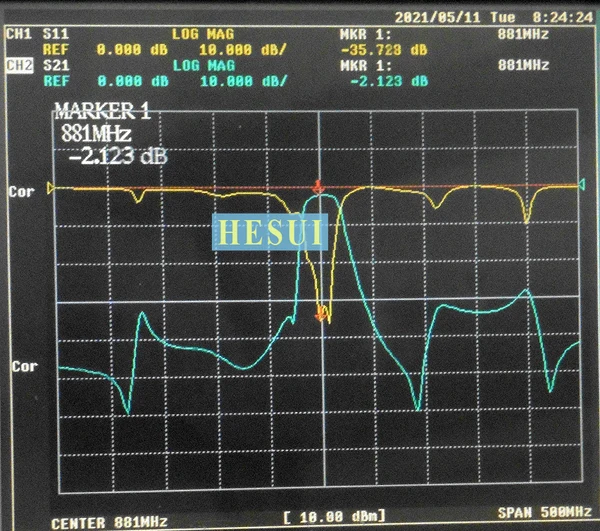

---- Scanning mark frequency: 881MHz, scanning width: 500MHz. The blue line is the transmission loss, 10dB per vertical cell. The yellow line is the reflection loss, 5dB per vertical cell

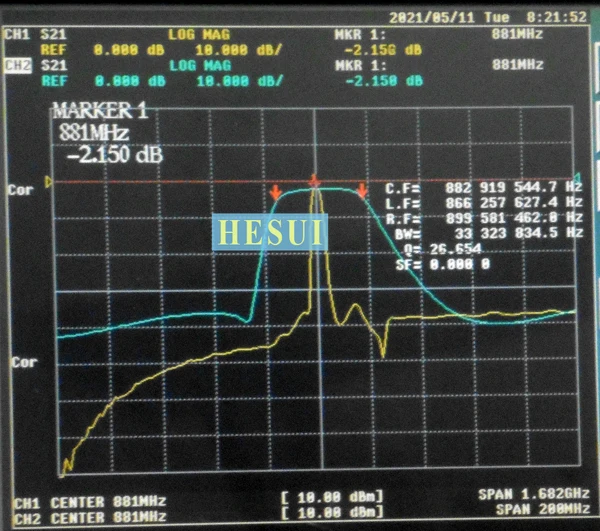

---- Scanning center frequency: 881MHz, blue line scanning width: 1682MHz, yellow line scanning width: 200MHz. Vertical 10dB per cell. All are transmission losses

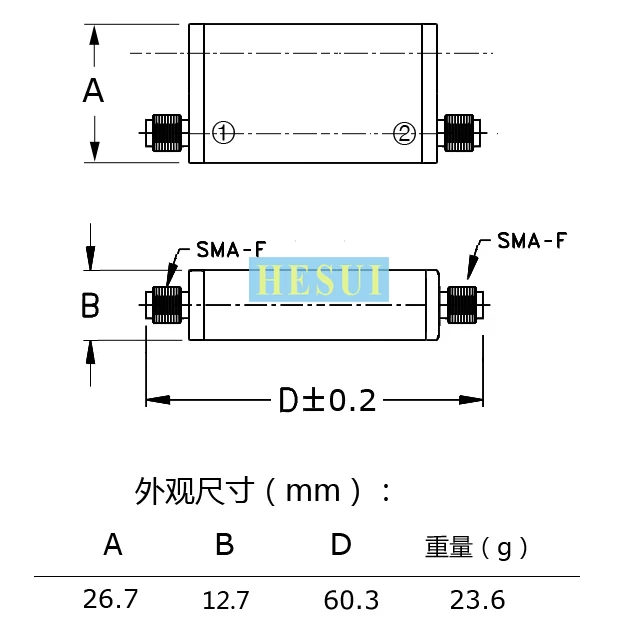

Appearance size:
