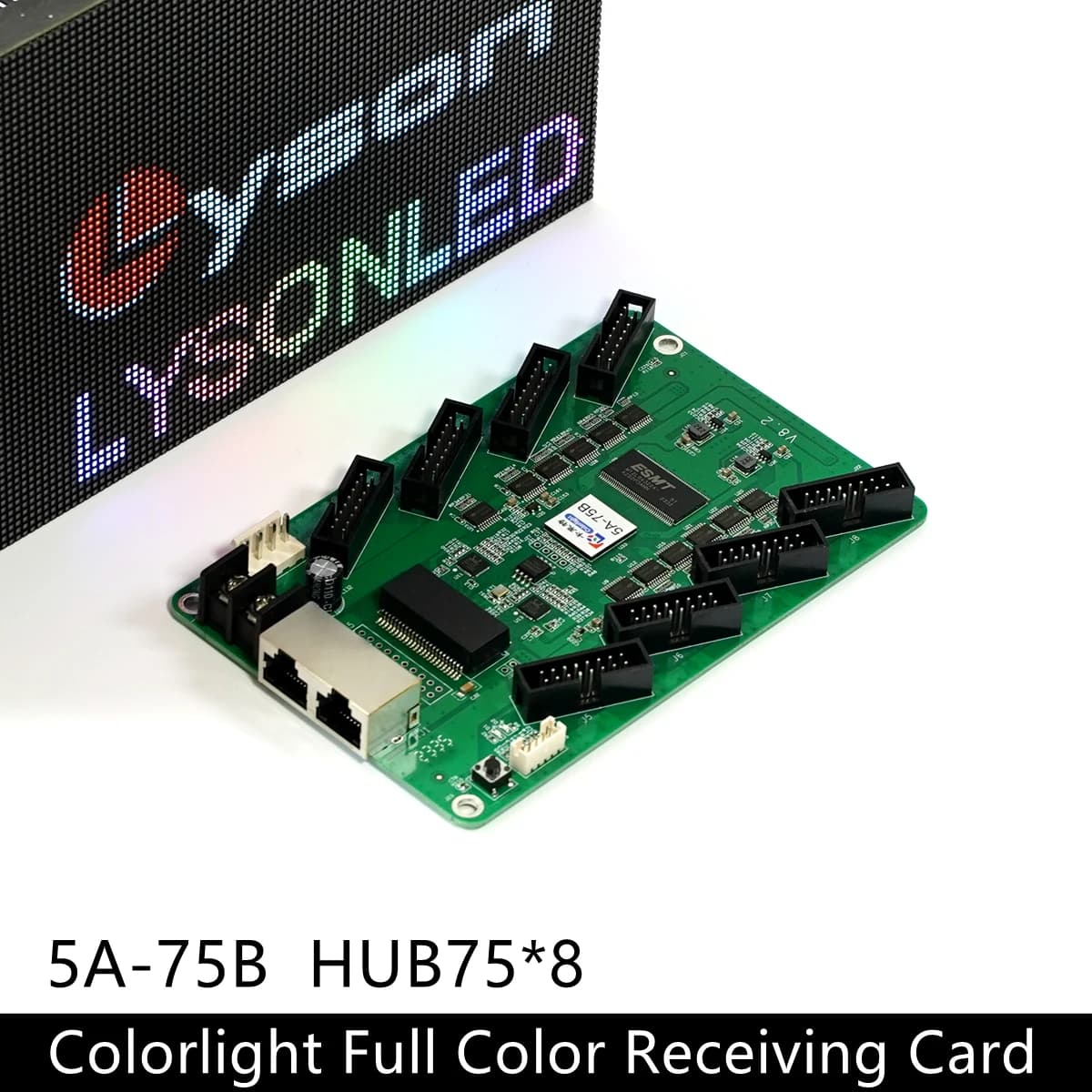

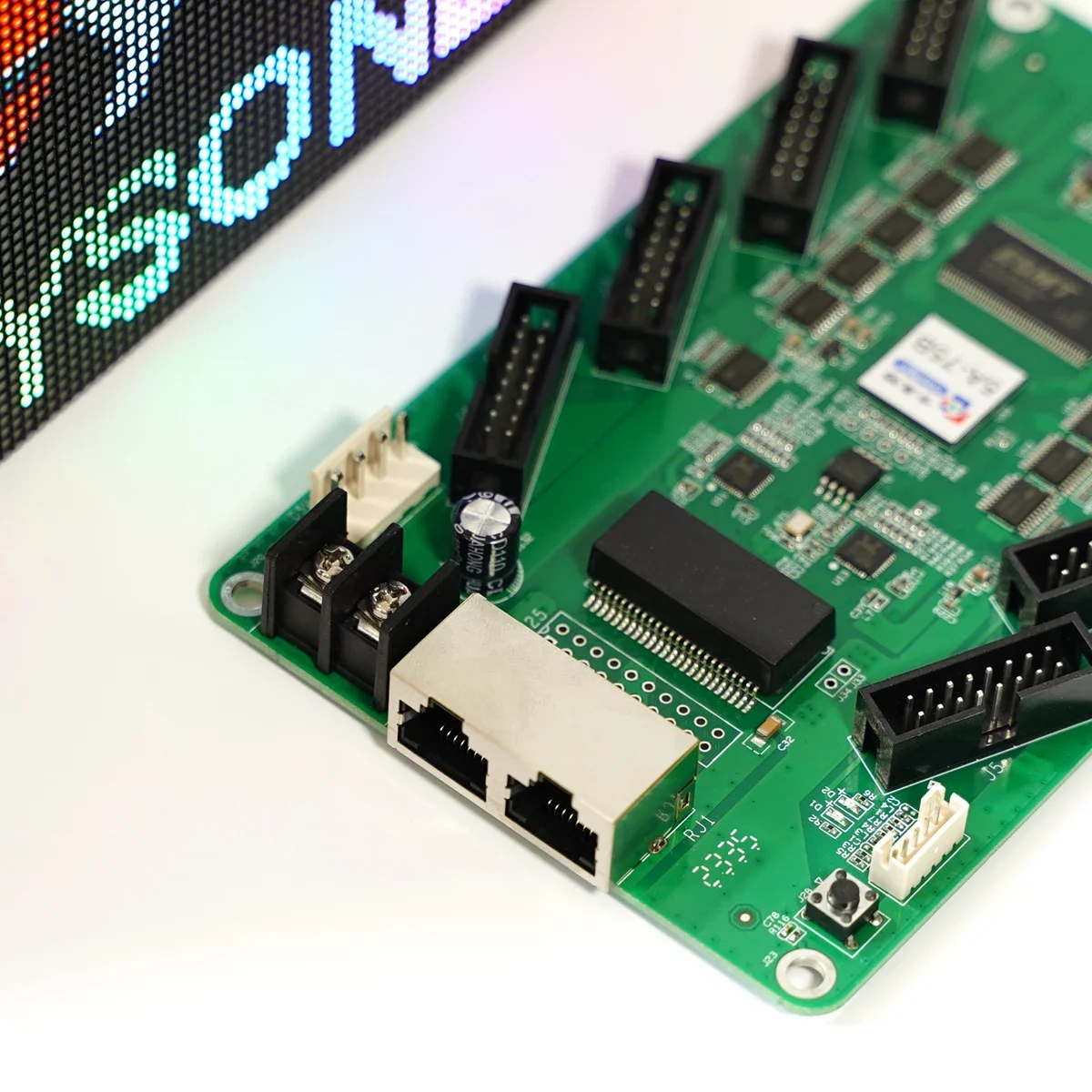

Colorlight 5A-75B 8xHUB75E Ports Full Color LED Video Wall Receiving Card Work With S2 Sending

Colorlight 5A-75B 8xHUB75E Ports Full Color LED Video Wall Receiving Card Work With S2 Sending

Features
·Integrated HUB75 interface, more convenient with less cost.

·Reduces the plug connectors and malfunction, lower failure rate.

·Superior display quality: high refresh rate, high grayscale, and high brightness with the conventional chips.

·Perfect performance under lower grayscale status.

·Better detail processing: partial dark at row, reddish at low gray, shadow problems can be solved.

·Supports high-precision point-by-point calibration in the Brightness and the chromaticity.

·Supports conventional chips, PWM chips and lighting chips.

·Supports any scan mode from static to 64 scans.

·Supports any pumping point and data arbitrary offset to realize various freeform display, spherical display, creative display, etc.

·Supports 16 groups of RGB signal output.

·Large loading capacity.

·Advanced design, high quality components, rigorous aging test, zero malfunction of final products.

·Wide working voltage range with DC3.3~5.5V.

·First adopt all components face up configuration to reduce damage.

·Compatible with all series of Colorlight’s sending devices.


Control system parameters
Sending device
All series of Colorlight’s sending devices

Control area of every card Full-color: 256×512 pixels
Correction area of every card 256×512pixels
Network port exchange Supported, arbitrary use
Synchronization
Nanosecond synchronization between cards



Display module compatibility
Chip support
Supports conventional chips, PWM chips, lighting chips and other mainstream chips

Scan type Supports 64 scans
Module specifications support Supports 8192 pixels within any row, any column
The direction of the cable Supports route from left to right, from right to left, from top to bottom, from bottom to top
Data groups 16 RGB data groups
Data folded Supports to fold on the same or opposite direction
Module snapshot Supports any pumping point
Data serial transmission Supports RGB, R8G8B8, R16G16B16, etc in the form of serial
Compatible device and interface type
Communication distance
UTP cable≤140m

CAT6 cable≤170m

Optic fiber: Single Mode Fiber Converter≤20km

Multi-Mode Fiber Converter ≤550m (Use RP Repeater to extend unlimited)

Compatible with transmission equipment
Gigabit switch, fiber converter, optical switches

DC power interface Wire terminal
HUB Interface Type HUB75
Physical parameters
Size 143×93mm
Input voltage DC 3.3V~5.5V
Rated current 0.6A
Rated power 3W
Storage and transport temperature -50℃~125℃
Operating Temperature -20℃~75℃
Body static resistance 2KV
Weight
100g

Monitoring function (in conjunction with mutil-function card)
Monitoring functions Real time monitoring environment information like temperature, humidity, smog
Remote control Supports for relay switch to turn on/off the power supply of equipments remotely
Other features
Pixel level calibration Supported
Loop backup Supported
Shaped screen Supports various freeform display, spherical display, creative display, etc. through the data arbitrary offset
