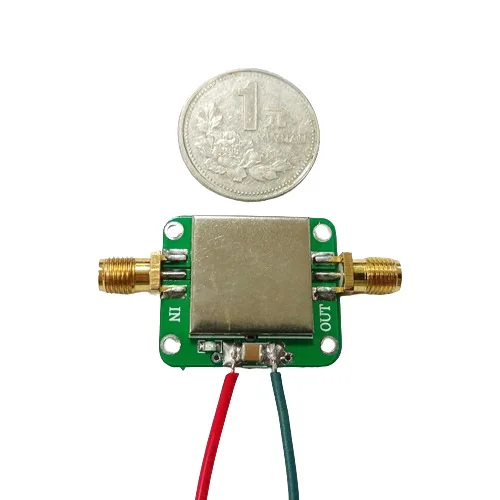

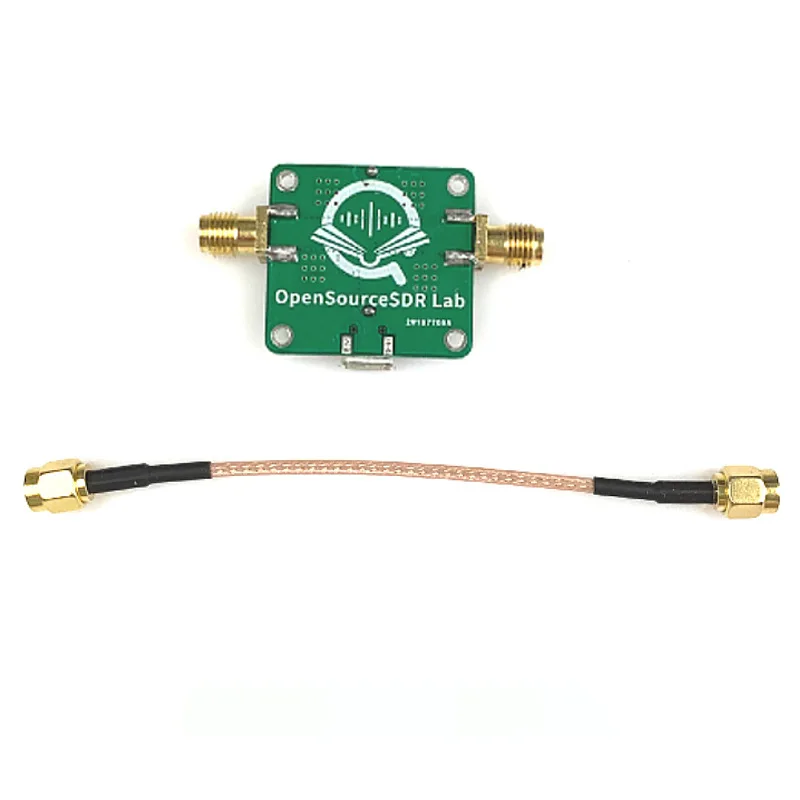

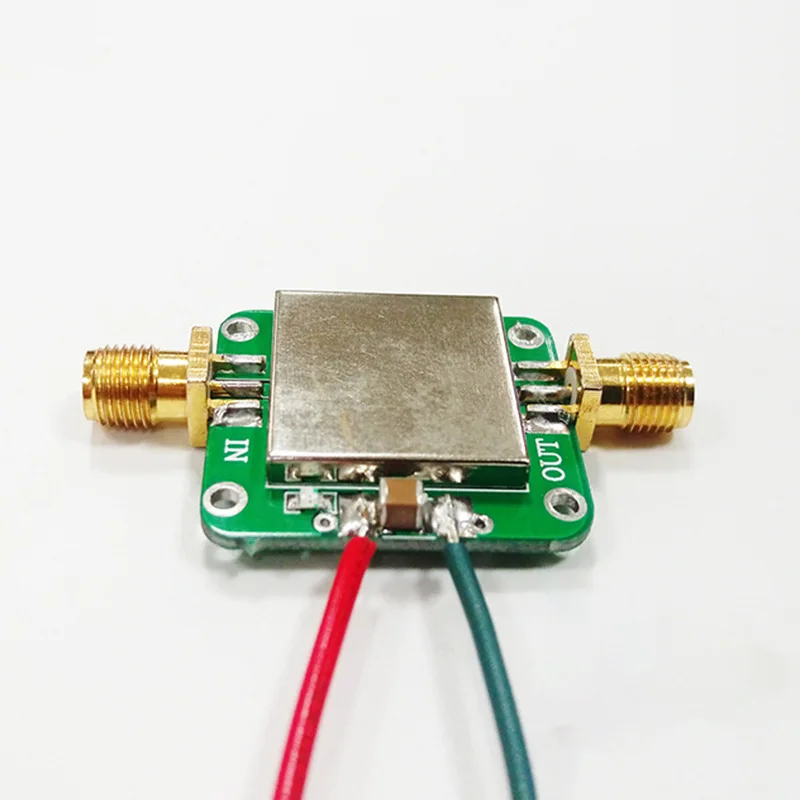

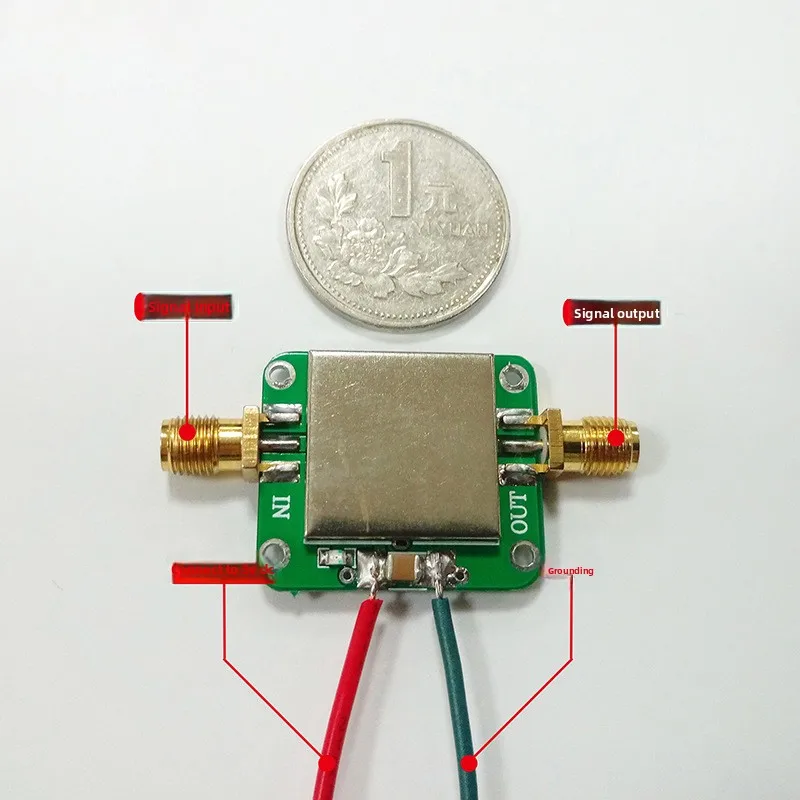

HackRF One Compatible RF LNA | 50M–6GHz 20dB Low-Noise Amplifier with USB Power
31.67$
23.27$
Quantity:
1
Availability:
Card Payments
Crypto Payments
Easy return
Reliable Shipping
Product description
First, product description
This product is a low-noise radio frequency amplifier suitable for 50M-6GHz, with a gain of 20dB, with a MicroUSB power supply port, plug in the data cable to connect this product with a computer or other power supply equipment, and you can achieve power supply. After power supply, the LED light on this product will light up, indicating that this product is in working condition.
Second, product parameters
1. Power supply voltage: 5V DC
2. Gain: 19.5dB
3. Input and output impedance: 50Ω
4. Bandwidth: 50MHz~ 6GHz (gain varies at different frequencies)
5. RF signal power amplifier: 50M-6GHz
6. Gain: 20dB
Large dynamic range, wide operating frequency range, suitable for various types of fixed gain RF signal amplifiers.
Wide frequency range, stable gain, low noise figure, large dynamic range (+ 20dBm @1dBP)
It is suitable for various radio frequency transmission circuits, extending communication distance, and has a shielding cover with anti-reverse protection diode.
