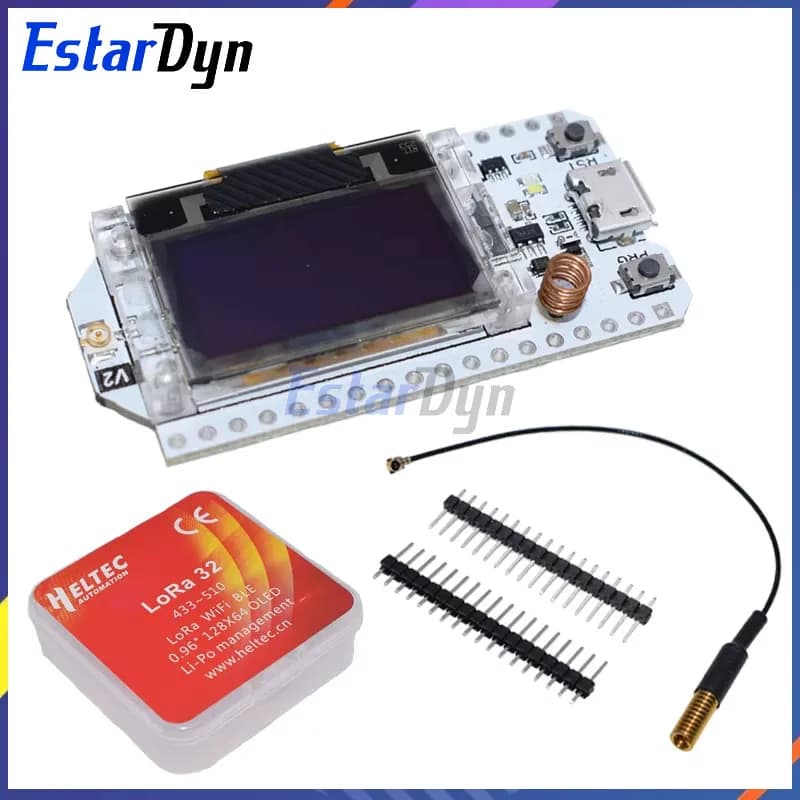

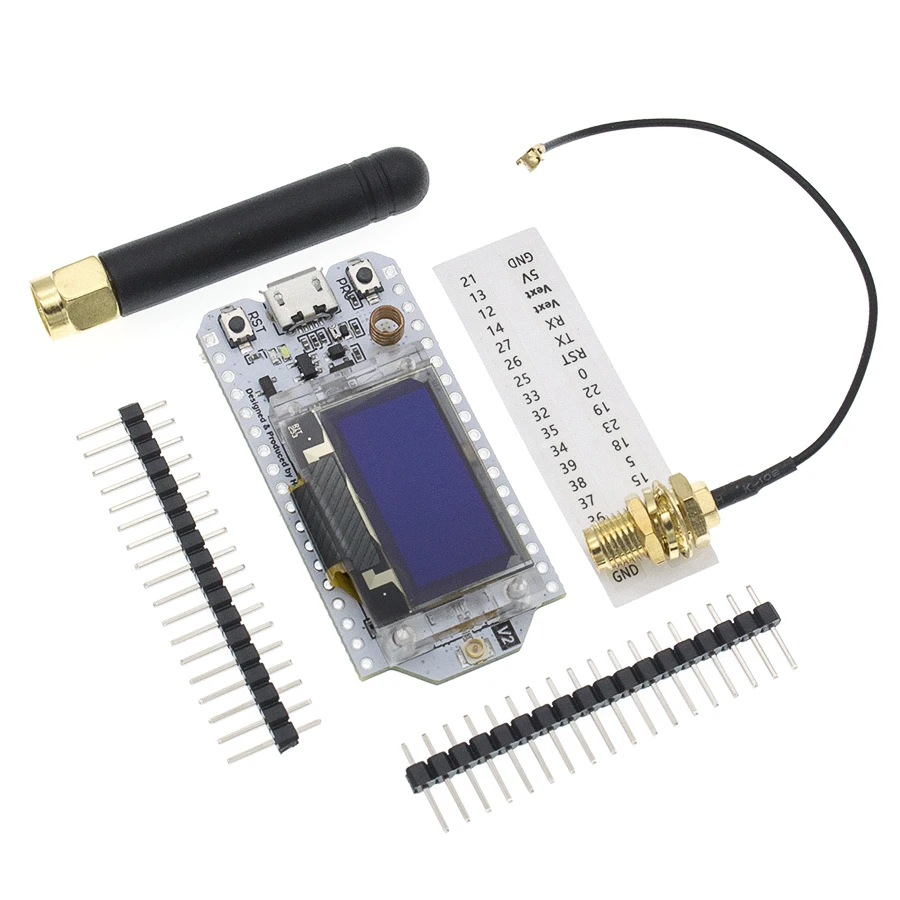

SX1276 ESP32 LoRa 868MHz-915MHz 0.96 Inch Blue OLED Display Bluetooth WIFI Kit 32 Development Board

Description

Dominant Frequency: 240MHZ

Flash: 32M-Bits

Processor: Tensilica LX6 Dual Core

Master chip: ESP32

LoRa chip: SX1276 SX1278

Support frequency band: 868-915MHZ/433MHz

Open communication distance: 2.8KM

Computing capacity: up to 600DMIPS

Dual-mode Bluetooth: traditional Bluetooth and BLE low-power Bluetooth

Development environment: perfect support for Arduino

Operating voltage: 3.3-7V

Operating temperature range: -40-90 °

Receiver sensitivity: -139dBm (SF12, 125KHZ)

UDP continuous throughput: 135Mbps

USB adapter chip: CP2102

Support mode: Sniffer, Station, softAP and Wi-Fi Direct

Transmit power: 19.5dBm@11b, 16.5dBm@11g, 15.5dBm@11n

Data rate: 150Mbps @ 11n HT40, 72Mbps @ 11n HT20,

54Mbps @ 11g, 11Mbps @ 11b
