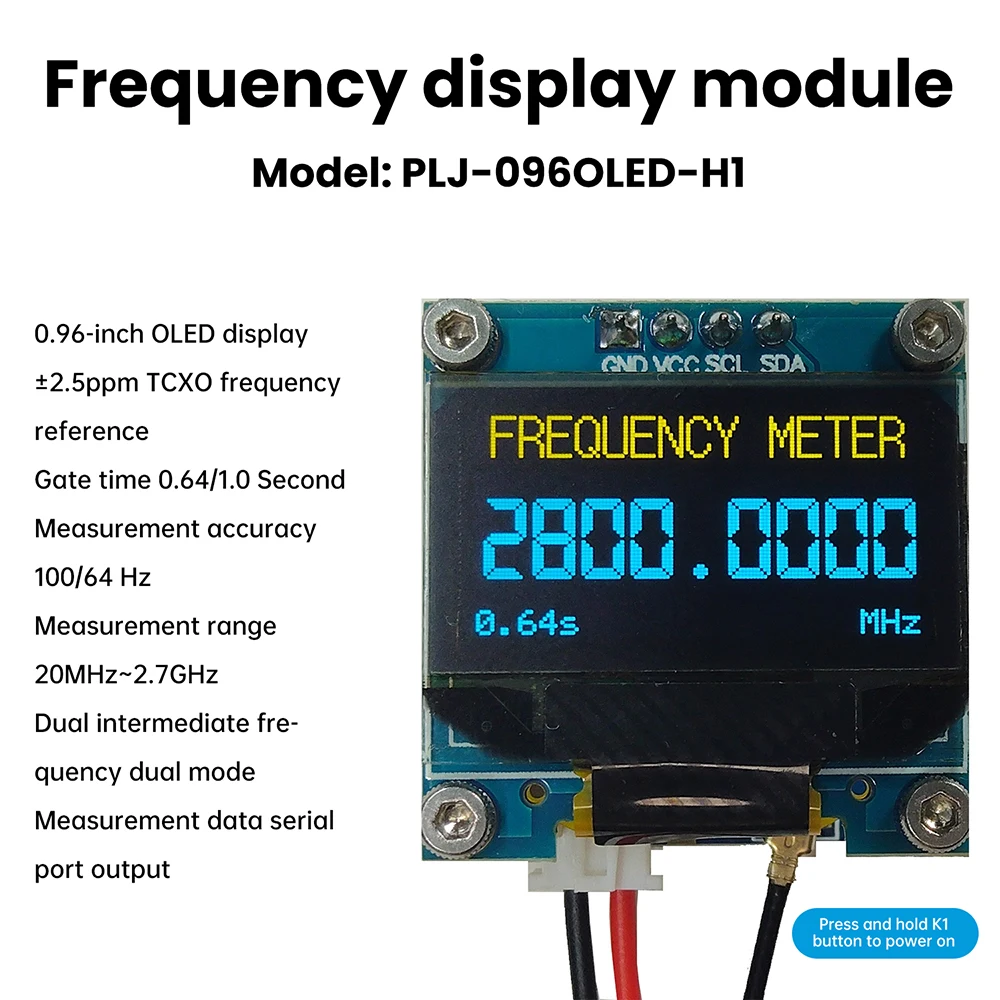

PLJ-096OLED-H1 Frequency Display Module Frequency Counter Featuring 0.96-inch OLED Display RF Digital Signal Frequency Meter

Features:

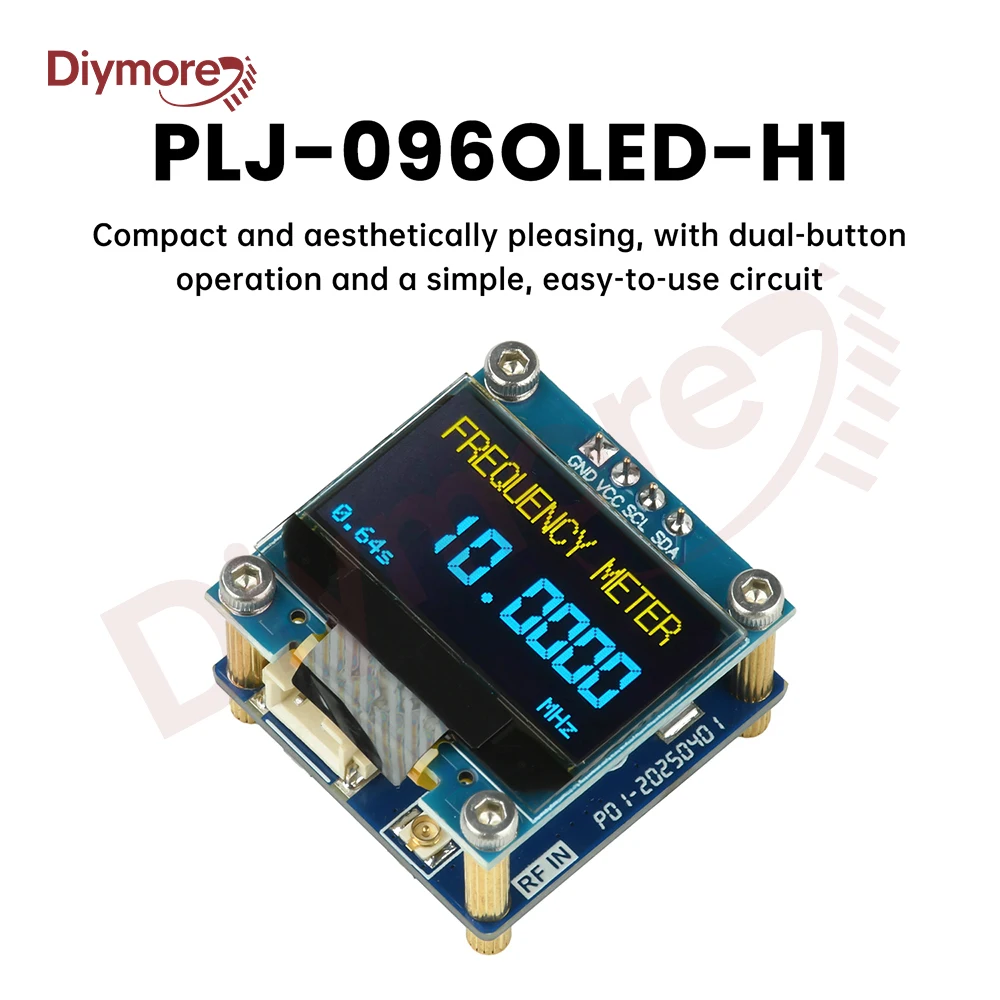

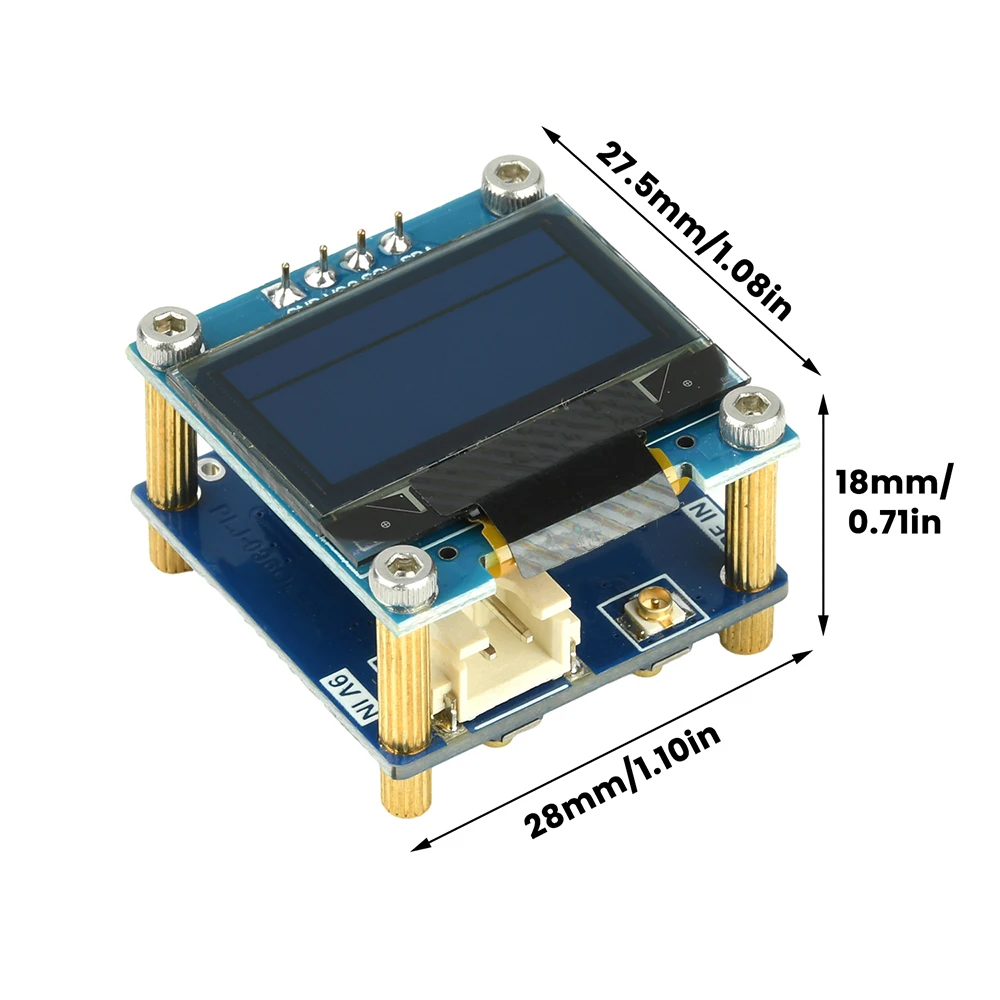

1. Compact and aesthetically pleasing design with dual-button operation and simplified circuitry for ease of use

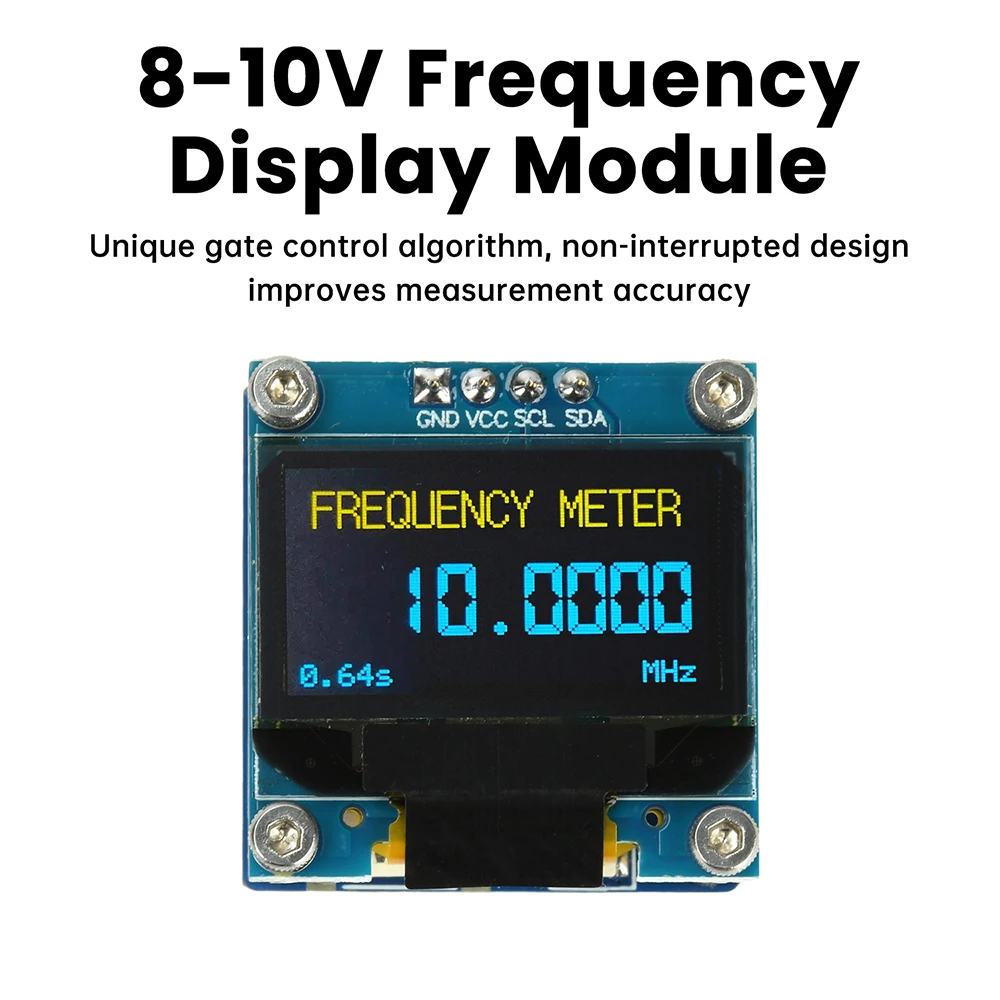

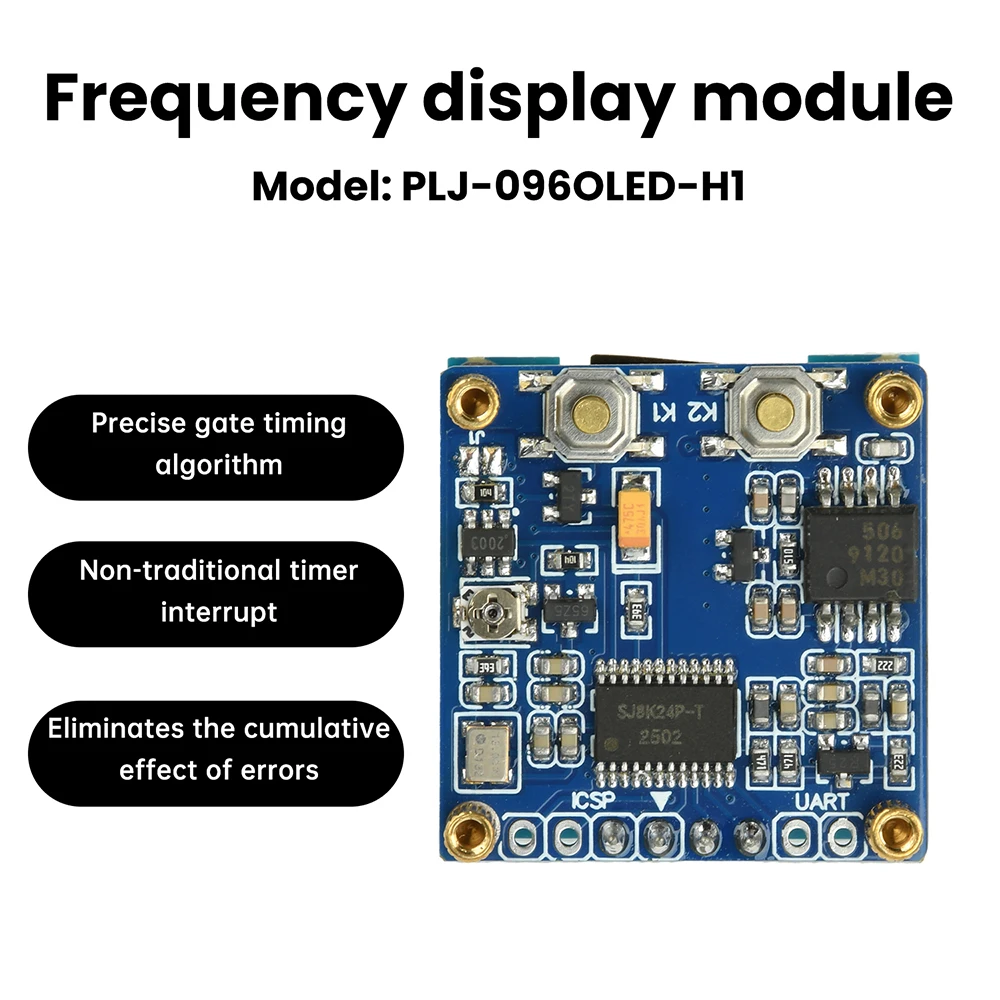

2. Unique gate control algorithm and non-interrupt design enhance measurement accuracy

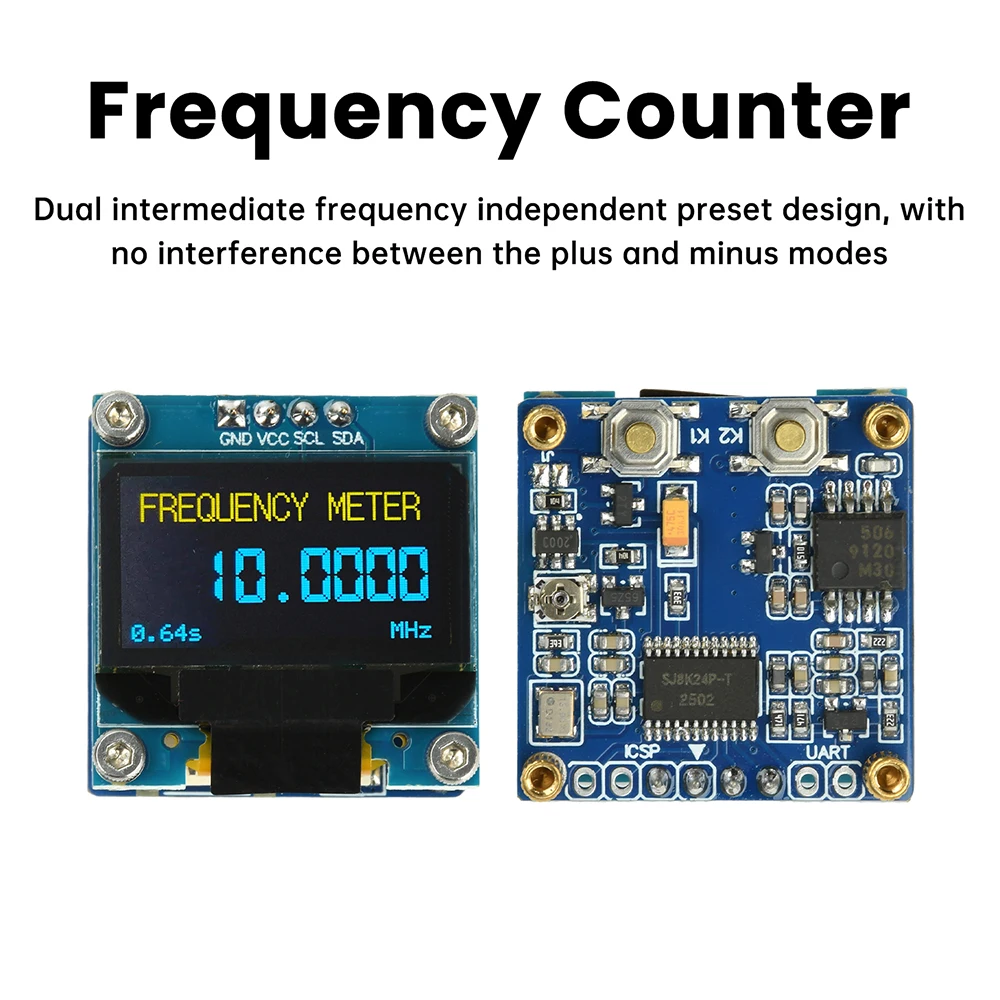

3. Dual independent intermediate frequency presets with simultaneous addition/subtraction modes without interference

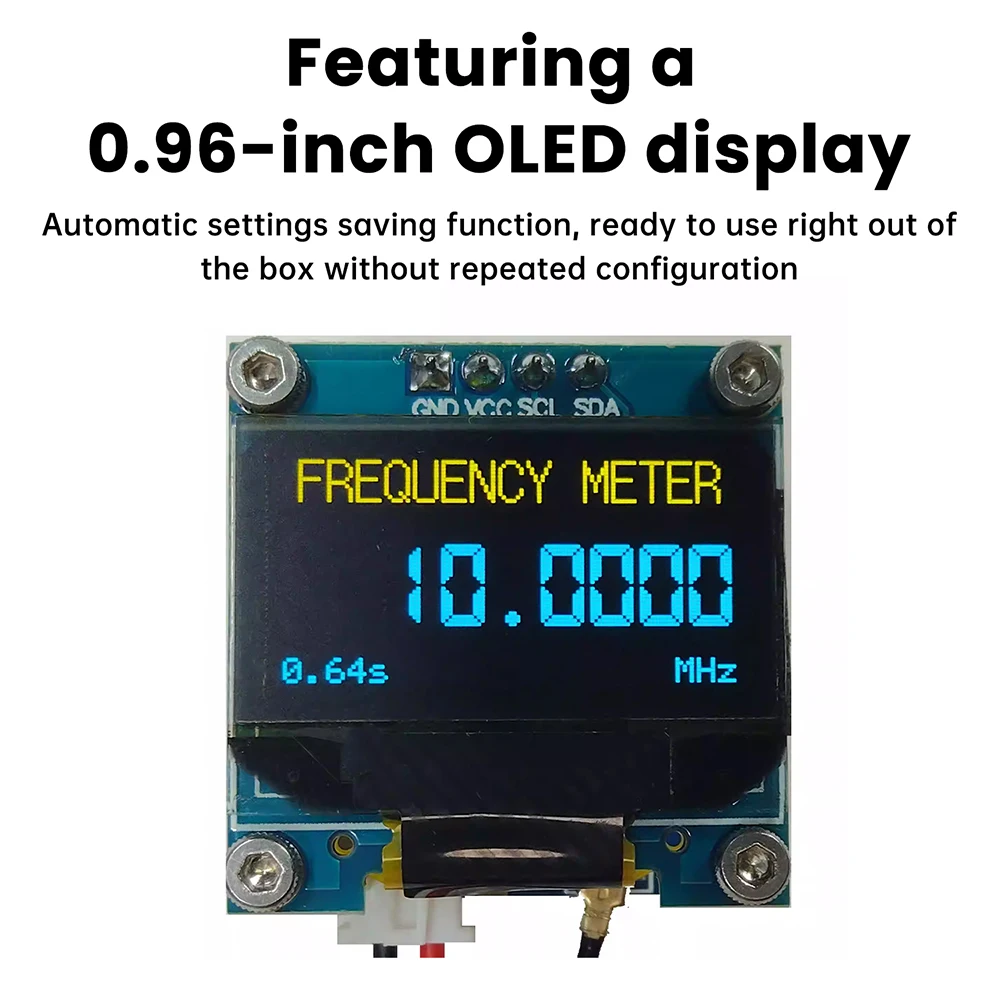

4. Automatic settings save function enables immediate use upon startup without reconfiguration

5. Widely applicable for measuring requirements in radios, walkie-talkies, oscillation circuits

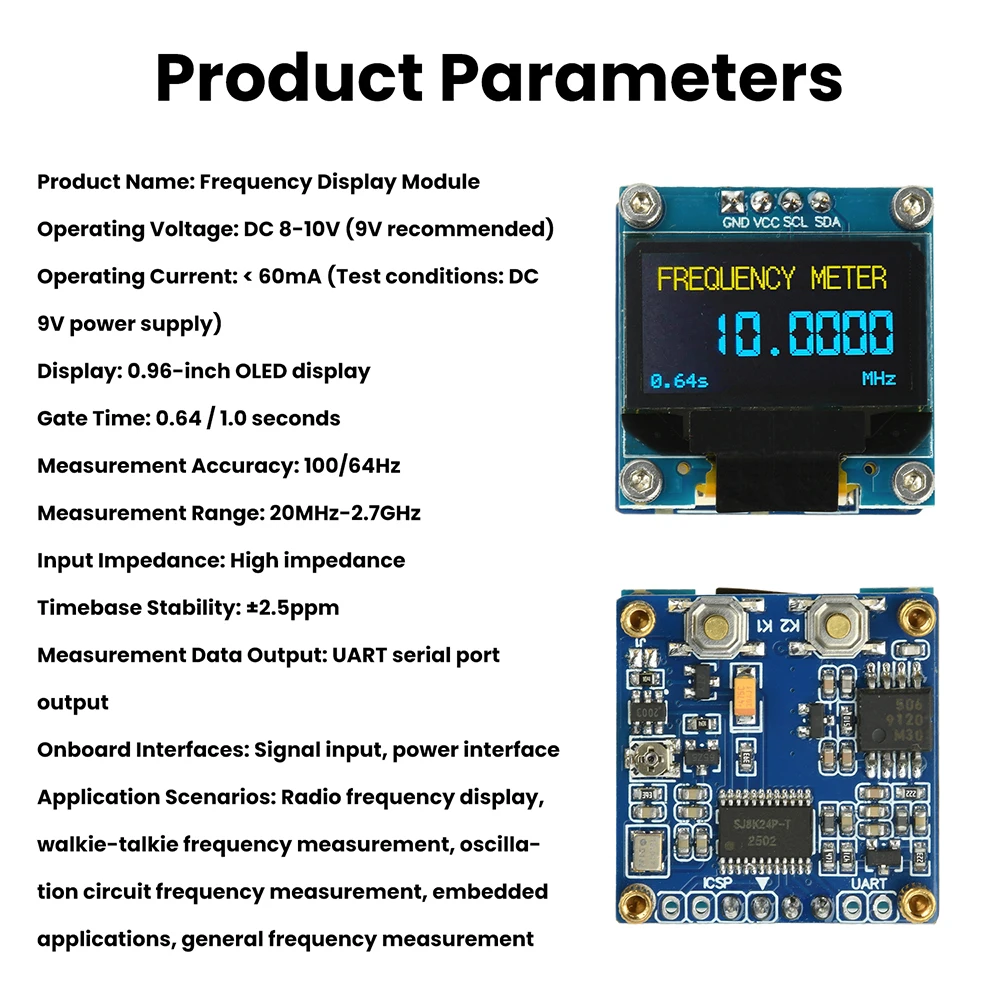

Parameter:

Product Name: Frequency Display Module

Operating Voltage: DC 8-10V (9V recommended)

Operating Current: < 60mA (Test Condition: DC 9V supply)

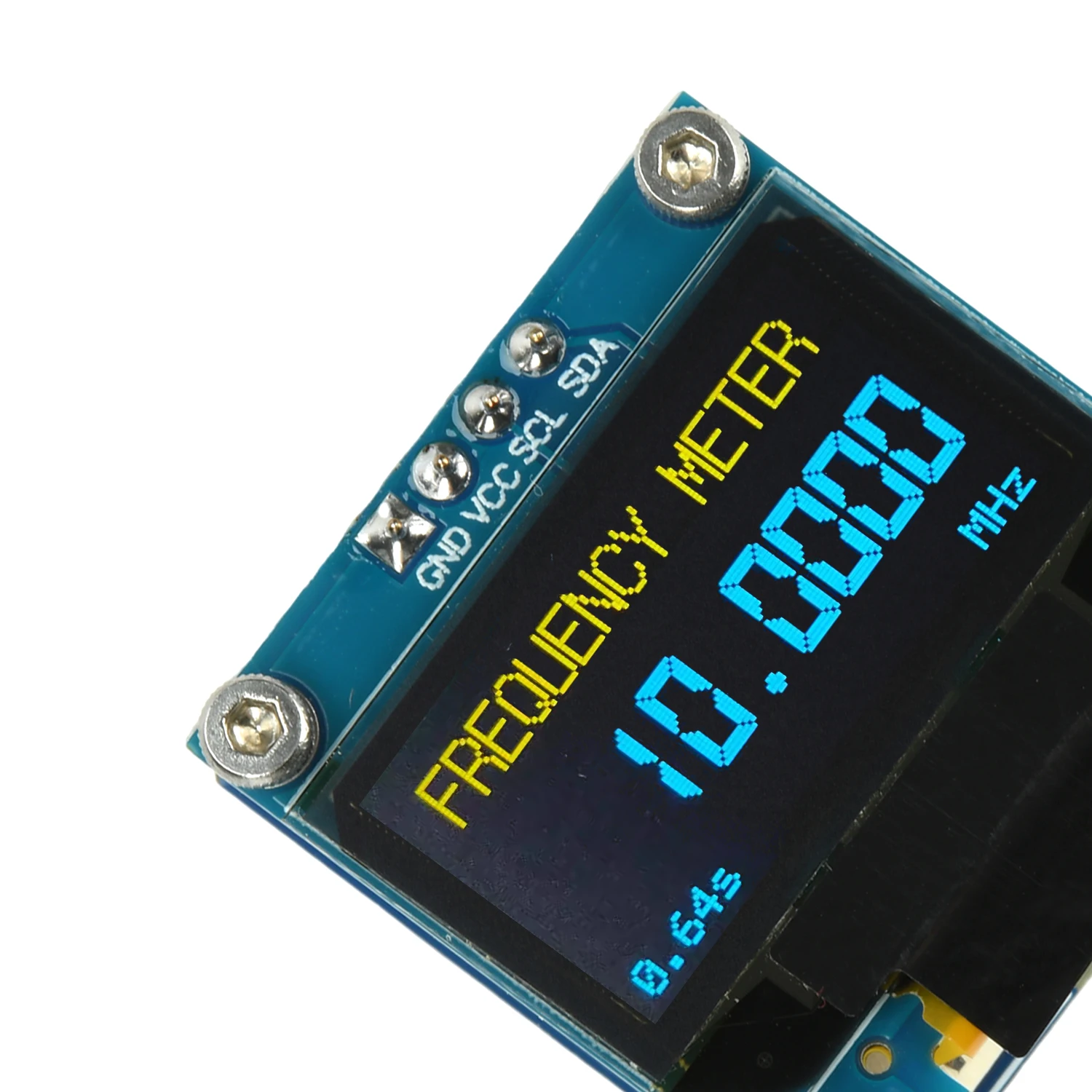

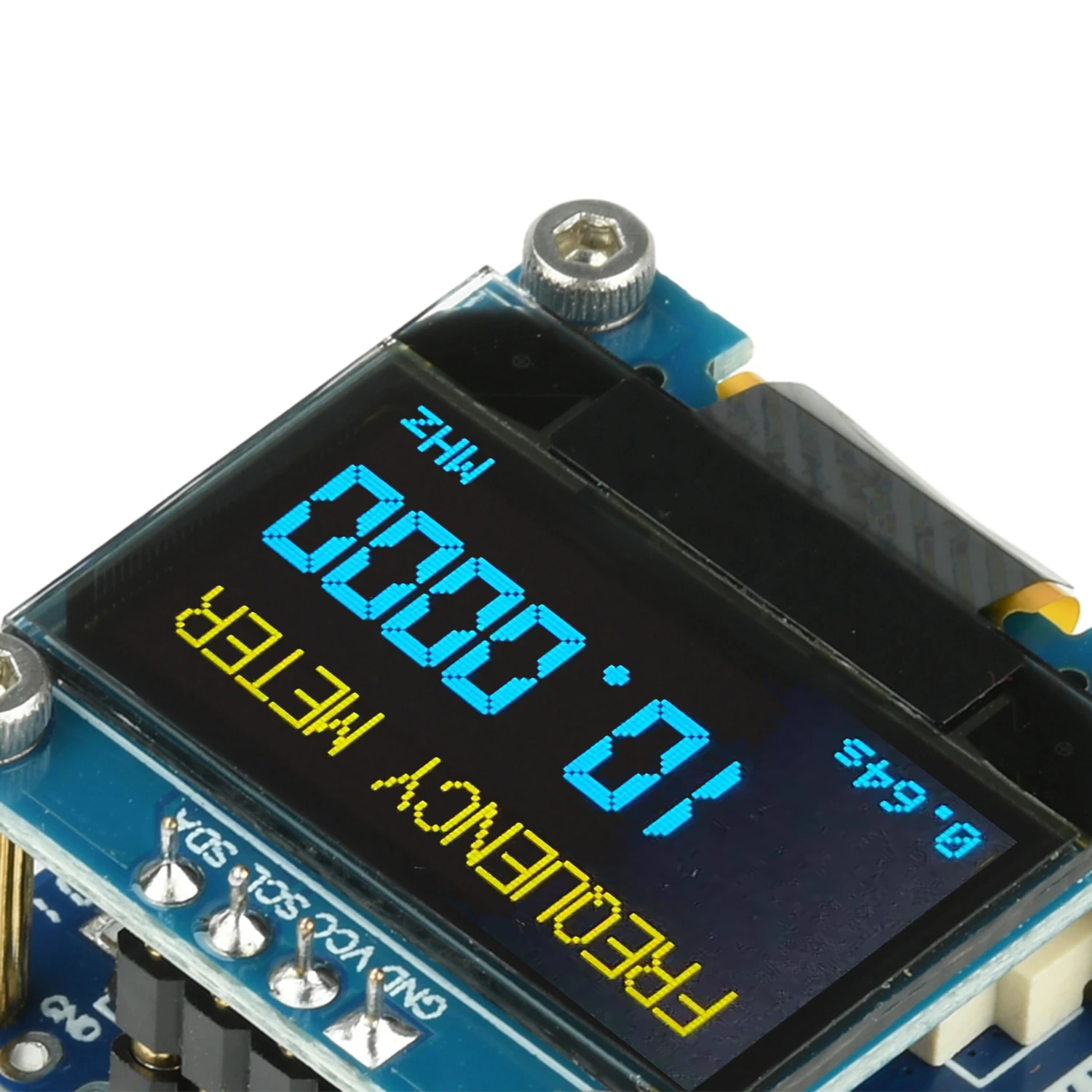

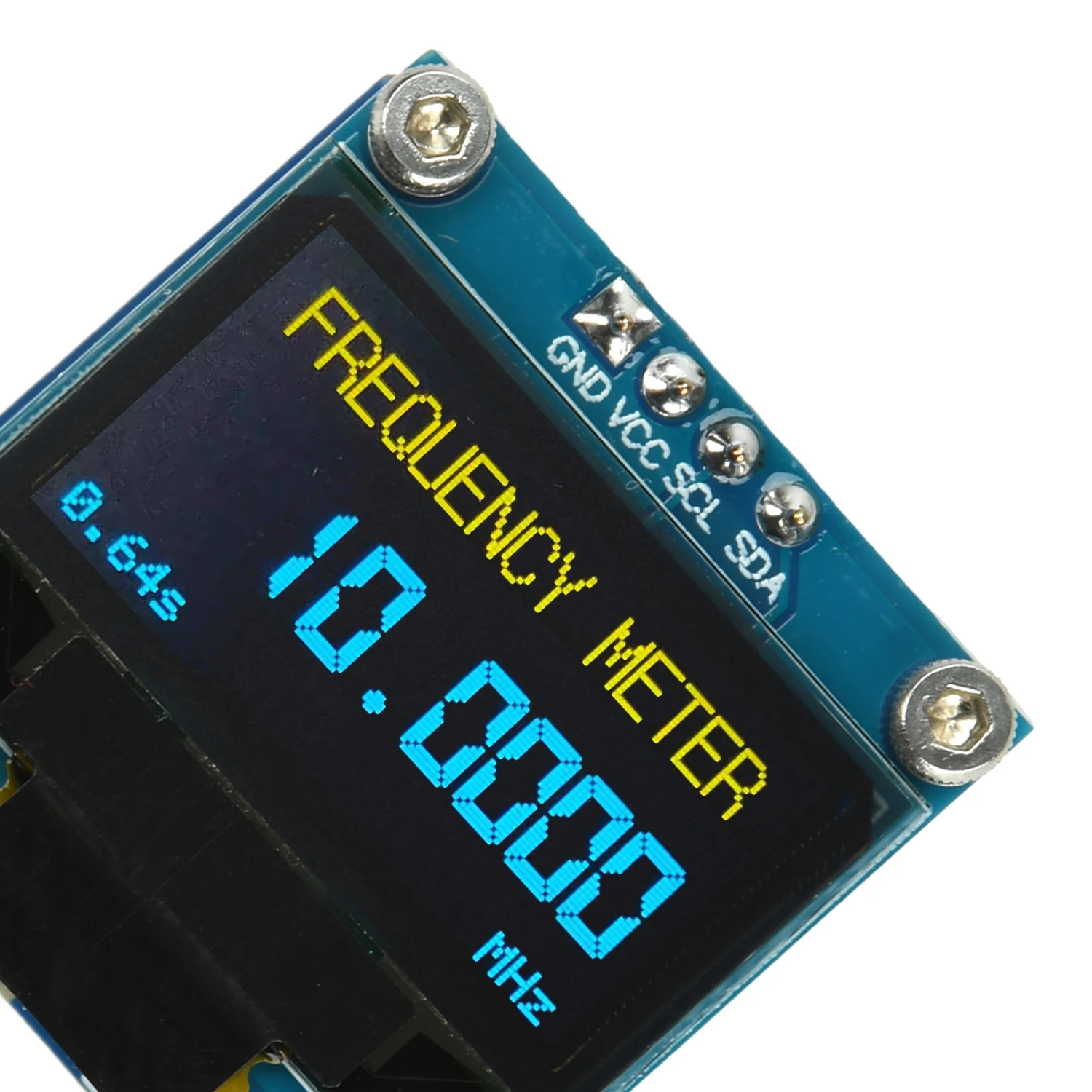

Display: 0.96-inch OLED

Gate Time: 0.64 / 1.0 seconds

Measurement Accuracy: 100/64Hz

Measurement Range: 20MHz-2.7GHz

Input Impedance: High Impedance

Timing Stability: ±2.5ppm

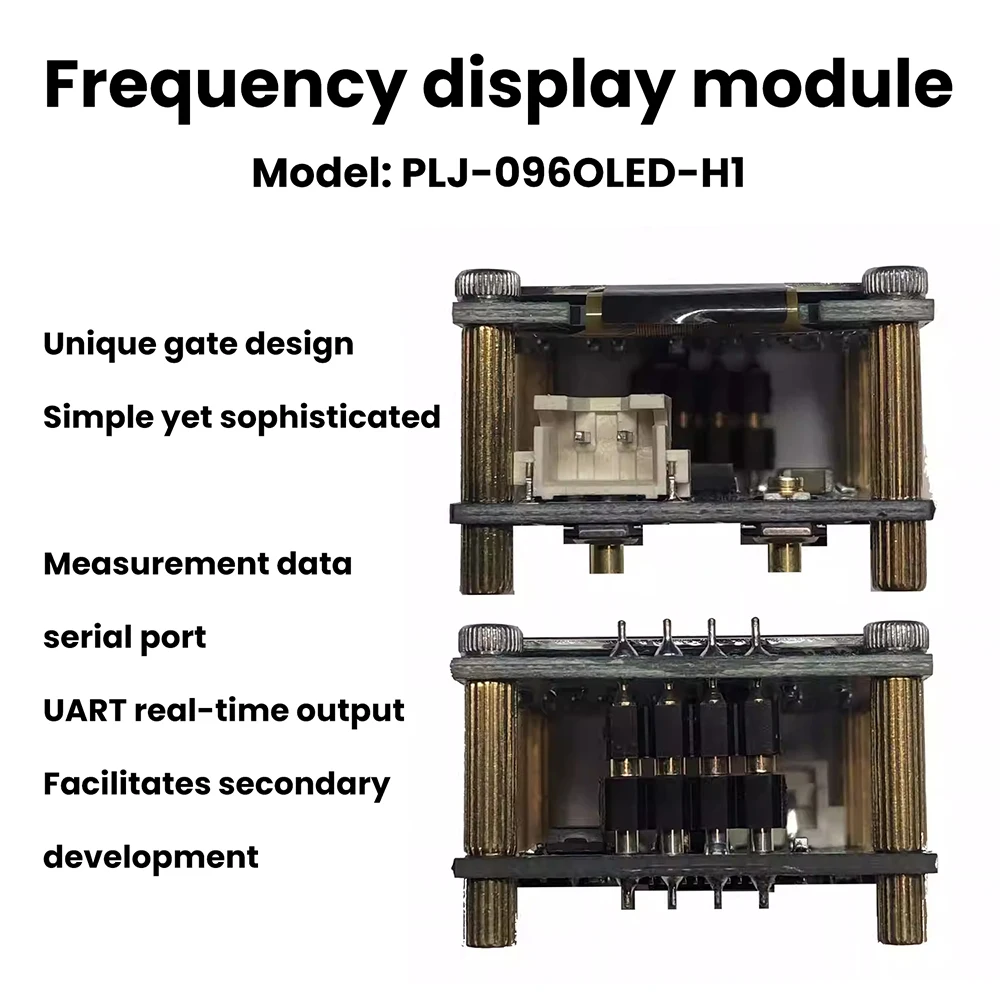

Measurement Data Output: UART Serial Port Output

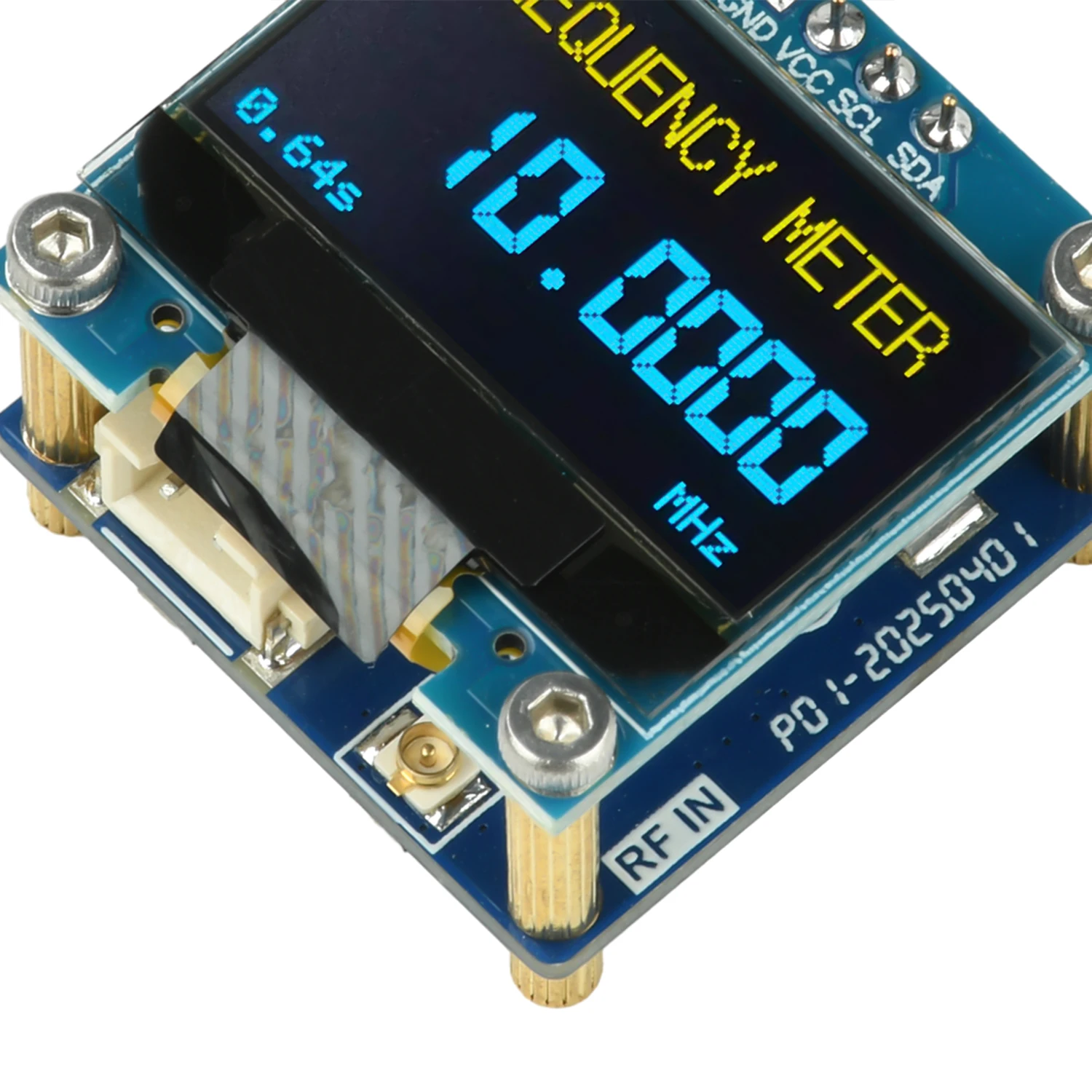

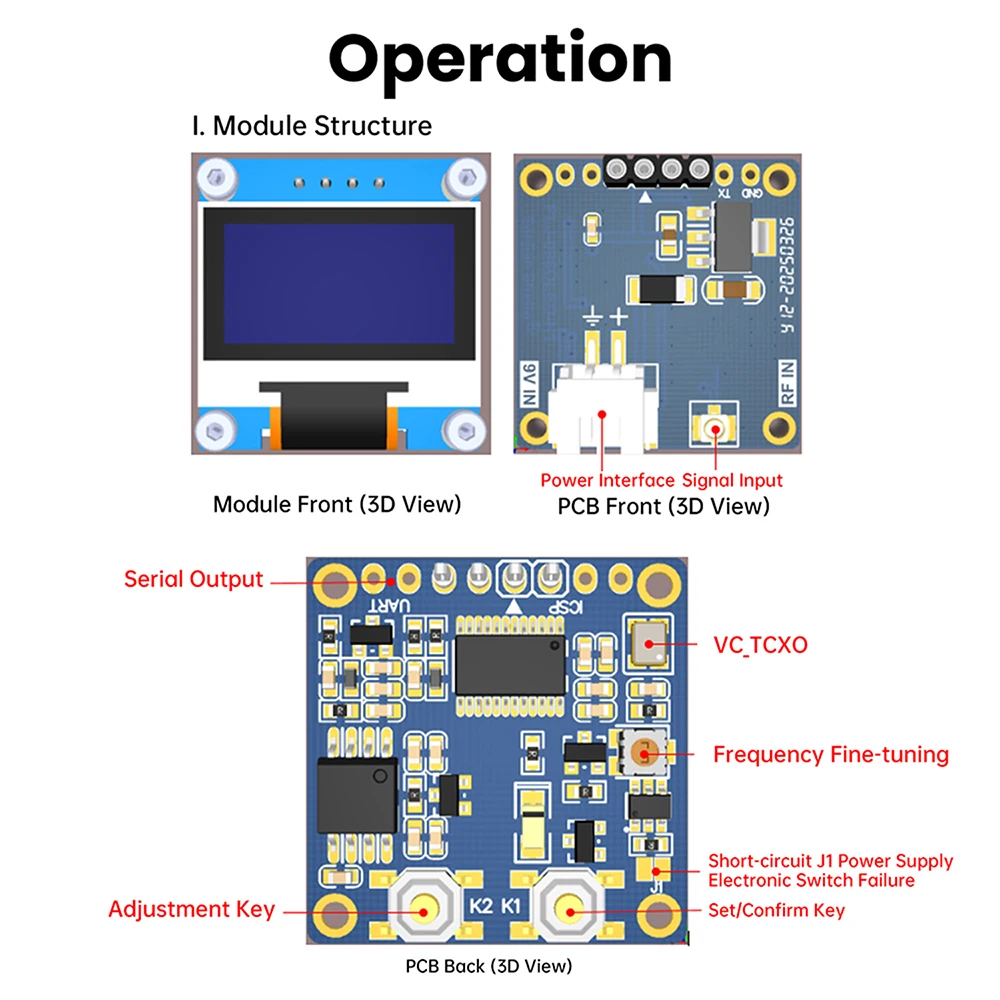

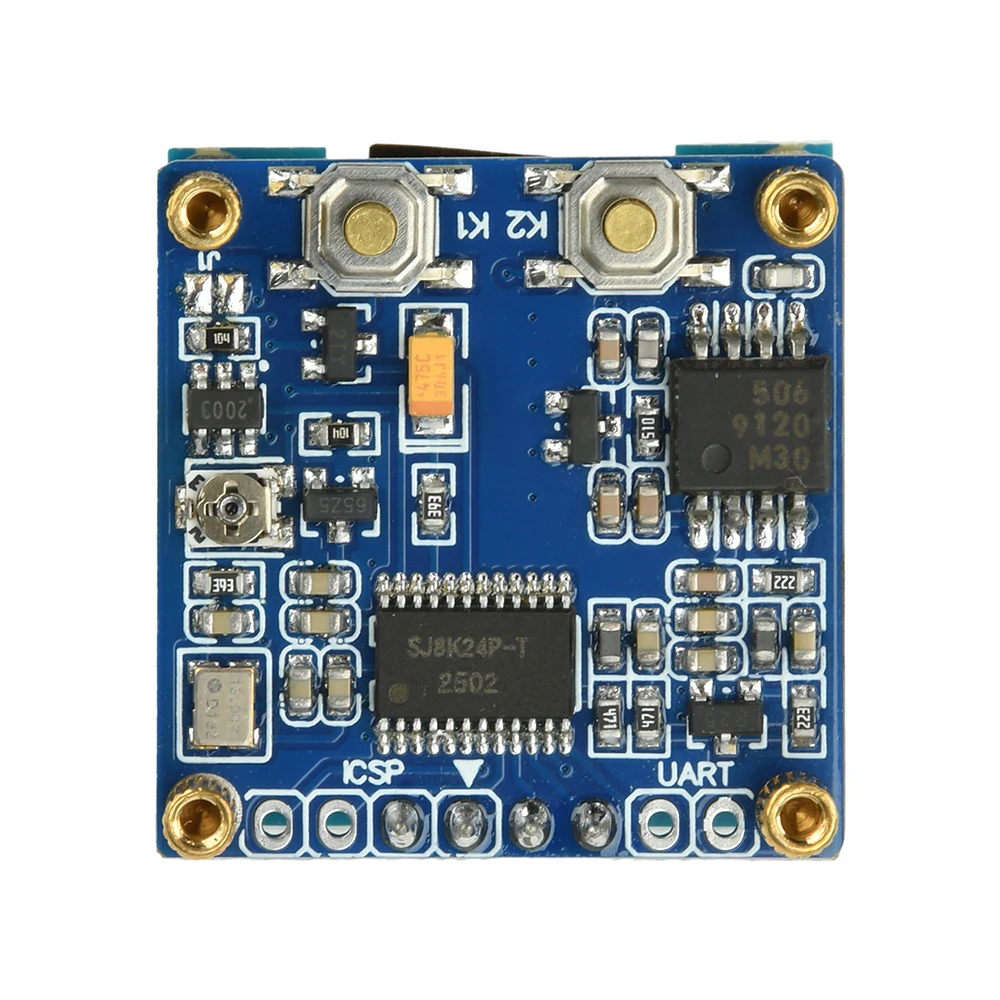

On-Board Interfaces: Signal Input, Power Interface

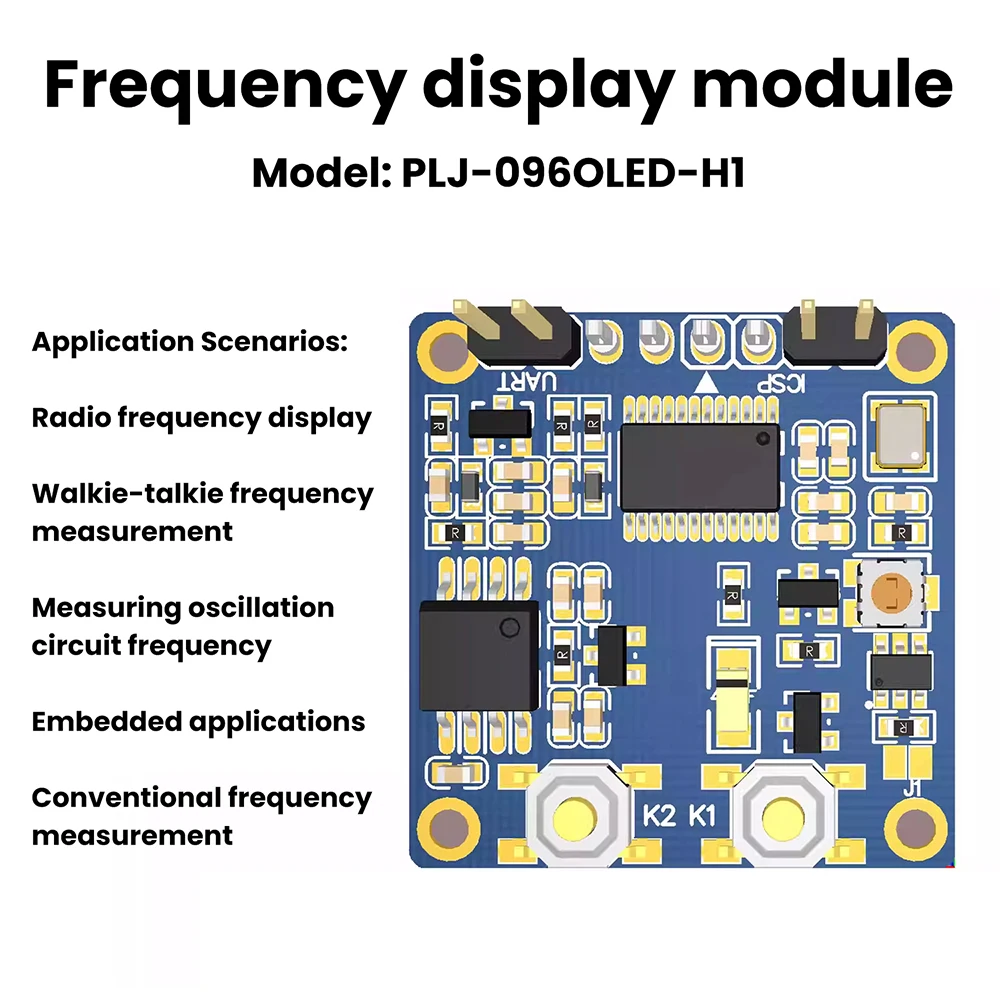

Application Scenarios: Radio frequency display, walkie-talkie frequency measurement, oscillation circuit frequency measurement, embedded applications, general frequency measurement

Description:

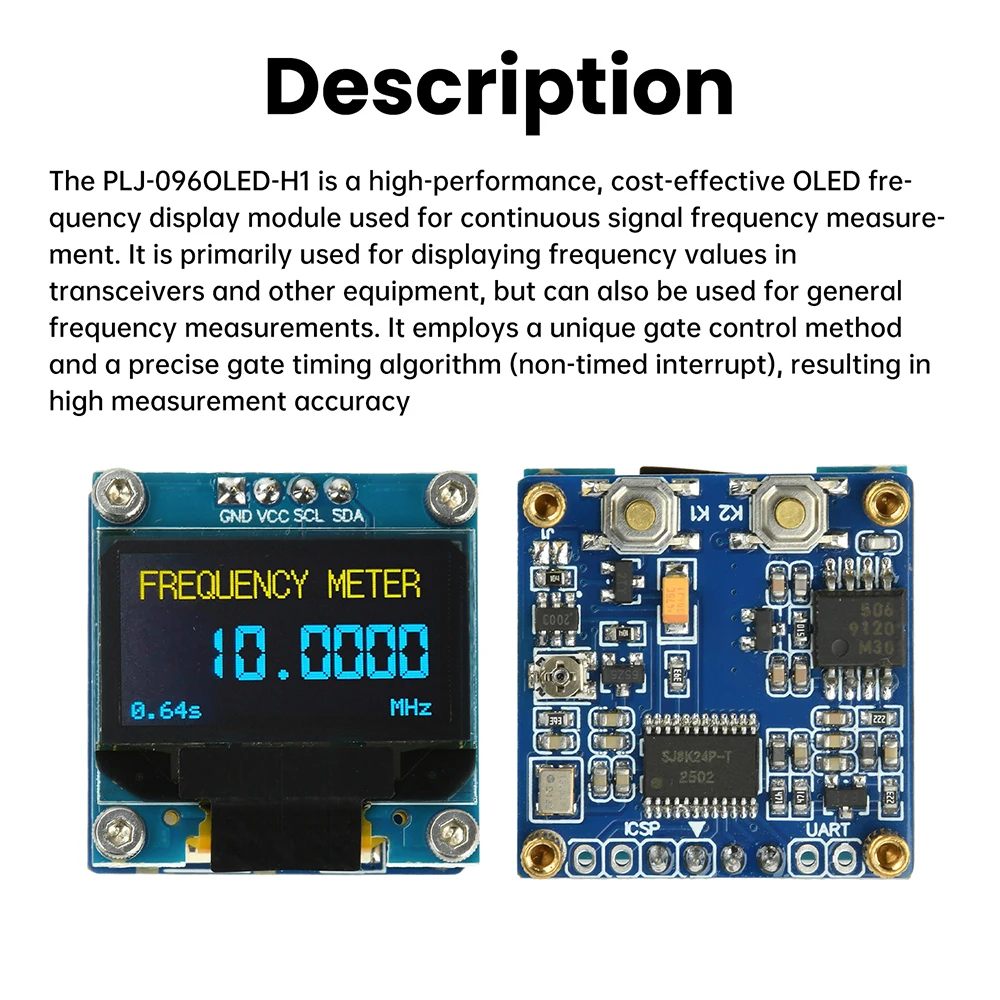

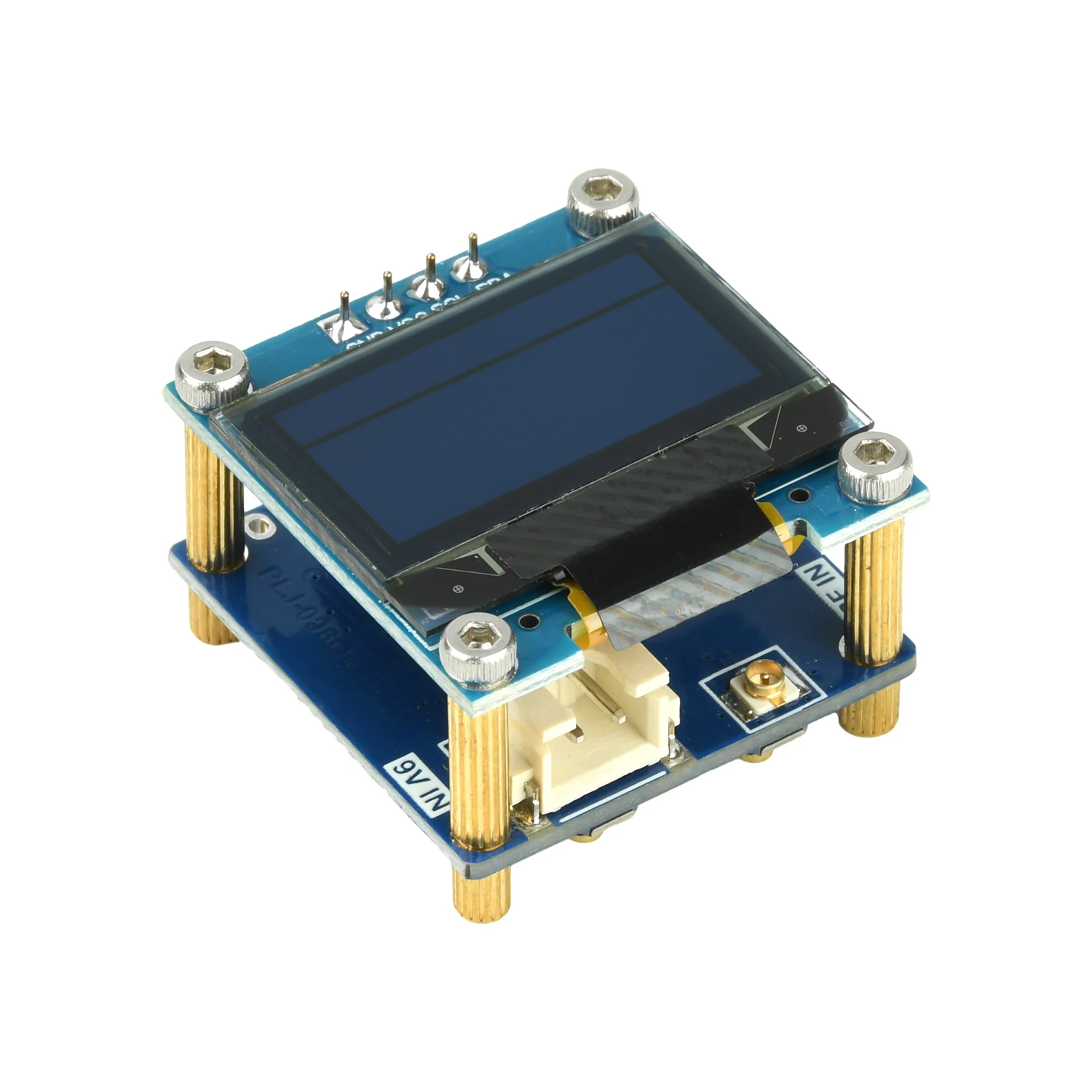

The PLJ-096OLED-H1 is a cost-effective OLED frequency display module designed for continuous signal frequency measurement. Primarily used for displaying frequency values in transceivers and similar equipment, it is also suitable for general frequency measurement. It employs a unique gate control method and precise gate timing algorithm (non-timed interrupt) to achieve high measurement accuracy.

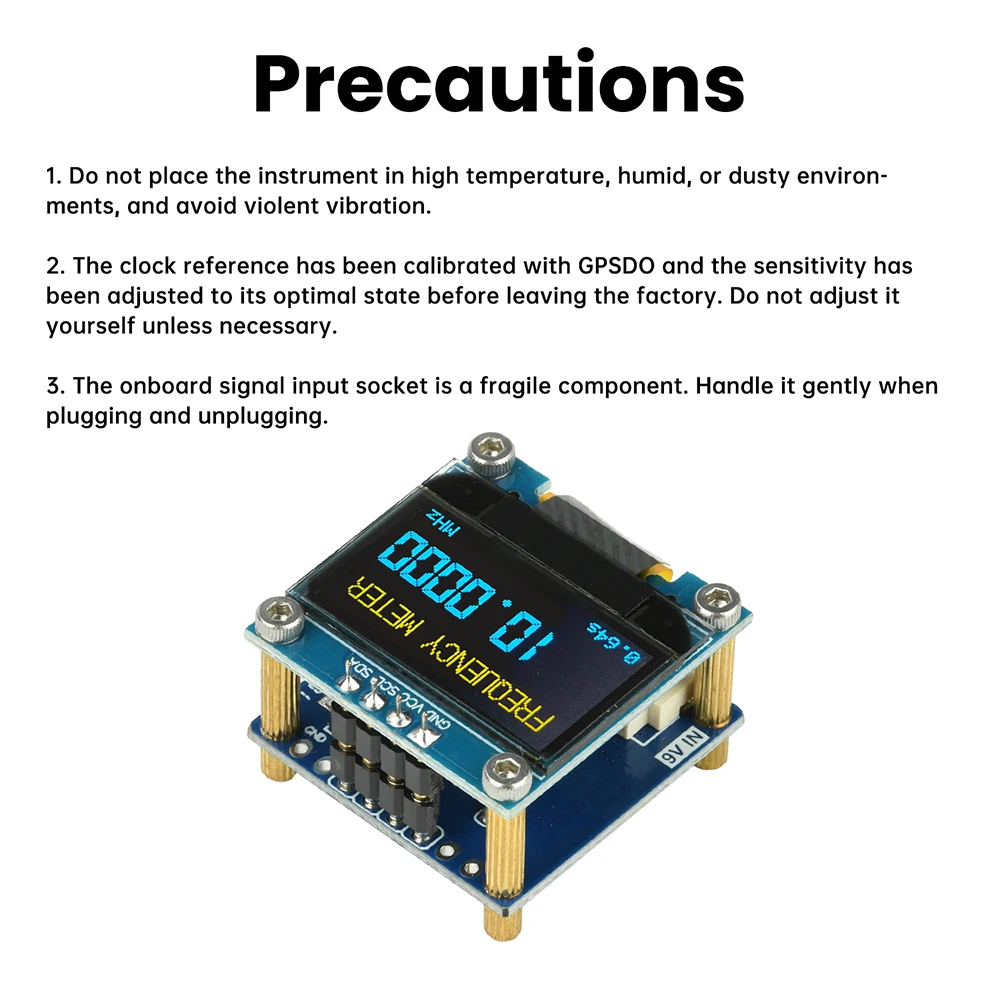

Precautions:

1. Avoid exposing the instrument to high temperatures, humidity, or dusty environments, and prevent severe vibration.

2. The clock reference was calibrated using GPSDO and sensitivity optimized during factory calibration. Do not adjust these settings unless necessary.

3. The onboard signal input connector is a fragile component. Handle it gently when inserting or removing plugs.

Package include:

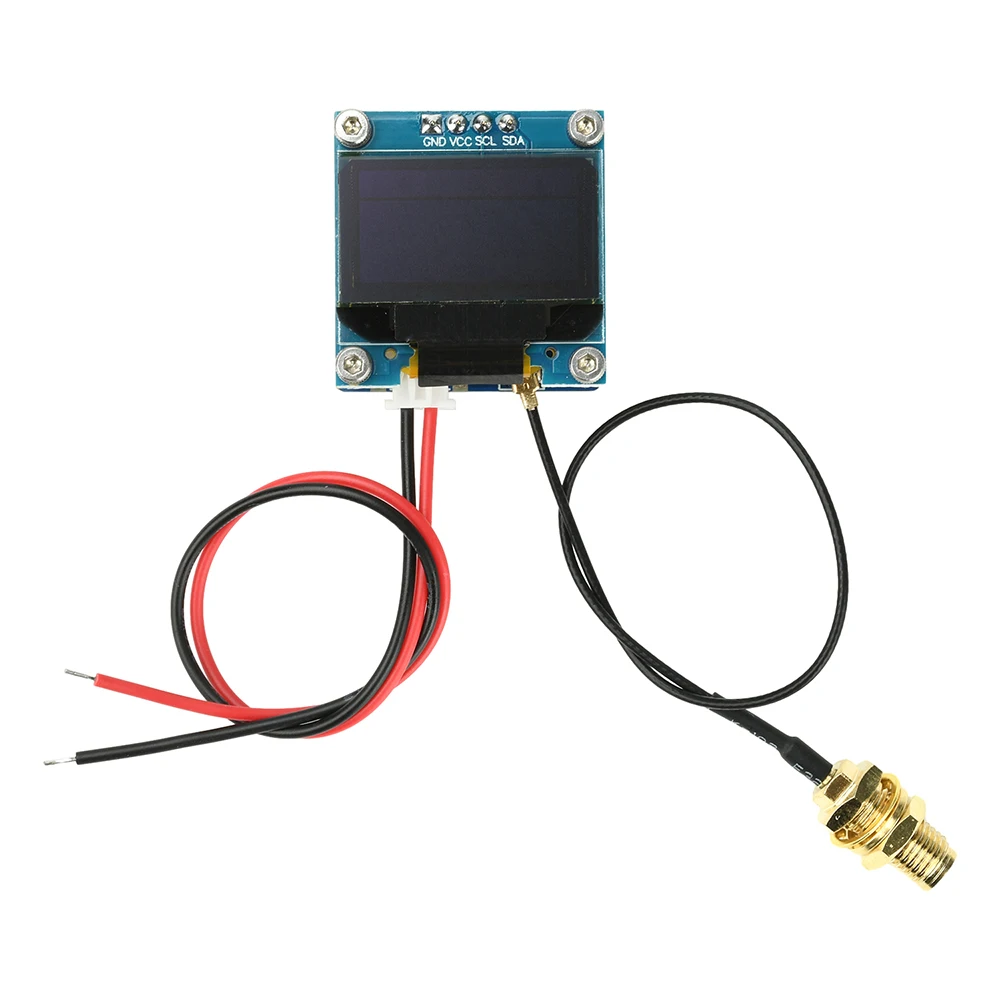

Module x1+Signal cable x1+Power cable x1
