Huidu RGB Full Color Function Sensor Box Support IR,Temperature/Humidity/Brightness Sensor Work With HD-D16/C08L/C16L/A3L/A4L

Huidu RGB Full Color Function Sensor Box Support IR,Temperature/Humidity/Brightness Sensor Work With HD-D16/C08L/C16L/A3L/A4L

Description

RGB function module include 3 part:IR(remote control)、Temperature/humidity sensor、brightness sensor. Applying to each RGB control card: HD-D16/C08L/C16L/A3L/A4L/A5L/A6L/A7/A8/B6L/B8L/H4K/H6/H8.

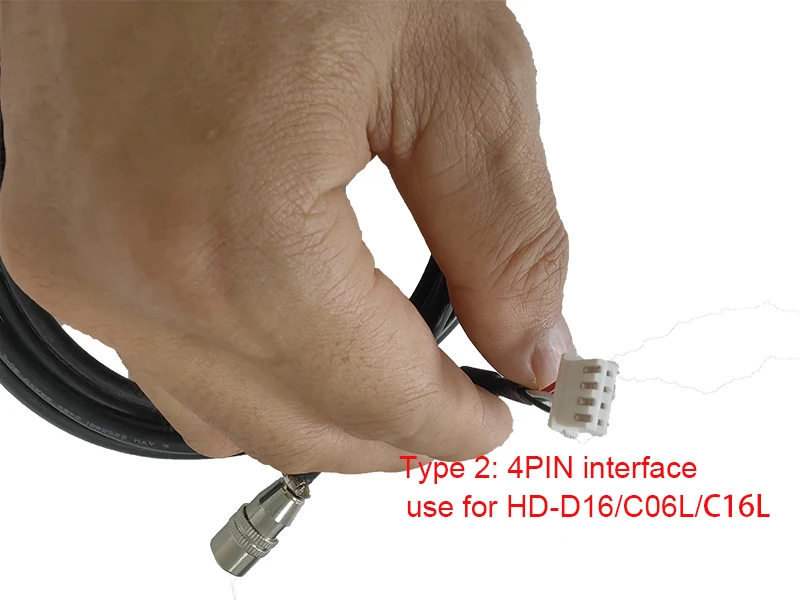

Interface type

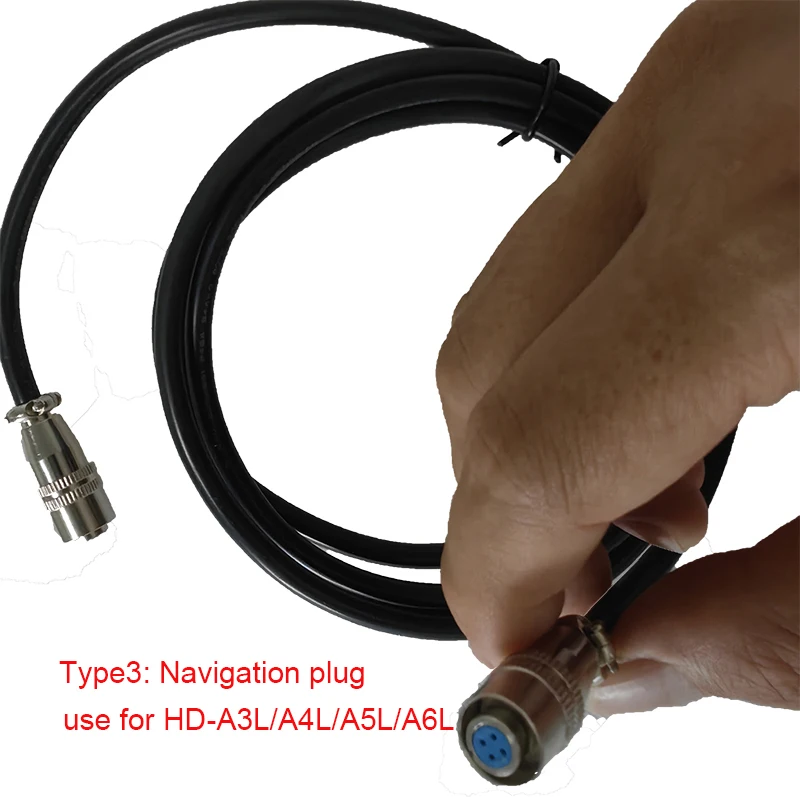

Note:Please check your controller card model and select correct interface type. Thanks

IR(remote control) :receiving order from remote control, mainly be used in remote control screen on and off, choosing program,adjusting brightness, testing screen, and so on.

buzzer :Pressing remote control ,buzzer will go off.

Temperature/humidity sensor :Sensing the local environment Temperature and humidity, showing on the led screen.

Brightness sensor :Sensing the local environment brightness, automatic adjust led screen brightness . The light is strong during the day，screen need brighter；on night the light is weak，screen darker, avoid glare

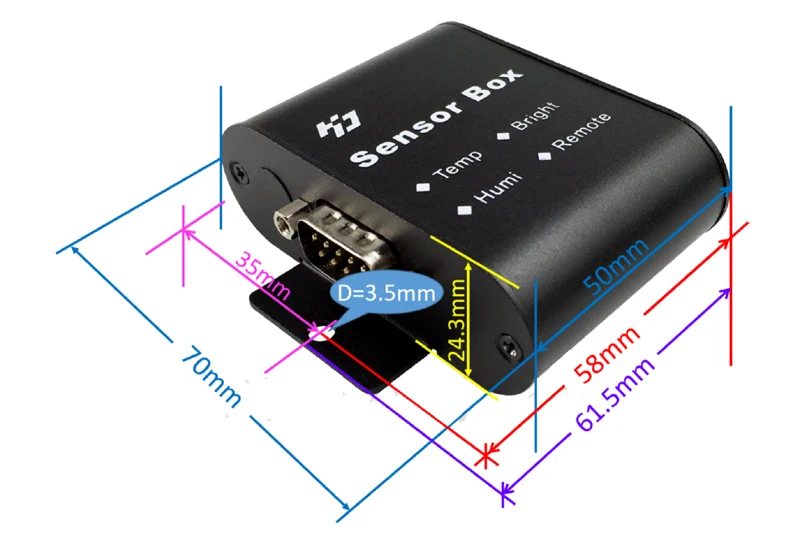

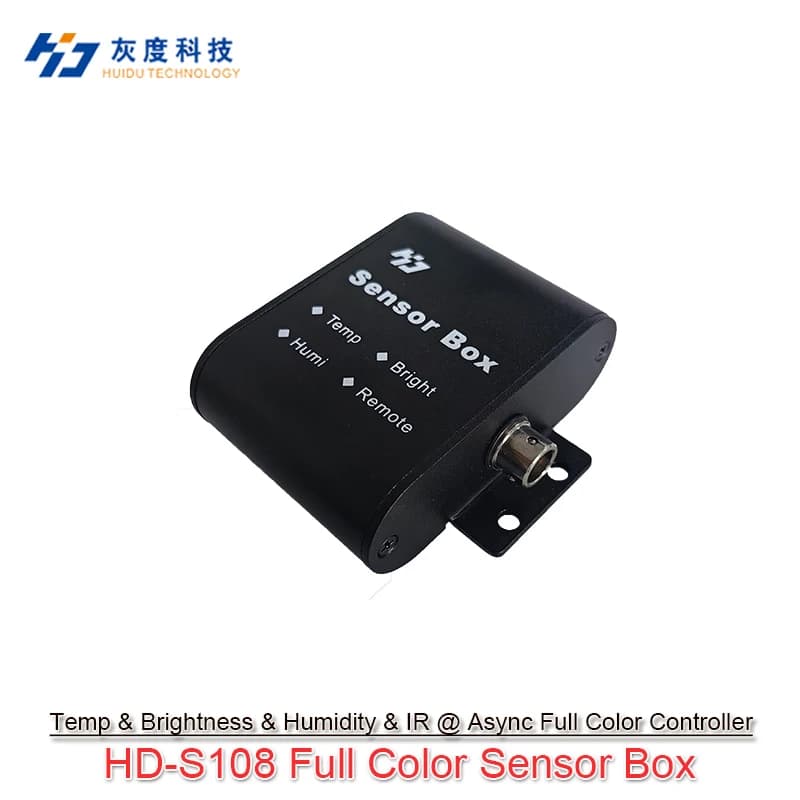

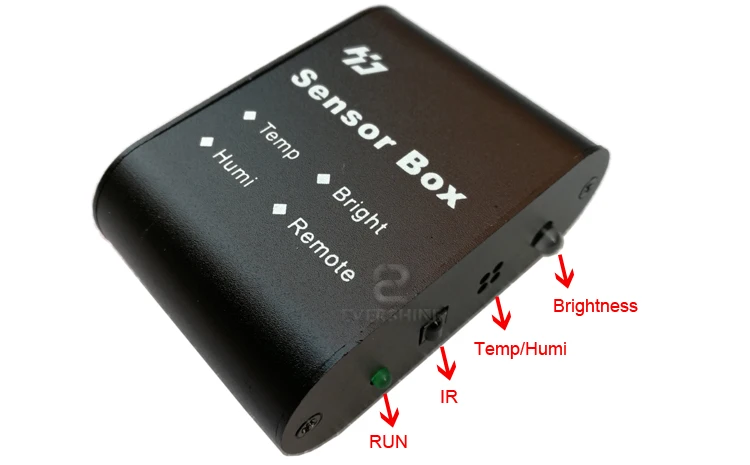

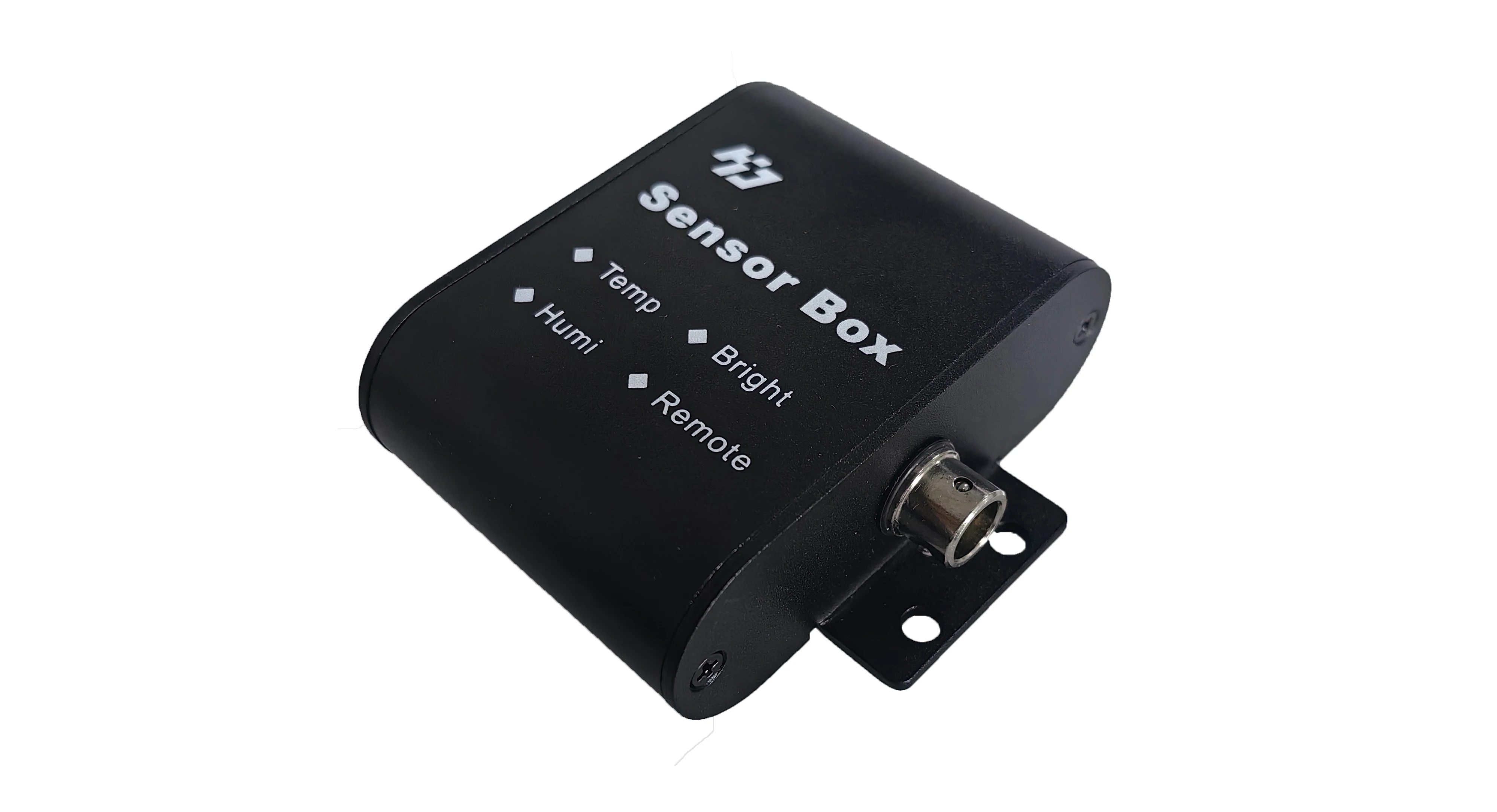

Product Picture

RUN : Flicker-working, bkack-not working(maybe cable inversely connected). It will be flicker when

click the remotecontrol.

IR(remote control) : Receiving the order from remote control, it is use for turn on or off the screen

remotely, choosingprograms, adjusting brightness, testing screen etc.

Temperature/humidity sensor : The sensor senses the temperature of the environment and displays

it on the display.

Brightness sensor : The sensor senses the brightness of the environment and adjusts the brightness

of the displayautomatically. The stronger the light, the brighter the display shows; the weaker the light,

the darker the display shows.

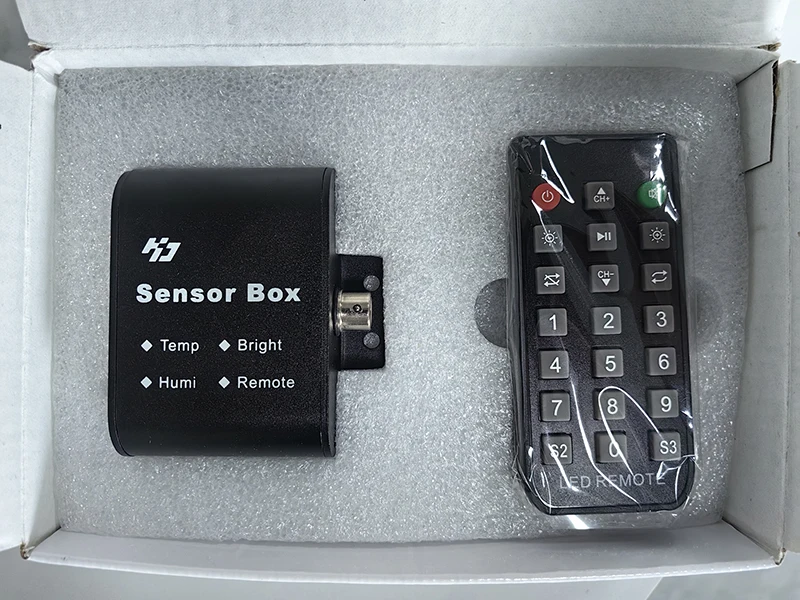

Remote Control

After control card connected with sensor，you can use remote control.

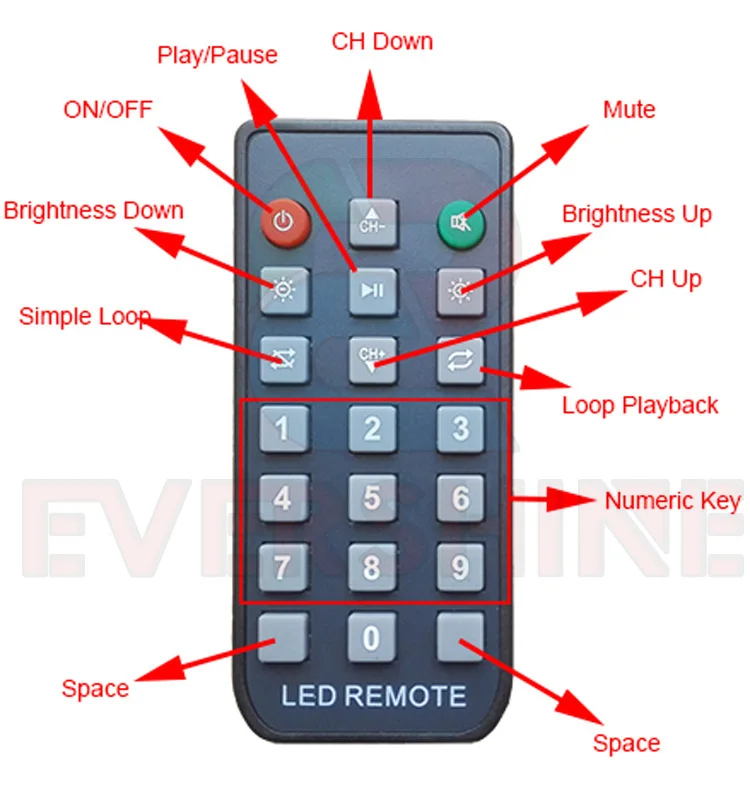

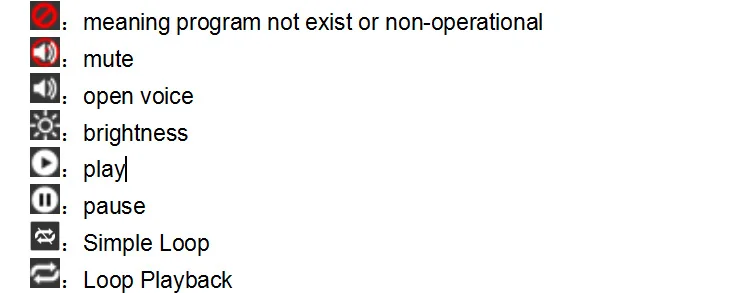

Remote control button function as bellow：

ON/OFF：turn on the screen，or turn off the screen

Mute：voice turn on and turn off

numeric key：select program，for example：press “18”，it will play program 18th .

Loop Playback：All the program loop playback one by one.

Simple Loop：Simple Loop play program，for example：when playing program 8，press “Simple Loop” it will loop playback program 8.

play/Pause：play program；pause program

CH+：play the last program

CH-：play the next program

Brightness +：brightness increase a level

Brightness -：brightness decrease a level

Space：no function

Temperature

After led control card connected with sensor，edit program show with temperature，sending to control card ，Temperature and humidity will show on LED screen corresponding location.

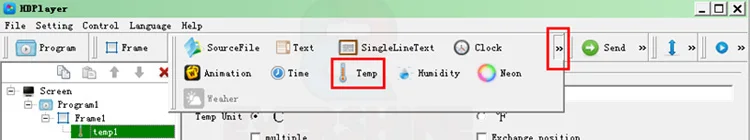

1.adding temperature plug

add temperature

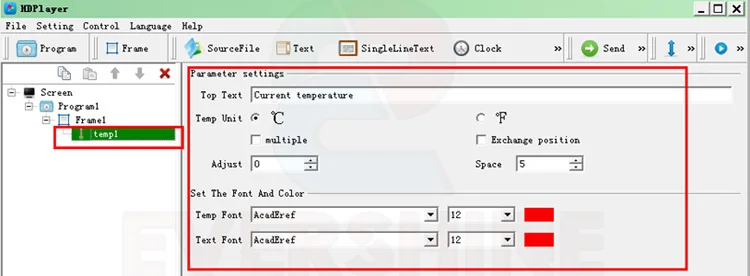

2.modify display property

After adding temperature，you can modify displayed fixed text, The unit of temperature, The text font and color

Temperature property

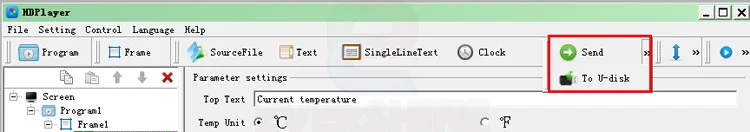

3. Program sending and U-disk exporting

After modifying display property，click “sending” or U-disk export program insert on control card（as picture show），LED screen will show temperature.

Sending and exporting program

Humidity

After led control card connected with sensor，edit program with humidity，sending to led control card，Temperature or humidity will show on LED screen corresponding location.

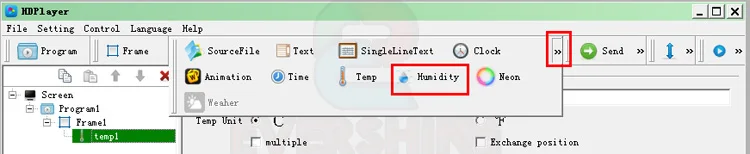

1. Adding humidity plug

add humidity

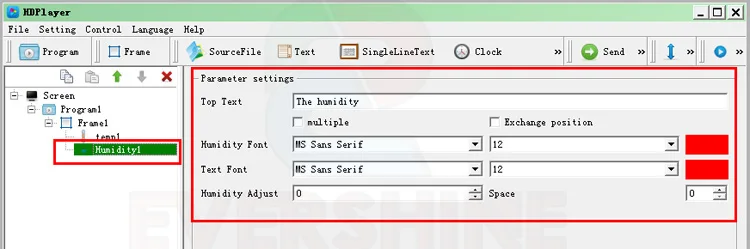

2. modify display property

After adding humidity，can modify displayed fixed text, The unit of humidity, The text font and color.

humidity property

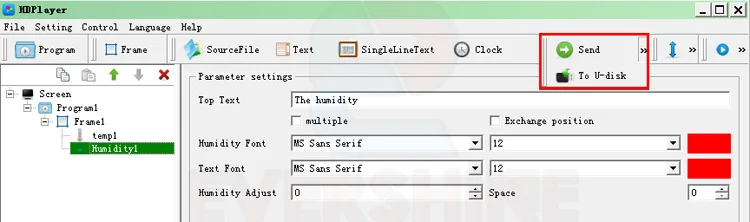

3.Program sending and U-disk exporting

After modifying display property，click “sending” or U-disk export program insert on control card（as picture 2-4 show），LED screen will show humidity.

sending and exporting program

Brightness

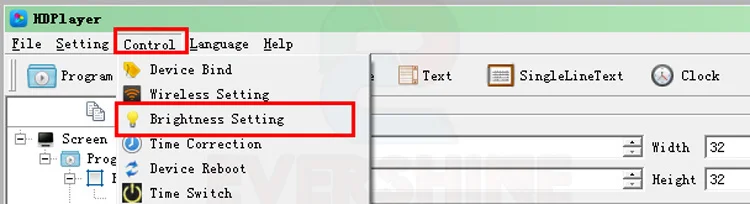

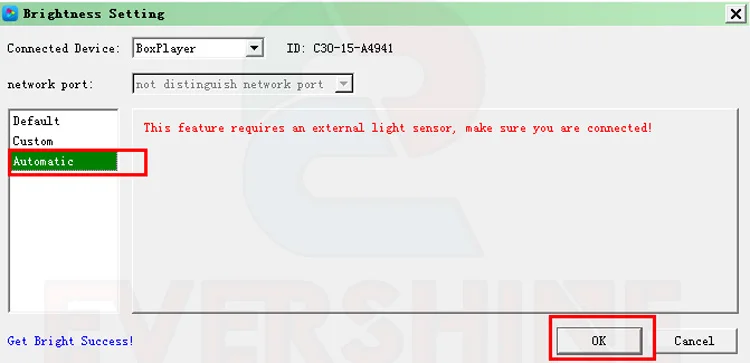

After led control card connected with sensor，open software，enter【control 】→【brightness adjustment】→【automatic】→【yes】,as picture (Control/Brightness) and picture (automatic adjustment brightness)show,then led screen according to environment and temperature automatic adjustment brightness .

Control/Brightness

automatic adjustment brightness
