NEXTION NX4827P043-011R-Y 4.3 Inch LCD-TFT HMI Resistive Touch Display Module Panel Intelligent Series Screen With Enclosure

NEXTION NX4827P043-011R-Y 4.3 Inch LCD-TFT HMI Resistive Touch Display Module Panel Intelligent Series Screen With Enclosure

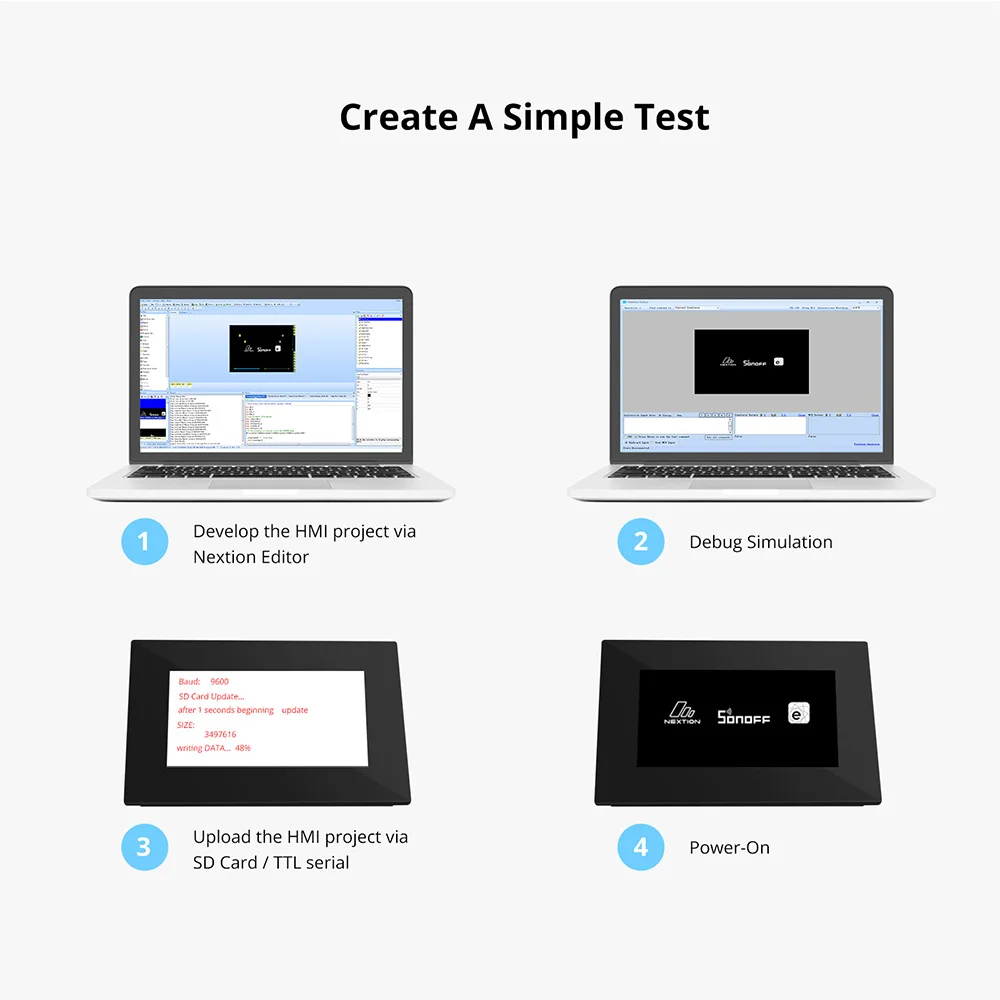

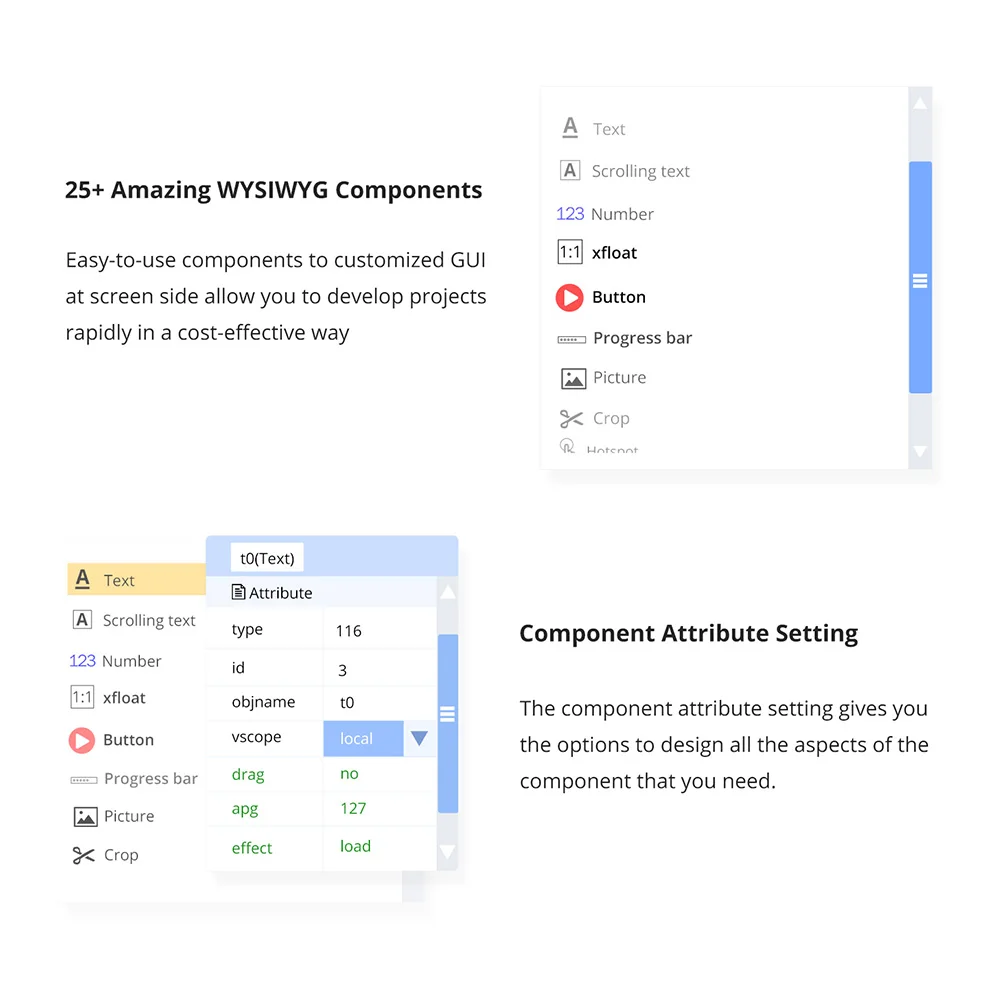

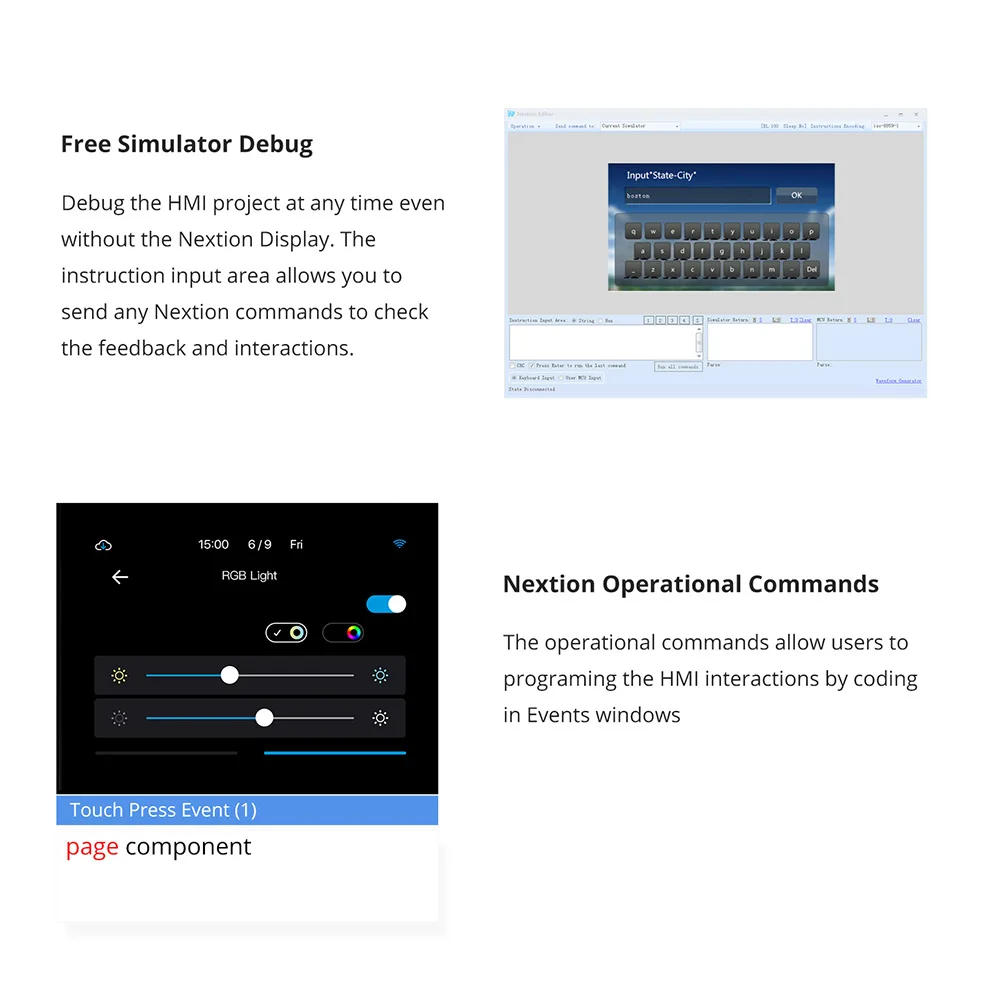

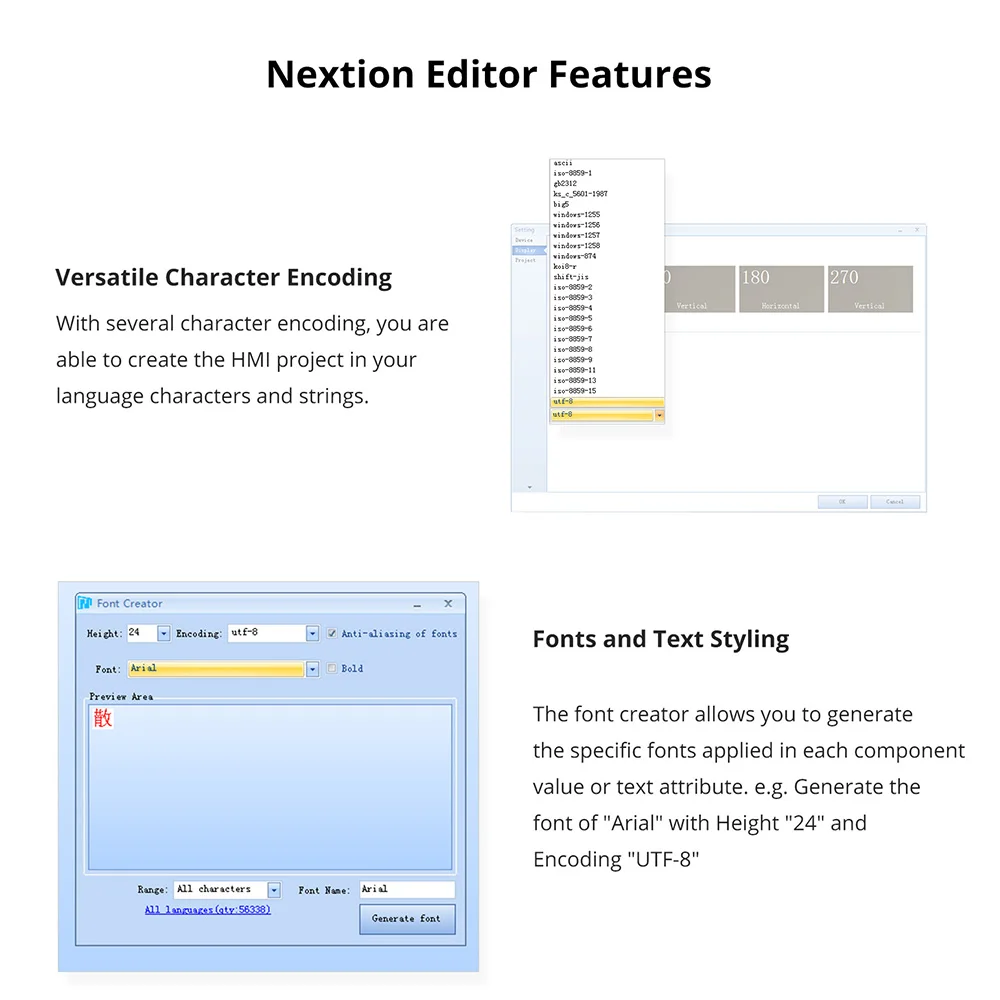

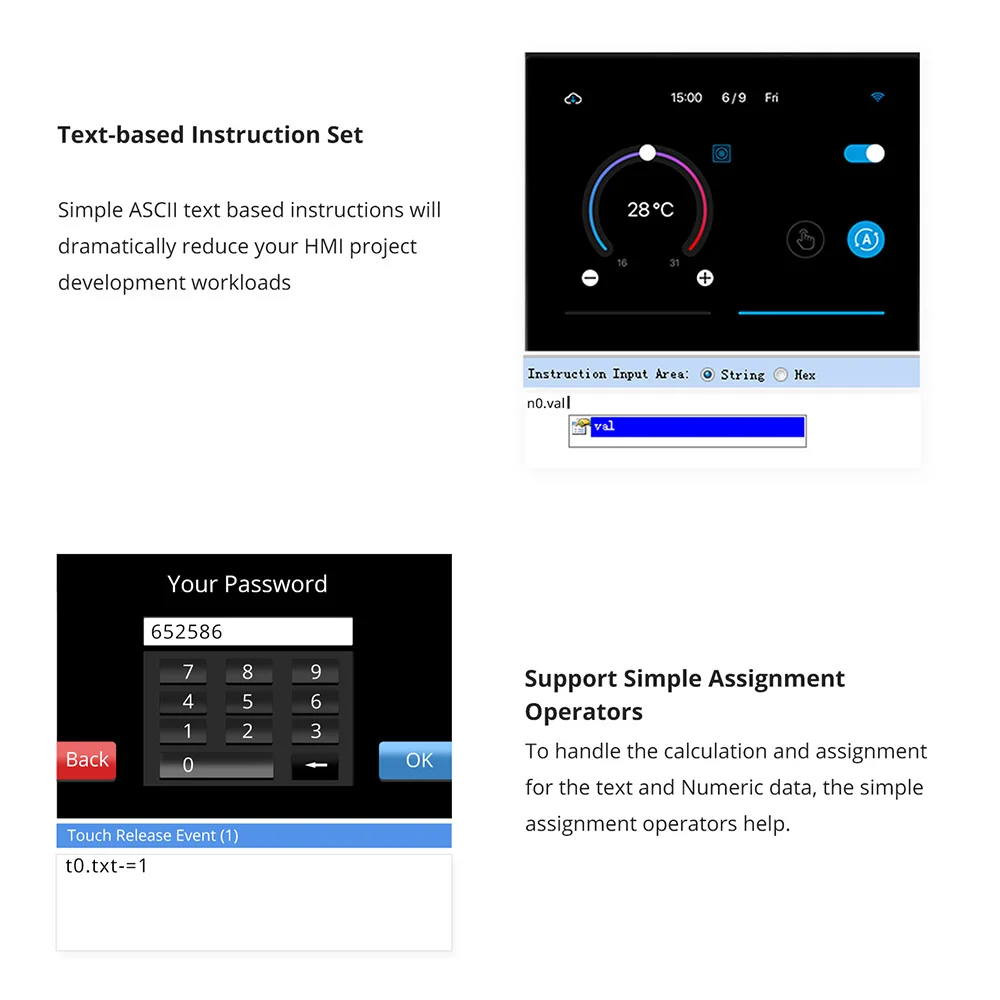

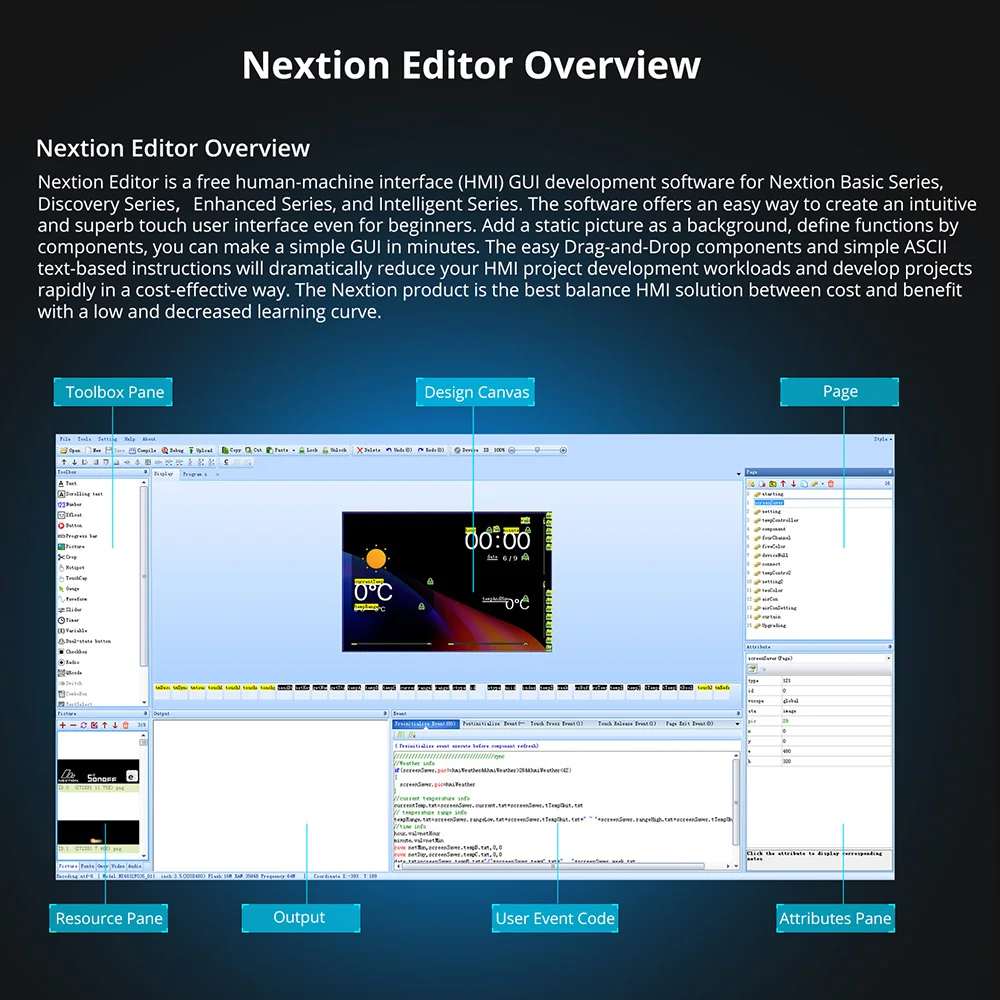

Nextion Editor is a free human-machine interface (HMI) GUI development software for Nextion Basic Series, Enhanced Series, and Intelligent Series. The software offers an easy way to create an intuitive and superb touch user interface even for beginners. Add a static picture as a background, define functions by components, you can make a simple GUI in minutes. The easy Drag-and-Drop components and simple ASCII text-based instructions will dramatically reduce your HMI project development workloads and develop projects rapidly in a cost-effective way. The Nextion product is the best balance HMI solution between cost and benefit with a low and decreased learning curve.

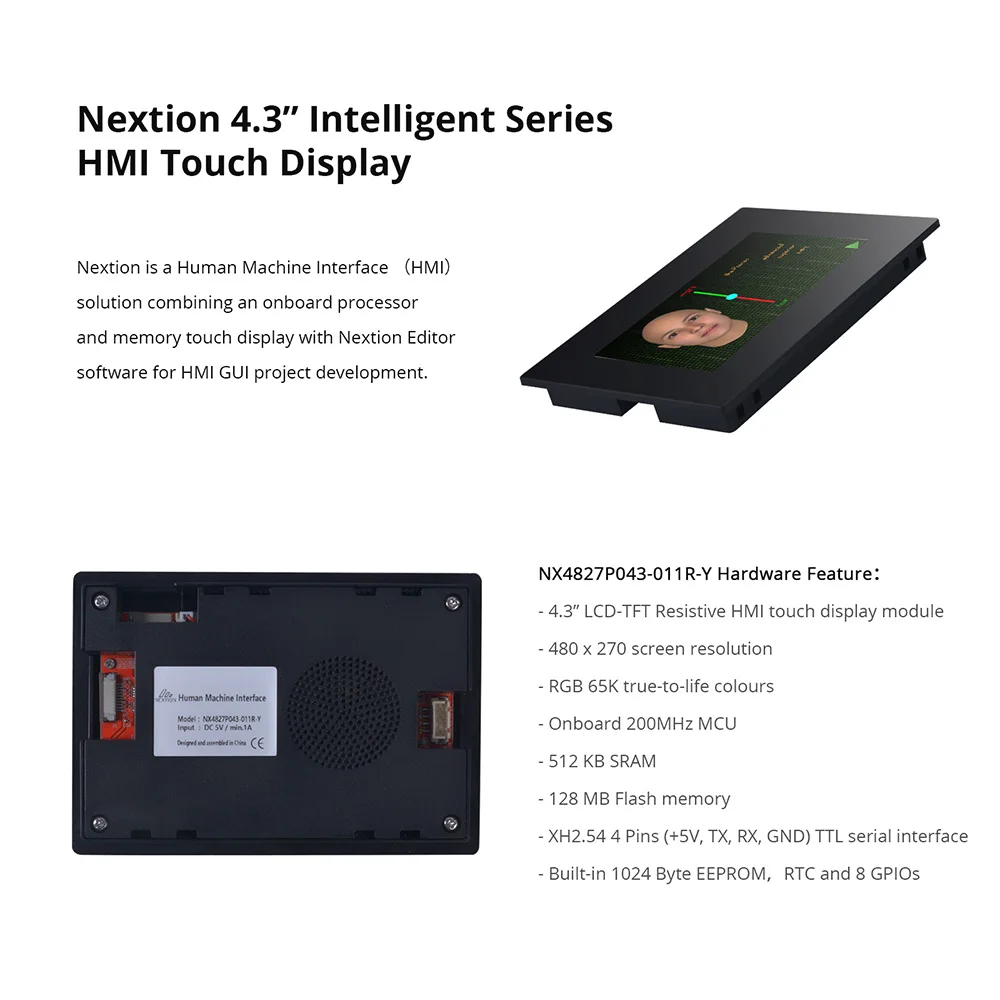

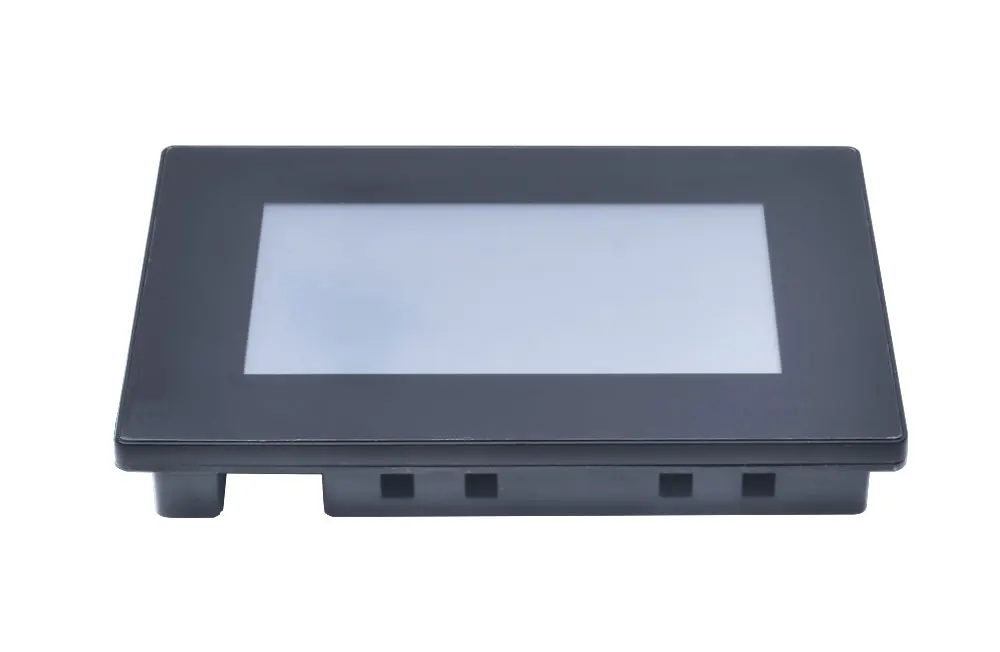

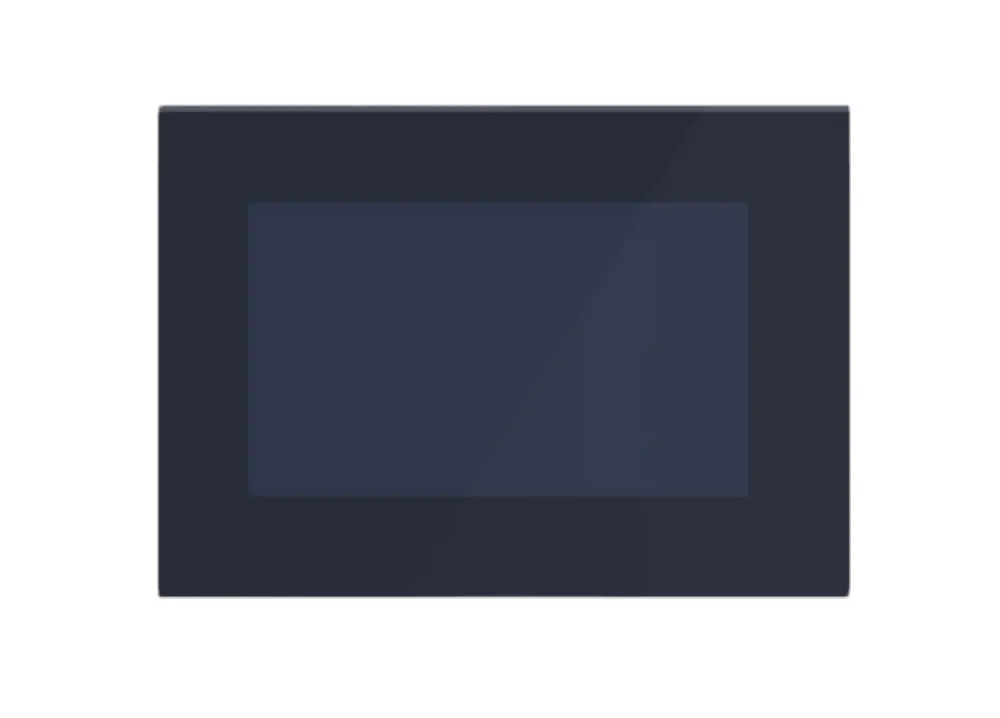

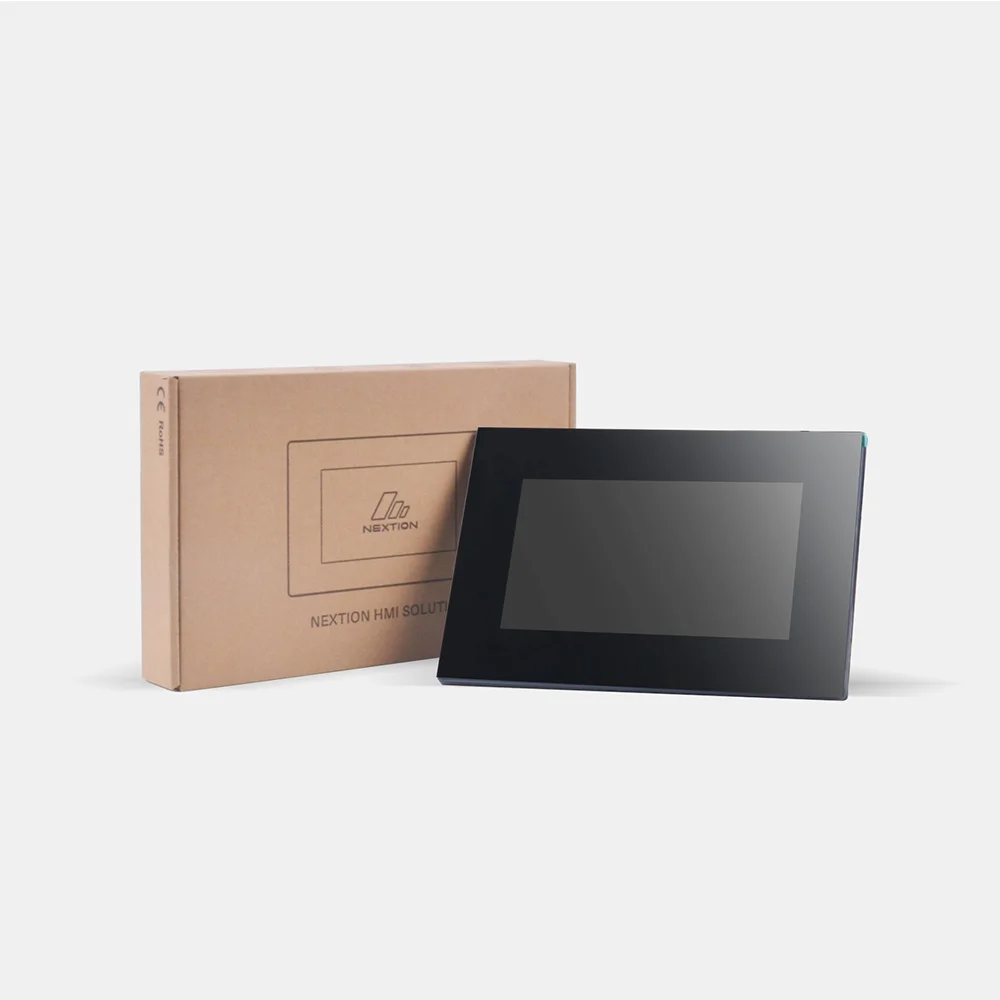

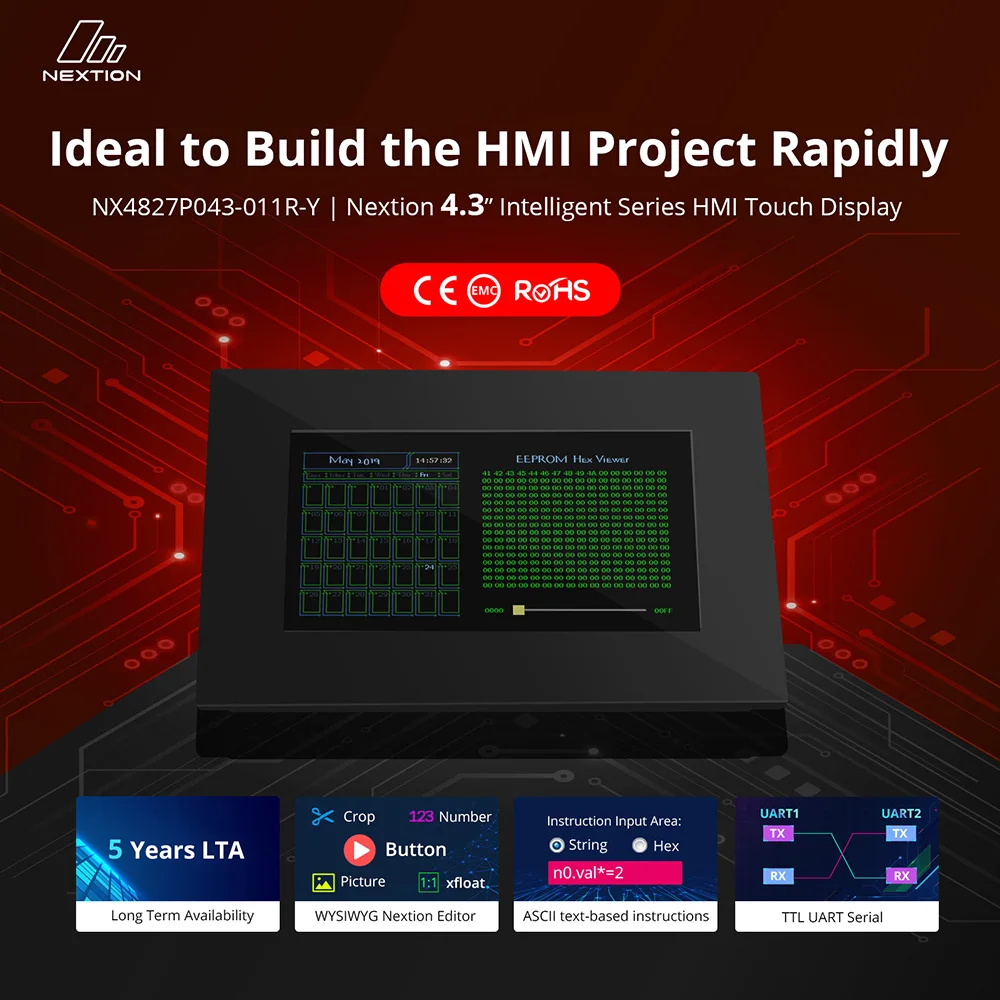

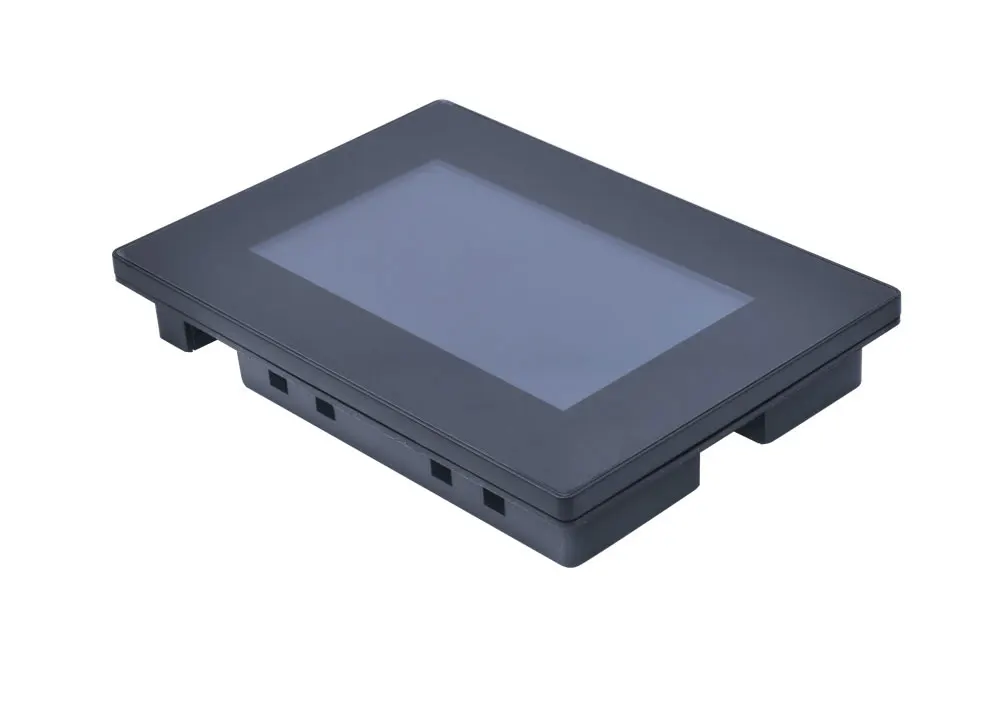

NX4827P043-011R-Y is a Nextion Intelligent series 4.3'' resistive HMI touchscreen with enclosure.

NOTE: 4.3 inch display is now transiting to IPS technology, please choose the correct SKU if you need.

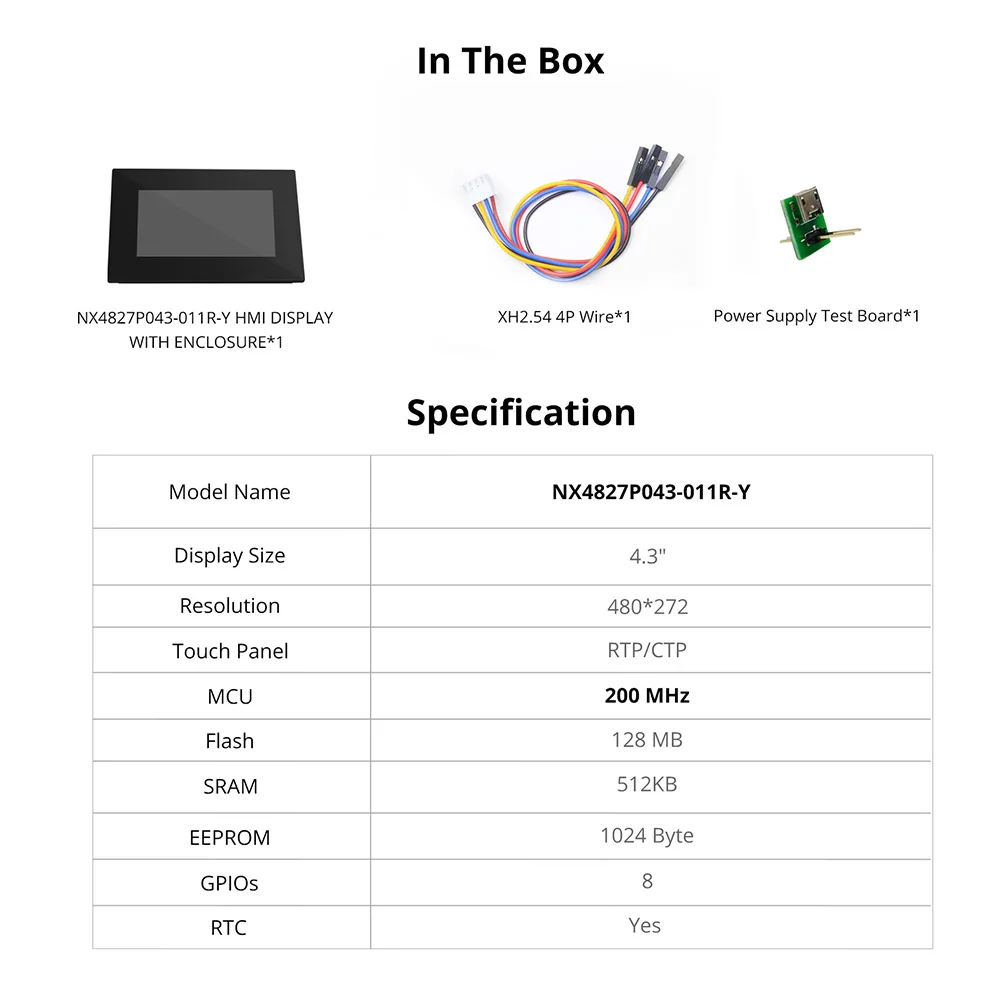

Hardware Features

4.3” LCD-TFT HMI display module
480 x 272 screen resolution
RGB 65K true-to-life colours
Resistive touch panel
300 nit Brightness

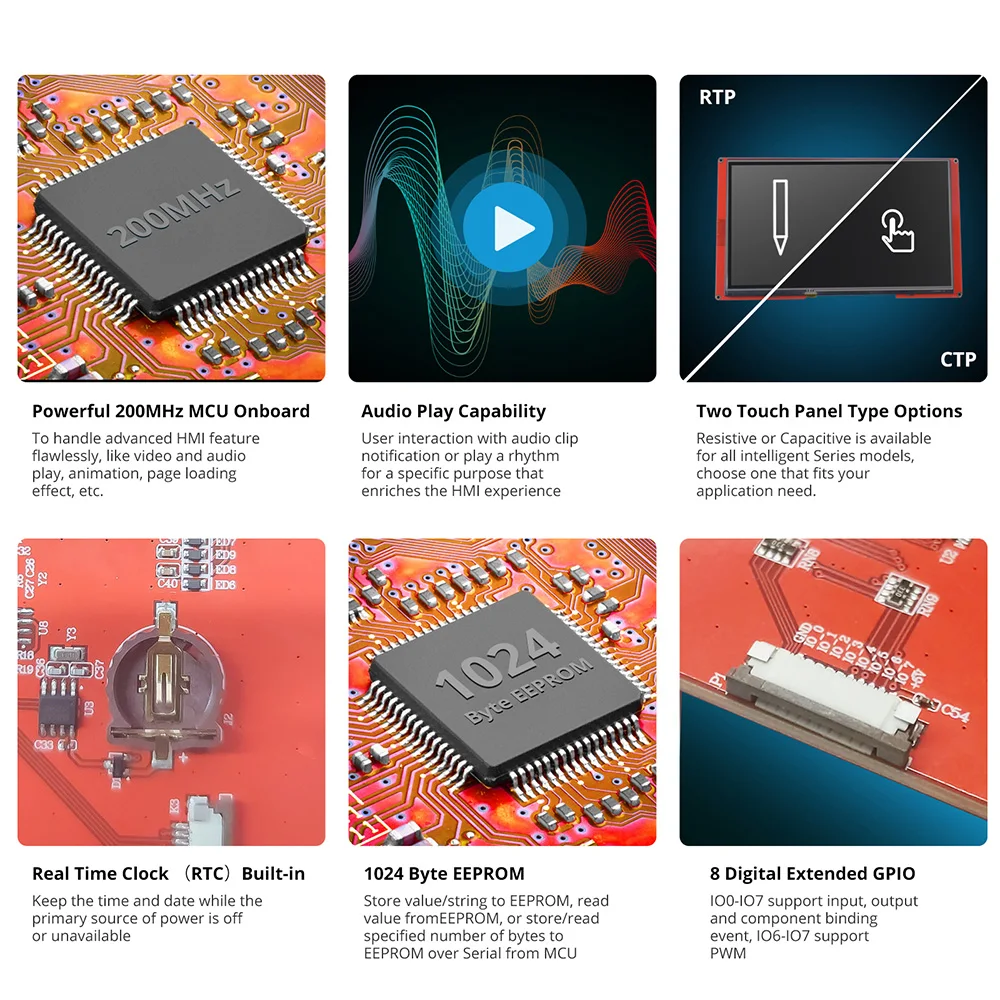

Onboard 200MHz MCU
512 KB of SRAM
128 MB of Flash memory
1024 Byte EEPROM

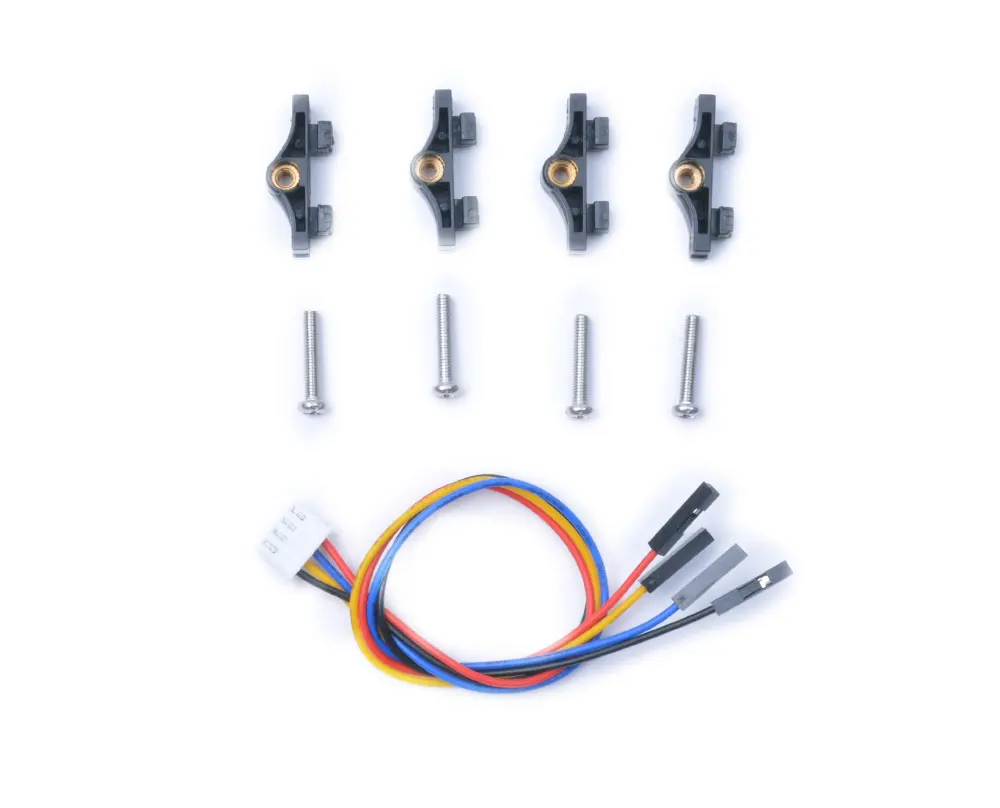

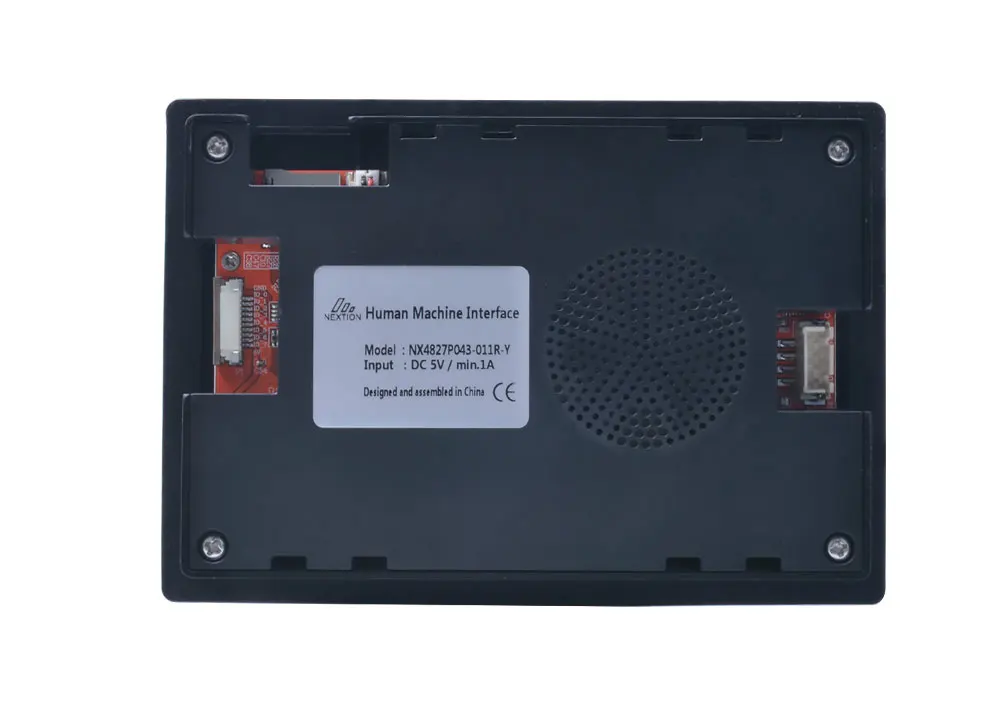

XH2.54 4 Pins (+5V, TX, RX, GND) TTL serial interface
1.25T-2-2A Audio port for external speaker connection
8 Digital extended GPIO
(IO0-IO7 support input, output and component binding event, IO6-IO7 support PWM)
Built-in RTC support

Product Details
