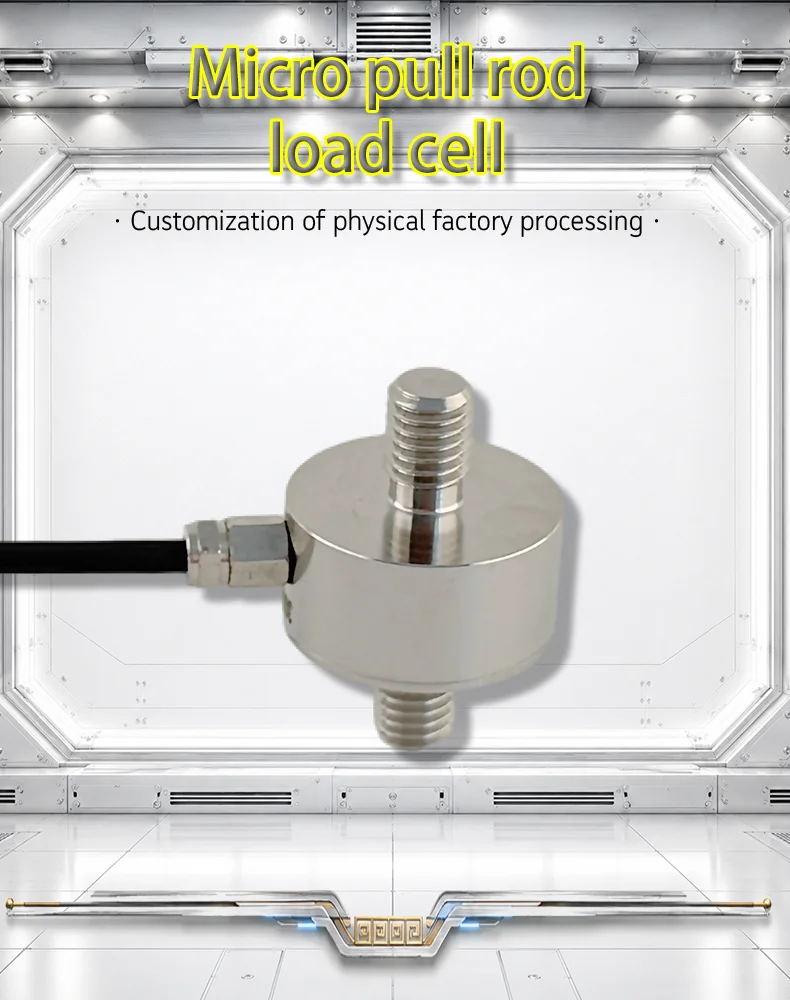

Micro Pull Rod Load Cell, Stainless Steel, Precise Measurement, Anti-Corrosion, Wear-Resistant, Custom Sizes from 5kg to 500kg

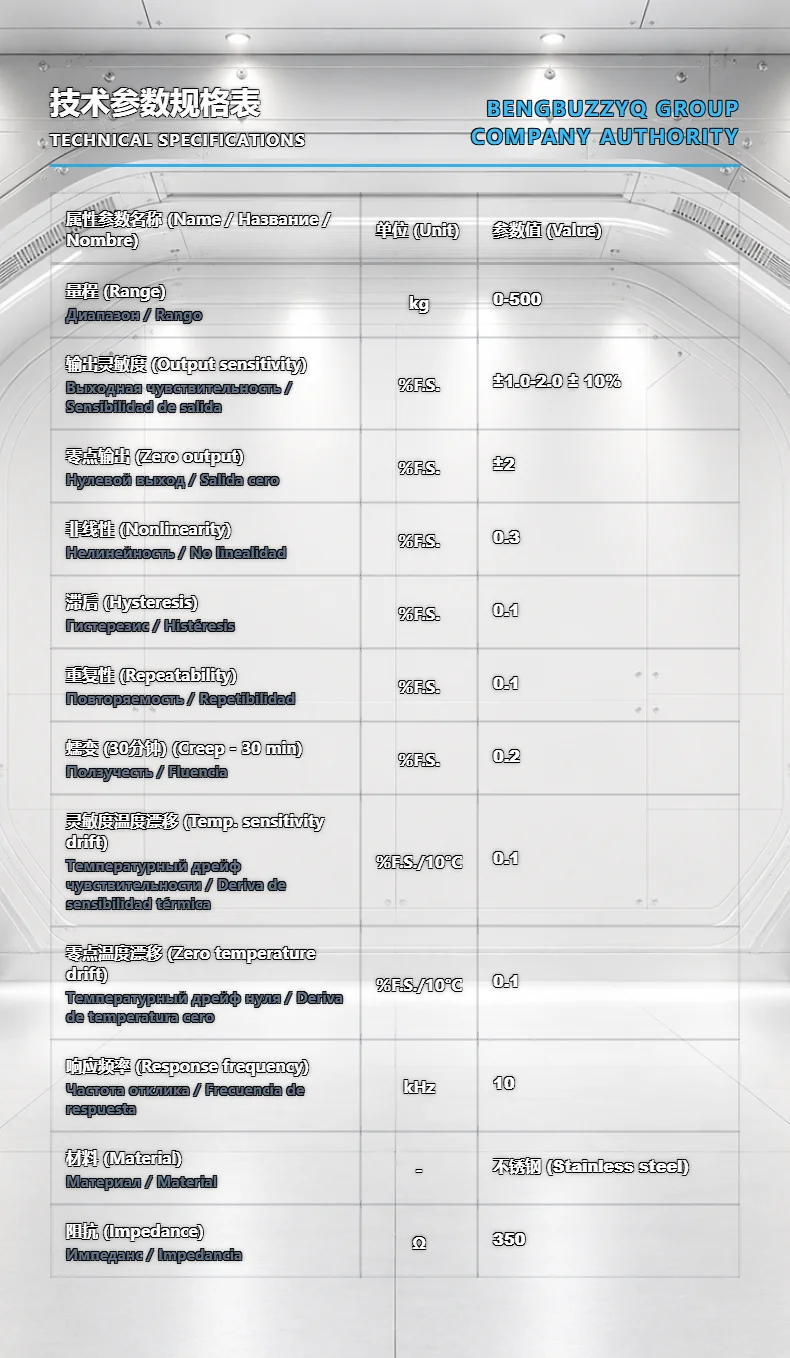

属性参数名称 (Name / Название / Nombre)

单位 (Unit)

参数值 (Value)

量程

(Range)

kg

0-500

Диапазон / Rango

输出灵敏度

(Output sensitivity)

%F.S.

±1.0-2.0 ± 10%

Выходная чувствительность / Sensibilidad de salida

零点输出

(Zero output)

%F.S.

±2

Нулевой выход / Salida cero

非线性

(Nonlinearity)

%F.S.

0.3

Нелинейность / No linealidad

滞后

(Hysteresis)

%F.S.

0.1

Гистерезис / Histéresis

重复性

(Repeatability)

%F.S.

0.1

Повторяемость / Repetibilidad

蠕变 (30分钟)

(Creep - 30 min)

%F.S.

0.2

Ползучесть / Fluencia

灵敏度温度漂移

(Temp. sensitivity drift)

%F.S./10°C

0.1

Температурный дрейф чувствительности / Deriva de sensibilidad térmica

零点温度漂移

(Zero temperature drift)

%F.S./10°C

0.1

Температурный дрейф нуля / Deriva de temperatura cero

响应频率

(Response frequency)

kHz

10

Частота отклика / Frecuencia de respuesta

材料

(Material)

-

不锈钢 (Stainless steel)

Материал / Material

阻抗

(Impedance)

Ω

350

Импеданс / Impedancia

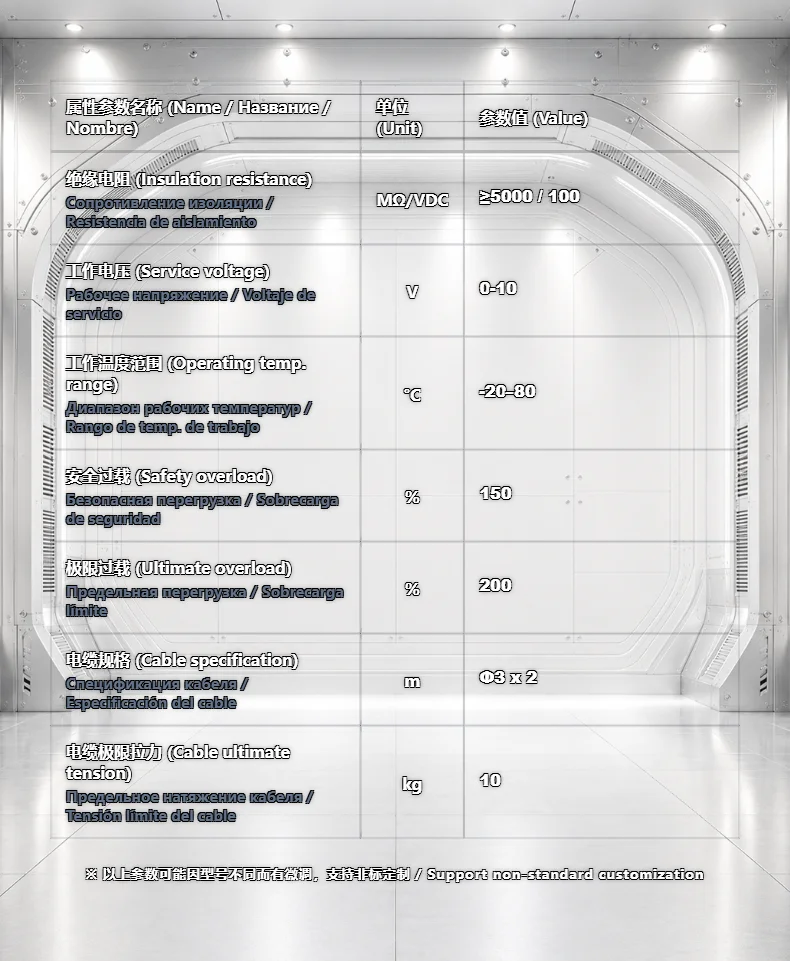

绝缘电阻

(Insulation resistance)

MΩ/VDC

≥5000 / 100

Сопротивление изоляции / Resistencia de aislamiento

工作电压

(Service voltage)

V

0-10

Рабочее напряжение / Voltaje de servicio

工作温度范围

(Operating temp. range)

°C

-20–80

Диапазон рабочих температур / Rango de temp. de trabajo

安全过载

(Safety overload)

%

150

Безопасная перегрузка / Sobrecarga de seguridad

极限过载

(Ultimate overload)

%

200

Предельная перегрузка / Sobrecarga límite

电缆规格

(Cable specification)

m

Φ3 x 2

Спецификация кабеля / Especificación del cable

电缆极限拉力

(Cable ultimate tension)

kg

10

Предельное натяжение кабеля / Tensión límite del cable

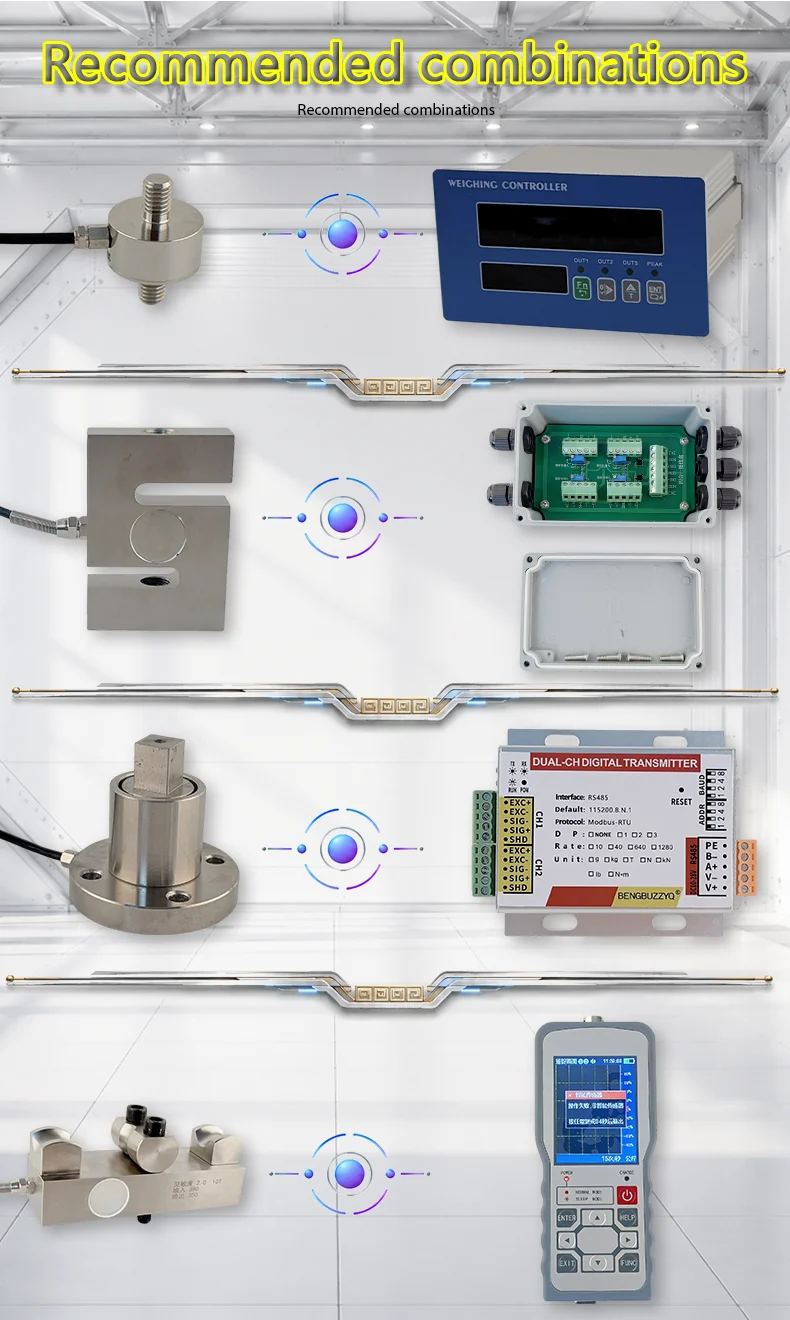

YAN JIU's tension transducer offers refined feedback accuracy, tailored for labs, electronic packaging lines, and dynamic weighing. Lightweight yet resilient, it integrates smoothly with PLC systems and modern intelligent controllers.

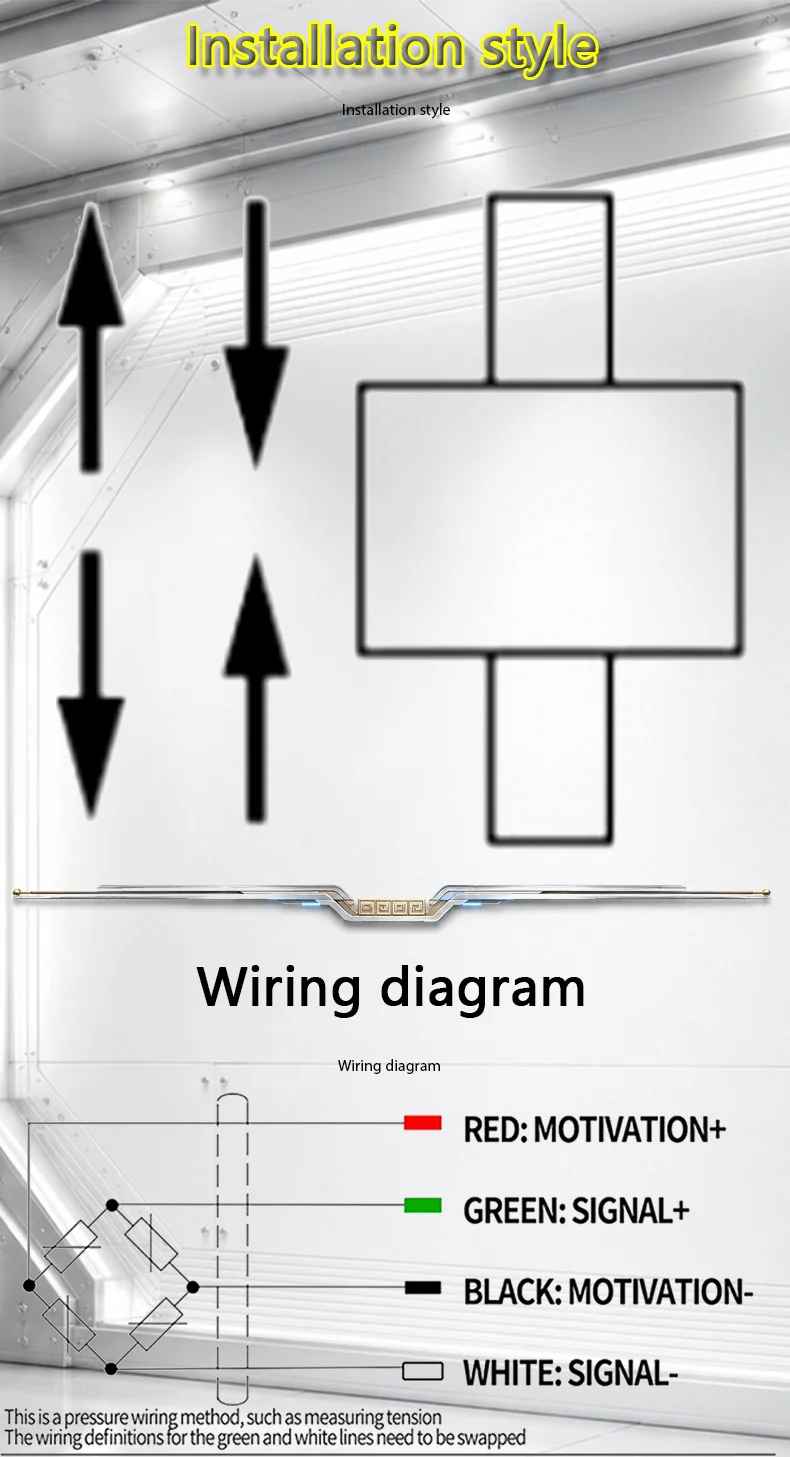

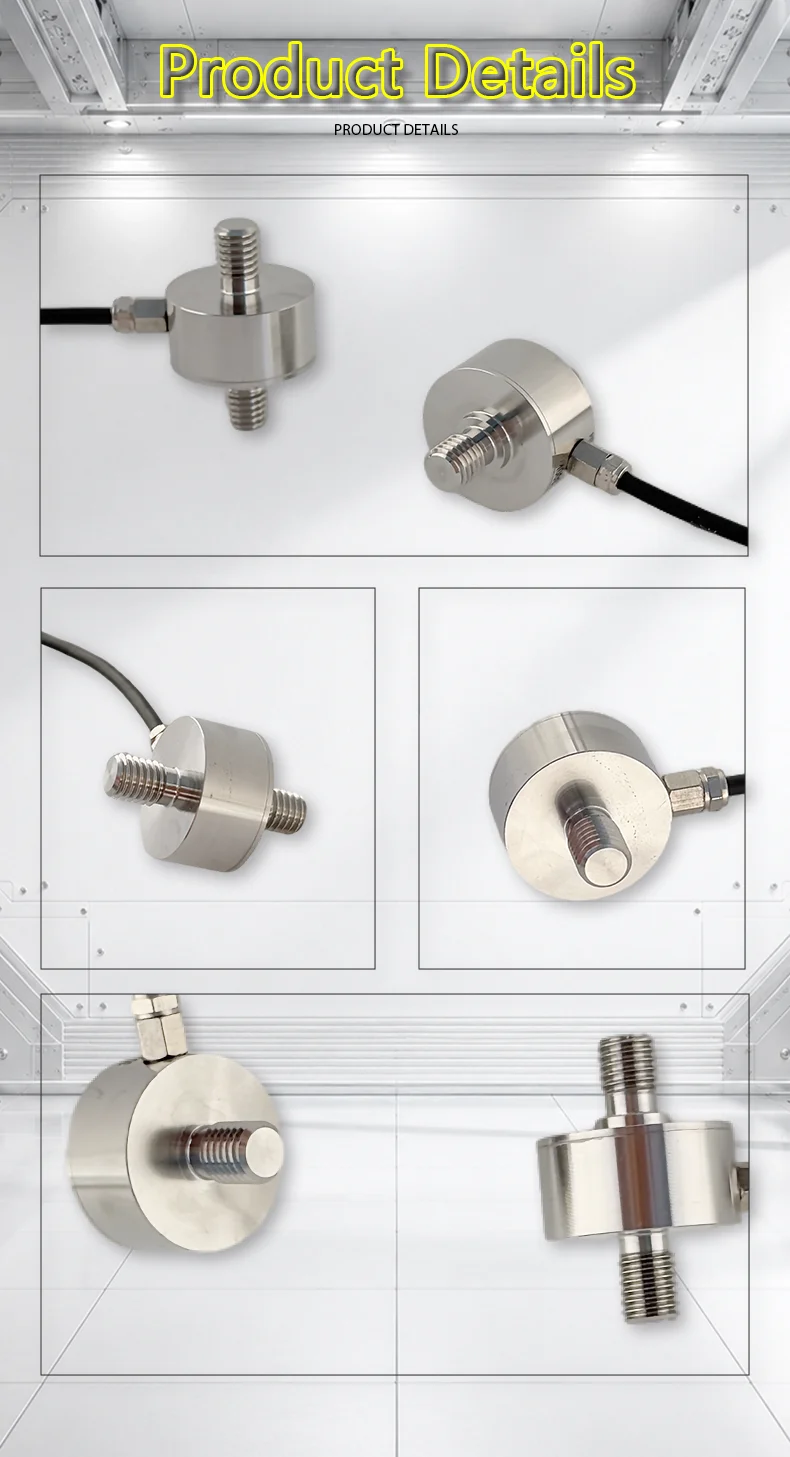

The Micro Pull Rod Load Cell is a high-precision load sensor made from durable stainless steel. It offers accurate load measurements in a wide range from 5kg to 500kg, making it suitable for various industrial and laboratory applications. This load cell is corrosion-resistant and wear-resistant, ensuring long-lasting performance in harsh conditions. It also supports non-standard customizations, allowing for flexibility in design and installation. The product operates within a wide temperature range, from -20°C to +80°C, and is equipped with simple installation and wiring methods, ensuring easy integration into existing systems.
