NEXTION NX4880E043-011C 4.3" Edge Series HMI Touch Display LCD-TFT Capacitive Screen Panel Module Built-in RTC Without Enclosure

NEXTION NX4880E043-011C 4.3" Edge Series HMI Touch Display LCD-TFT Capacitive Screen Panel Module Built-in RTC Without Enclosure

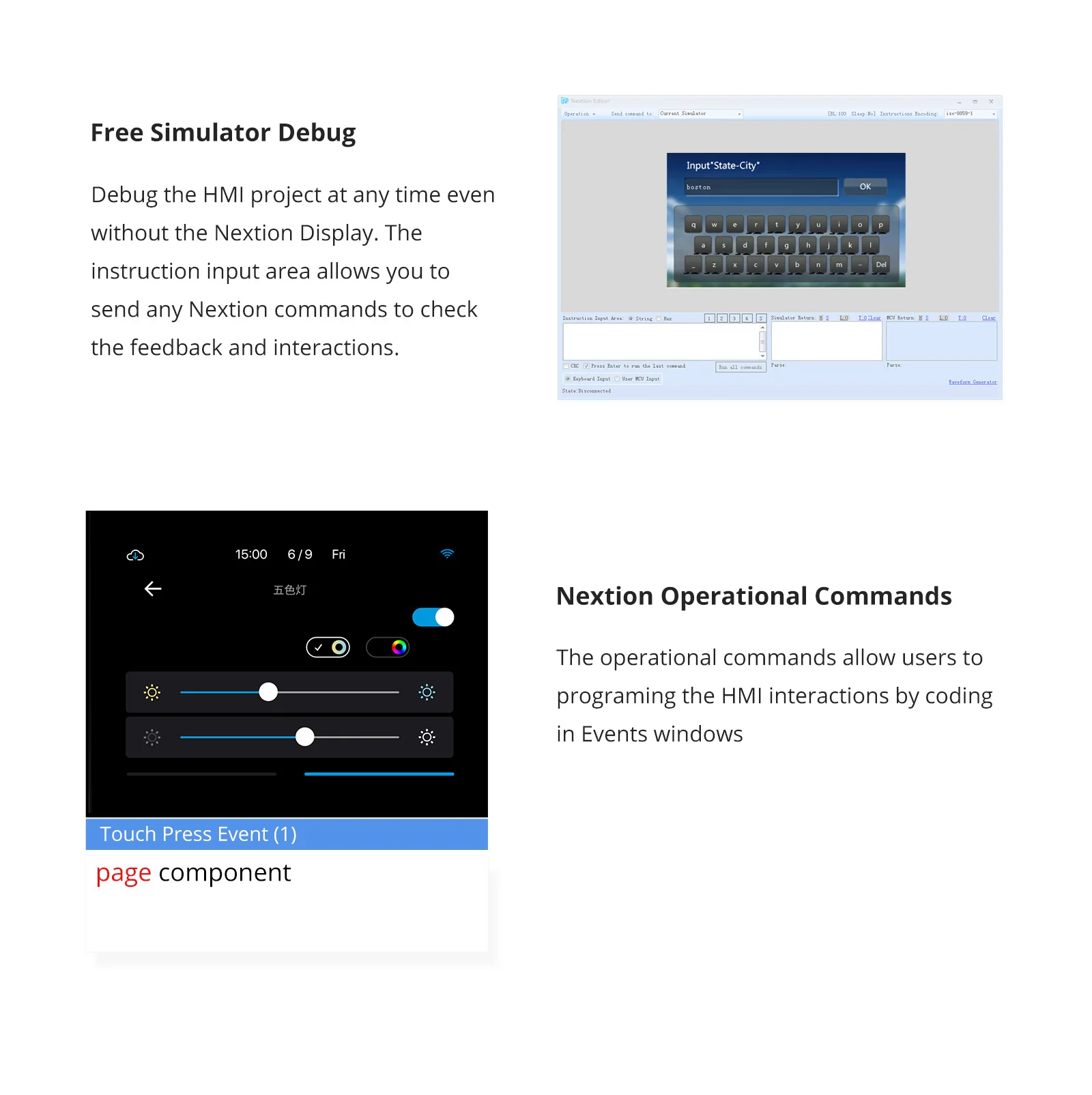

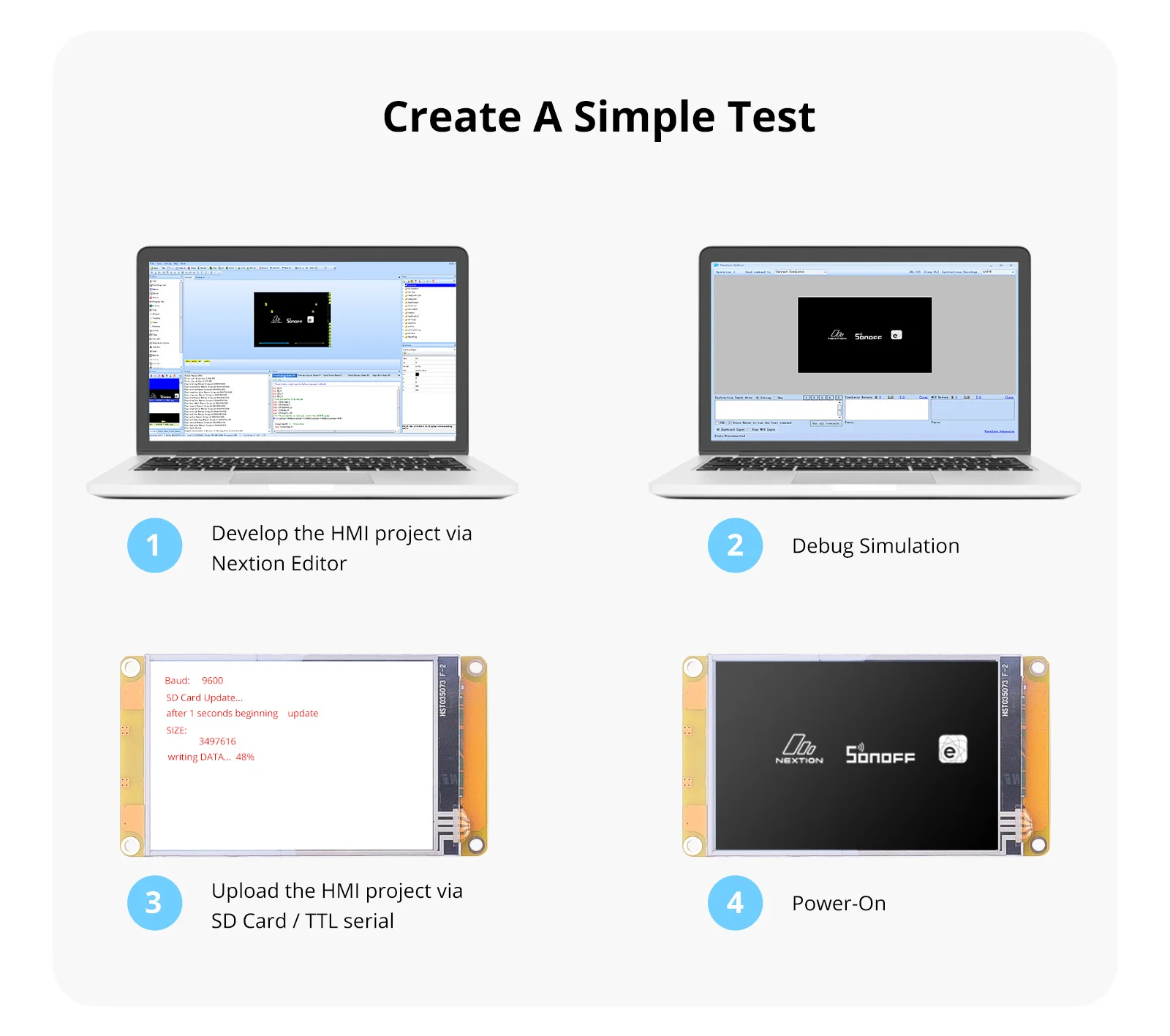

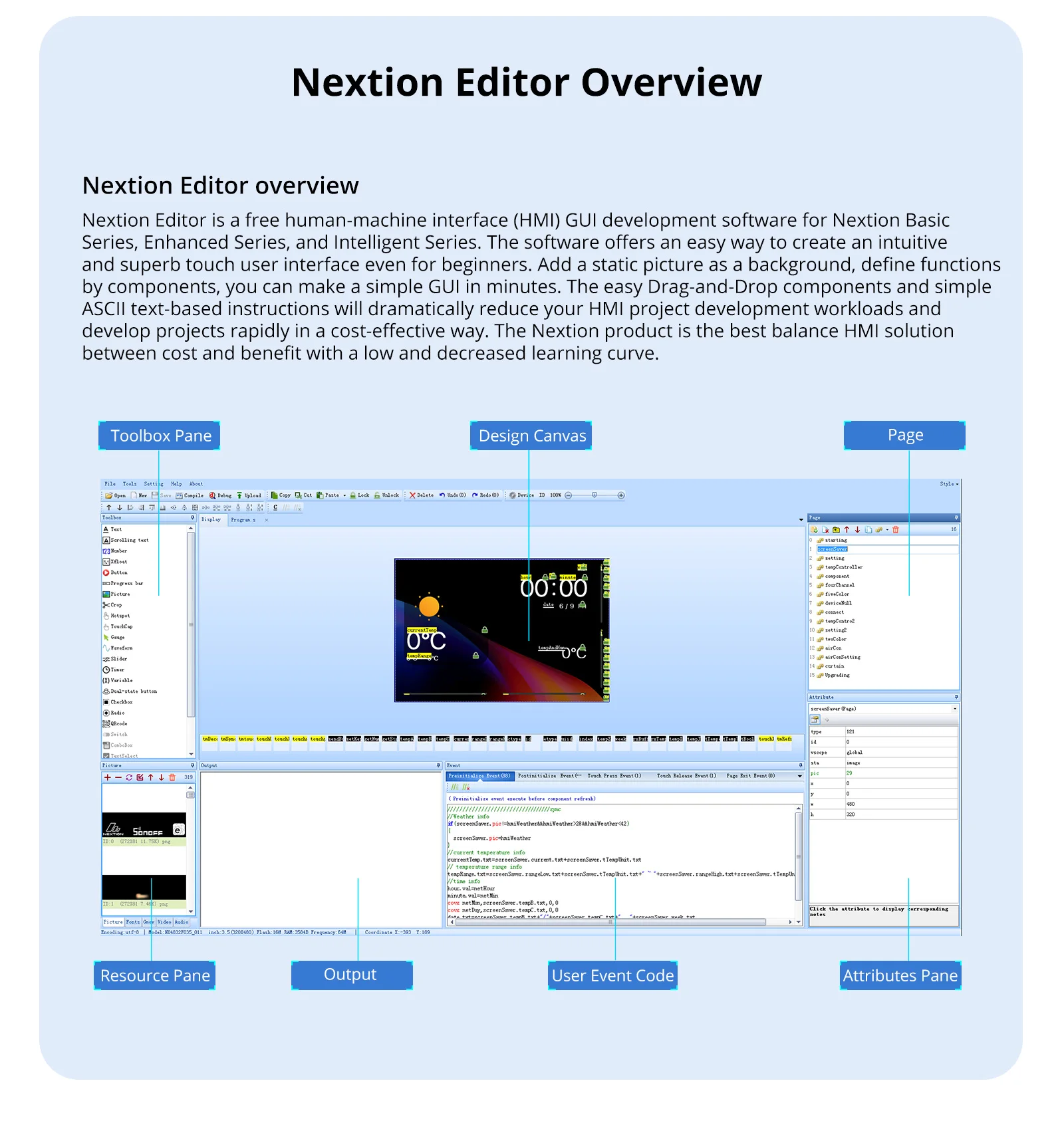

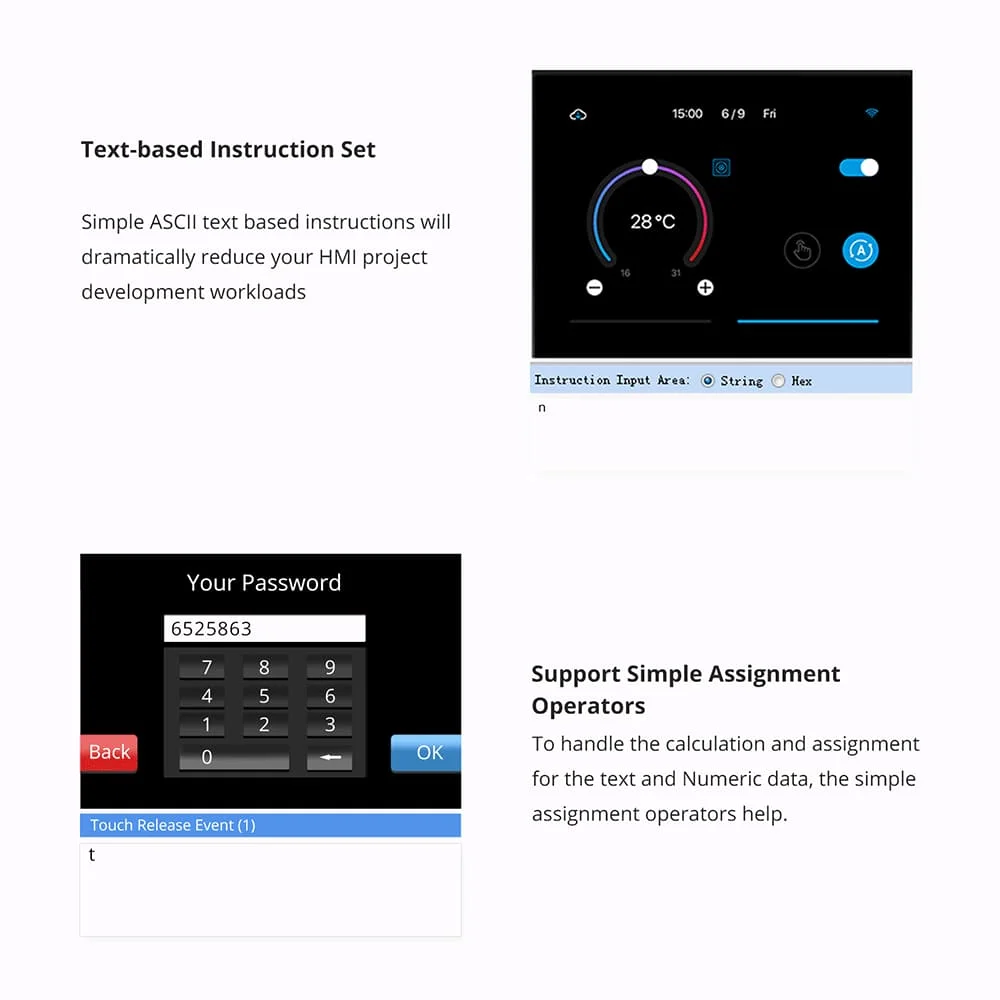

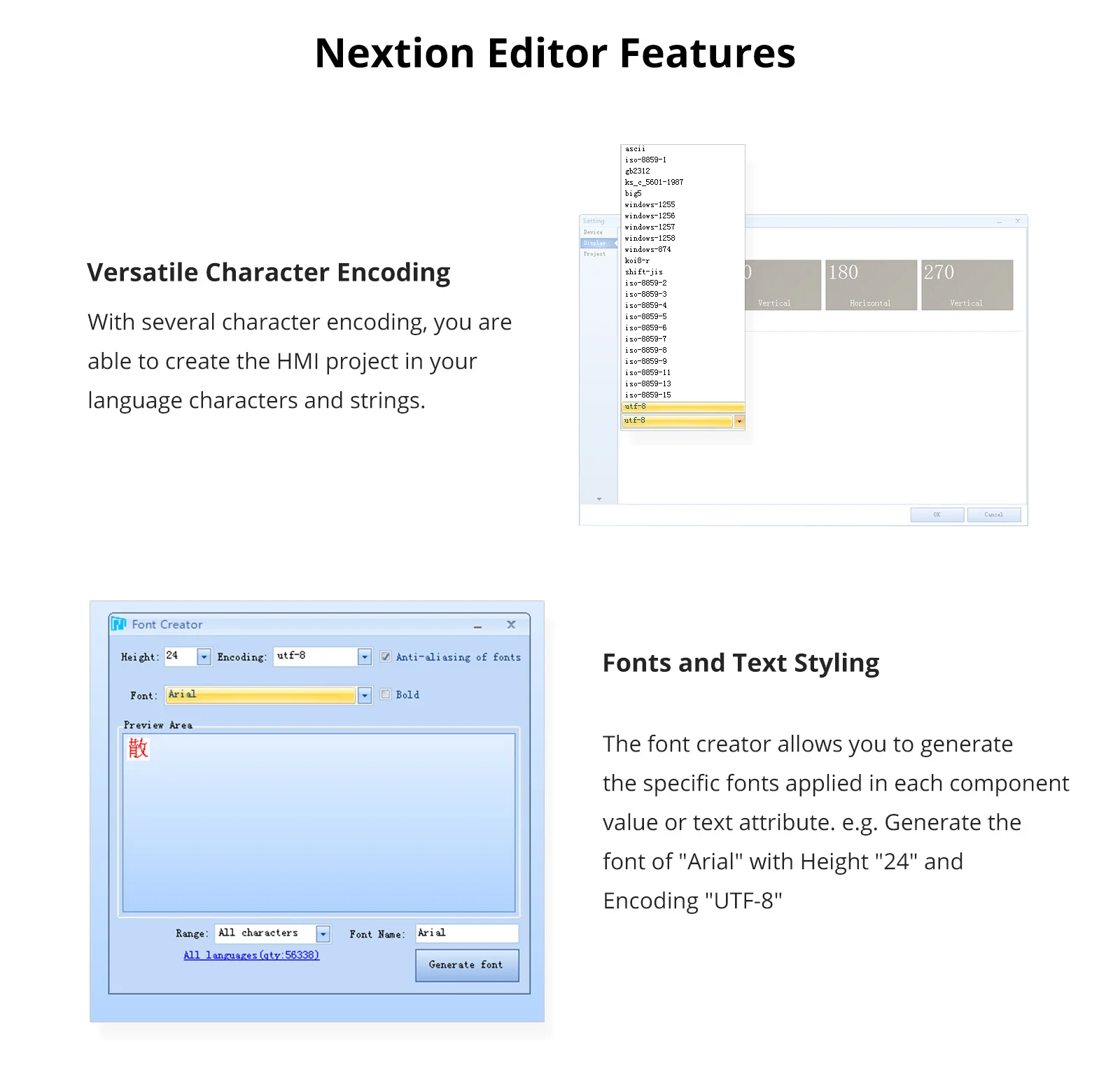

Nextion Editor is a free human-machine interface (HMI) GUI development software for Nextion Basic Series, Enhanced Series, and Intelligent Series. The software offers an easy way to create an intuitive and superb touch user interface even for beginners. Add a static picture as a background, define functions by components, you can make a simple GUI in minutes. The easy Drag-and-Drop components and simple ASCII text-based instructions will dramatically reduce your HMI project development workloads and develop projects rapidly in a cost-effective way. The Nextion product is the best balance HMI solution between cost and benefit with a low and decreased learning curve.

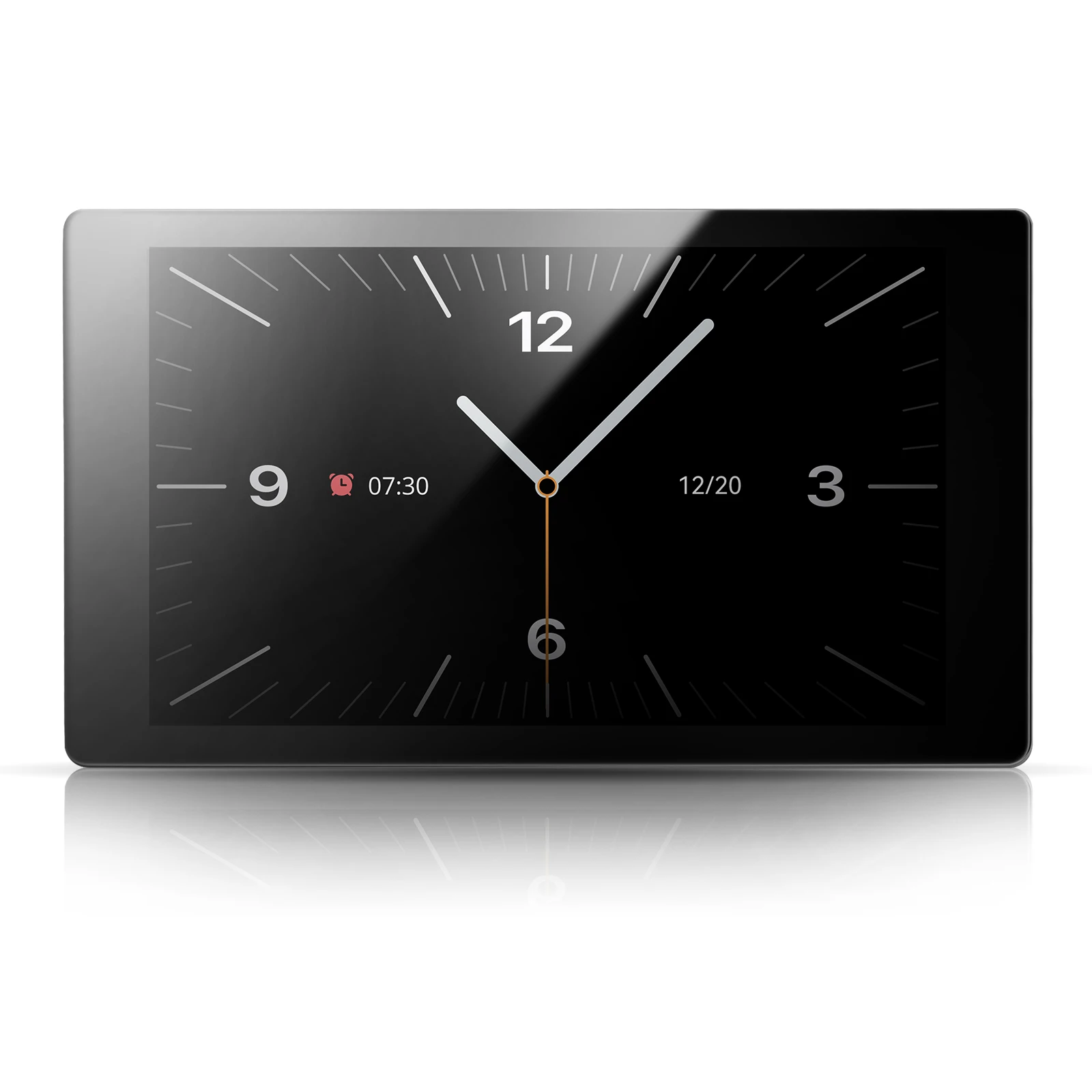

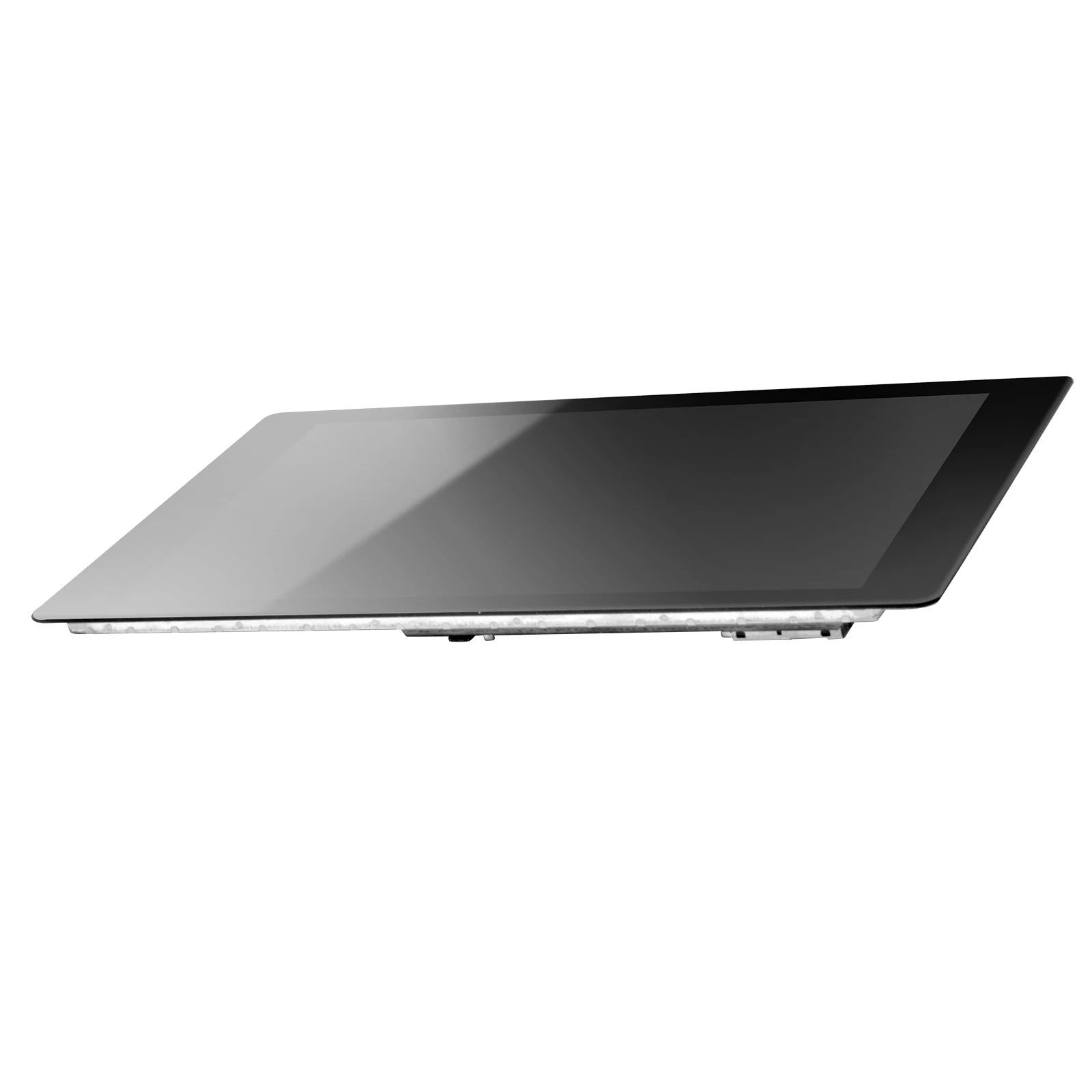

NX4880E043-011C is a Nextion Edge series 4.3″ capacitive HMI touchscreen without enclosure.

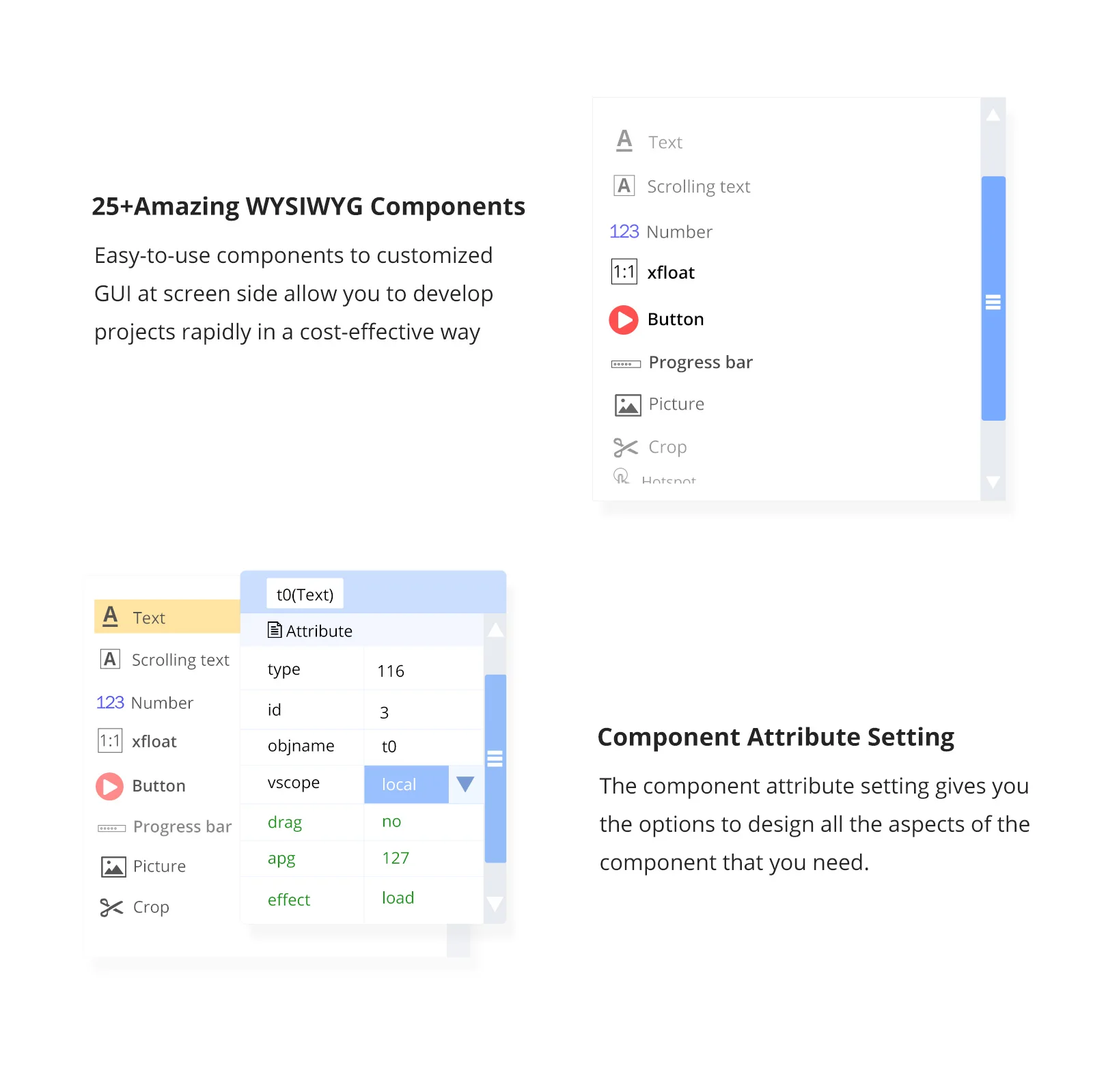

● Support ALL WYSIWYG Nextion Editor Components
● Support Playing Video/Audio/Animation
● Easier to Install and Feature a Sleeker, Slimmer Design

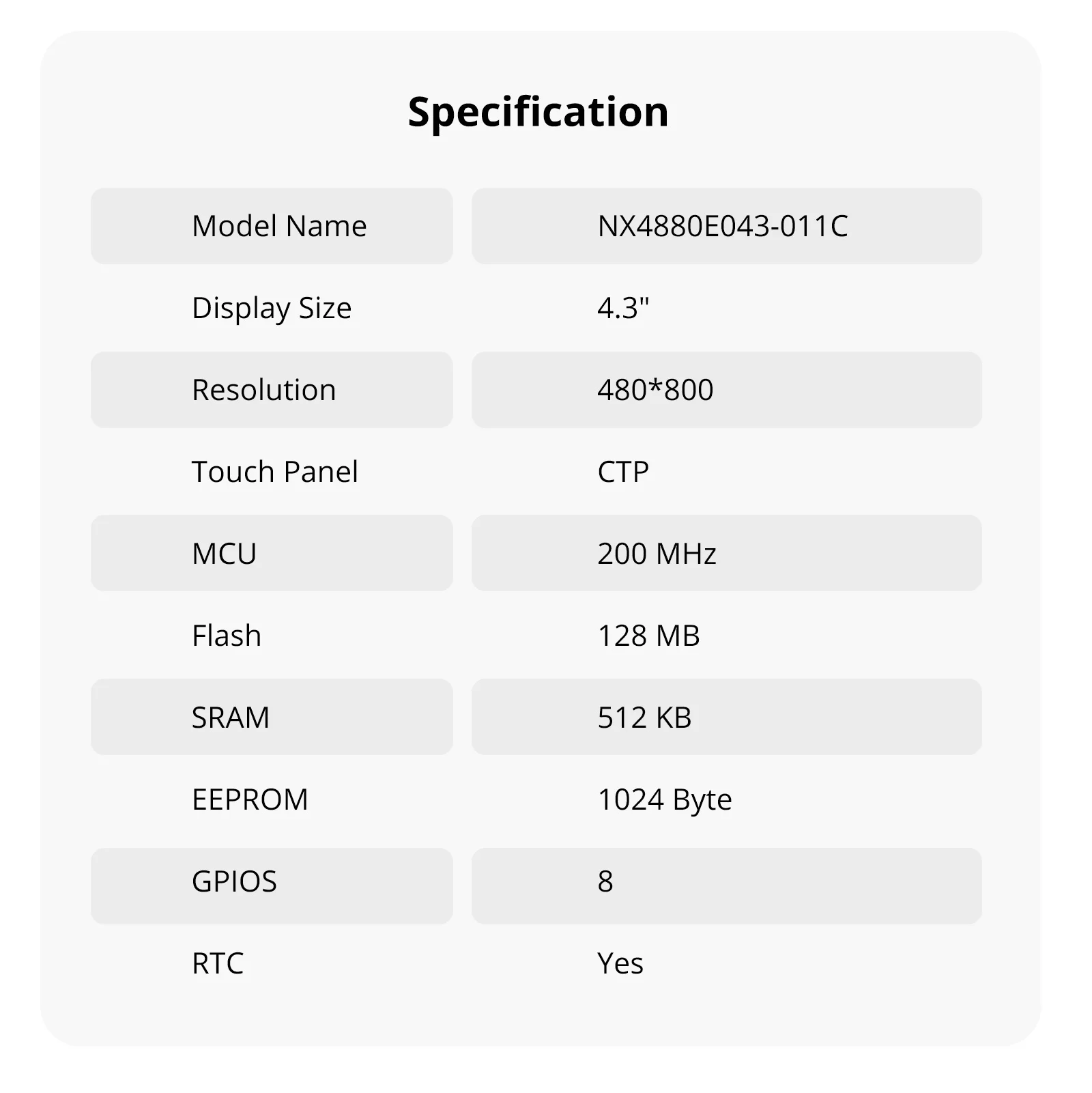

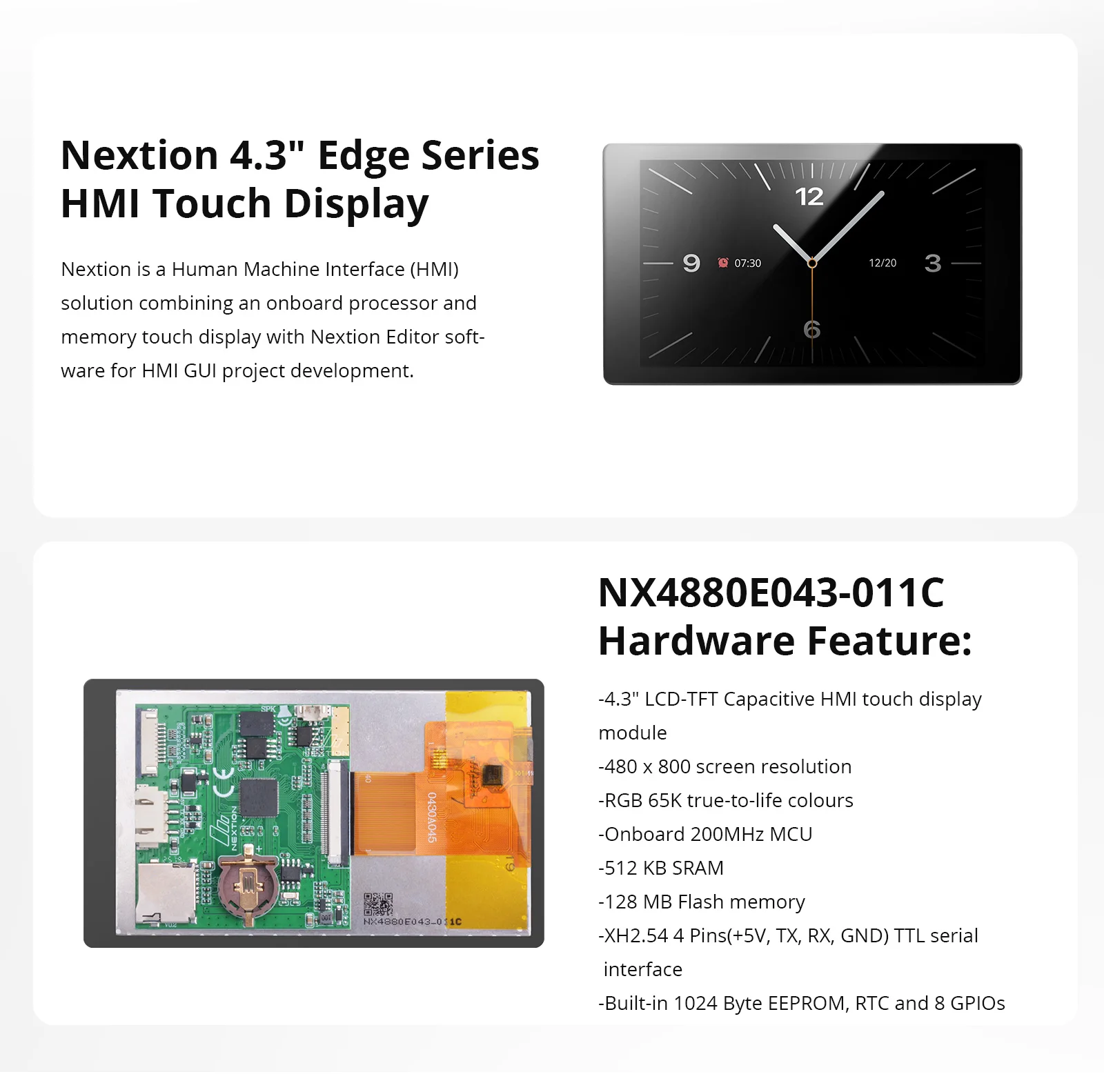

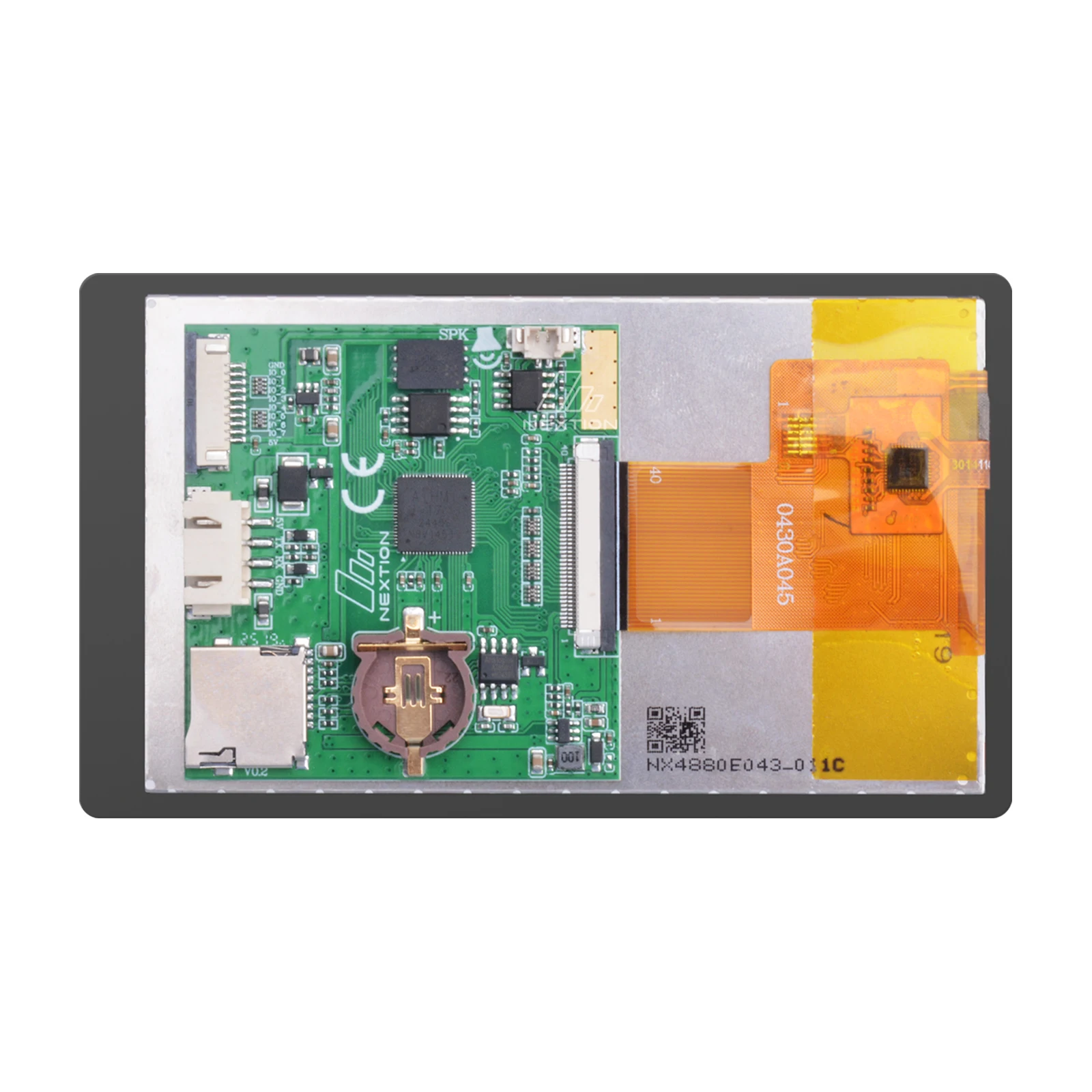

NX4880E043-011C Hardware Feature:

-4.3" LCD-TFT Capacitive HMl touch display module;
-480 x800 screen resolution;
-RGB 65K true-to-life colours;
-Onboard 200MHz MCU;
-512 KB SRAM;
-128 MB Flash memory;
--XH2.54 4 Pins(+5V, TX, RX, GND) TTL serial interface;
-Built-in 1024 Byte EEPROM, RTC and 8 GPIOs;
