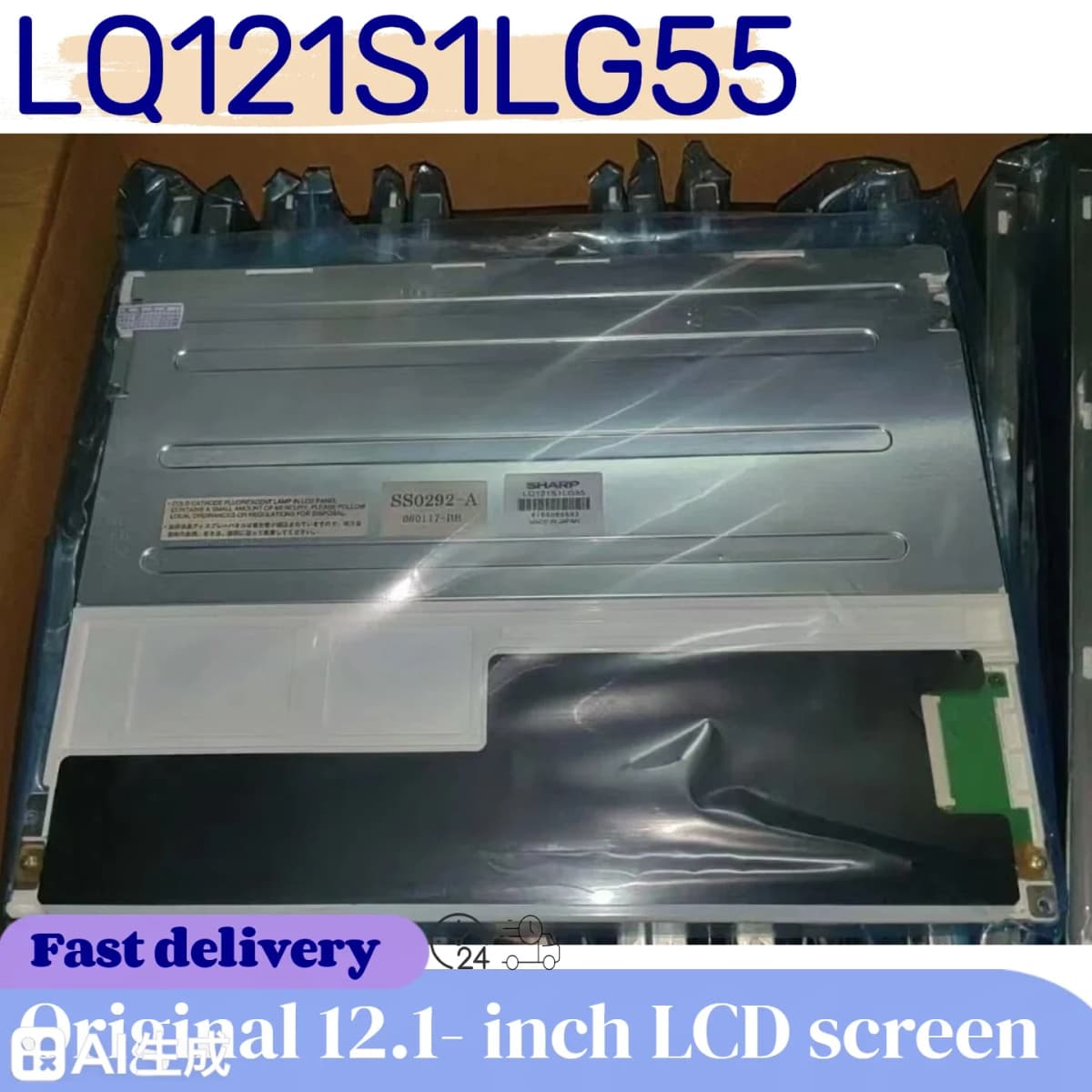

Original 12.1-inch industrial LCD display LQ121S1LG55 LQ121S1LG 51 LQ121S1LG45 LQ121S1LG41 LQ121S1LG49 test quick send

LQ121S1LG55 (alias: LQ0DZA0115) is a 12.1-inch a-Si TFT-LCD LCD module product launched by Sharp. It is equipped with CCFL backlight, no backlight driver, and no touch. The working temperature of this product is -10~75 ° C, the storage temperature is -30~75 ° C, and the vibration resistance is 1.0G (9.8 m/s ²). Its typical feature screen library is summarized as follows: easy to change backlight, lifespan greater than 50000 hours, 180 degree flip display, surface matte, Embeded RGB independent γ correction circuit, OS drive circuit。 Based on its feature screen library, this model is recommended for use in industrial, gaming, and other products. The LQ121S1LG55 has a display resolution of 800 (RGB) × 600 (SVGA), an aspect ratio of 4:3 (width: height), and pixels arranged in vertical RGB stripes. Its display area size is 246 (width) x 184.5 (height) mm, the external dimensions are 276 (width) x 209 (height) x 11 (thickness) mm, and the visible dimensions are 249.0 (width) x 187.5 (height) mm. The surface treatment is matte, Hard coating (3H)， The net weight of the product is 660g (Max.). In terms of backlighting, this product uses 2 pieces of CCFL emitting side entry light sources (top), with a lifespan of 50K hours and no backlight driver included. LQ121S1LG55 adopts LVDS (1 ch, 8-bit) signal interface, with a total of 20 pins, terminal connection, and a screen driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz.

After receiving your order, we will process it within 2 working days (excluding weekends and holidays). If you haven't received your package for a long time, please contact us. Please carefully read the description of the item and review the pictures before bidding. If the item is damaged, does not match the description, or cannot function properly upon arrival, we will provide a refund or return. Feedback is very important to us, and we strive to achieve 100% customer satisfaction.

Before shipment, we will conduct 100% testing on each product to ensure complete normal use.

For some products that have been discontinued for a long time, we provide second-hand goods that are in good condition.

Thank you for your understanding!!!
