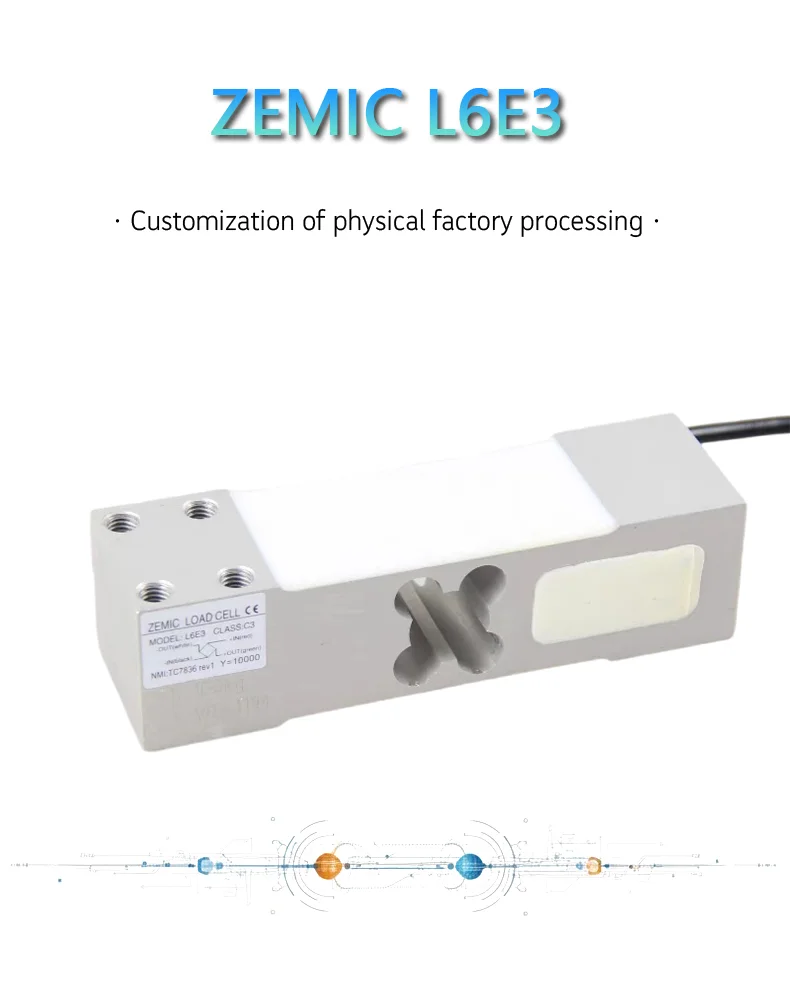

ZEMIC L6E3 Weighing Load Sensor C3 50kg-300kg Shear Beam for Hopper Scale Platform Scale Industrial Shear Beam Load Cell

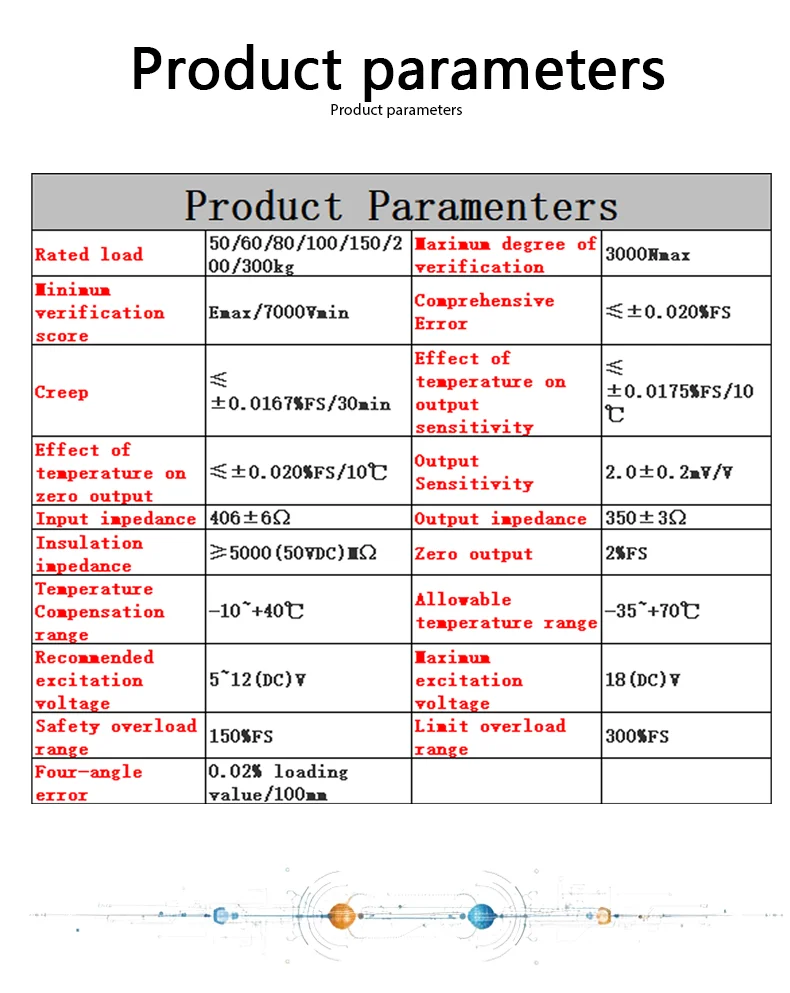

Product Paramenters
Rated load
50/60/80/100/150/200/300kg
Maximum degree of verification
3000Nmax
Minimum verification score
Emax/7000Vmin
Comprehensive Error
≤±0.020%FS
Creep
≤±0.0167%FS/30min
Effect of temperature on output sensitivity
≤±0.0175%FS/10℃
Effect of temperature on zero output
≤±0.020%FS/10℃
Output Sensitivity
2.0±0.2mV/V
Input impedance
406±6Ω
Output impedance
350±3Ω
Insulation impedance
≥5000(50VDC)MΩ
Zero output
2%FS
Temperature Compensation range
-10~+40℃
Allowable temperature range
-35~+70℃
Recommended excitation voltage
5~12(DC)V
Maximum excitation voltage
18(DC)V
Safety overload range
150%FS
Limit overload range
300%FS
Four-angle error
0.02% loading value/100mm

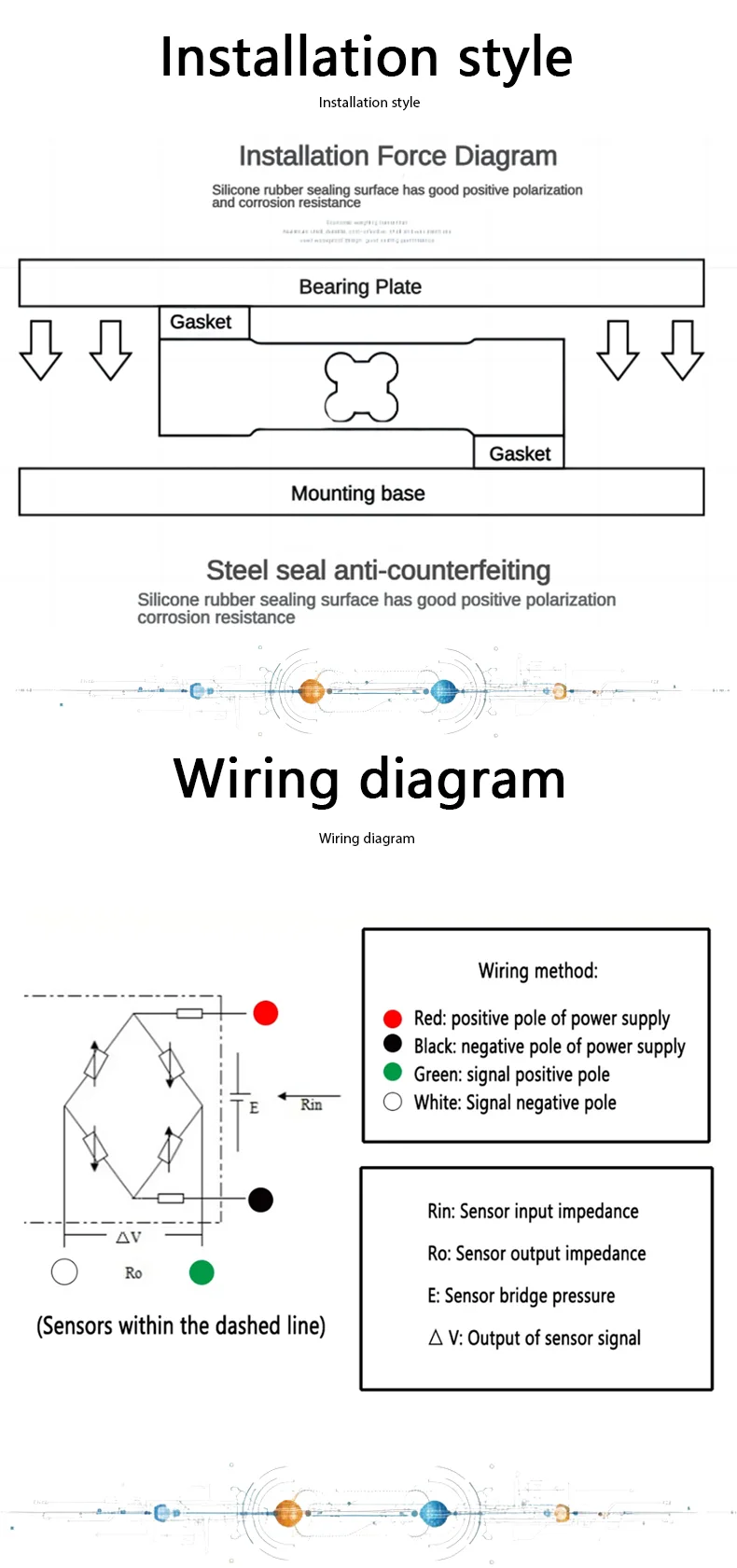

The L6E3 is a shear beam load cell designed for industrial weighing applications such as hopper scales, platform scales, batching systems, and automatic filling. It offers multiple capacity options from 50 to 300kg with C3 accuracy class and a stable rated output of 2.0±0.2 mV/V. With controlled creep and reliable temperature performance, it is suitable for continuous, long-term weighing. The 4-wire connection works with most indicators/controllers. Install with a proper mounting base and bearing plate as shown in the installation diagram.
Package: 1× L6E3 load cell with lead cable (mounting accessories shown are for illustration unless you include them).
