2.0mV/V Static Torque Sensor 0-50/100/150N.m Aluminum/Alloy Steel Torque Gauge for Industrial Torque Monitoring

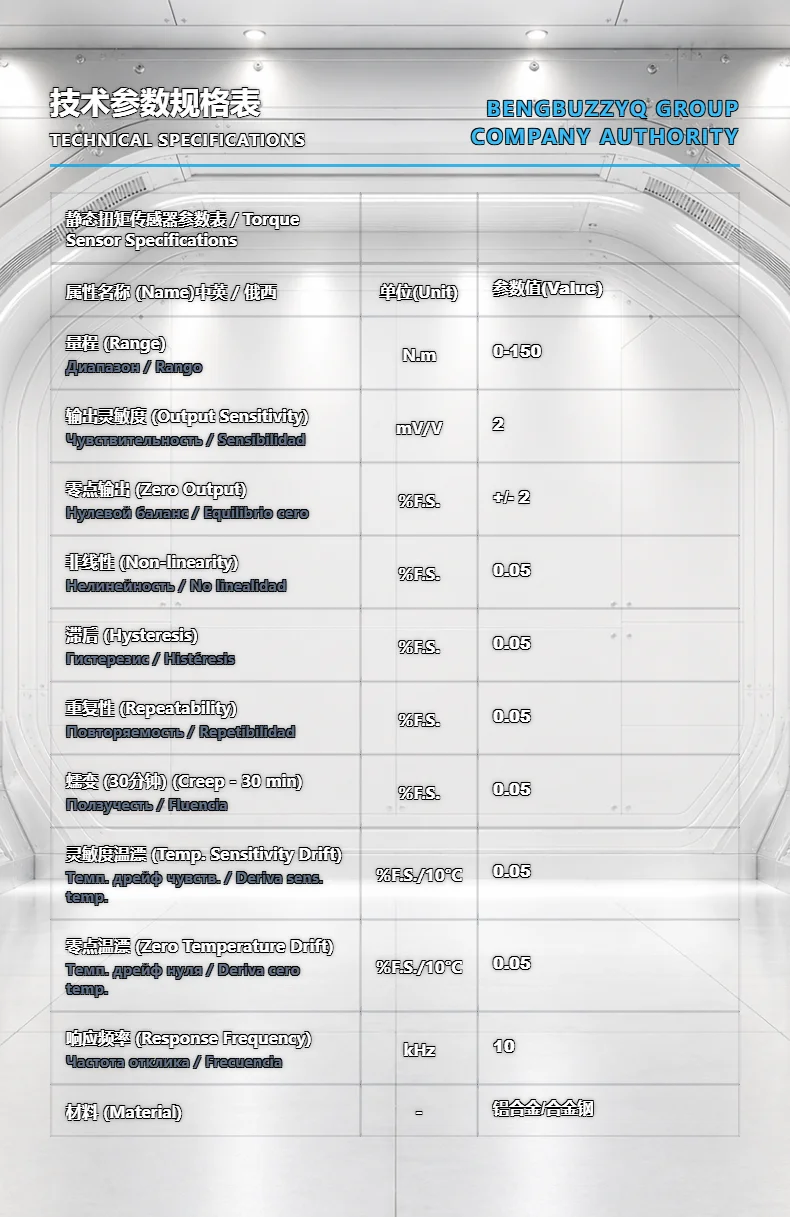

属性名称 (Name)中英 / 俄西

单位(Unit)

参数值(Value)

量程 (Range)

N.m

0-150

Диапазон / Rango

输出灵敏度 (Output Sensitivity)

mV/V

2

Чувствительность / Sensibilidad

零点输出 (Zero Output)

%F.S.

+/- 2

Нулевой баланс / Equilibrio cero

非线性 (Non-linearity)

%F.S.

0.05

Нелинейность / No linealidad

滞后 (Hysteresis)

%F.S.

0.05

Гистерезис / Histéresis

重复性 (Repeatability)

%F.S.

0.05

Повторяемость / Repetibilidad

蠕变 (30分钟) (Creep - 30 min)

%F.S.

0.05

Ползучесть / Fluencia

灵敏度温漂 (Temp. Sensitivity Drift)

%F.S./10°C

0.05

Темп. дрейф чувств. / Deriva sens. temp.

零点温漂 (Zero Temperature Drift)

%F.S./10°C

0.05

Темп. дрейф нуля / Deriva cero temp.

响应频率 (Response Frequency)

kHz

10

Частота отклика / Frecuencia

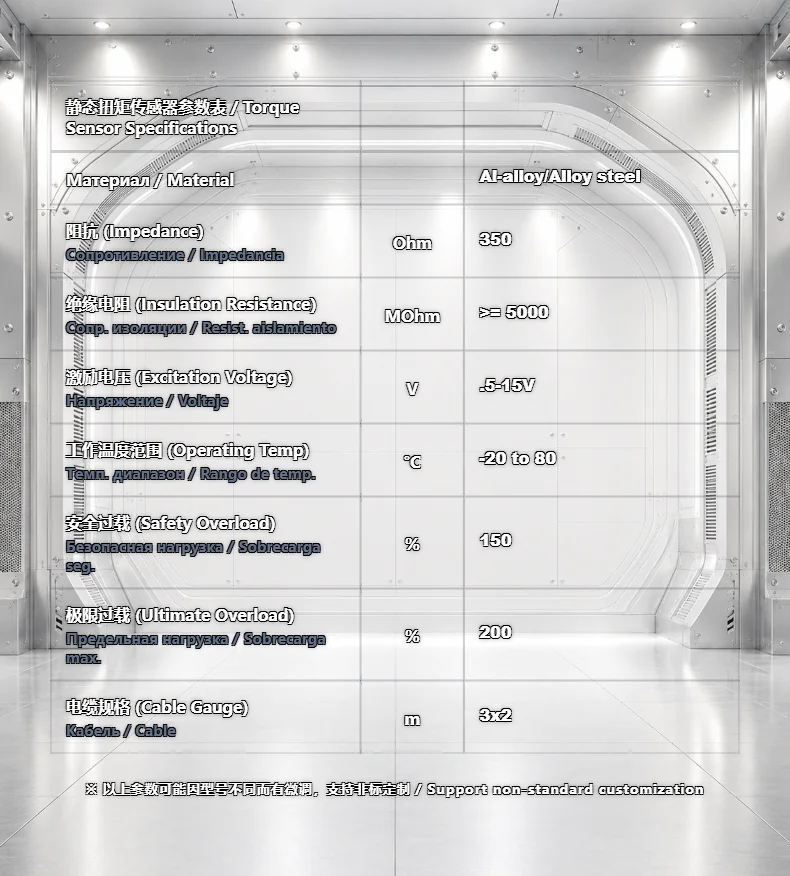

材料 (Material)

-

铝合金/合金钢

Материал / Material

Al-alloy/Alloy steel

阻抗 (Impedance)

Ohm

350

Сопротивление / Impedancia

绝缘电阻 (Insulation Resistance)

MOhm

>= 5000

Сопр. изоляции / Resist. aislamiento

激励电压 (Excitation Voltage)

V

.5-15V

Напряжение / Voltaje

工作温度范围 (Operating Temp)

°C

-20 to 80

Темп. диапазон / Rango de temp.

安全过载 (Safety Overload)

%

150

Безопасная нагрузка / Sobrecarga seg.

极限过载 (Ultimate Overload)

%

200

Предельная нагрузка / Sobrecarga max.

电缆规格 (Cable Gauge)

m

3x2

Кабель / Cable

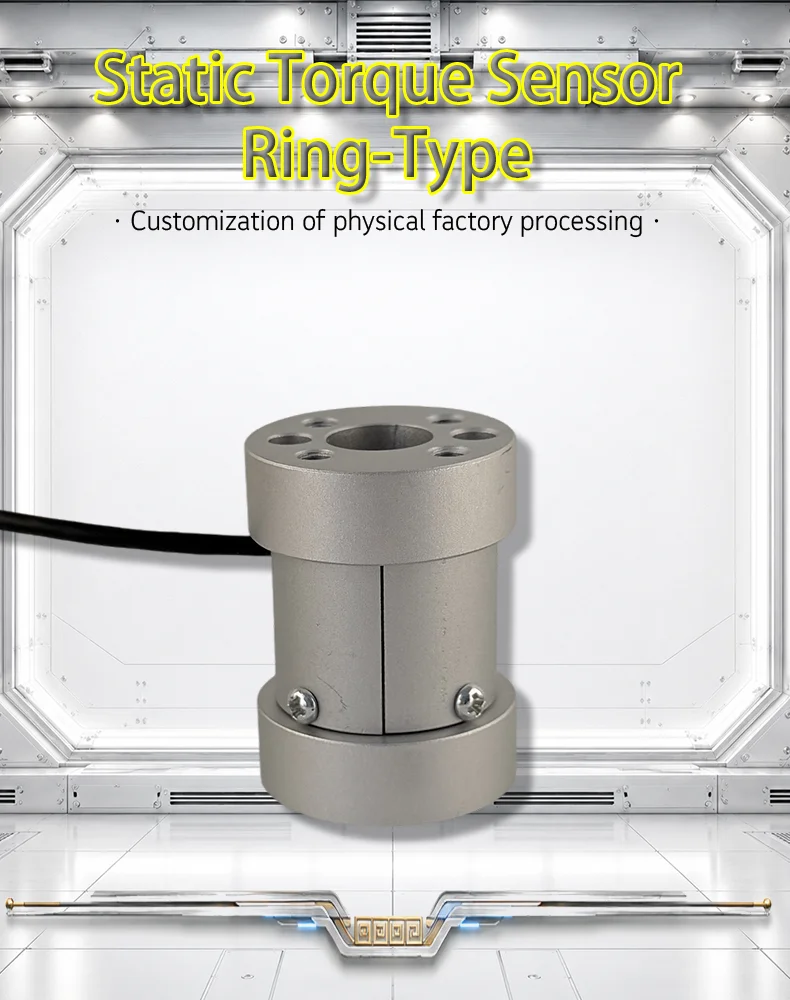

This static torque sensor is specifically designed for measuring non-continuous rotation or stationary torque. Utilizing high-precision resistance strain gauge technology, it features fast response, high reliability, and a long service life. The unique thru-hole flange design allows for easy integration between mechanical connections. It is widely used in testing machines, wrench calibration, fastener torque testing, valve inspection, and torque monitoring in various automated production lines.
