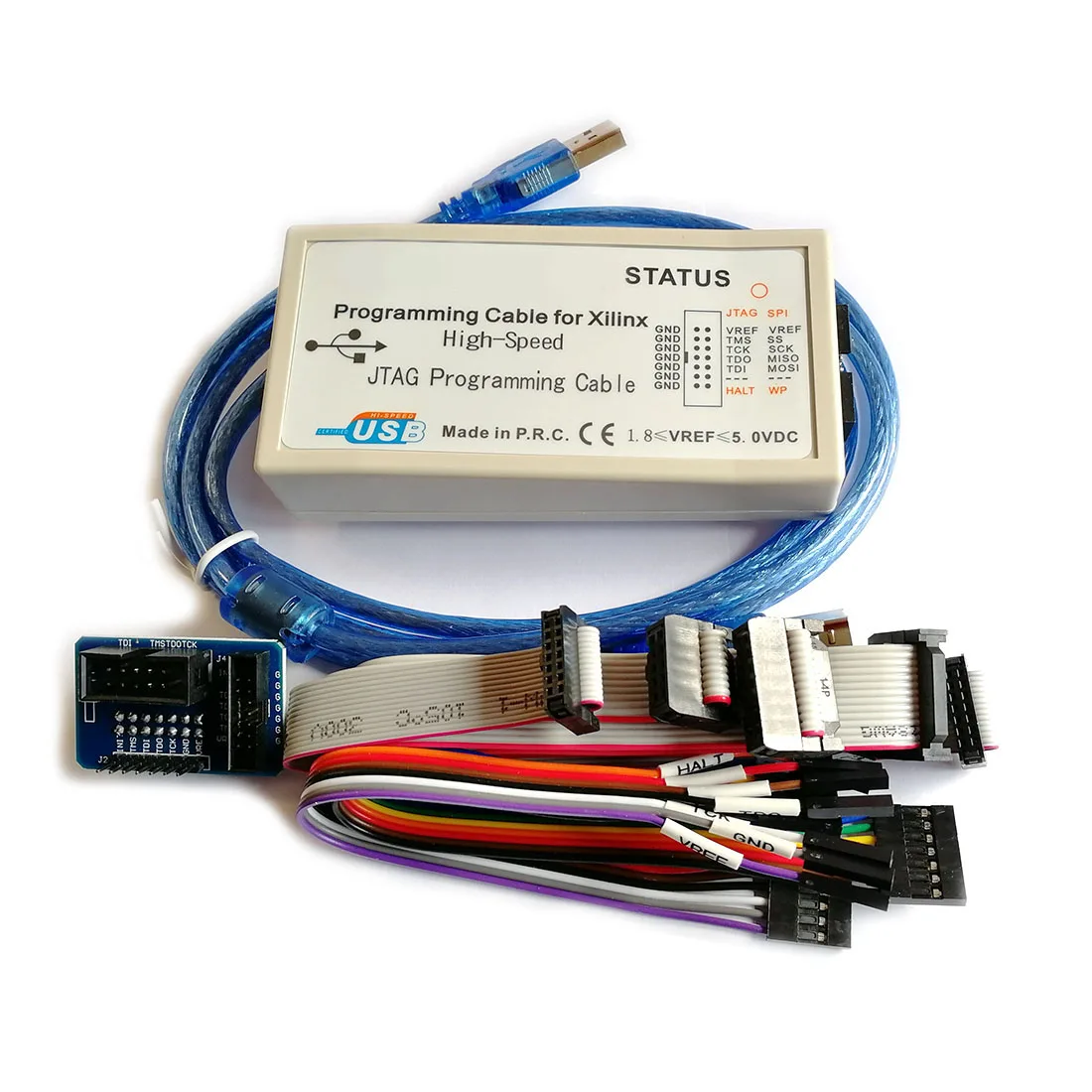

Xilinx Platform Cable USB Download Cable JTag Programmer Debugger for CPLD/FPGA ISP PROM FT2232 Version

This product is a high-performance download cable used to program and configure XILINX CPLD, FPGA and ISP PROM.

It uses a USB interface and is connected to a computer through a high-speed shielded USB cable. In the slave serial mode, it provides the FPGA device with a configuration speed of up to 30Mb/s.

Characteristics:

The downloader supports ISE (including the latest 14.7), Chipscope and EDK software.

The downloader supports Windows and Linux systems.

The downloader automatically detects and adapts to the target I/O voltage.

The downloader can program flash PROM devices with SPI interface.

The downloader supports all XILINX devices, including:

All Virtex FPGA devices (including all capacities of virtex6).

All Spartan FPGA devices (including all Spartan6 capacities).

CoolRunner XPLA3/CoolRunner-II CPLD device.

XC18V00 ISP PROM series.

Platform Flash XCF00S/XCF00P/XL PROM series.

XC4000 series FPGA.

The Shipping List:

1 X Programmer Host

1 X USB cables

1 X Multifunctional adapter board

Cables include:

1 X 14-pin 20cm cable with 2.0mm pitch

1 X 14-pin 20cm cable with 2.54mm pitch

1 X 10-pin 20cm cable with 2.54mm pitch

1 X 7-hole 20cm Dupont wire with 2.54mm pitch

1 X 7-hole 20cm DuPont wire with 2.54mm pitch
