NEXTION NX8048P050-011C-Y 5.0 Inch LCD-TFT HMI Capacitive Touch Display Module Intelligent Series TTL Screen With Enclosure

NEXTION NX8048P050-011C-Y 5.0 Inch LCD-TFT HMI Capacitive Touch Display Module Intelligent Series TTL Screen With Enclosure

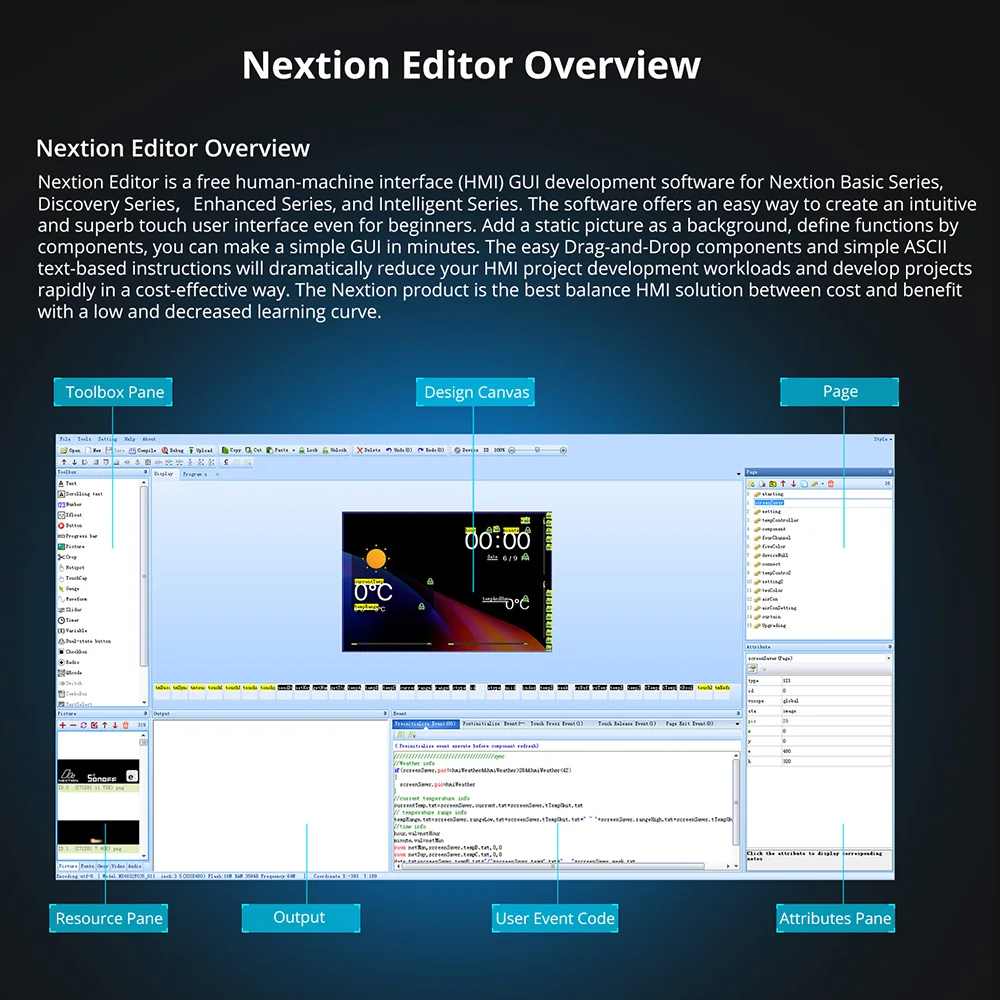

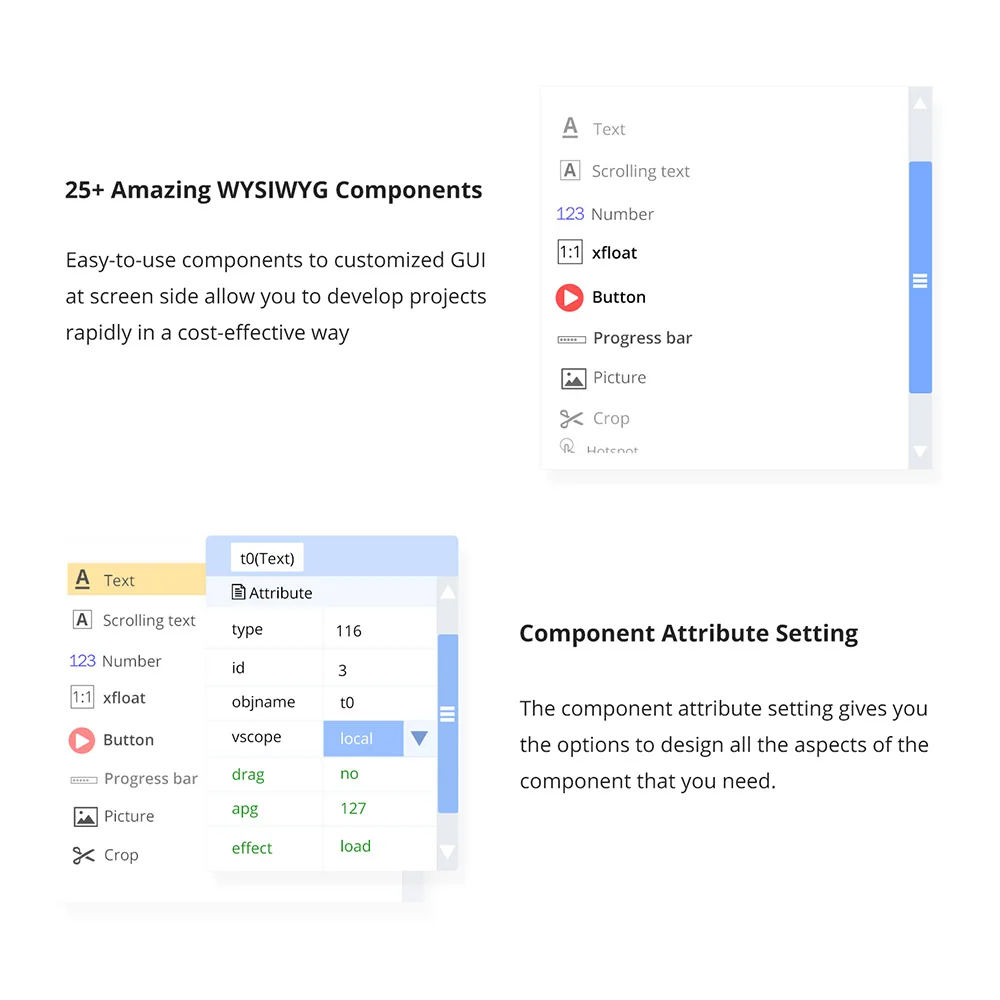

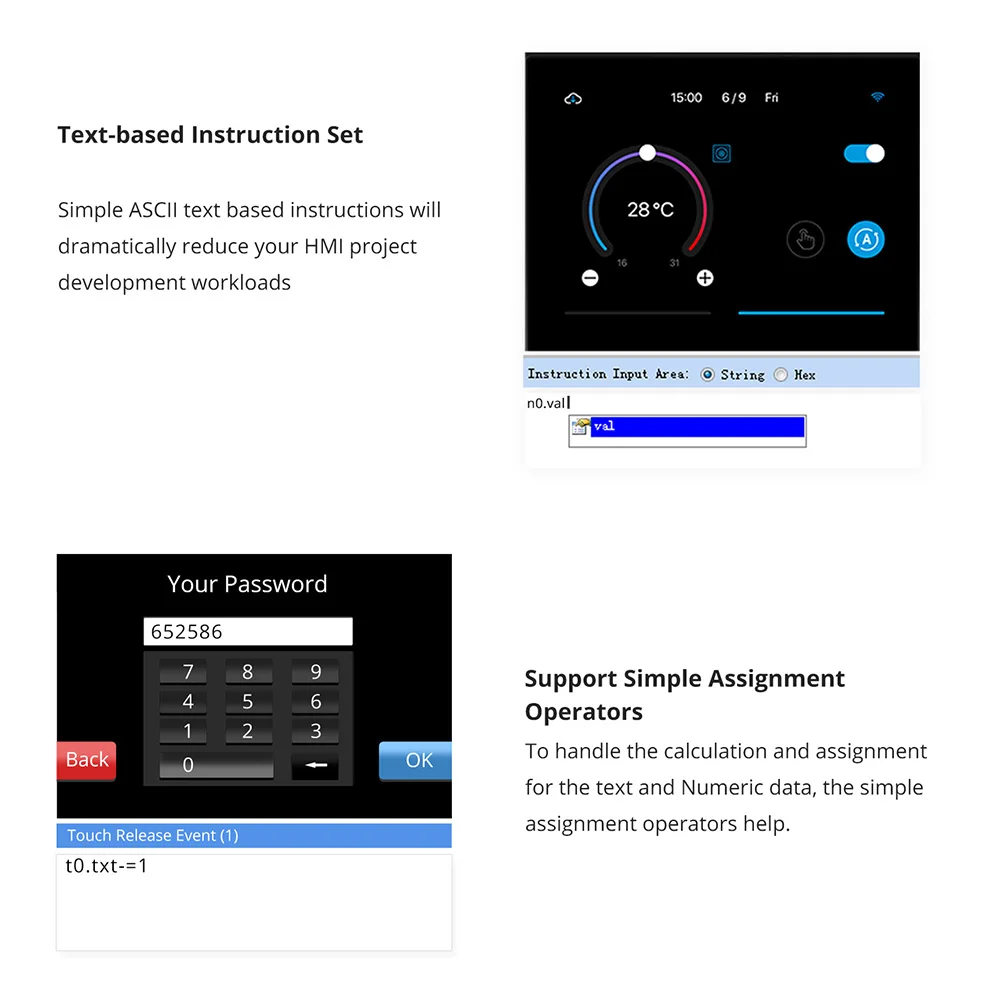

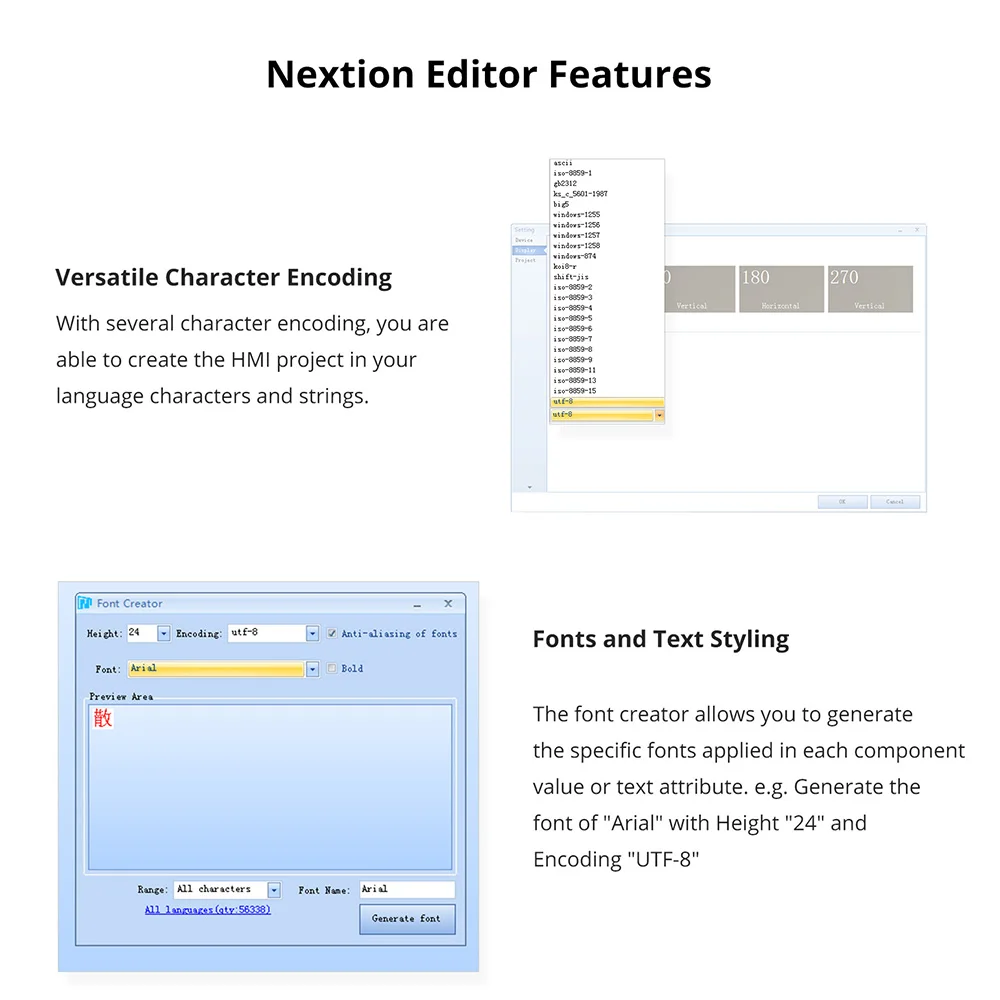

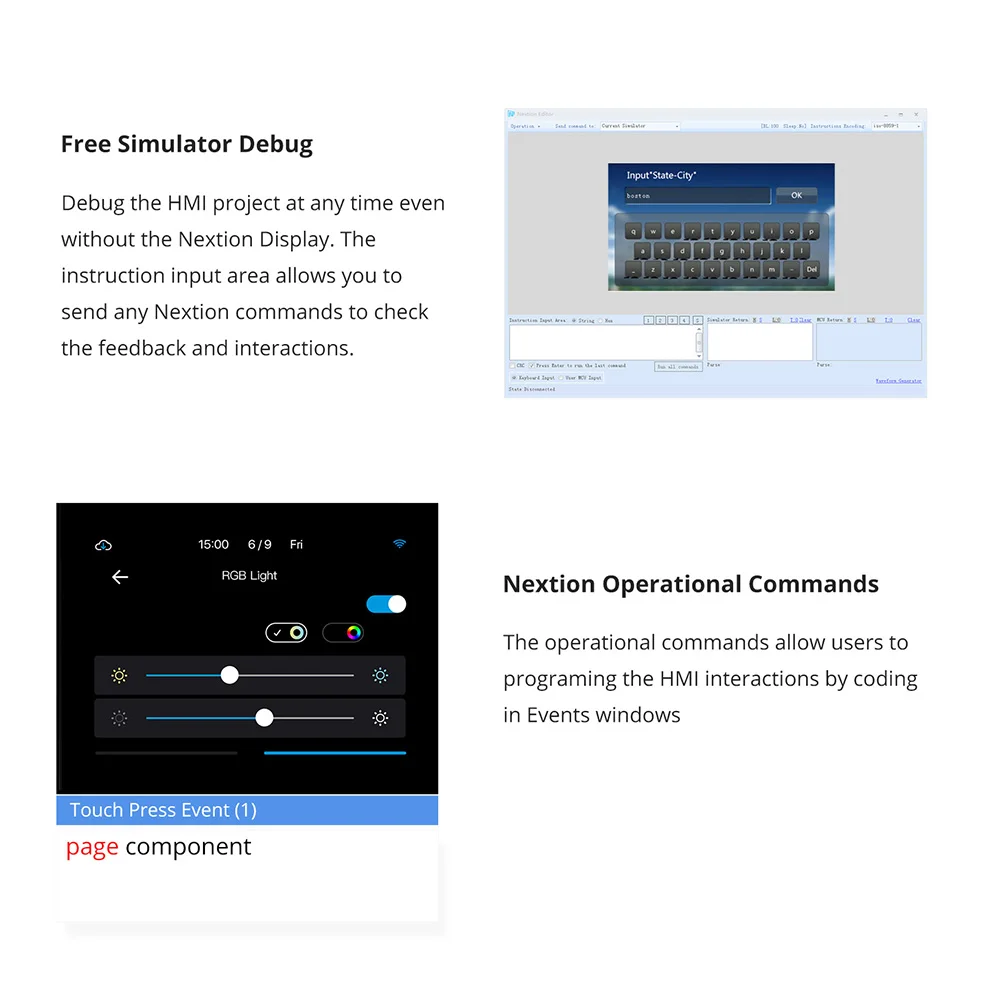

Nextion Editor is a free human-machine interface (HMI) GUI development software for Nextion Basic Series, Enhanced Series, and Intelligent Series. The software offers an easy way to create an intuitive and superb touch user interface even for beginners. Add a static picture as a background, define functions by components, you can make a simple GUI in minutes. The easy Drag-and-Drop components and simple ASCII text-based instructions will dramatically reduce your HMI project development workloads and develop projects rapidly in a cost-effective way. The Nextion product is the best balance HMI solution between cost and benefit with a low and decreased learning curve.

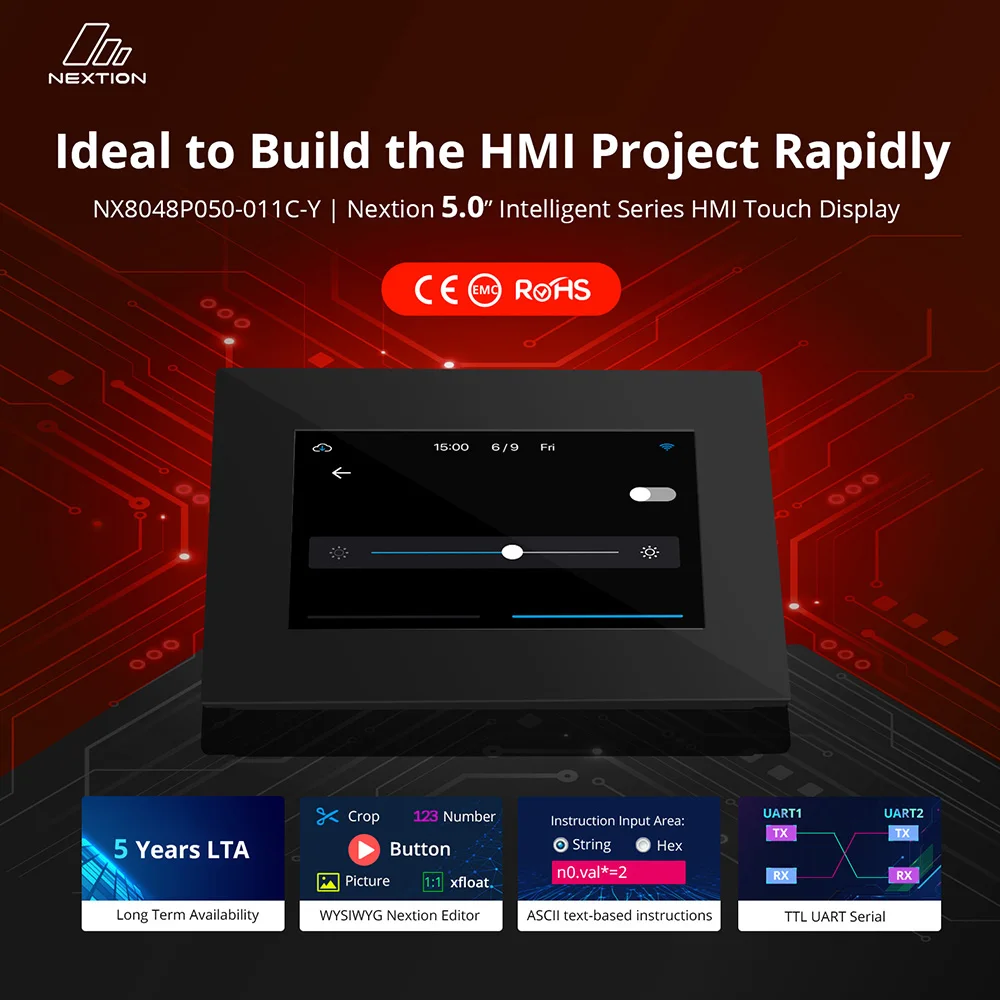

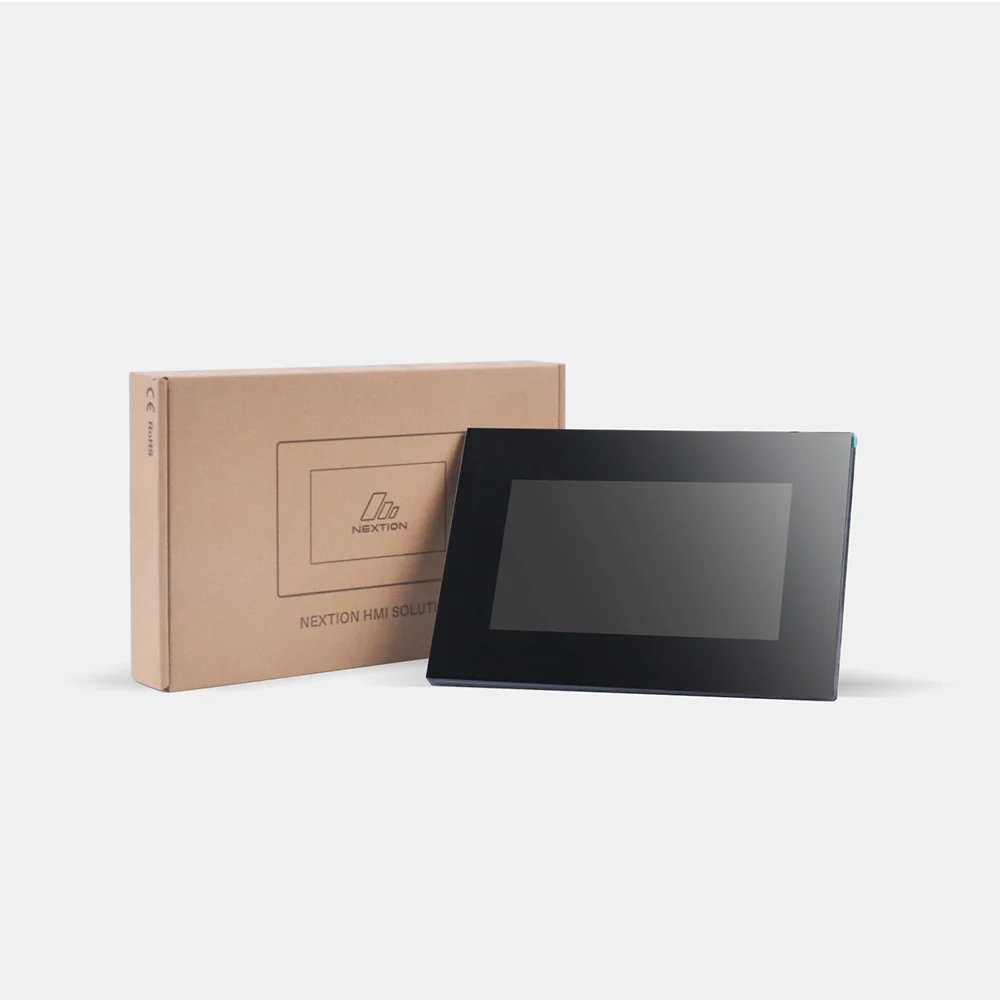

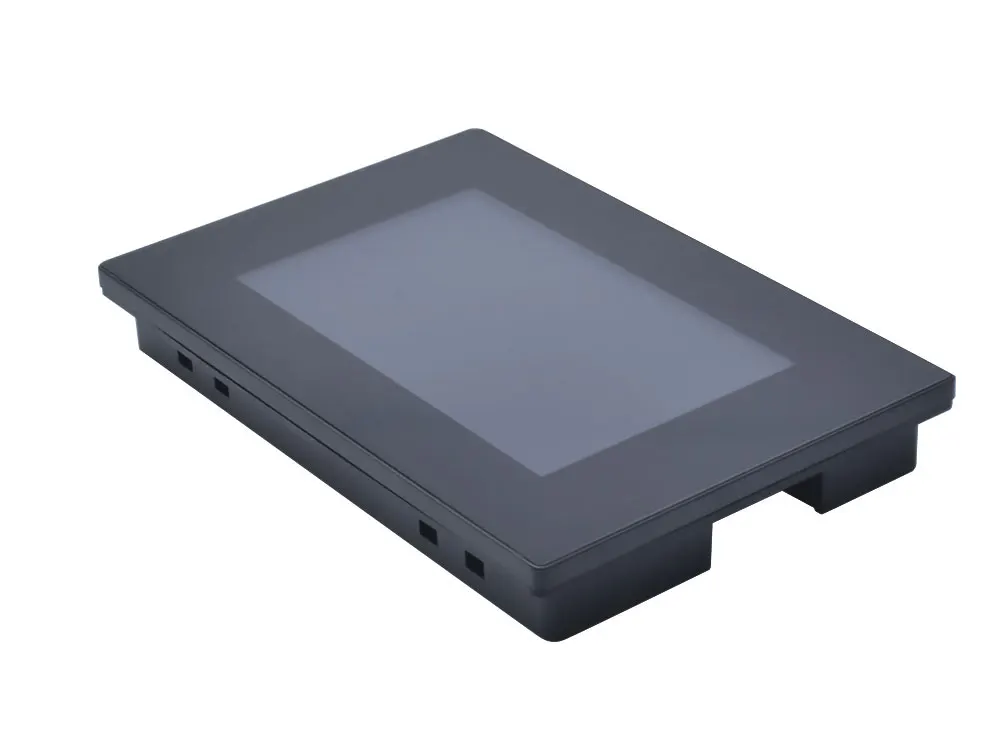

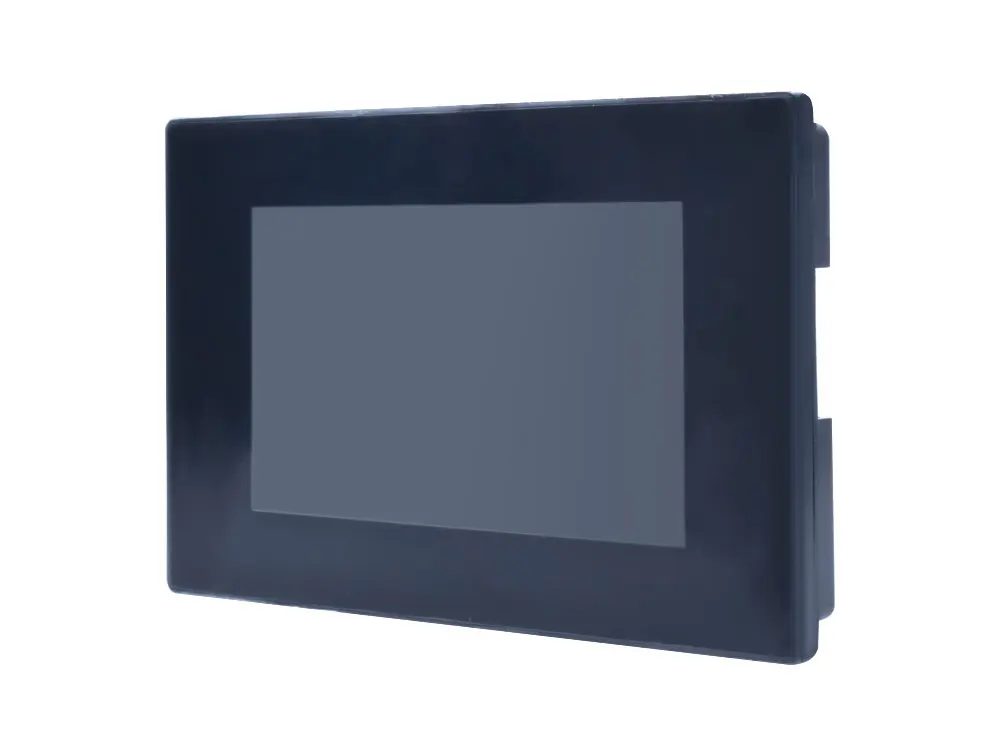

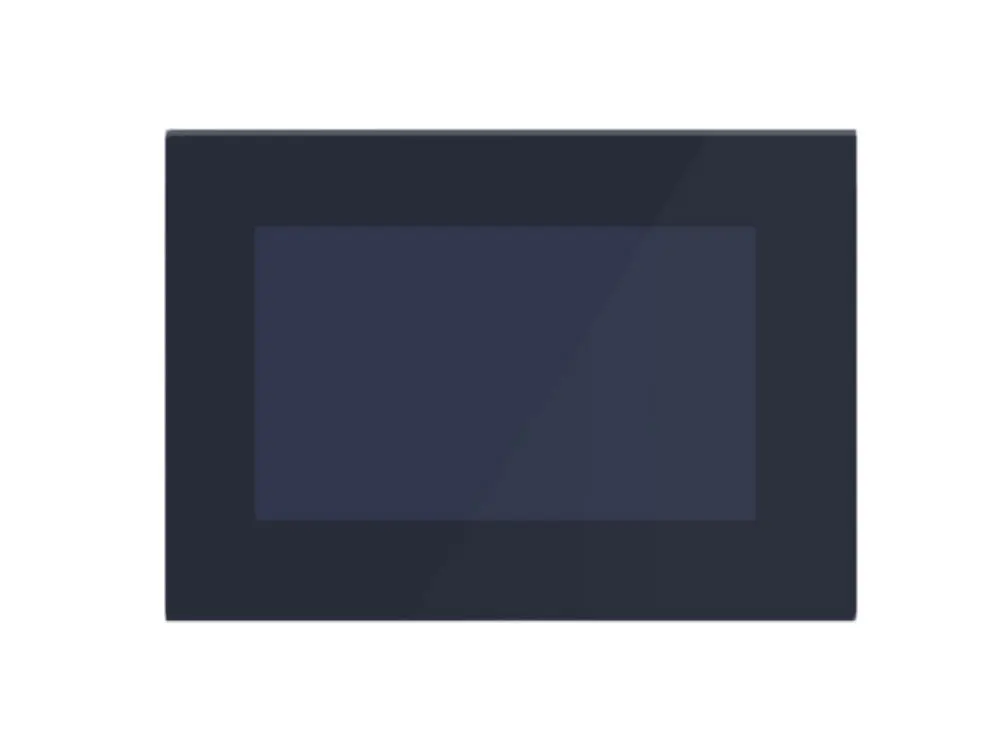

NX8048P050-011C-Y is a Nextion Intelligent series 5.0'' capacitive HMI touchscreen with enclosure.

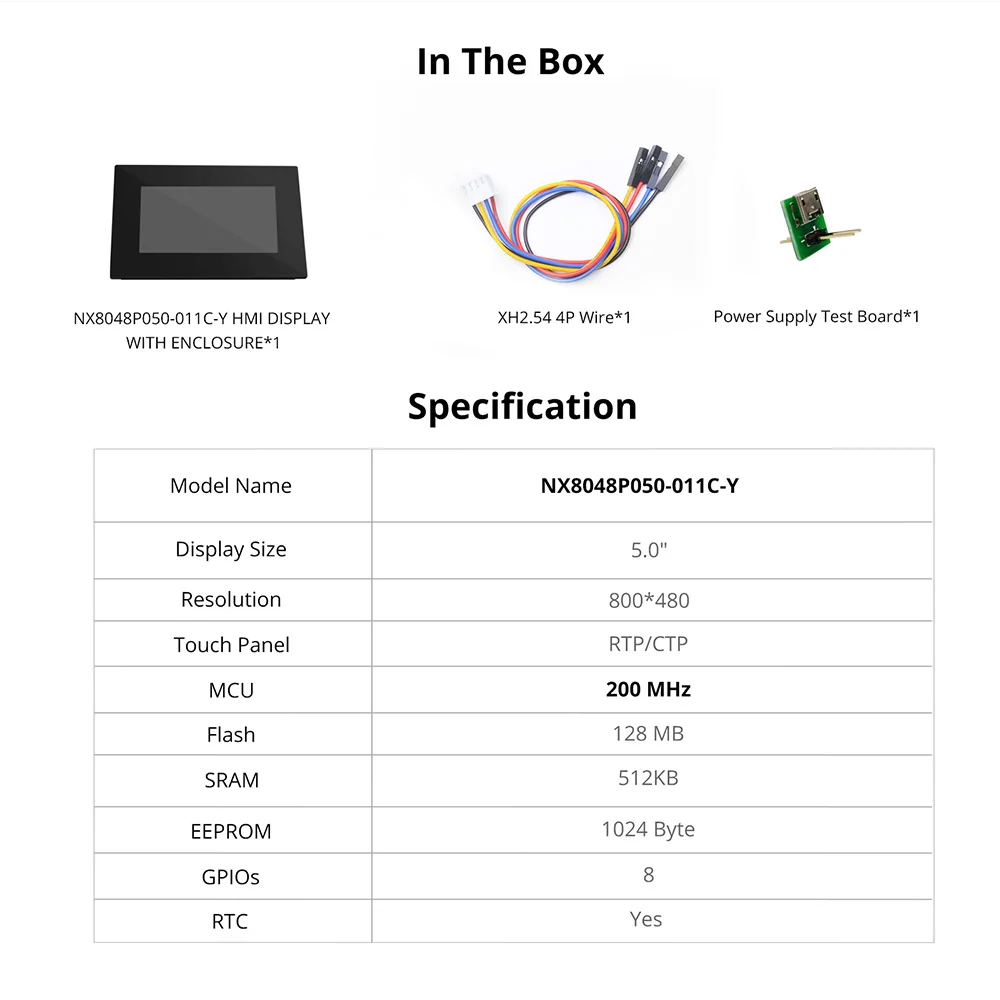

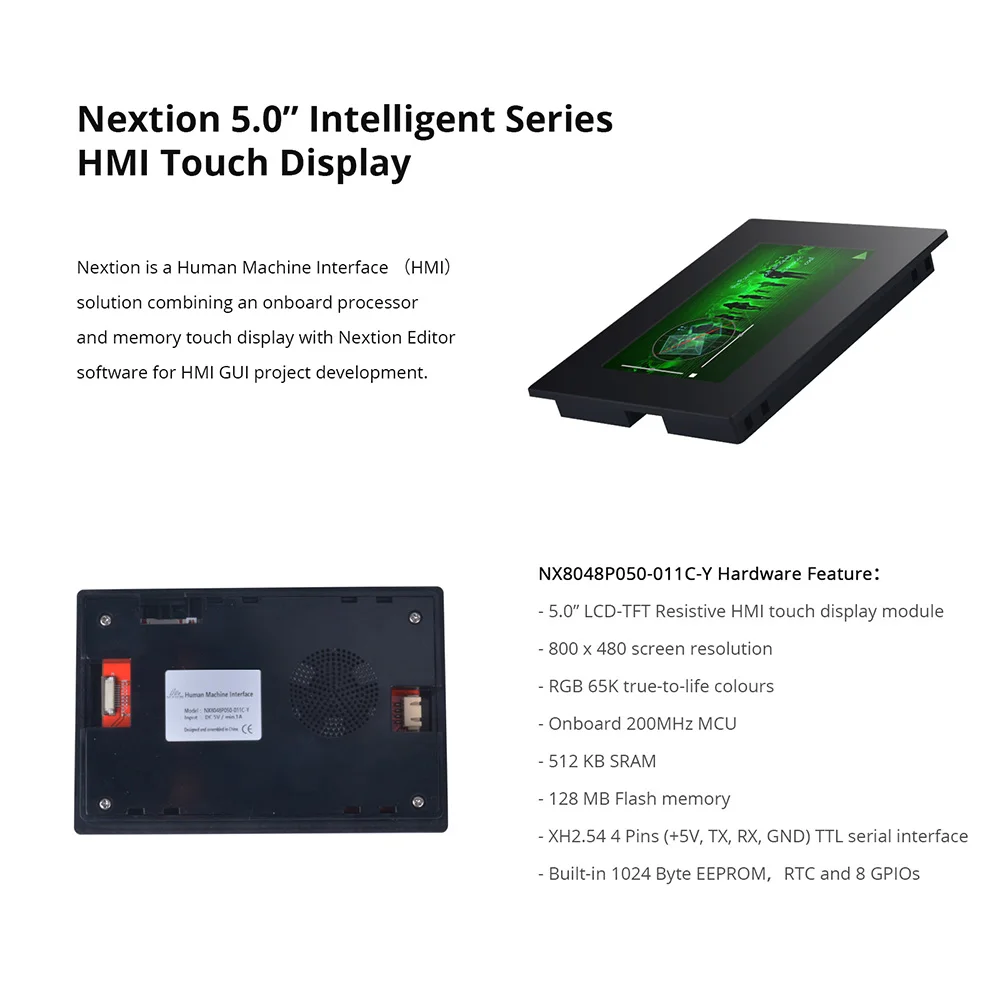

Hardware Features

5.0” LCD-TFT HMI display module
800 x 480 screen resolution
RGB 65K true-to-life colours
Capacitive touch panel
300 nit Brightness

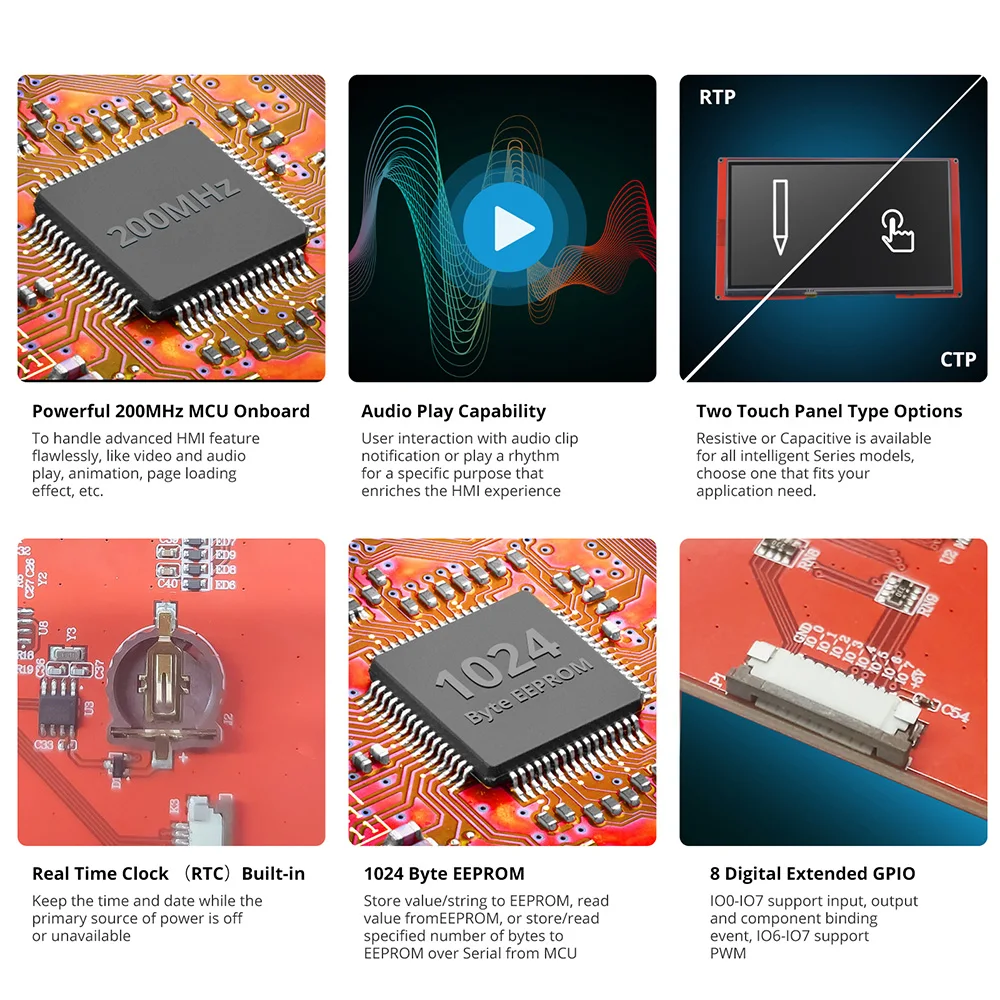

Onboard 200MHz MCU
512 KB of SRAM
128 MB of Flash memory
1024 Byte EEPROM

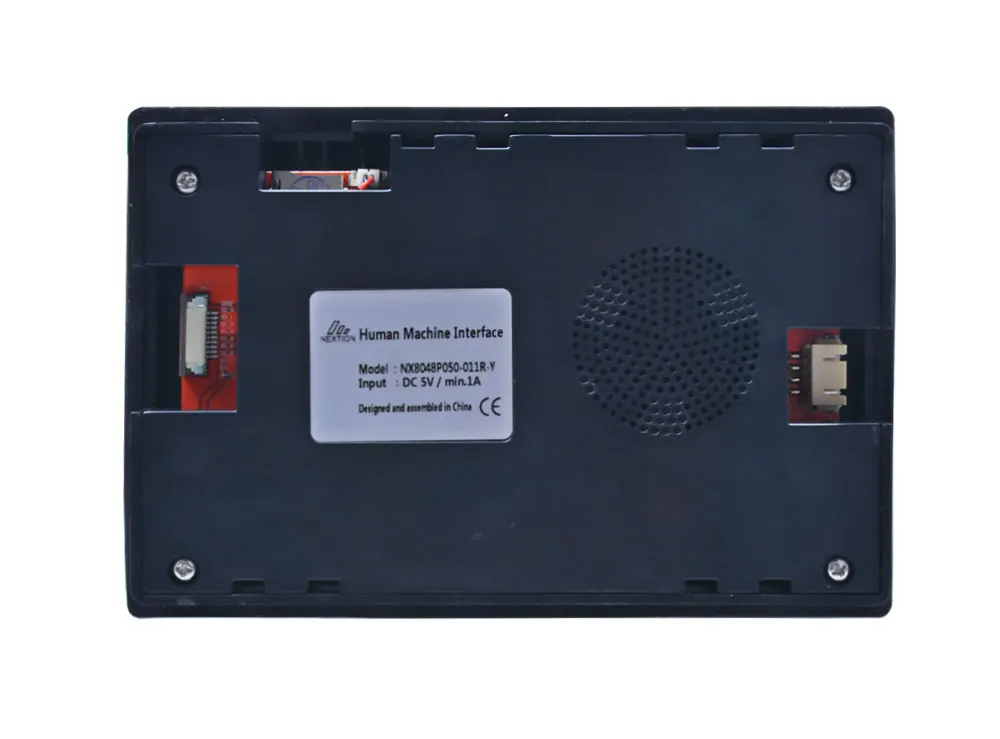

XH2.54 4 Pins (+5V, TX, RX, GND) TTL serial interface
1.25T-2-2A Audio port for external speaker connection
8 Digital extended GPIO
(IO0-IO7 support input, output and component binding event, IO6-IO7 support PWM)
Built-in RTC support
