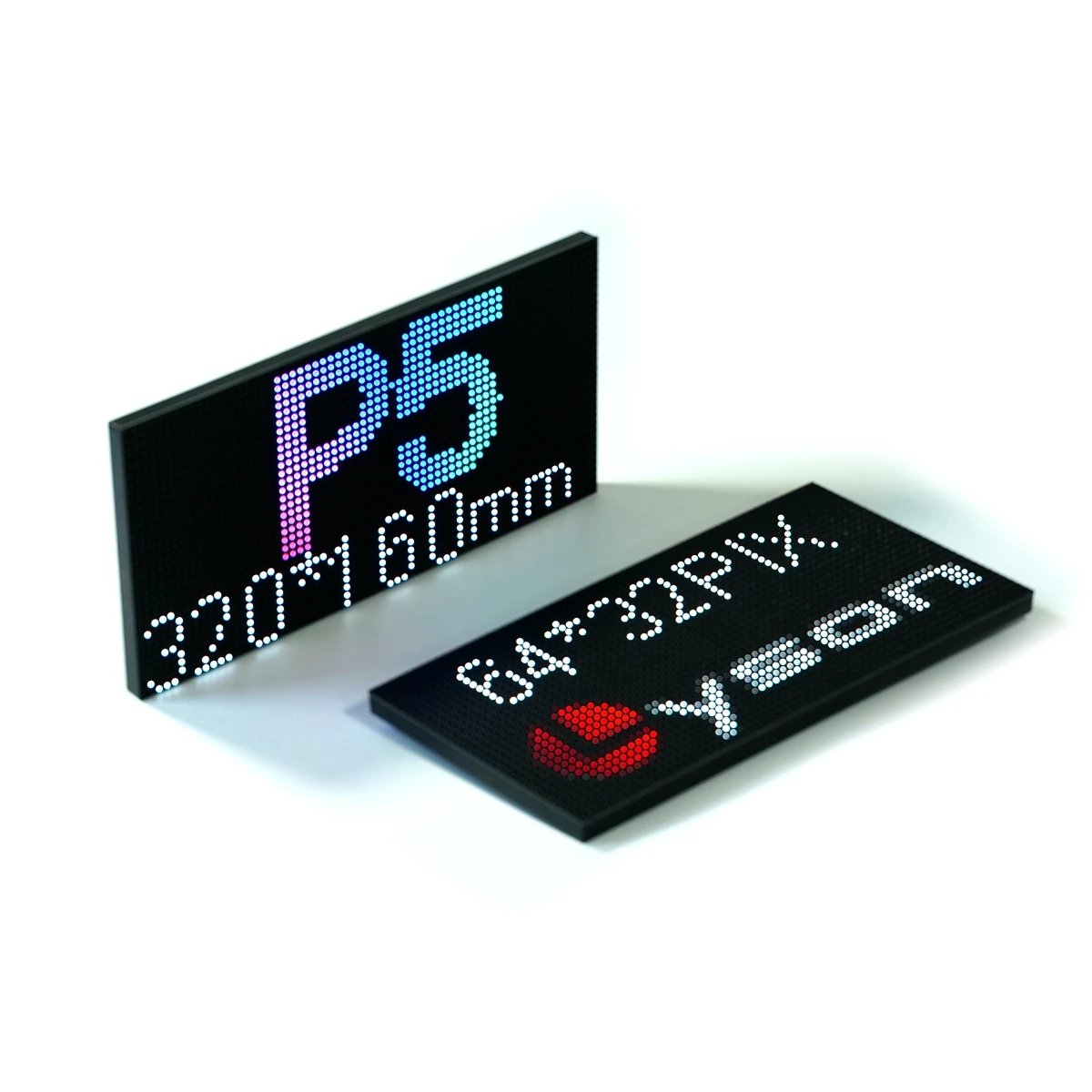

P5 Indoor Black SMD Full Color LED Video Display Panel 320x160mm 64x32 Pixels Lower Price High Quality RGB Module

P5 Indoor Black SMD Full Color LED Video Display Panel 320x160mm 64x32 Pixels Lower Price High Quality RGB Module

Pitch/mm: P5
Module size/mm: 320*160
Density of pixel(dots/m2): 40000
Pixel composition: 1R1G1B
Led encapsulation: SMD2121/2020
Resolution of module: 64*32
Optimum viewing distance: 23m
View angle /°: V160/H160
Average power :220 consumption/W/M2
Max power :600 consumption/W/M2
Frame frequency/Hz/S ≥60
Refresh rate Hz/S :1920
Luminance of white balance: >500nits
Driving method :1/16 scan constant current
Operation of Environmental: below 30 to above 65(Temperature/℃)
Working voltage:DC 5V
Grey scale/color:displaying colors≥16.7M(synchronized)
Brightness adjustment: 256 levels of each color(manually),100 levels of each
color(automatically)
Input signal: RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc
Control system Huidu/linsn/Nova(sending card,receiving card and Hubs)
Average of non-failure life >50,00h
Life span >100,000h
Functionless dot rate <0.0001

Packing list：
1 pcs led display module
1 pcs power cable
1 pcs data cable

Purchase Notice

1.The module only support building new led display ,CANNOT use to repair or work with your old modules.

2.Online prices include product price and shipping costs only and do not include import taxes or customs clearance fees.

3.If you choose fast express(DHL/FEDEX/UPS) shipping, all products are shipped without batteries.

4.If you choose fast express (DHL/FEDEX/UPS) delivery and the delivery address is in a remote area, we will need to charge an additional remote delivery fee.

P5 Indoor SMD2121 3-IN-1 Full Color LED Display Panel 320x160mm

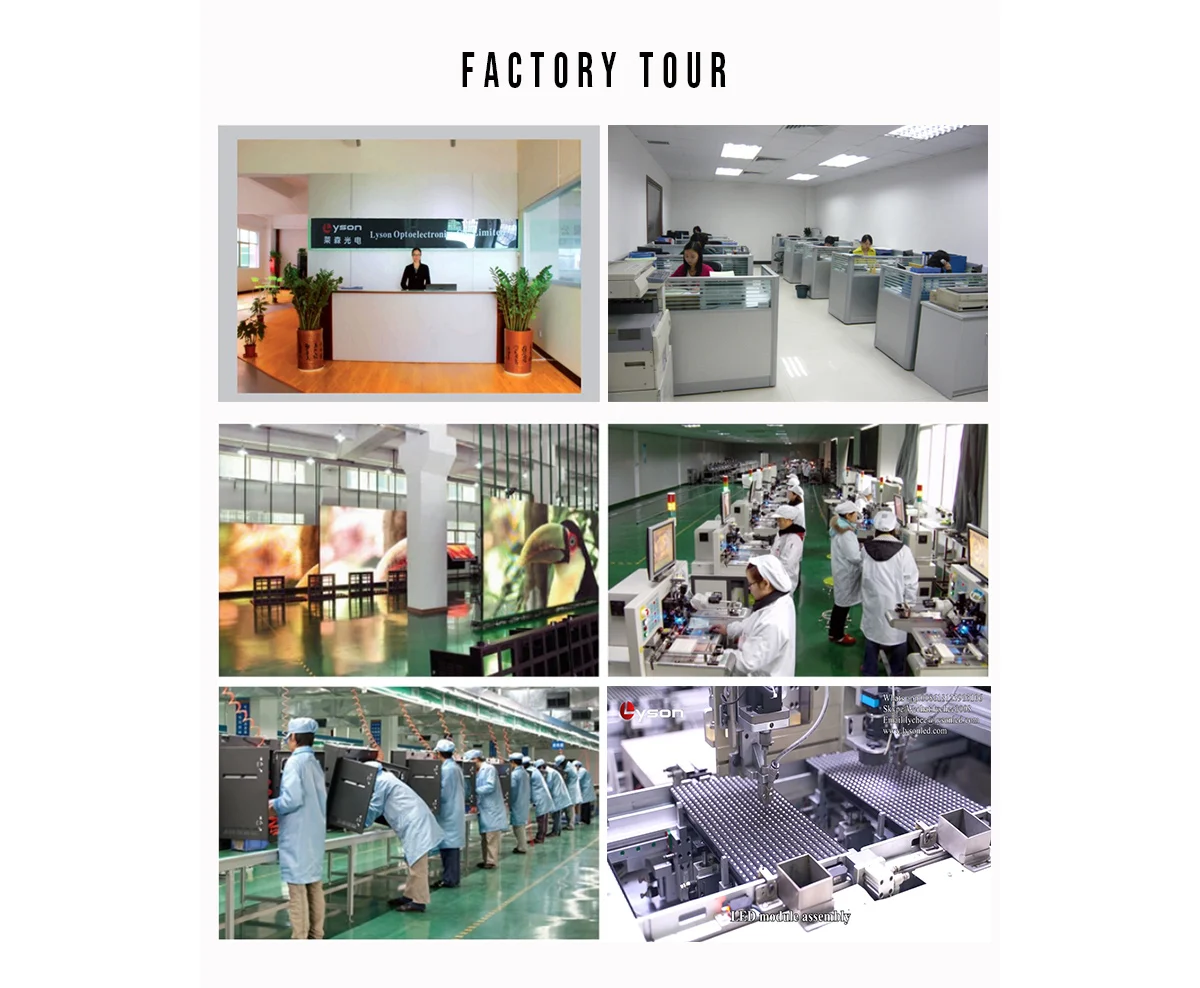

Production process display
