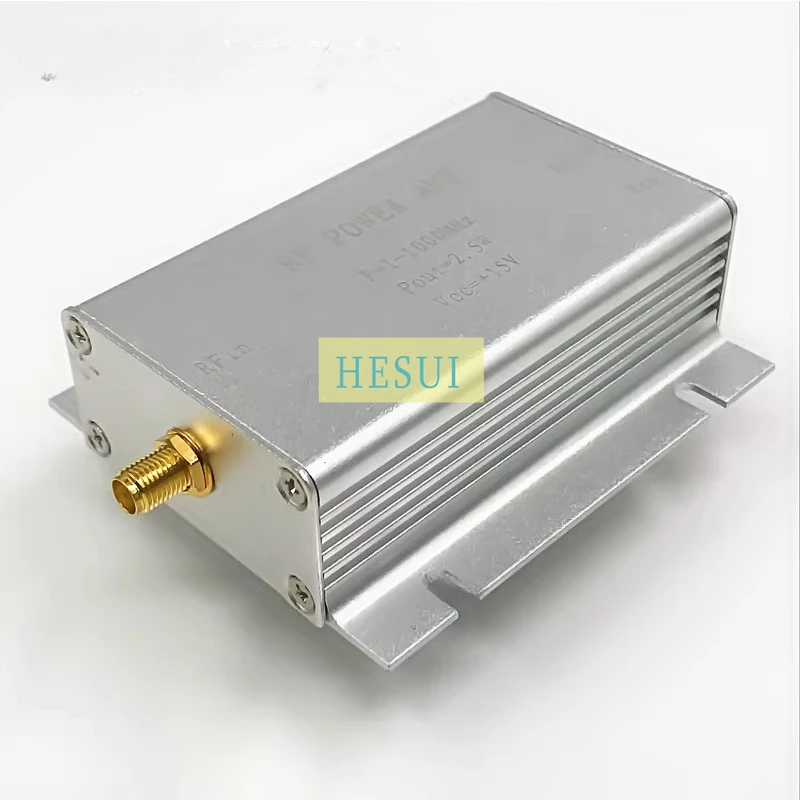

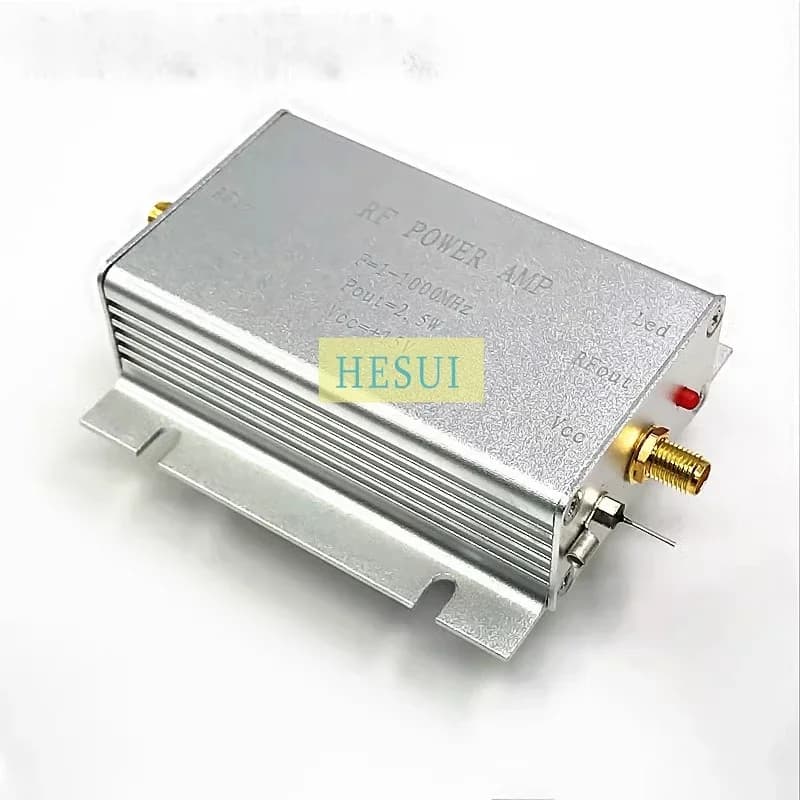

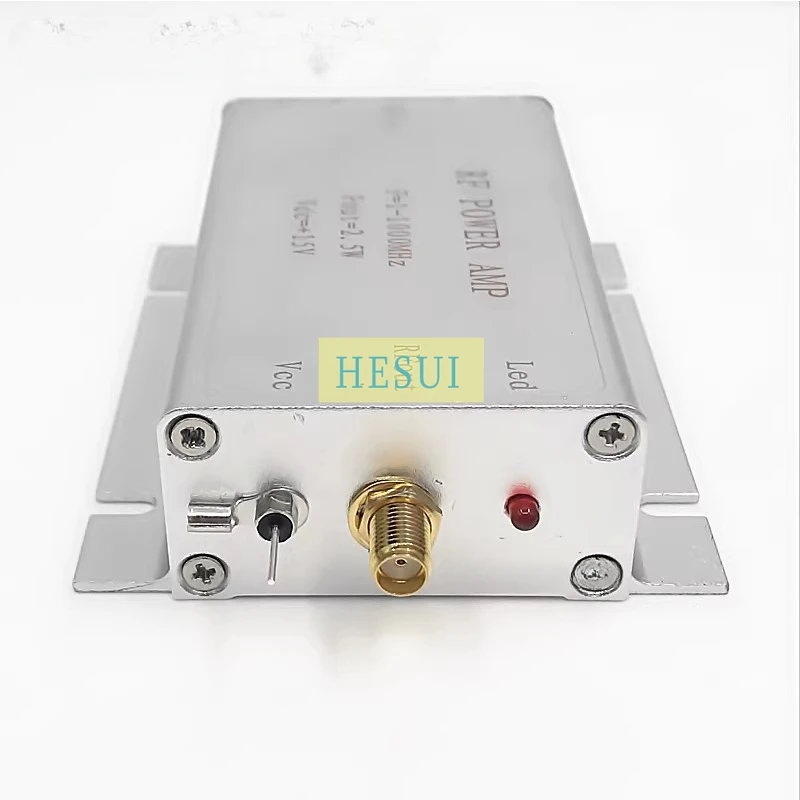

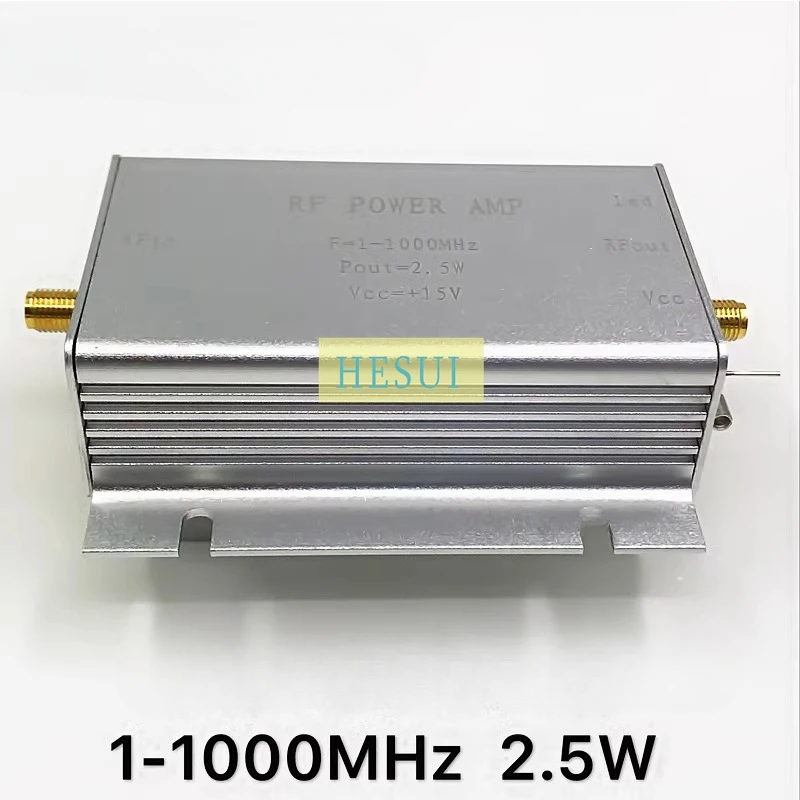

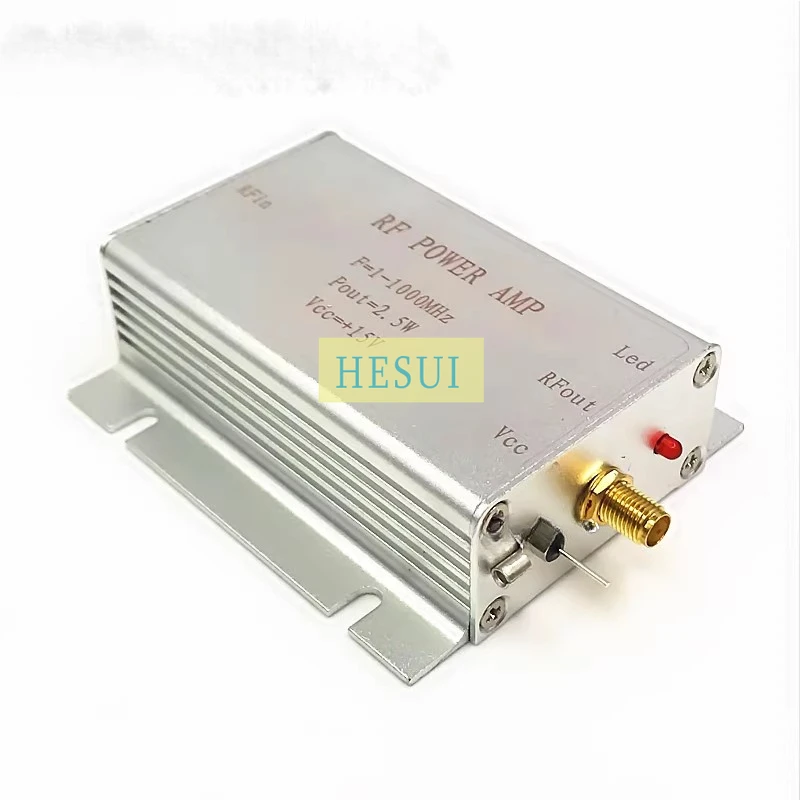

2.5W 1MHz- 1000MHz Amplifier 1MHz- 1GHz Broadband RF power amplifier module board CNC Al shielding shell

Rf broadband low power amplifier
The broadband RF low power amplifier is suitable for all kinds of radio transmission, such as: short-wave FM radio remote control, FM radio transmission, amateur radio 135-175MHz, 380-470MHz walkie-talkie transmission use. The low frequency input 2mW can output a maximum of 2.5W power, 500MHz can output a maximum of 2W, 800MHz can output a maximum of 1.5W, 1000MHz can output a maximum of 1.0W, the amplifier housing has a heat dissipation function, can work stably for a long time.
1. Technical parameters:
1) Operating frequency: 1-1000mhz
2) Output power: Input power: 2mW (3dBm)
2.5W (34dBm) Low frequency (100MHz)
2.0W (33dBm) intermediate band (500MHz)
1.5W (31dBm) High frequency terminal (800MHz)
1.0 W (30 DBM) the high frequency end (1000 MHZ)
3) Working voltage: 15V (DC)
4) Working current: 430mA (determined by output power)
5) RF connector: standard SMA cathode
6) Overall dimensions: 82*71*25mm (length * width * height)
