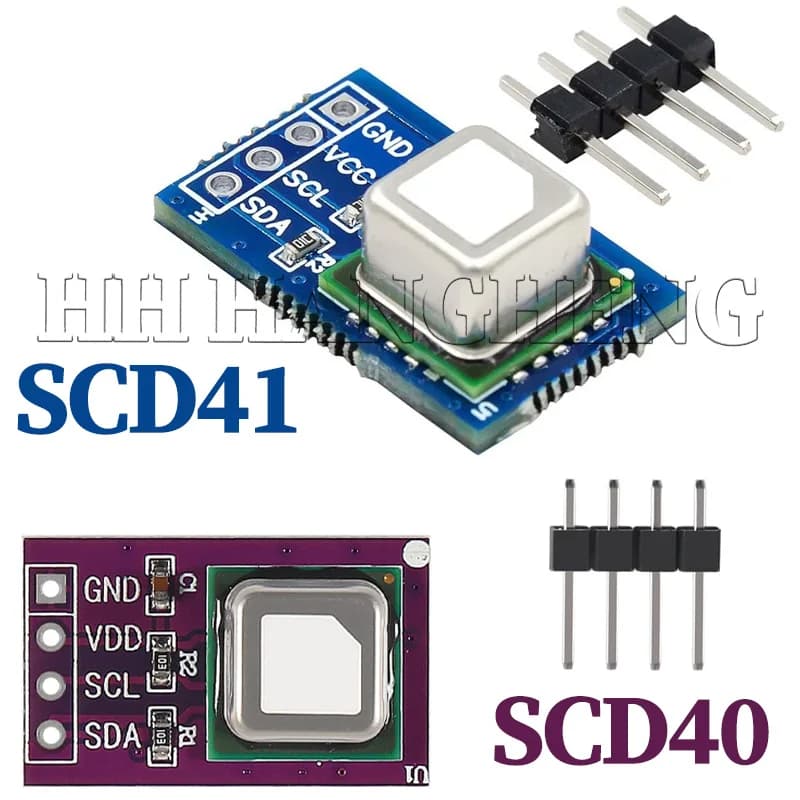

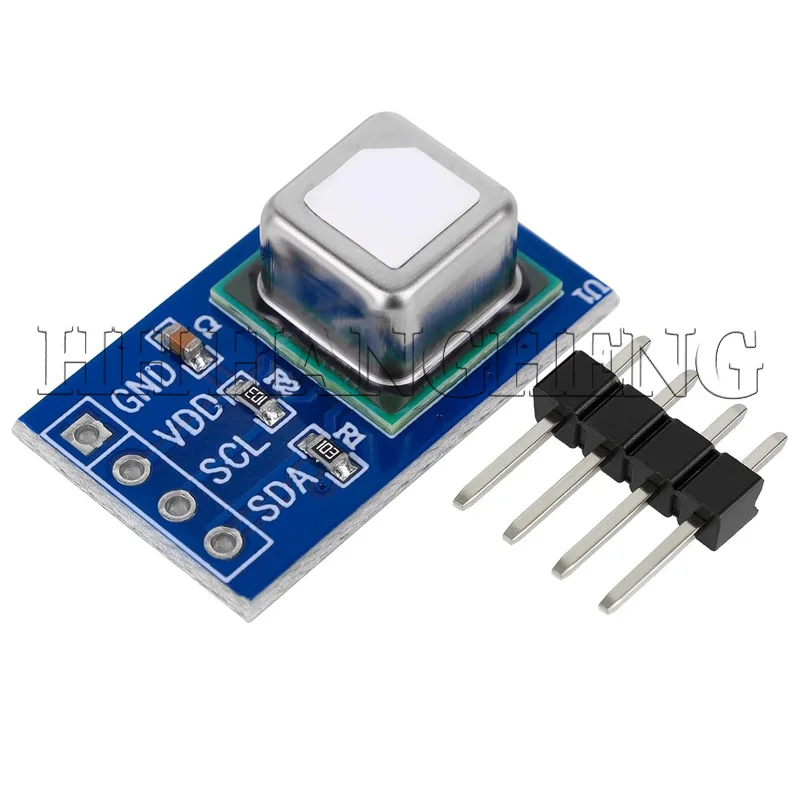

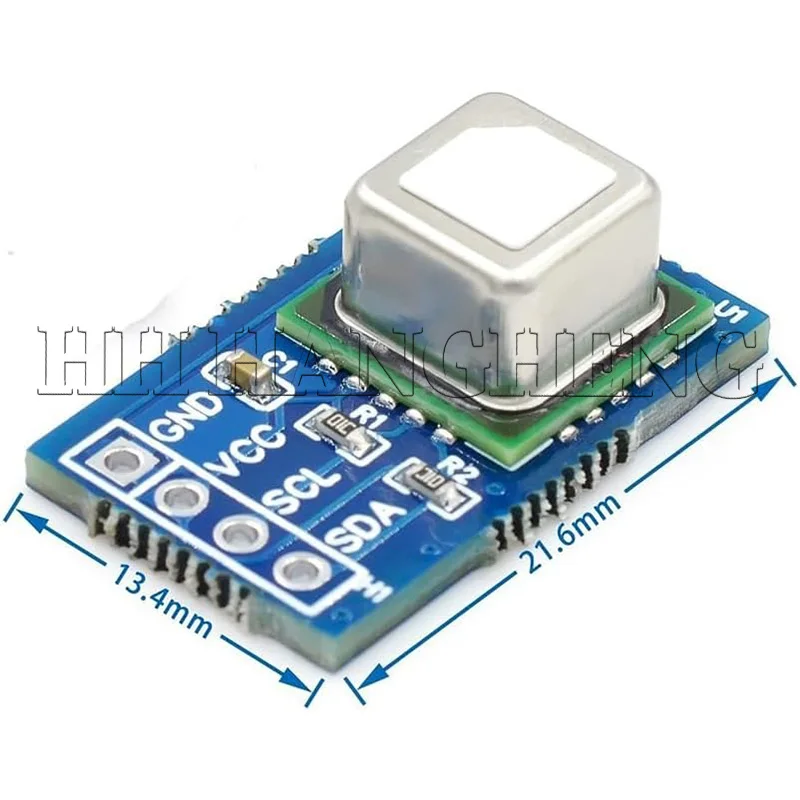

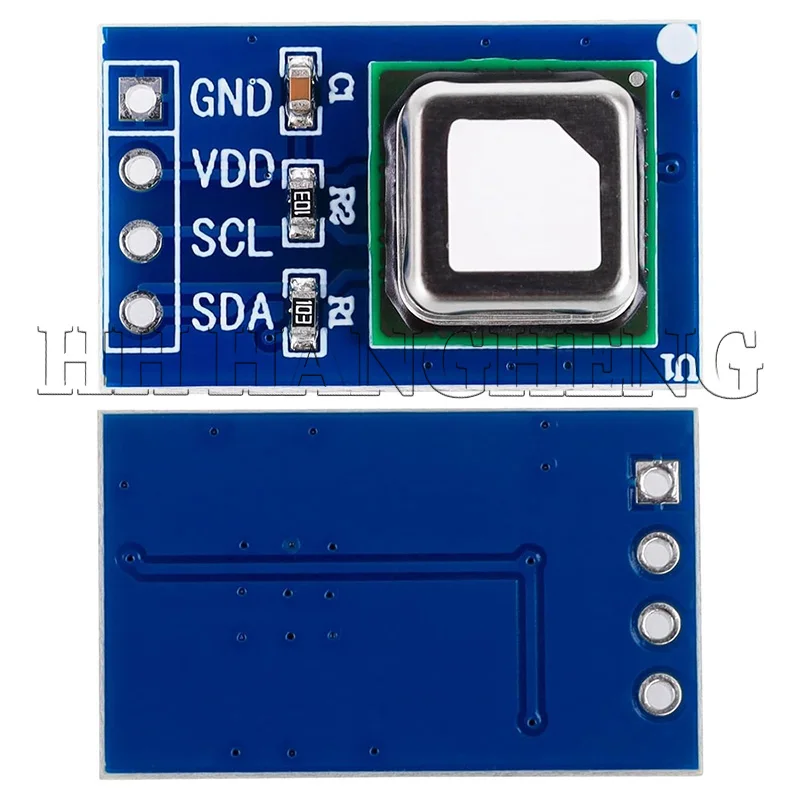

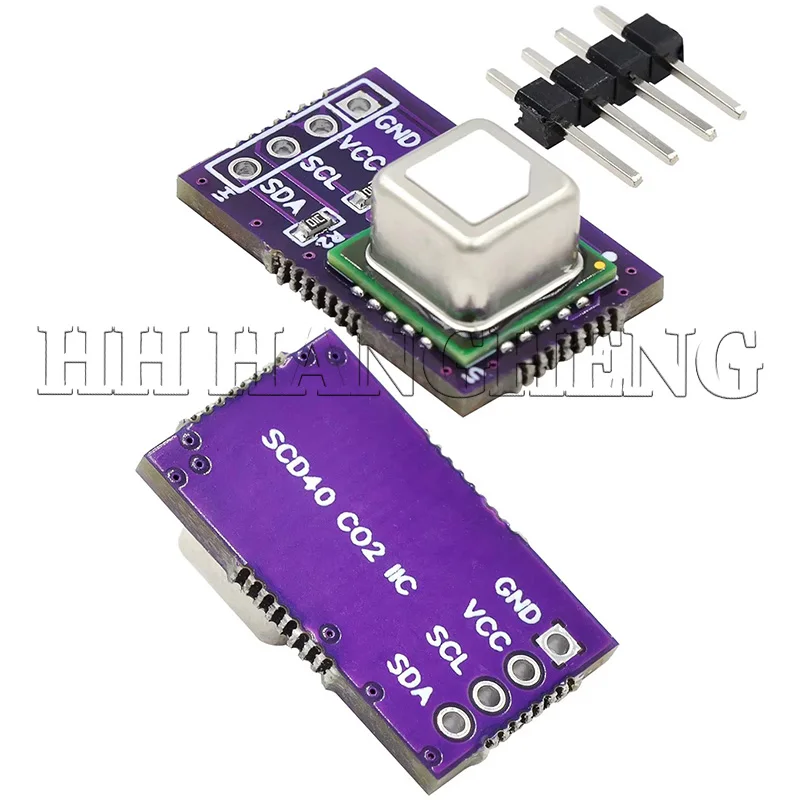

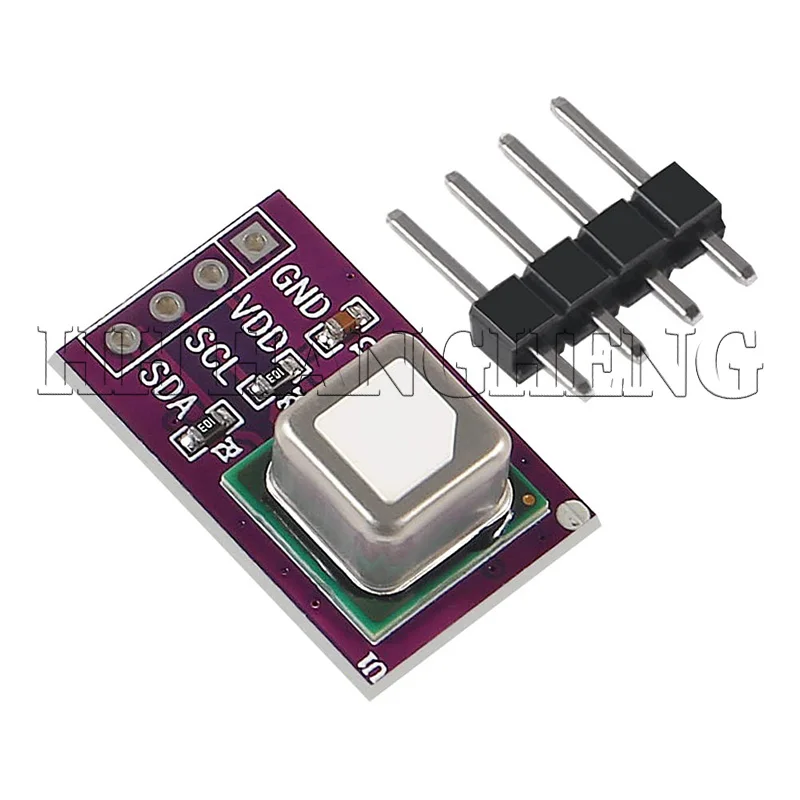

SCD40 SCD41 Gas Sensor Module 2.4-5.5V Detects CO2 Carbon Dioxide Temperature and Humidity Sensor I2C Communication

SCD40/SCD41 has high precision and high cost performance. The module leads out the power supply and communication pins with a 2.54mm pitch pin interface. On-chip temperature and humidity compensation is achieved through the built-in temperature and humidity sensor to measure humidity and temperature. SCD40/SCD41 can realize intelligent adjustment of indoor ventilation system according to carbon dioxide concentration. Indoor air quality helps to maintain a healthy and efficient environment under low carbon dioxide concentration for a period of time.

Features

Benchmark accuracy, specified range, SCD40: 400-2000 ppm SD41: 400-5000 ppm

Supply voltage range: 2.4–5.5 V

High accuracy: ± (40 ppm+5%)

Digital I2C interface

Integrated temperature and humidity sensor

Low power operation to <0.4 mA average @5 V, 1 meas./5 minutes

Interface definition:

1.GND: Negative power input port

2.VDD: Positive power input port

3.SCL: I2C clock port

4.SDA: I2C data port
