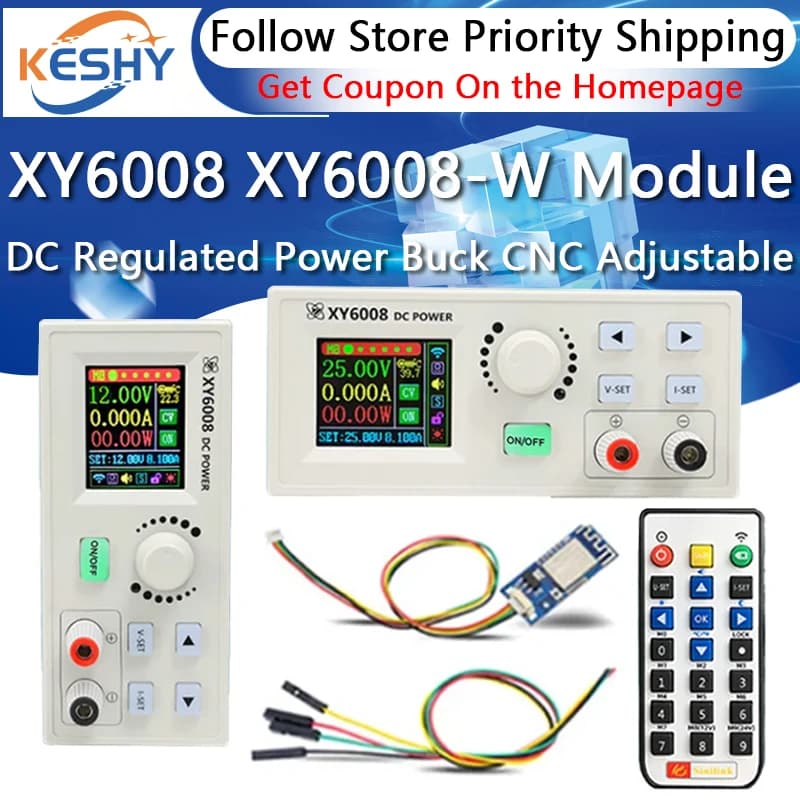

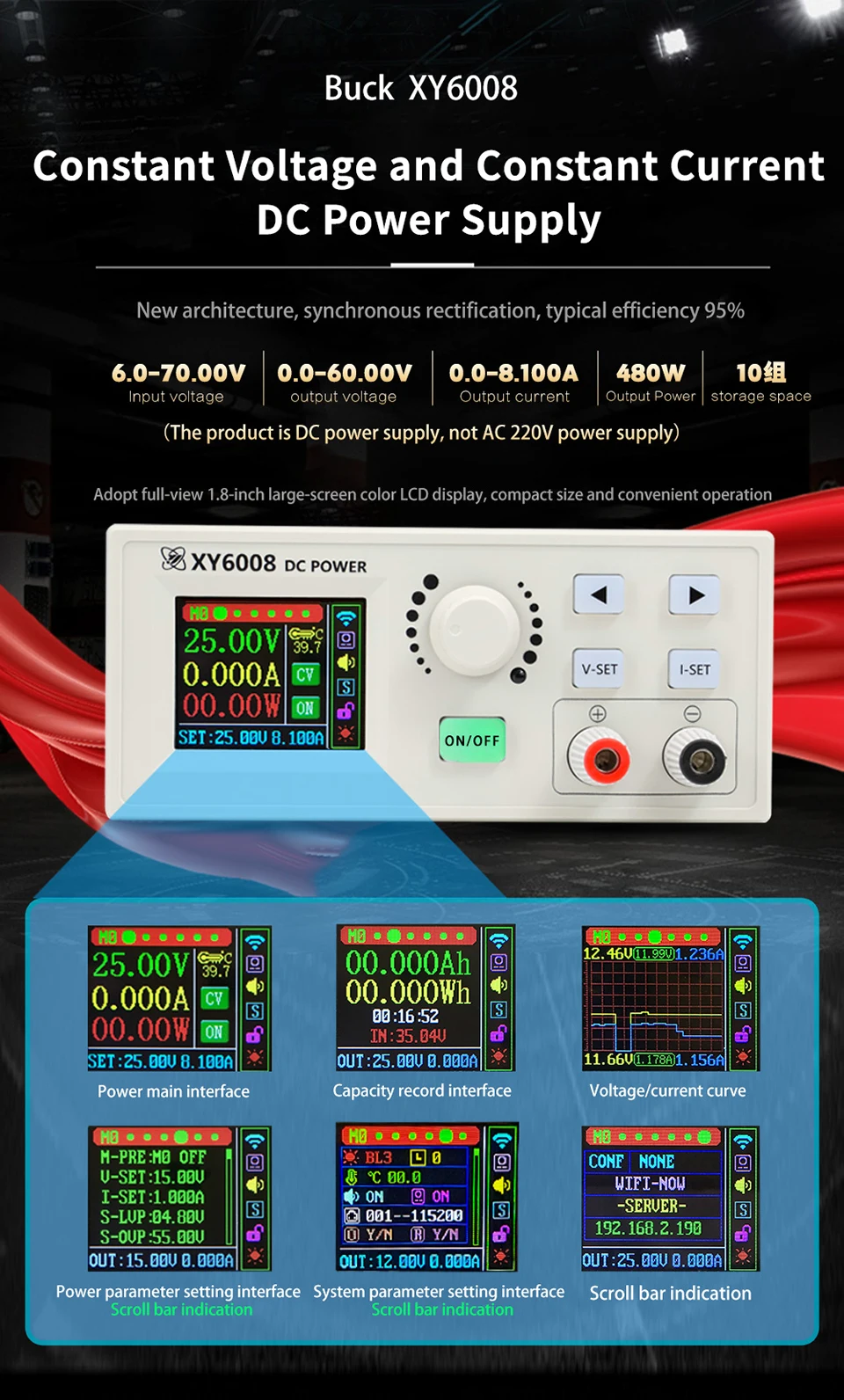

XY6008 XY6008-W DC Regulated Power Supply Step Down Module CNC Adjustable DC Stabilized Power Constant Voltage Constant Current

XY6008 XY6008-W DC Regulated Power Supply Step Down Module CNC Adjustable DC Stabilized Power Constant Voltage Constant Current

Features:

1. It can be used horizontally or vertically, and can also be controlled by the remote control. The screen supports four-way rotation.

2. The color of the display screen can be matched freely, and eight colors can be freely matched.

3. Full digital keys, easy to operate.

4. Network control, real-time communication, no distance limit. Control on computer/mobile app, support Android/ios (only support XY6008-W)

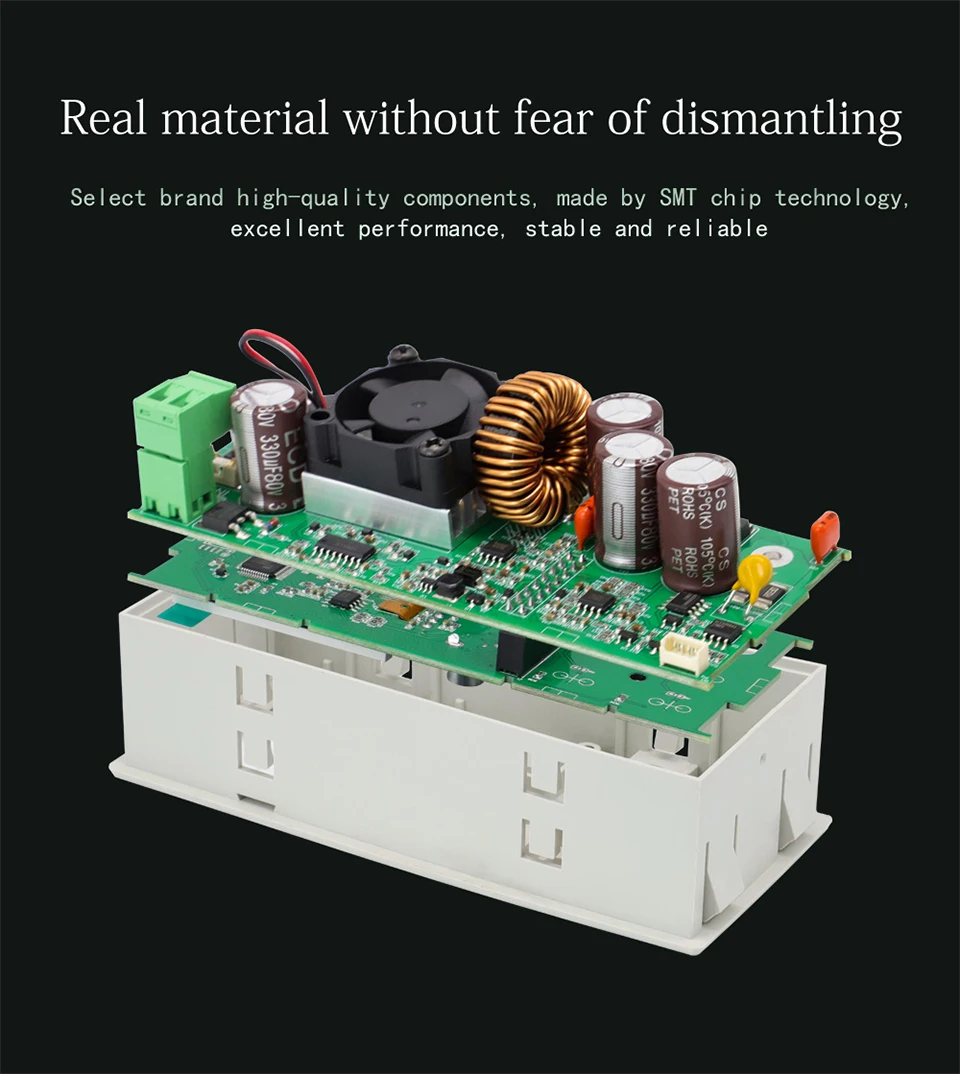

5. Select brand high-quality components and make them with SMT chip technology, with excellent performance, stable and reliable.

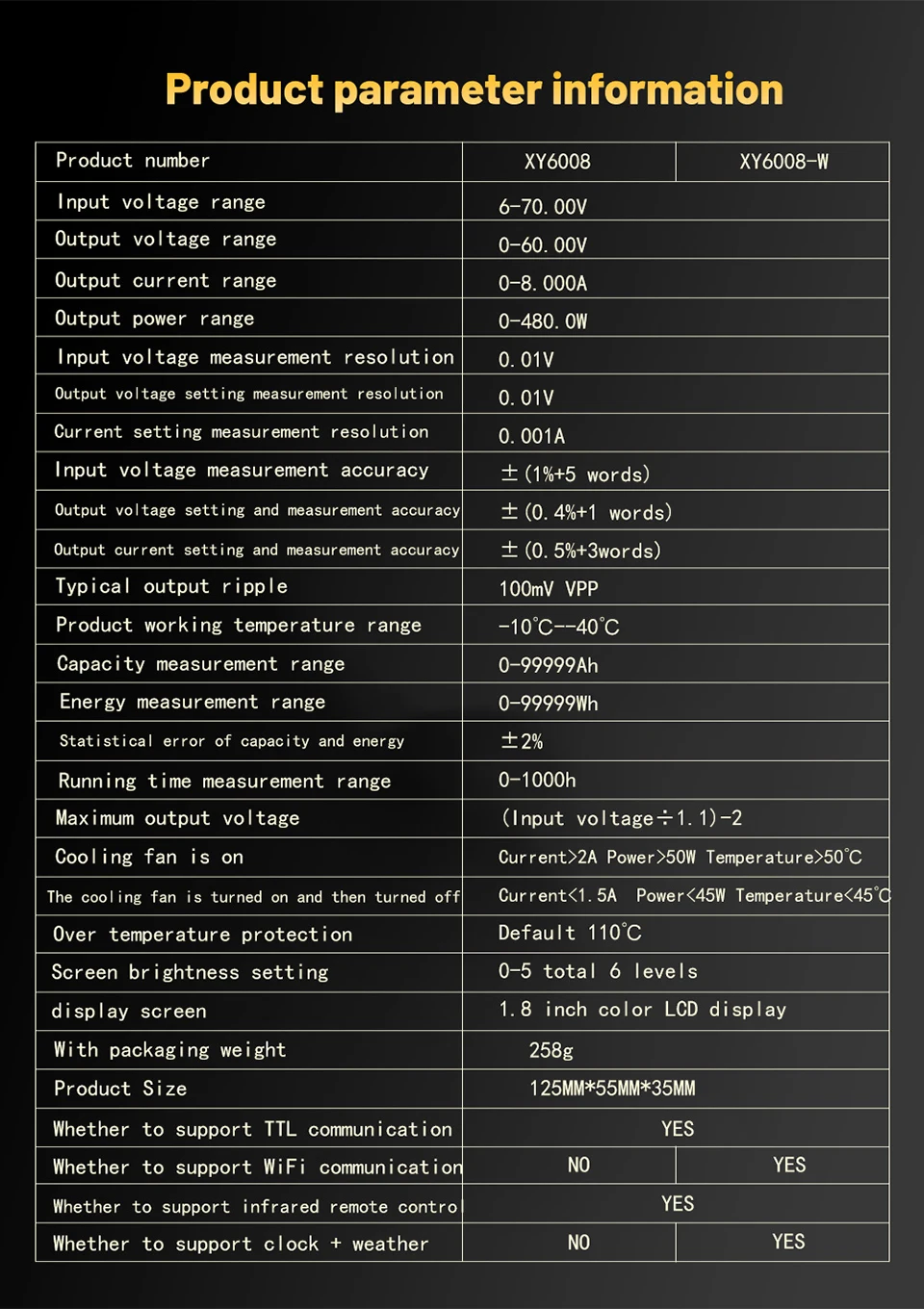

Specifications:

● Product number: XY6008 XY6008-W

● Input voltage range: 6-70.00V

● Output voltage range: 0-60.00V

● Output current range: 0-8.000A

● Output power range: 0-480.0W

● Input voltage measurement resolution: 0.01V

● Output voltage setting measurement resolution: 0.01V

● Current setting measurement resolution: 0.001A

● Input voltage measurement accuracy: ±(1%+5 words)

● Output voltage setting and measurement accuracy: ±(0.4%+1 words)

● Output current setting and measurement accuracy: ±(0.5%+3words)

● Typical output ripple: 100mV VPP

● Product working temperature range: -10℃--40℃

● Capacity measurement range: 0-99999Ah

● Energy measurement range: 0-99999Wh

● Statistical error of capacity and energy: ±2%

● Running time measurement range: 0-1000h

● Maximum output voltage: (Input voltage÷1.1)-2

● Cooling fan is on: Current>2A Power>50W Temperature>50℃

● The cooling fan is turned on and then turned off: Current<1.5A Power<45W ● Temperature:<45℃

● Over temperature protection Default: 110°C

● Screen brightness setting: 0-5 total 6 levels

● Display screen: 1.8 inch color LCD display

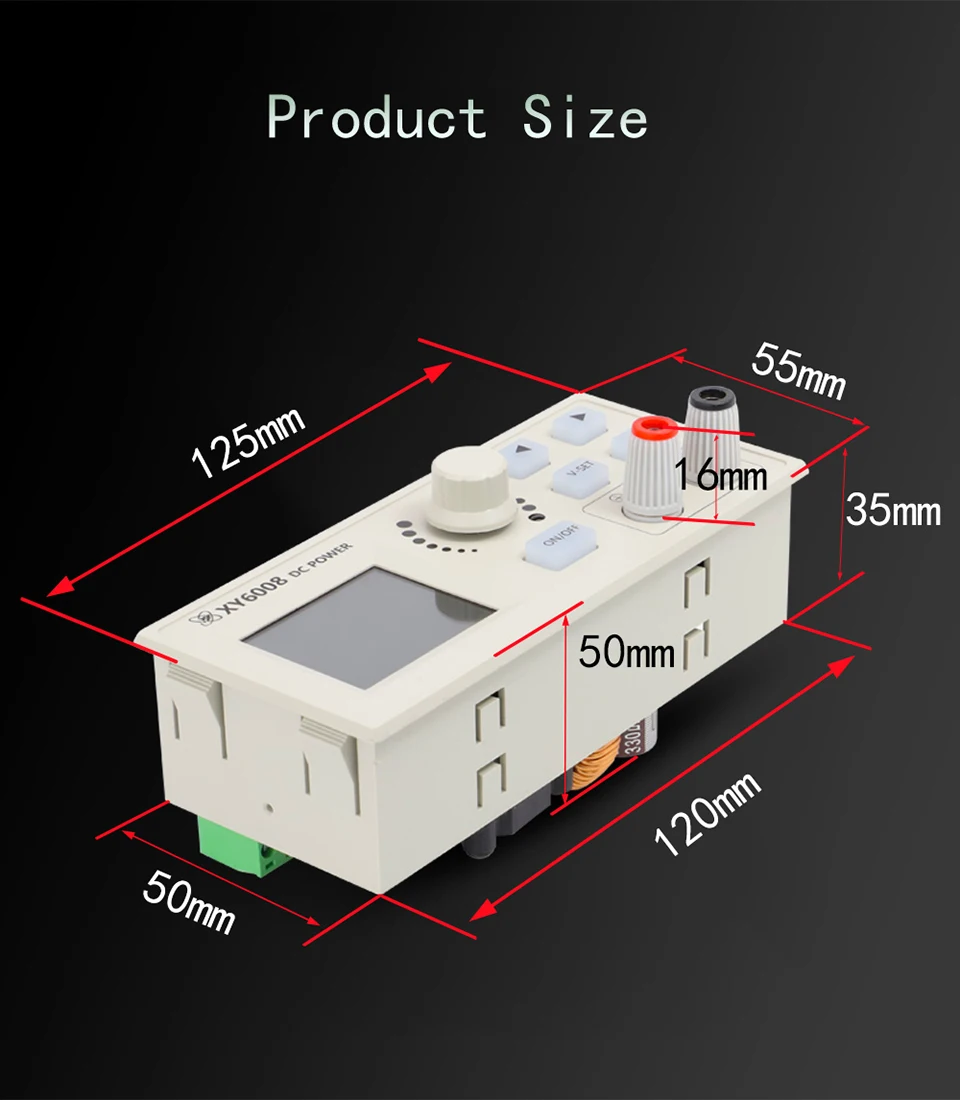

● Product Size: 125MM*55MM*35MM

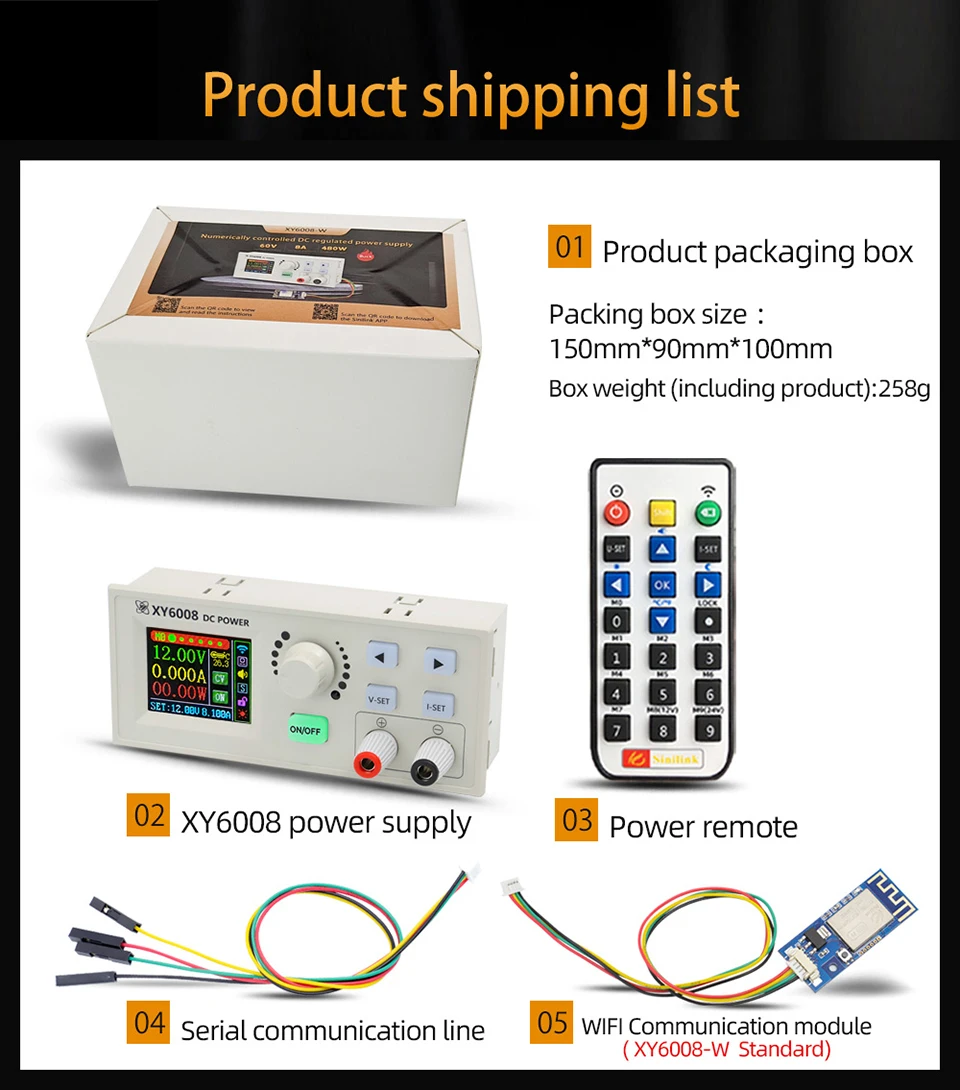

Packing lists:

1 * XY6008/XY6008-W

1 * Power remote control(battery not included: CR2025)

1 * Serial communication line

1 * WIFI communication module(XY6008-W only)

Notes:

1. Please allow slight dimension difference due to different manual measurement.

2. Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding!
