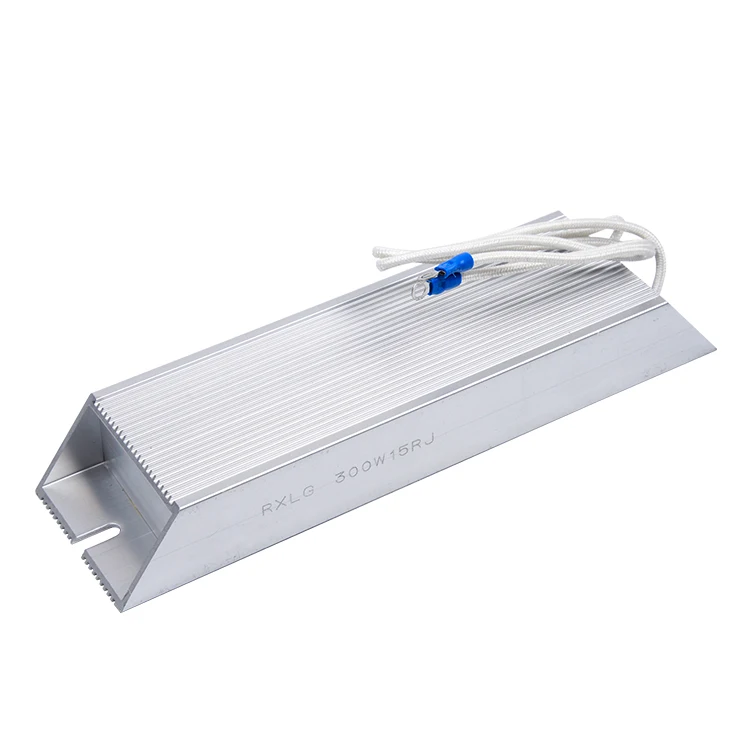

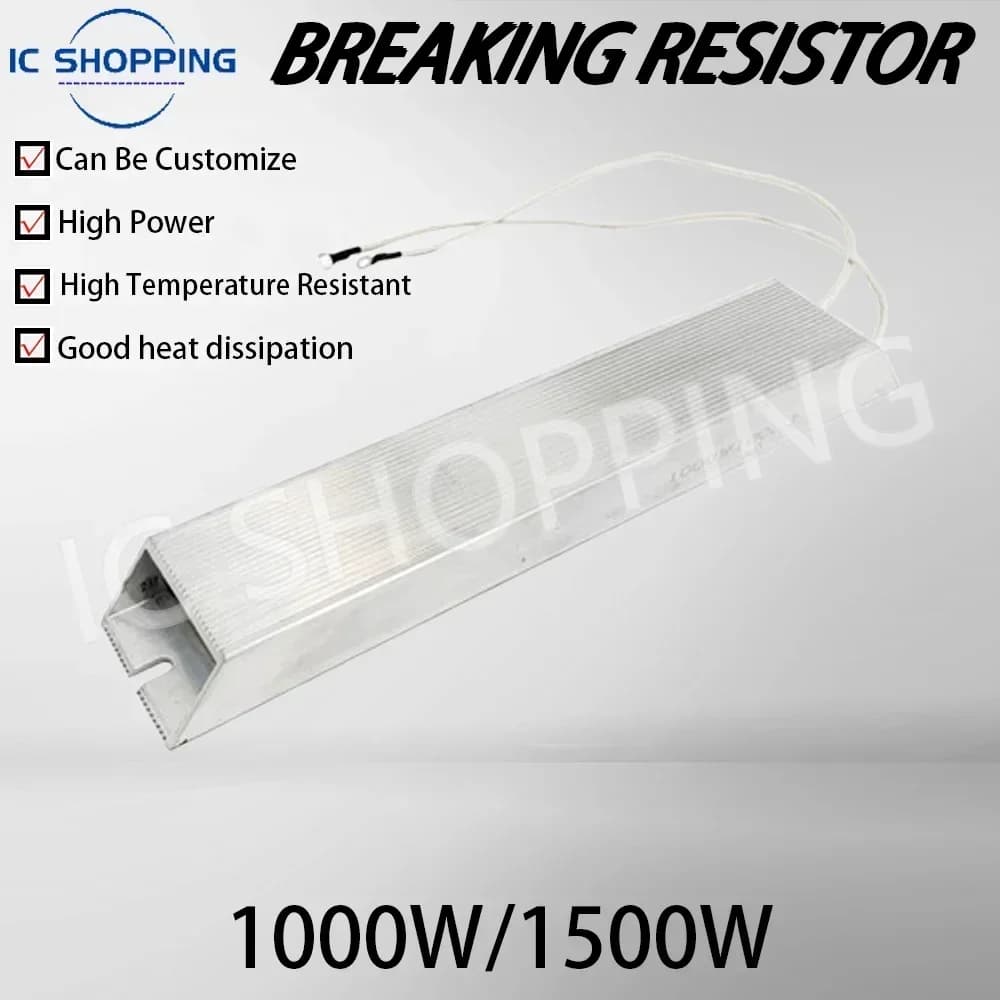

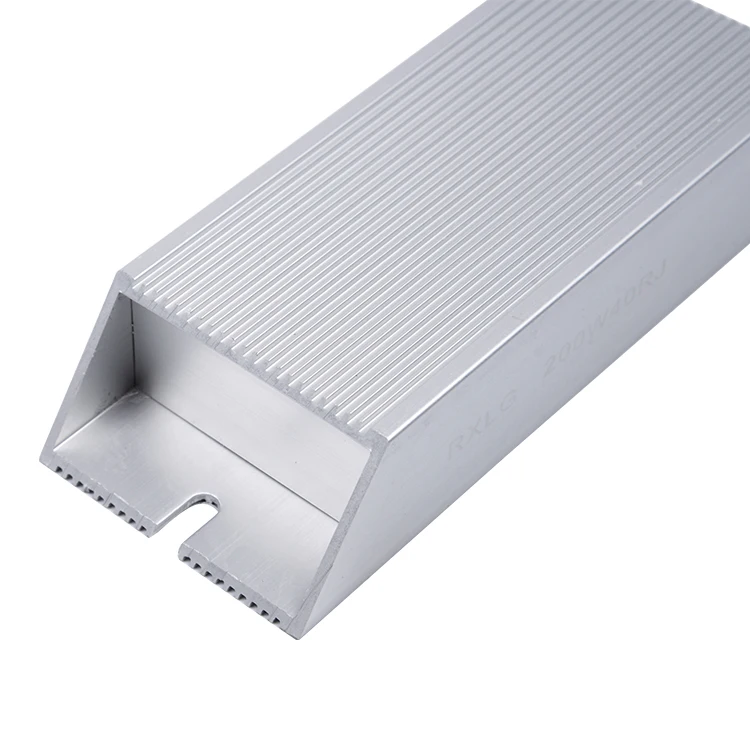

1PCS RXLG Aluminum Shell Braking Resistor 1000W 1200W 1500W 10R 20R 30R 40R 50R 75R 100R 150R 300R 400 Ohm

If you need Other resistance value, you can buy "Other Ohm", and then fill in the required resistance value in the order message remarks, the delivery period is generally about 5~7 days, such as the delivery period is extended, customer service will be notified separately!

0.4 kW VFD: 60 W, 200 Ω; 80 W, 200 Ω
0.75 kW VFD: 100 W, 200 Ω; 80 W, 750 Ω
1.5 kW VFD: 300 W, 100 Ω; 300 W, 400 Ω
2.2 kW VFD: 300 W, 70 Ω; 300 W, 250 Ω
3.7 kW VFD: 300 W, 50 Ω; 400 W, 150 Ω
5.5 kW VFD: 500 W, 100 Ω; 500 W, 150 Ω; 500 W, 200 Ω
7.5 kW VFD: 1000 W, 75 Ω; 1000 W, 50 Ω; 1000 W, 30 Ω; 1000 W, 20 Ω; 1000 W, 100 Ω
11 kW VFD: 1000 W, 50 Ω
15 kW VFD: 1500 W, 40 Ω
18.5 kW VFD: 4800 W, 32 Ω

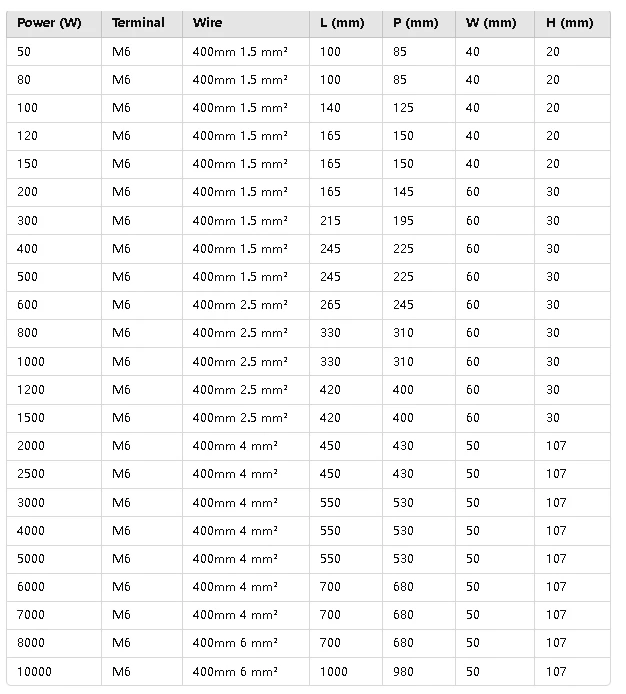

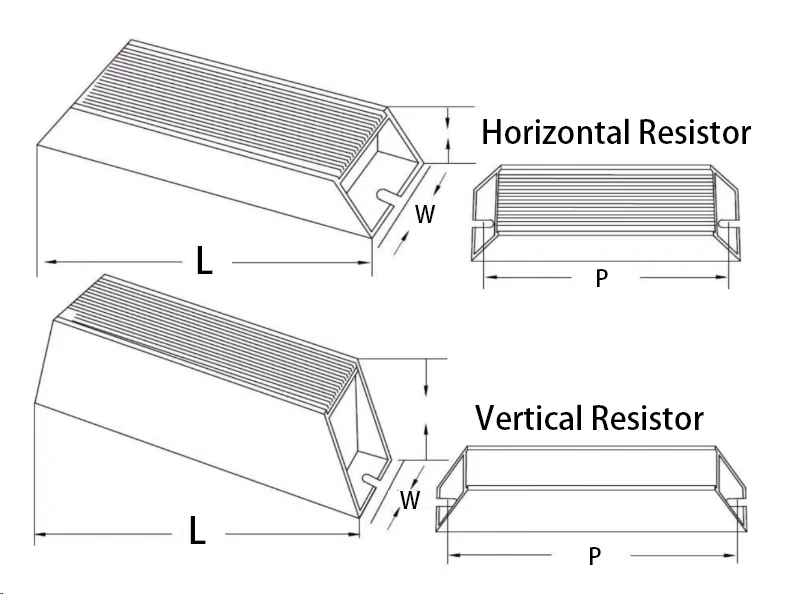

Height * width * length
100W 20＊40＊140
150W 20＊40＊180
200W 30＊60＊165
300W 30＊60＊215
500W30＊60＊245
800W30＊60＊330
1000W 30＊60＊330
(50＊100＊300)
1500W30＊60＊420
(50＊100＊400)
2000W50＊100＊450
3000W 50＊100＊550
5000W 50*100*700
6000W50*100*700
7000W50*100*900
