P1.25 P1.5 P1.8 P1.9 P2 P2.5 LED Video Wall Controller Sending Card Huidu Multimedia Player A4L A5L A6L

Product：

The A4L A5L A6L need to work together with receiving card together

Shipping cost not including remote area fee

Attention

Features

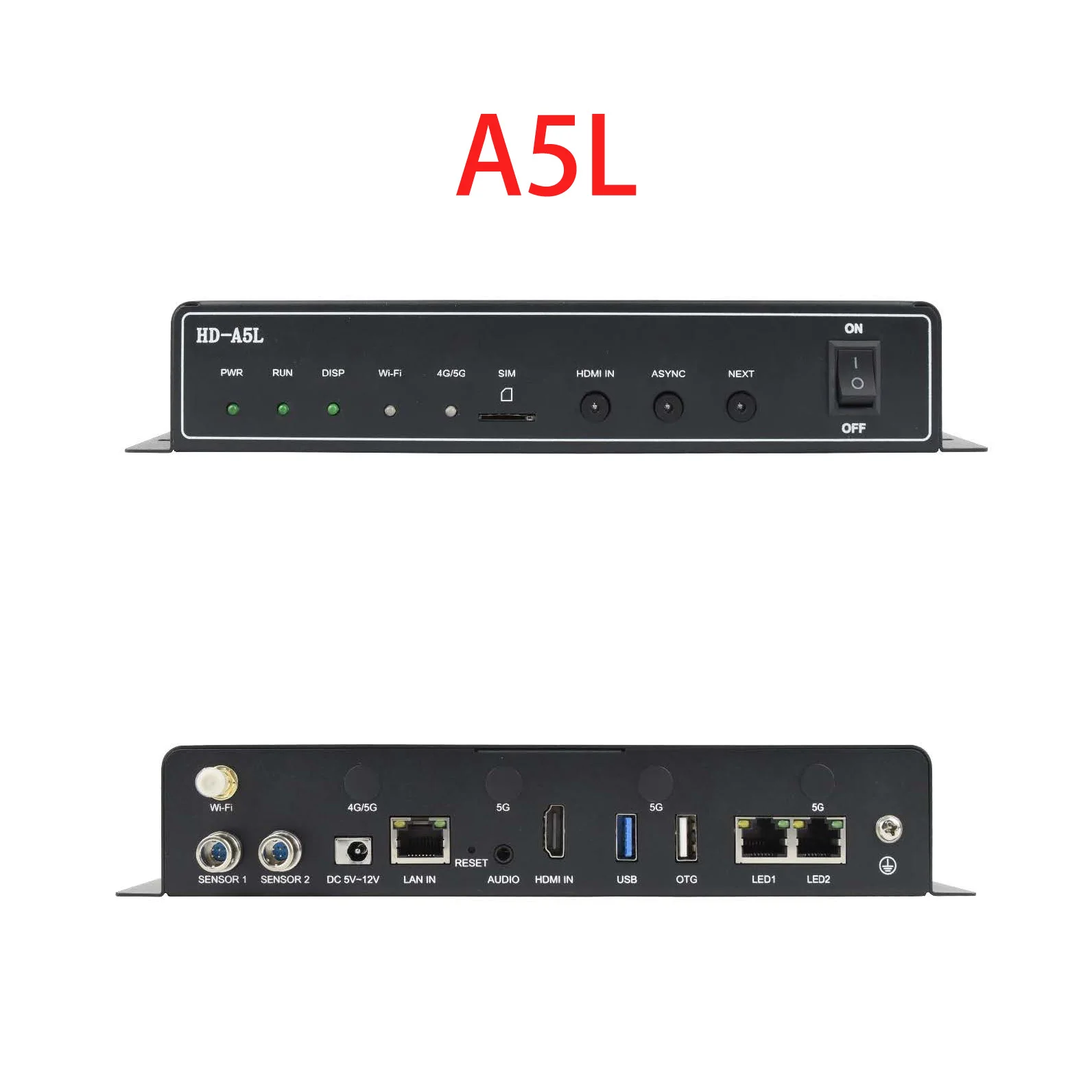

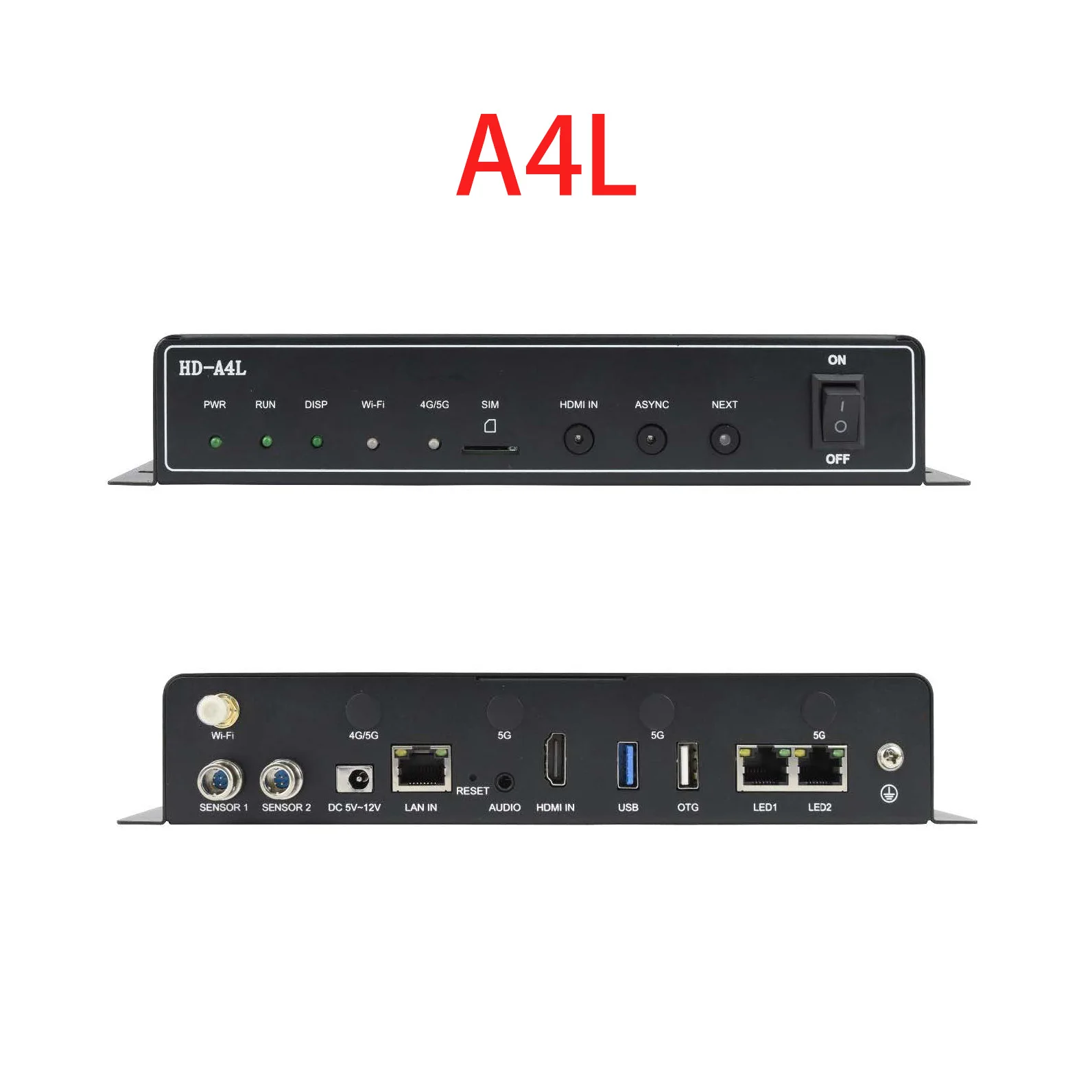

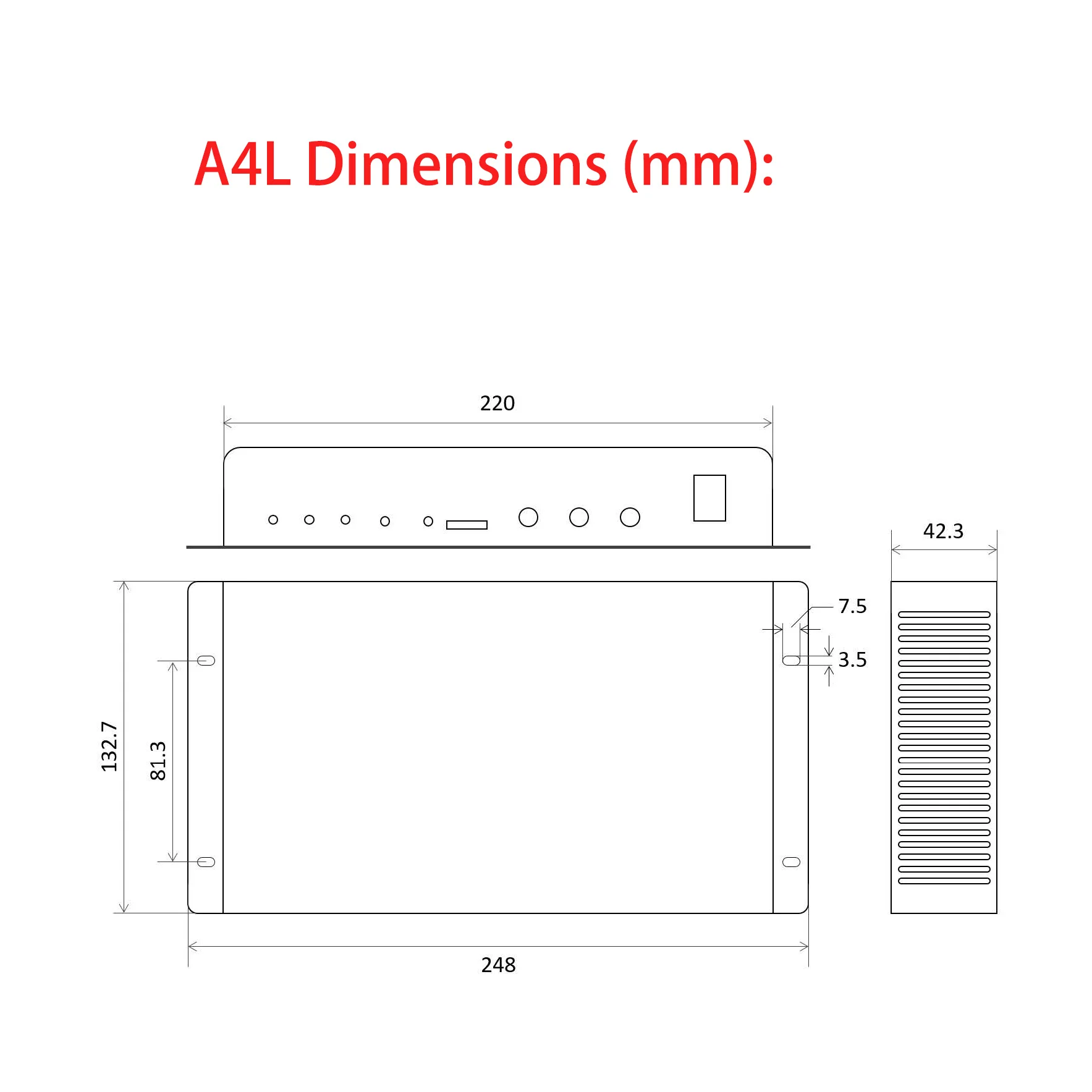

A4L /A5L

Input:

Support 1 Gigabit communication network port for debugging parameters, faster program sending speed;

Support 1 HDMI IN input interface, support automatic zooming of synchronous pictures, and support synchronous and asynchronous picture-in-picture functions;

Support 1 channel USB2.0 (custom OTG/USB mode), 1 channel USB3.0 communication interface, which can be used for inserting programs and expanding capacity;

Supports 2 channels sensor input interface, externally connected to various environmental monitoring sensors.

Output:

Standard 2 Gigabit output network ports, directly cascaded HD-R series receiving card control display;

A4L The maximum control range is 655,360 pixels, the maximum horizontal (discounted) support is 16384 pixels, and the maximum vertical support is 4096 pixels;

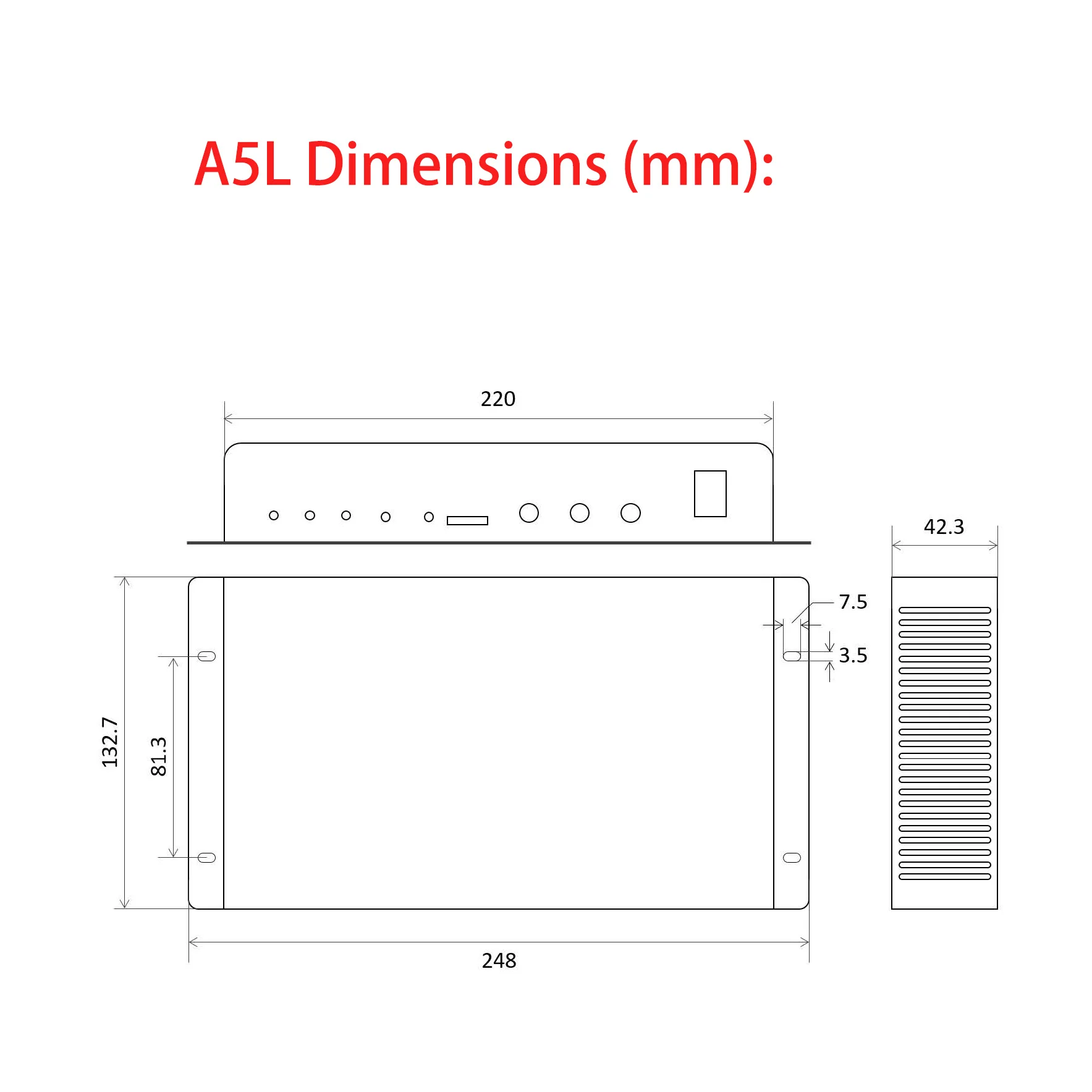

A5L The maximum control range is 1.3 million pixels.

1 channel TRS 3.5mm standard two-channel audio output

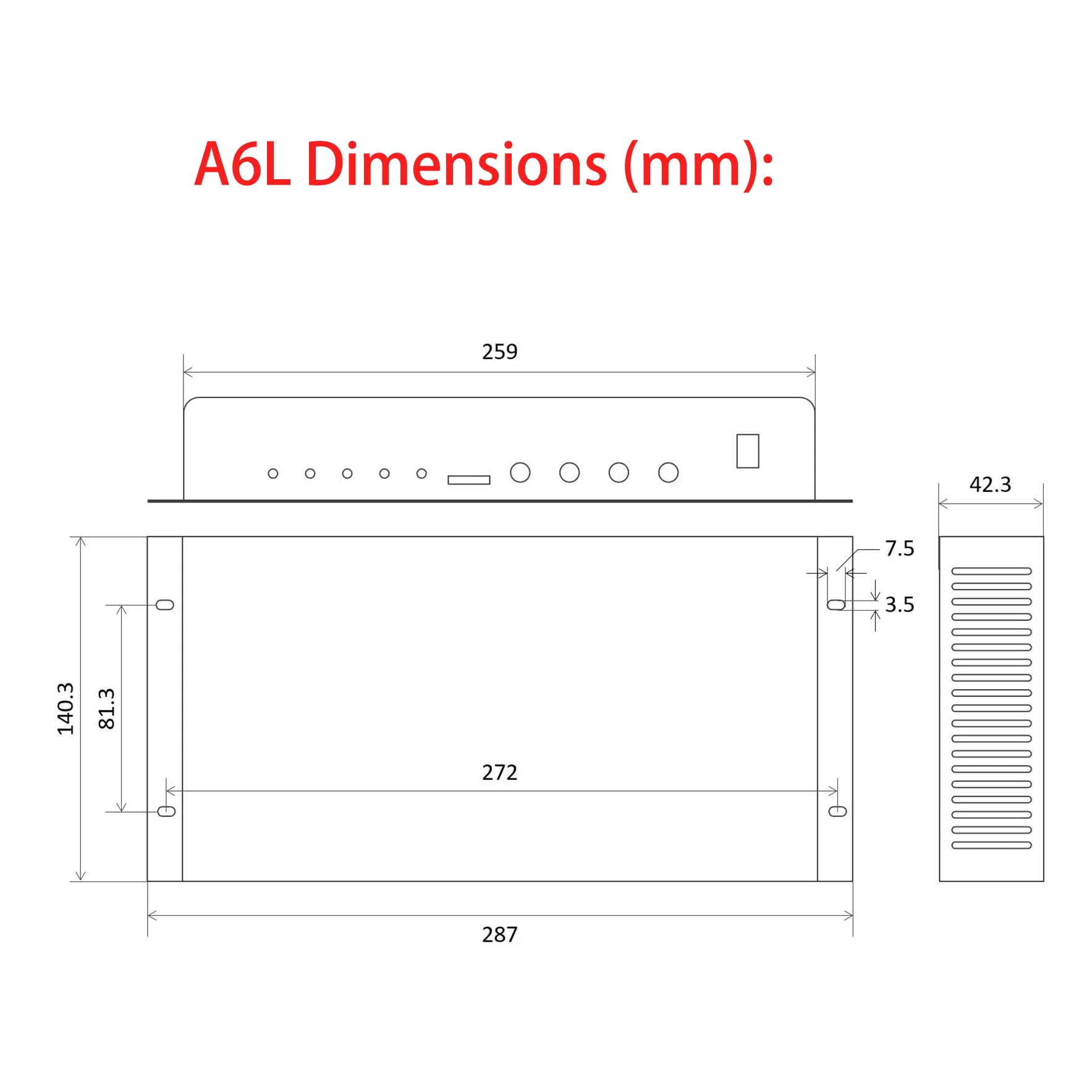

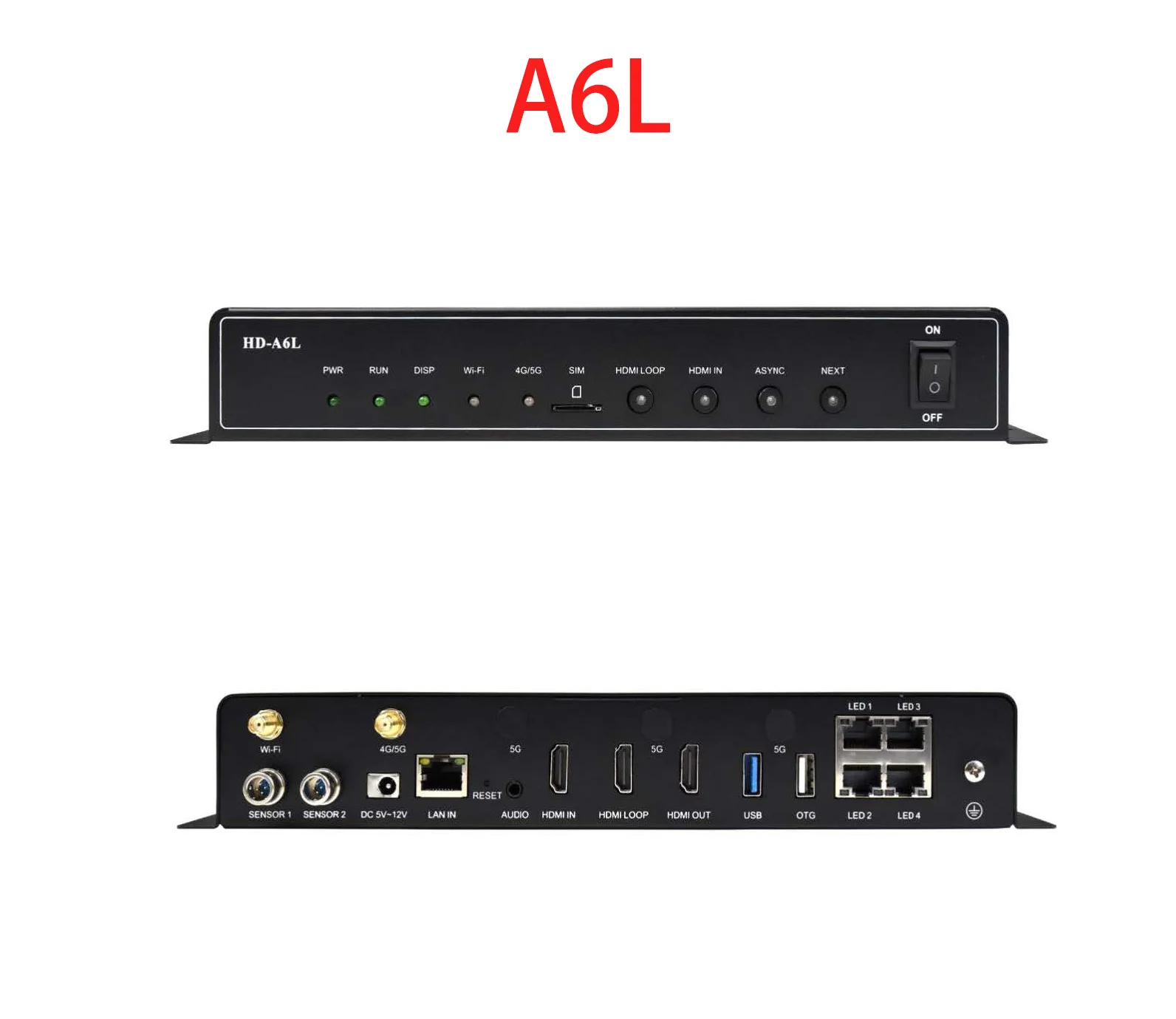

A6L

Input:

Support 1 Gigabit communication network port for debugging parameters, faster program sending speed;

Support 1 HDMI IN input interface, support automatic zooming of synchronous pictures, and support synchronous and asynchronous picture-in-picture functions;

Support 1 channel HDMI LOOP IN input interface, support any resolution synchronous picture, support splicing and cascading;

Support 1 channel USB2.0 (custom OTG/USB mode), 1 channel USB3.0 communication interface, which can be used for inserting programs and expanding capacity;

Supports 2 channels sensor input interface, externally connected to various environmental monitoring sensors.

Output:

Standard 4 Gigabit output network ports, directly cascaded HD-R series receiving card control display;

The maximum control range is 2.6 million pixels, the maximum horizontal (discounted) support is 16384 pixels, and the maximum vertical support is 4096 pixels;

1 channel TRS 3.5mm standard two-channel audio output;

1 channel HDMI signal output, which can be used for data source or screen monitoring of HDMI input interface.

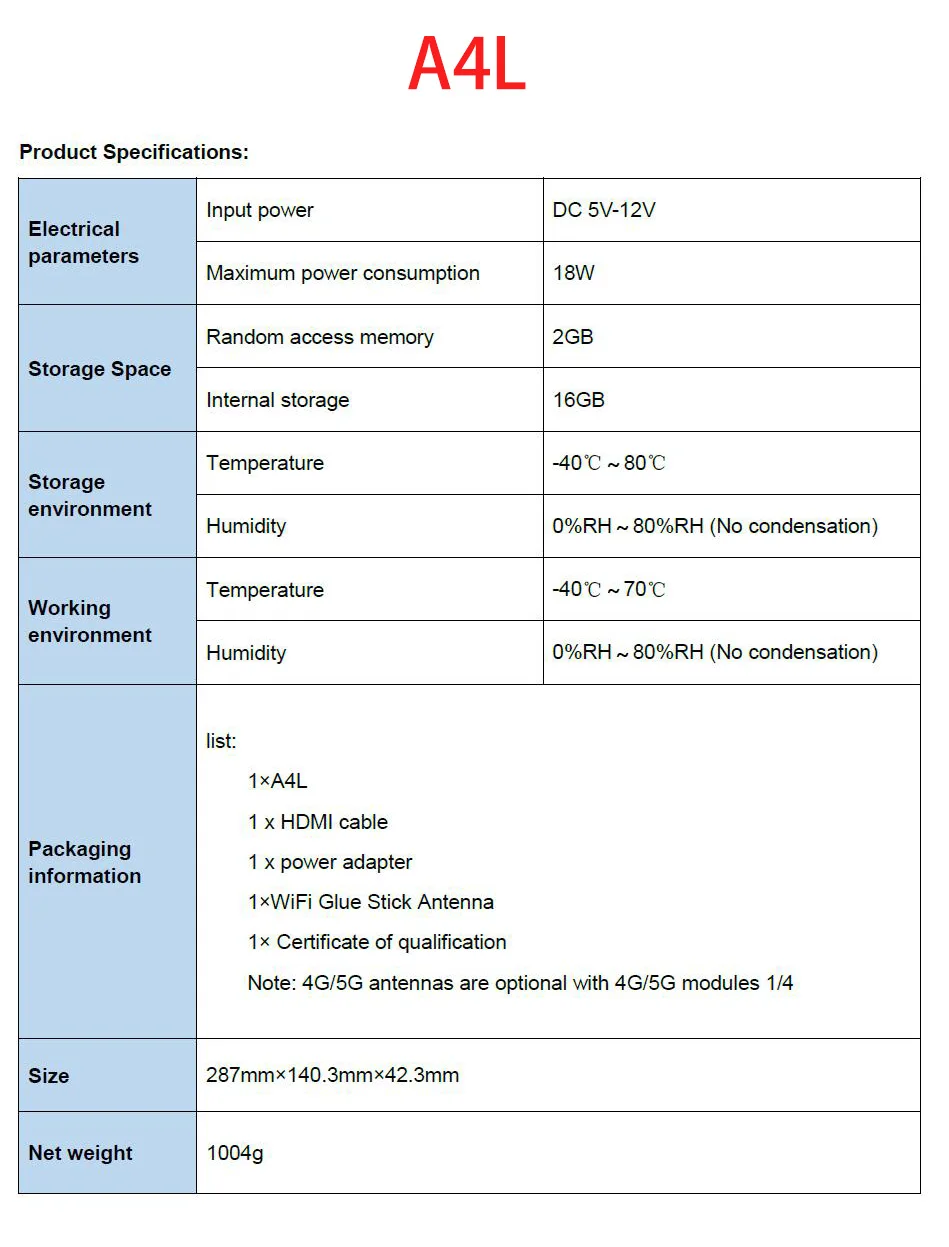

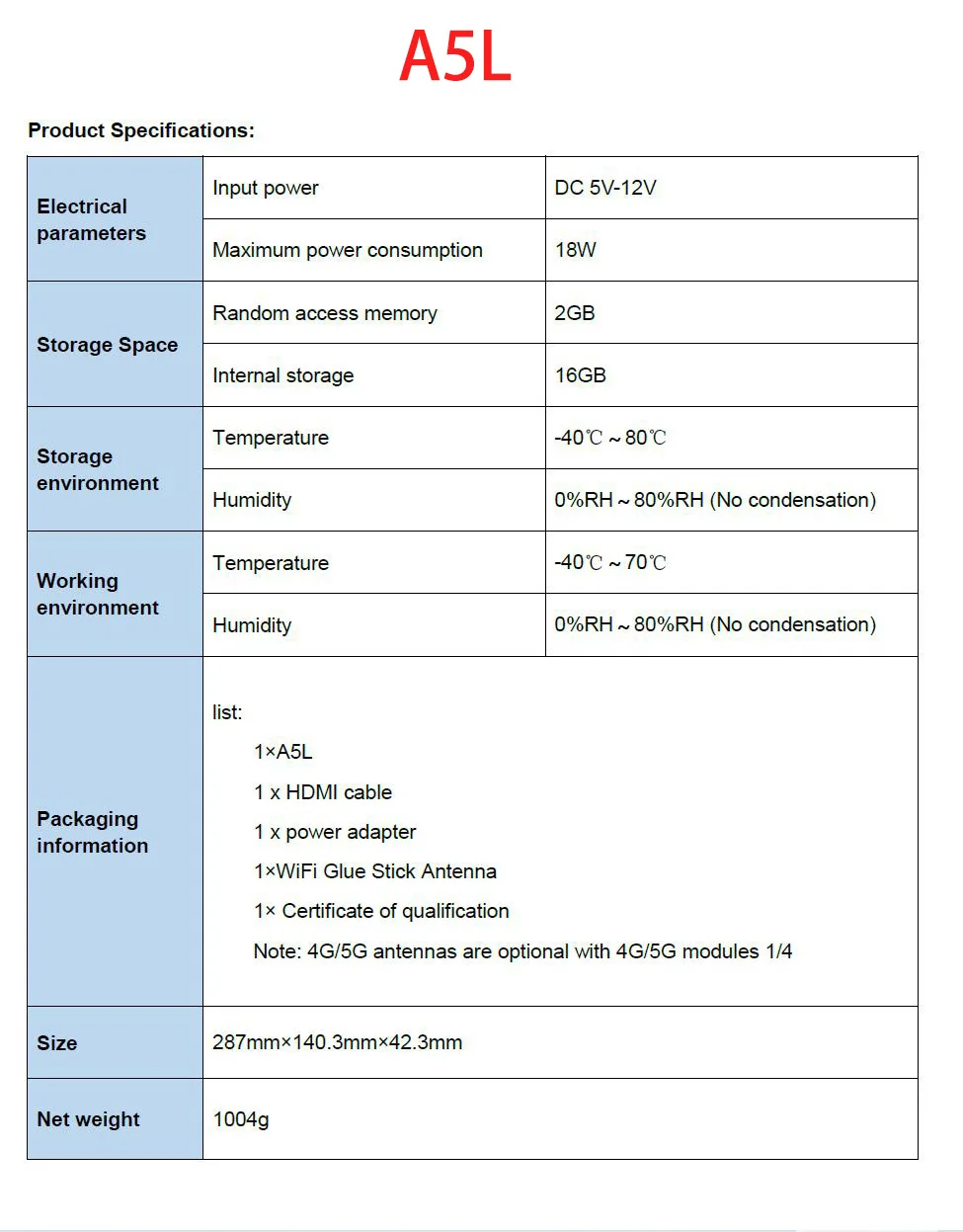

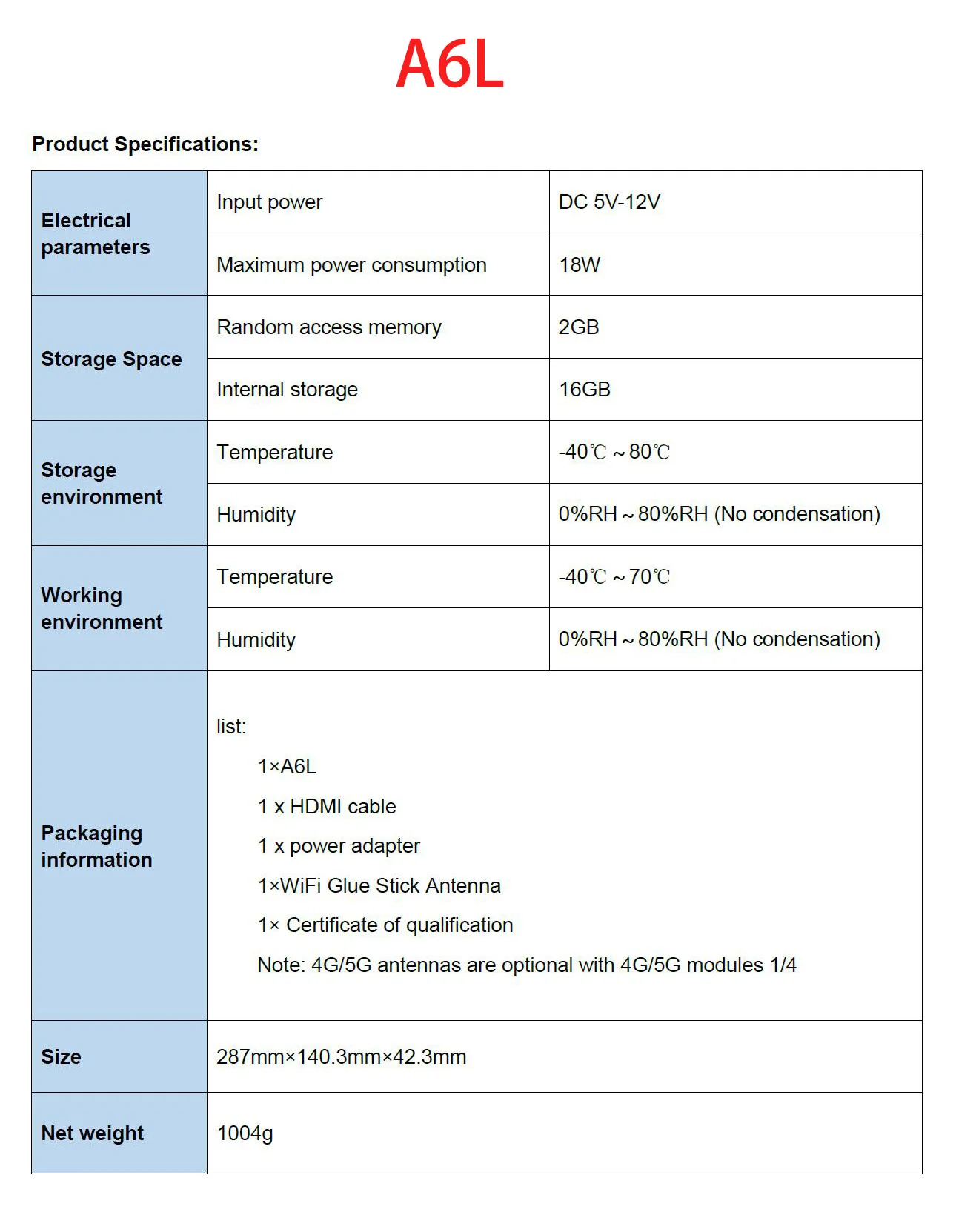

Specification

1. Single node control,

support Wi Fi, network port direct connection, USB interface
for communication.

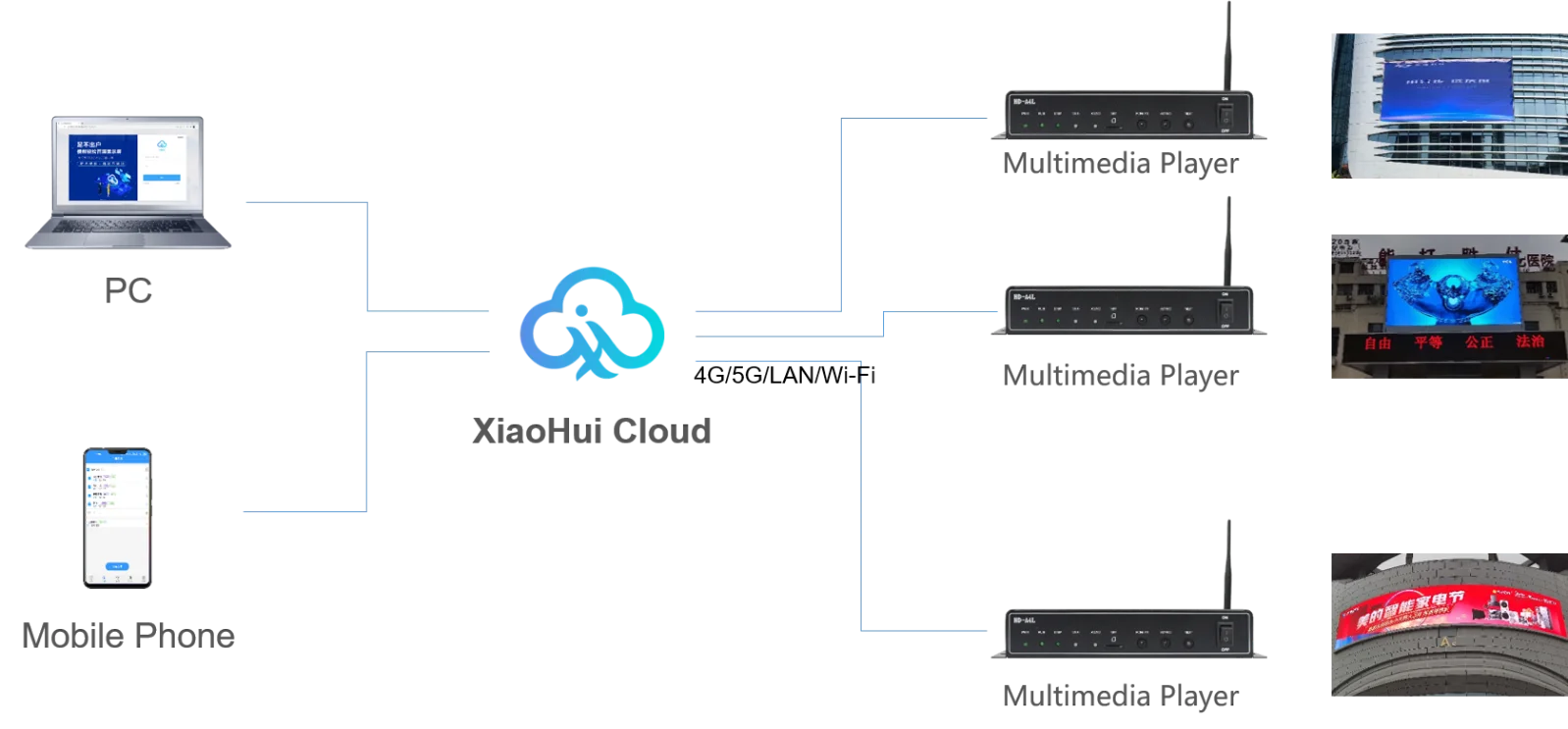

2. Cluster control,

support Internet remote control.

3. Synchronous control, through

HDMI signal input, synchronous playback.
