NEXTION Basic LCD Display Generic 2.4" 2.8" 3.2" 3.5" HMI TFT Intelligent 5V LCD Resistive Touch Display Free Debug Screen

NEXTION Basic LCD Display Generic 2.4" 2.8" 3.2" 3.5" HMI TFT Intelligent 5V LCD Resistive Touch Display Free Debug Screen

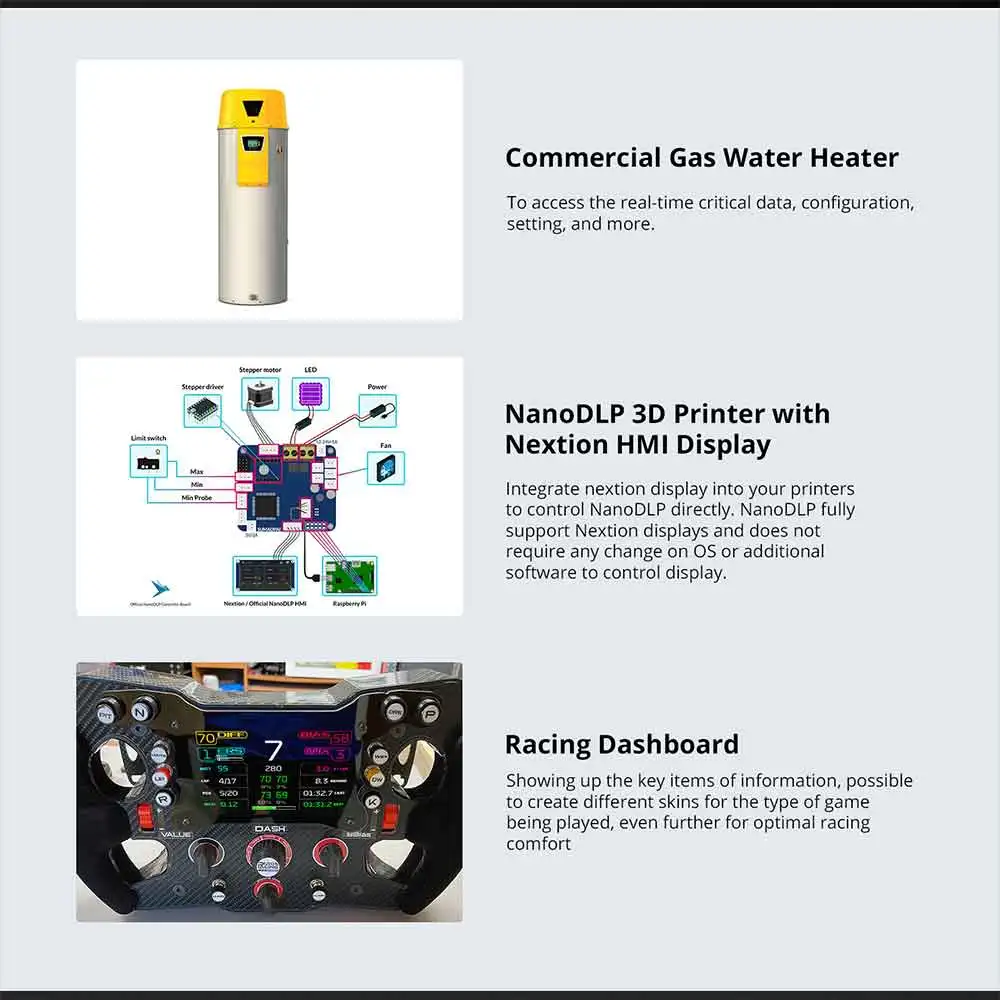

Nextion is a seamless Human Machine Interface (HMI) solution that provides a control and visualization interface between a human and a process, machine, application or appliance. Nextion is mainly applied to Internet of thing (IoT) or consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tube.

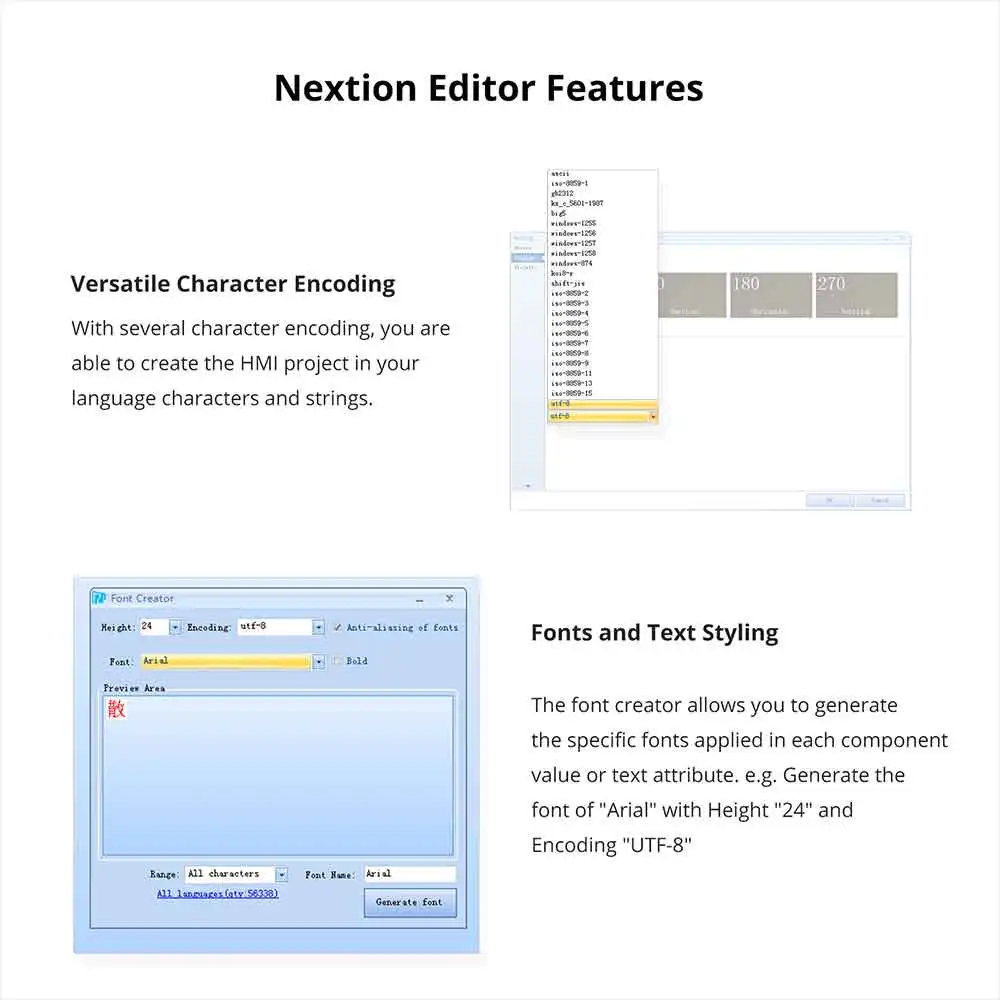

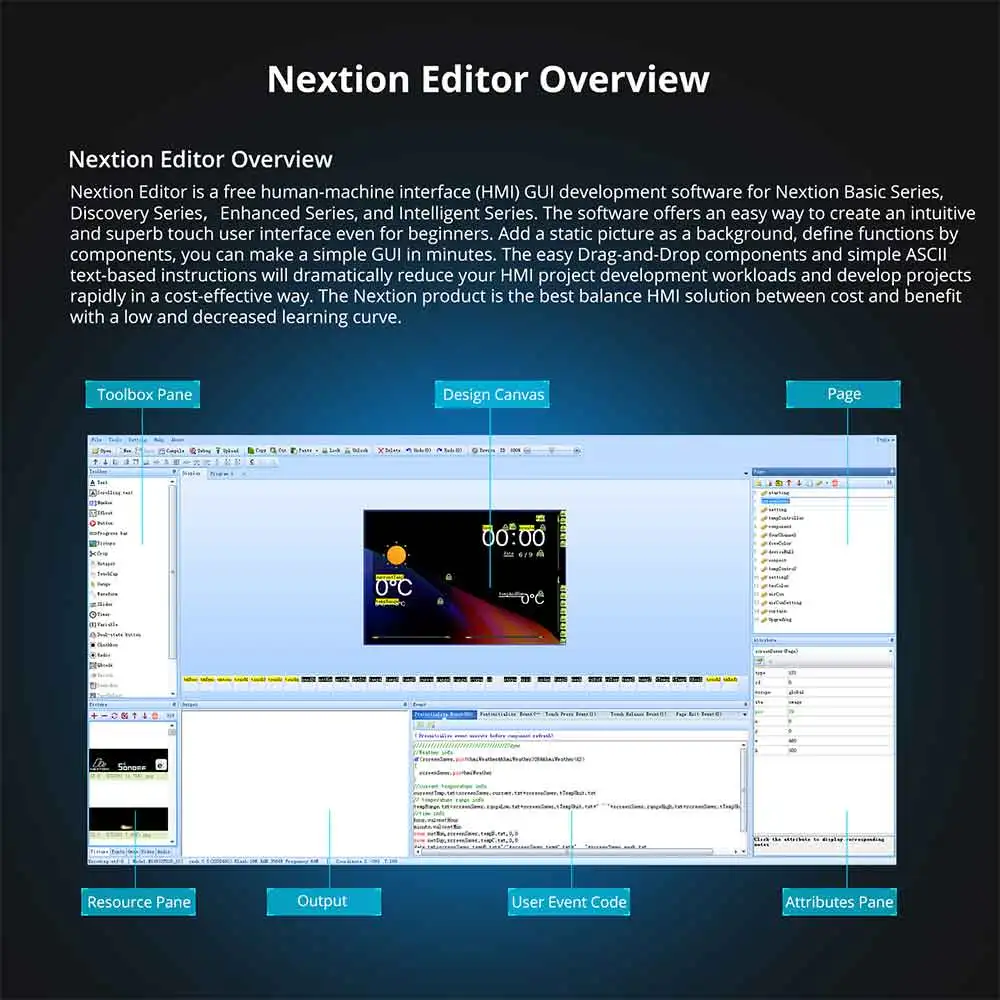

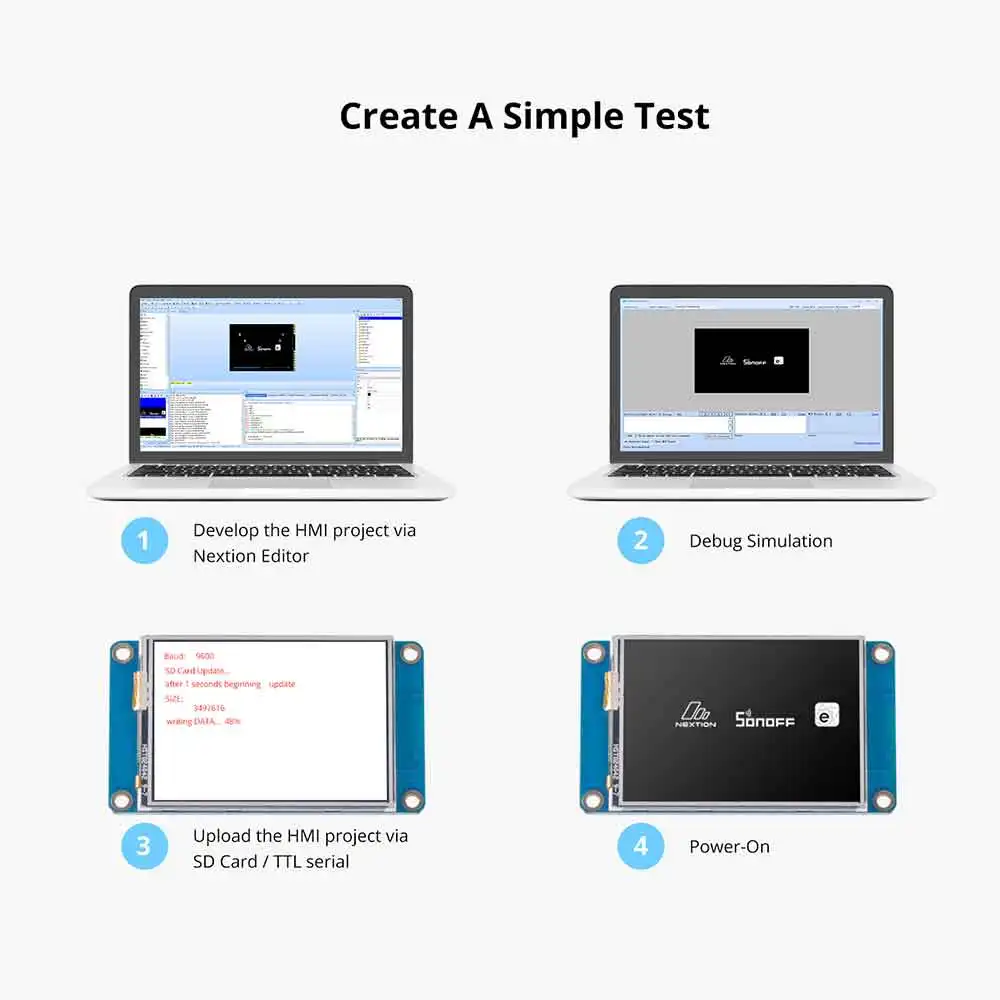

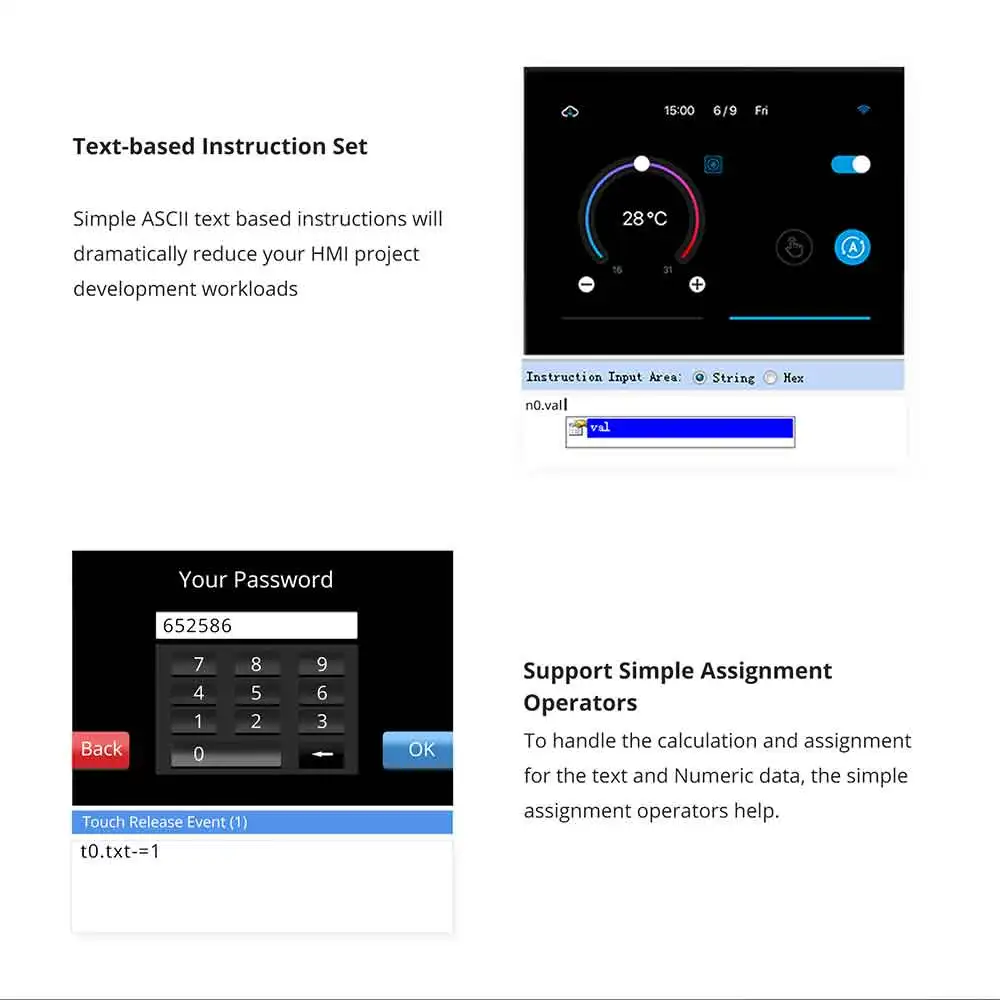

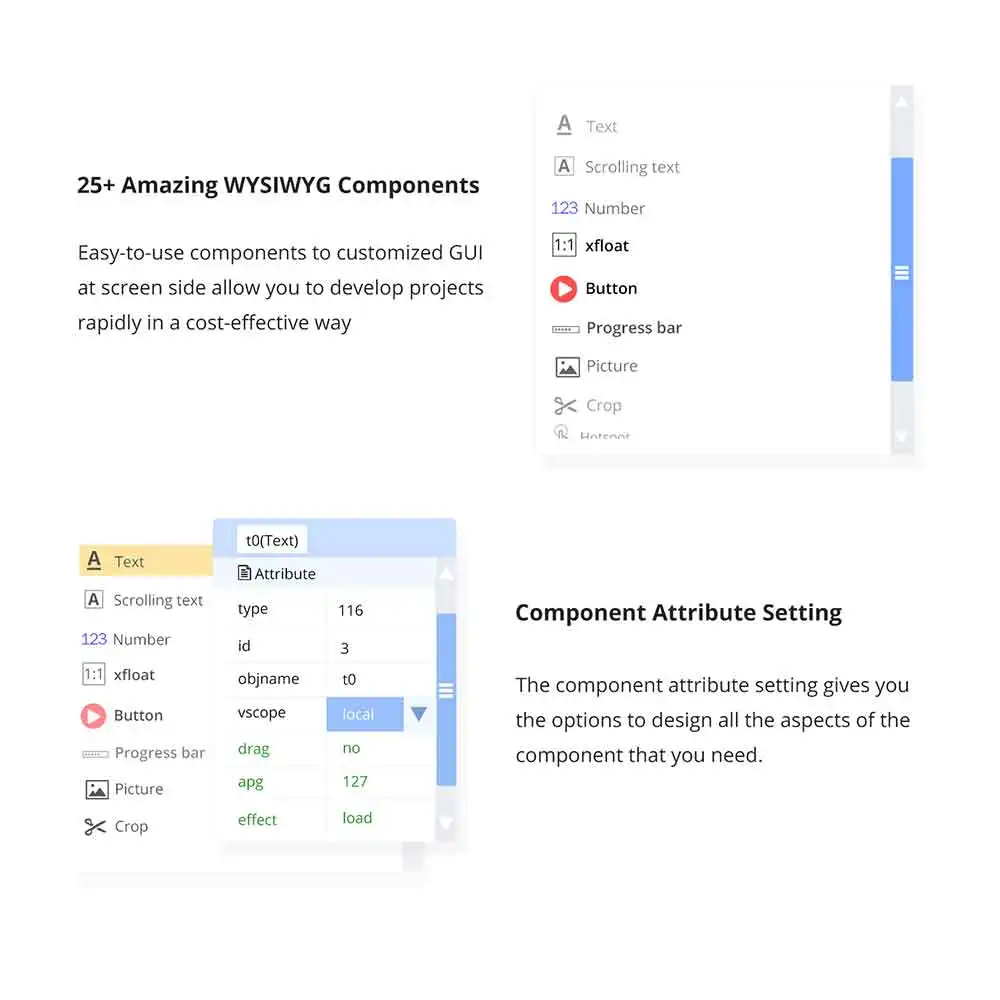

Nextion includes a hardware part (a series of TFT boards) and a software part (the Nextion editor). The Nextion TFT board uses only one serial port to communicate. It lets users avoid the hassle of wiring. We noticed that most engineers spend much time in application development but get unsatisfactory results. As a solution to this situation, Nextion editor has mass components such as button, text, progress bar, slider, instrument panel etc. to enrich the interface design. Furthermore, the drag-and-drop function ensures that users spend less time in programming, which will reduce 99% of their development workloads. With the help of this WYSIWYG editor, designing a GUI is a piece of cake.

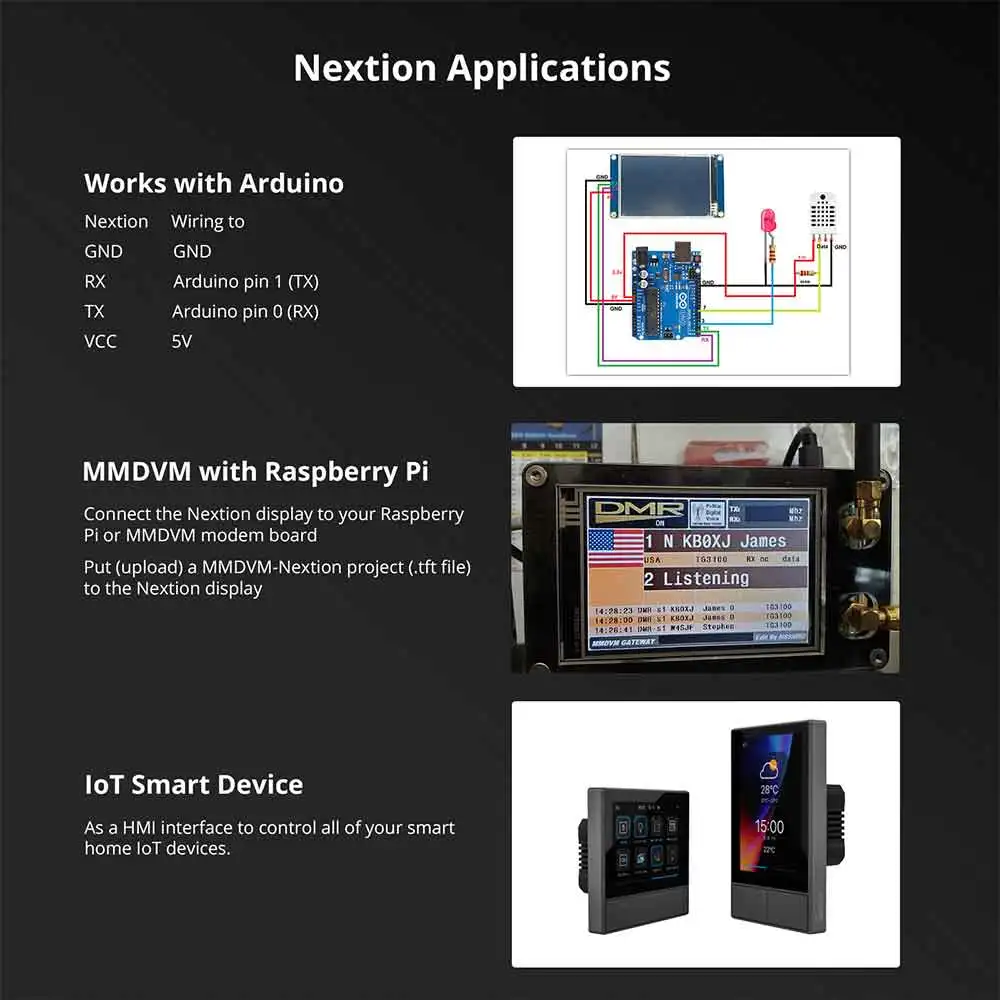

It's easy to adapt Nextion family HMI to existing projects. Users just need to provide it a UART.

NOTE: There is a protective film over the screen. If you receive the product and find there are scratches on the screen, don't worry. It's the protective film, not the screen itself.

NOTE:

Since we Optimized equipment EMC, the board may not be the same as before.

More details, please check this link: https://cdn.nextion.tech/wp-content/uploads/2020/08/NX4832K035-EMC-Certificate-Report.pdf

Note: there's a small power supply test board and a wire for you to test if the electricity supply is enough or not. Please see below image on how to use it.

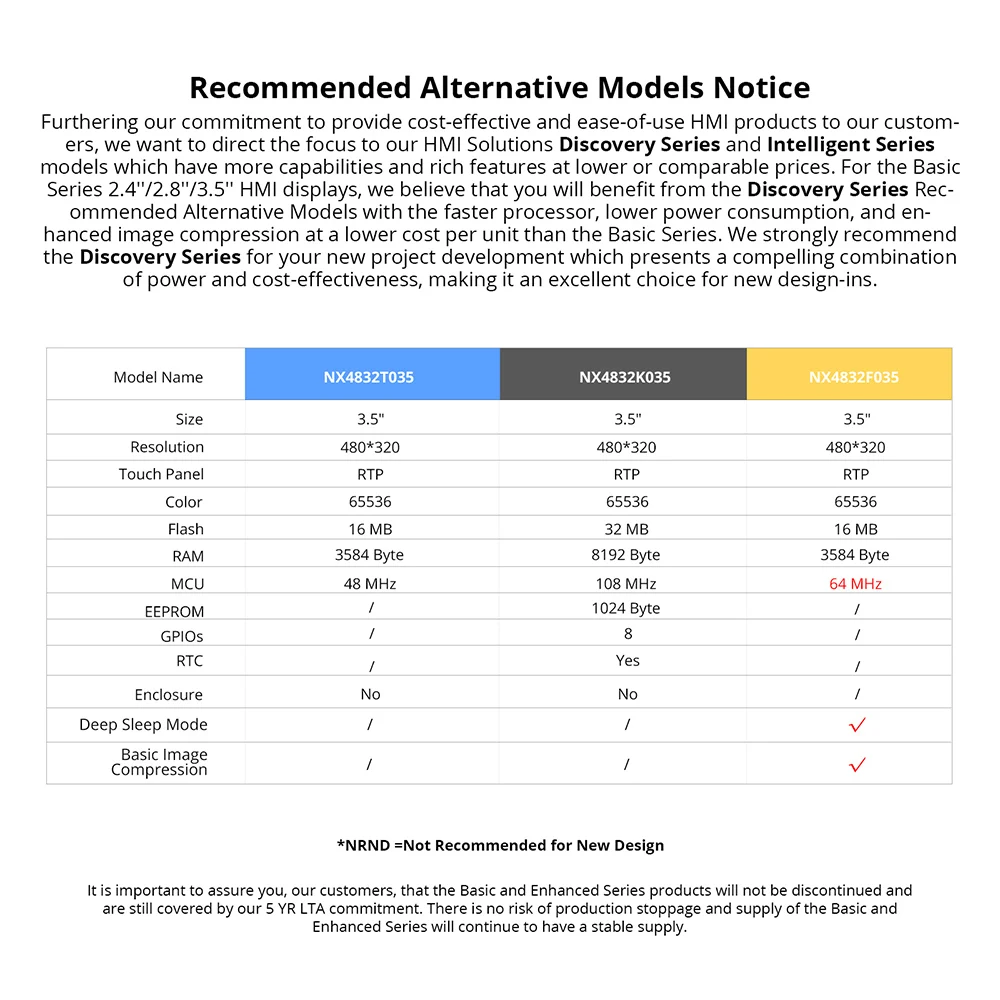

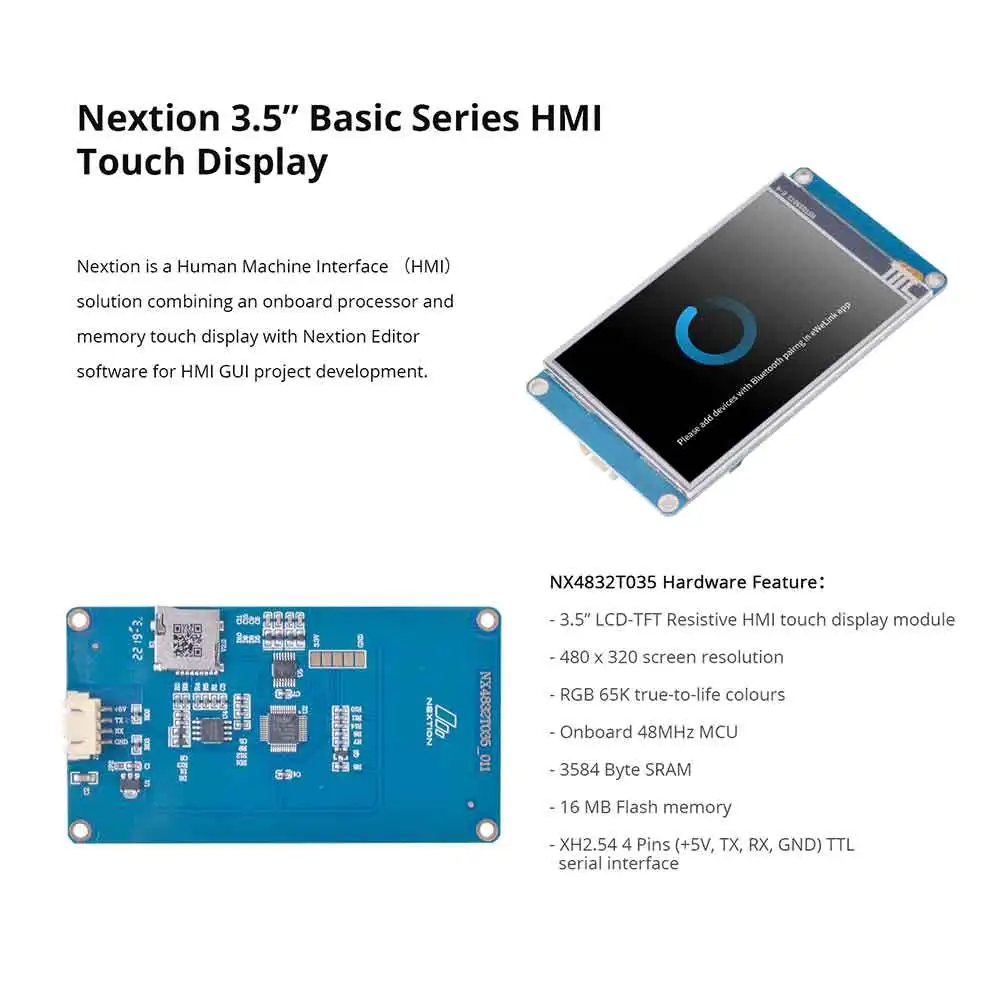

Features for Nextion NX4832T035

--480 x 320 Resolution
--RGB 65K true to life colours
--TFT screen with integrated resistive touch panel
--4 pin TTL serial interface
--16M Flash memory for User Application Code and Data
--On board micro-SD card slot for firmware upgrade
--Visual Area: 73.44mm(L)×48.96mm(W)
--Adjustable Brightness: 0~180 nit, the interval of adjustment is 1%
--5V500mA DC recommended power supply
--5V145mA power consumption

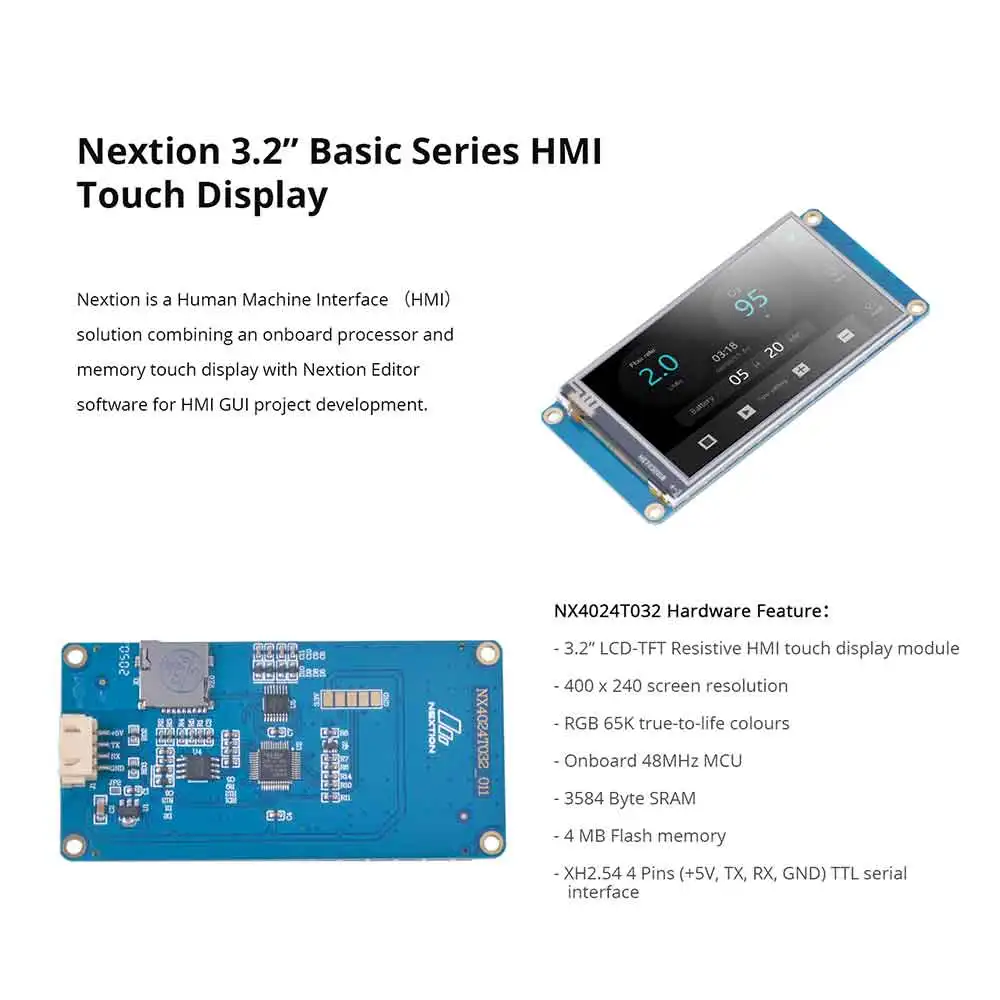

Features for Nextion NX4024T032

--400 x 240 Resolution
--RGB 65K true to life colours
--TFT Screen with integrated 4-wire Resistive Touch Panel
--Easy 4 pin interface to any TTL Serial Host
--4M Flash memory for User Application Code and Data
--On board micro-SD card for firmware upgrade
--Visual Area:69.60mm(L)×41.76mm(W)
--Adjustable Brightness:0~230 nit, the interval of adjustment is 1%
--5V85mA power conusmption

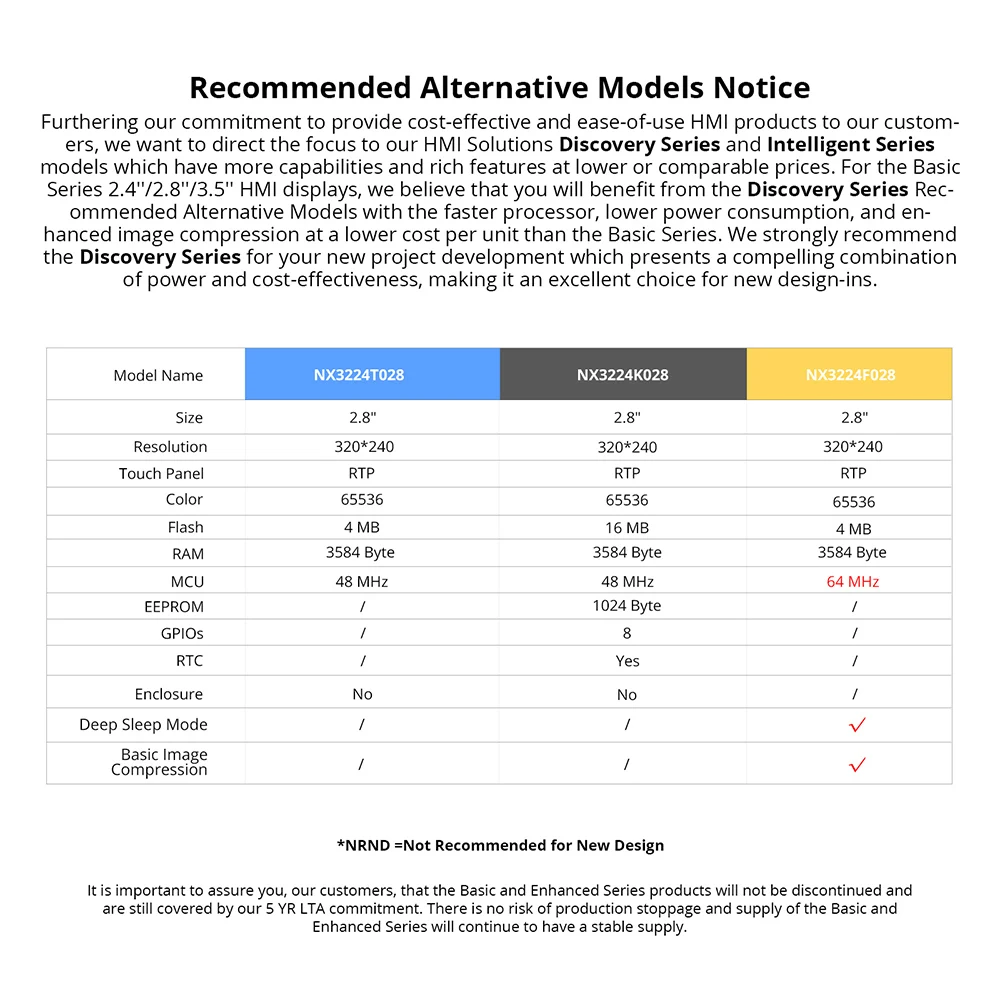

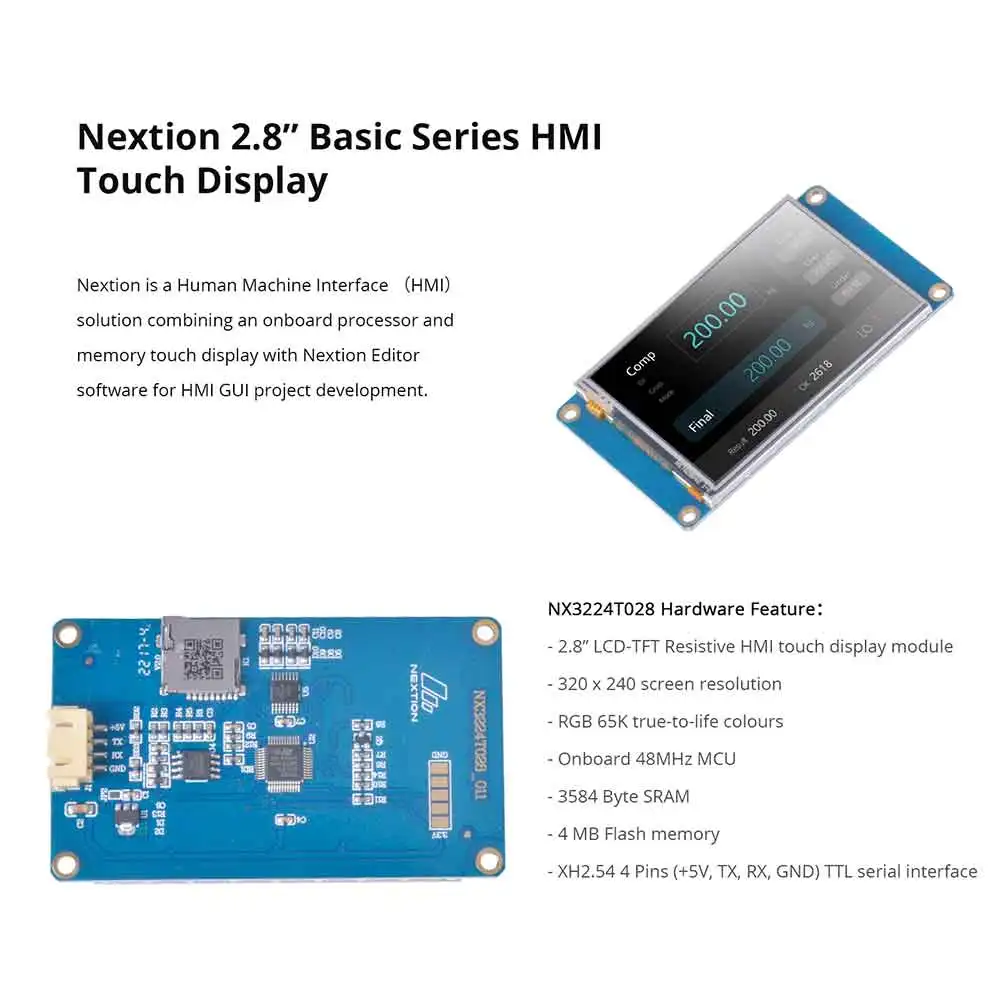

Features for Nextion NX3224T028

--320 x 240 Resolution
--RGB 65K true to life colours
--TFT screen with integrated resistive touch panel
--4 pin TTL serial interface
--4M Flash memory for User Application Code and Data
--On board micro-SD card slot for firmware upgradation
--Visual Area: 57.6mm(L)×43.2mm(W)
--Adjustable Brightness: 0~180 nit, the interval of adjustment is 1%
--5V65mA power consumption
--Compatible with Raspberry Pi A+, B+, Pi 2, Pi 3, Arduino.

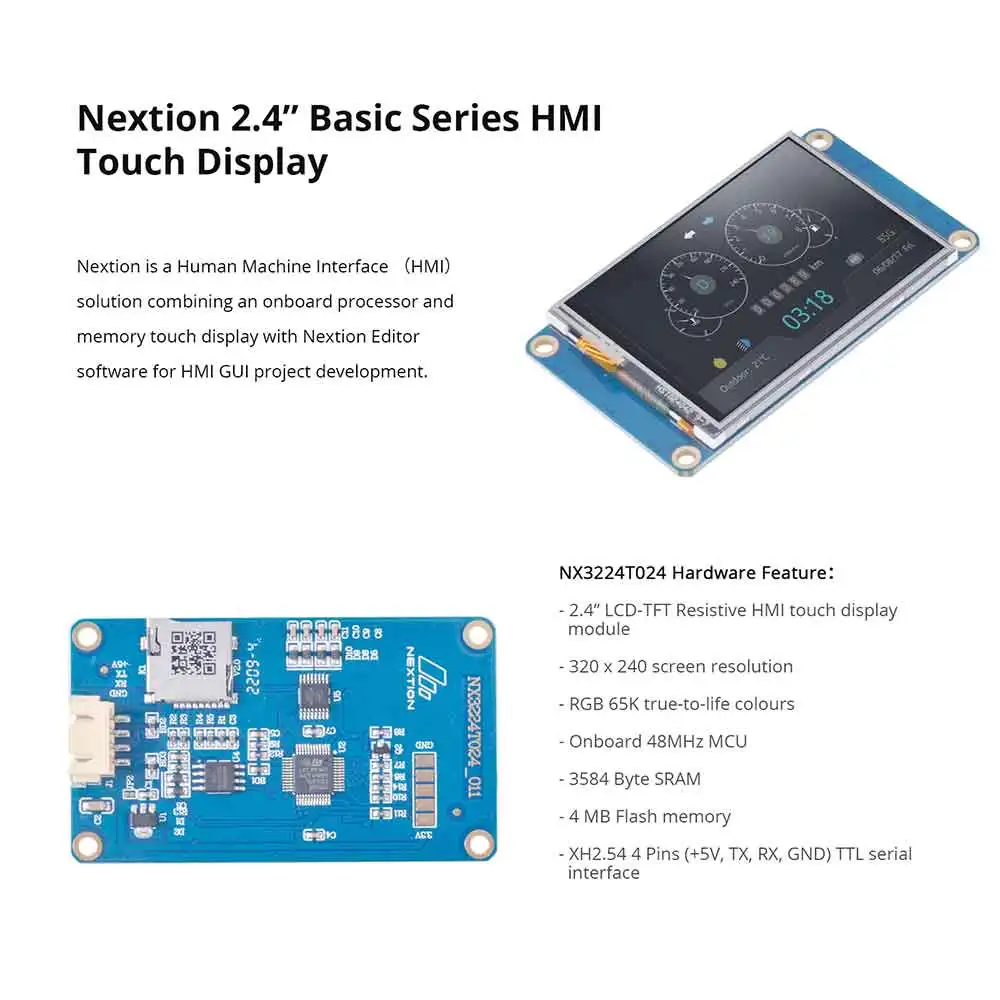

Features for Nextion NX3224T024

--320 x 240 Resolution
--Compatible with Raspberry Pi A+, B+ and Raspberry Pi 2
--RGB 65K true to life colours
--TFT Screen with integrated 4-wire Resistive Touch Panel
--Easy 4 pin interface to any TTL Serial Host
--4M Flash memory for User Application Code and Data
--On board micro-SD card for firmware upgrade
--Visual Area:36.72mm(L)×48.96mm(W)
--Adjustable Brightness:0~180 nit, the interval of adjustment is 1%
--5V90mA power consumption
--Generic using for all Arduino or Raspberry Pi project

Package includes

1× 2.4"/2.8"/3.2"/3.5" Basic Nextion Display

1× power supply test board

1× 4-pin grove cable
