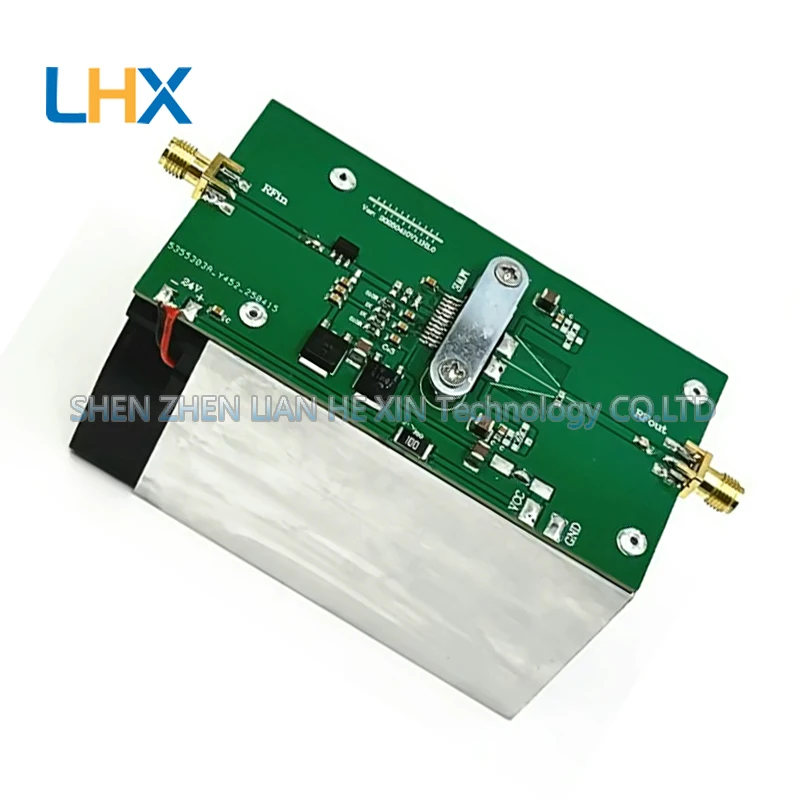

2.4G power amplifier 2.4-2.5GHz output 50W gain 32dB new in stock

RF power amplifier

(2.4-2.5GHz,50W)

1. Technical indicators:

1. Operating frequency: 2.4-2 GHz (2.45GHz)

2. Output power:

                          40W(46.2dBm@24V,RFin=17dBm(50mW))

                          50W(47.5dBm@28V,RFin=17dBm(50mW))

3. Working voltage: 24-28V (24V recommended)

4. Working current: 5.0A (depending on the supply voltage)

5. System impedance: 50 ohms

6. Dimensions: 50 * 60 * 100mm (without connector)

7. Product weight: 305g

8. Connector model: SMA female head (outer screw inner hole)
