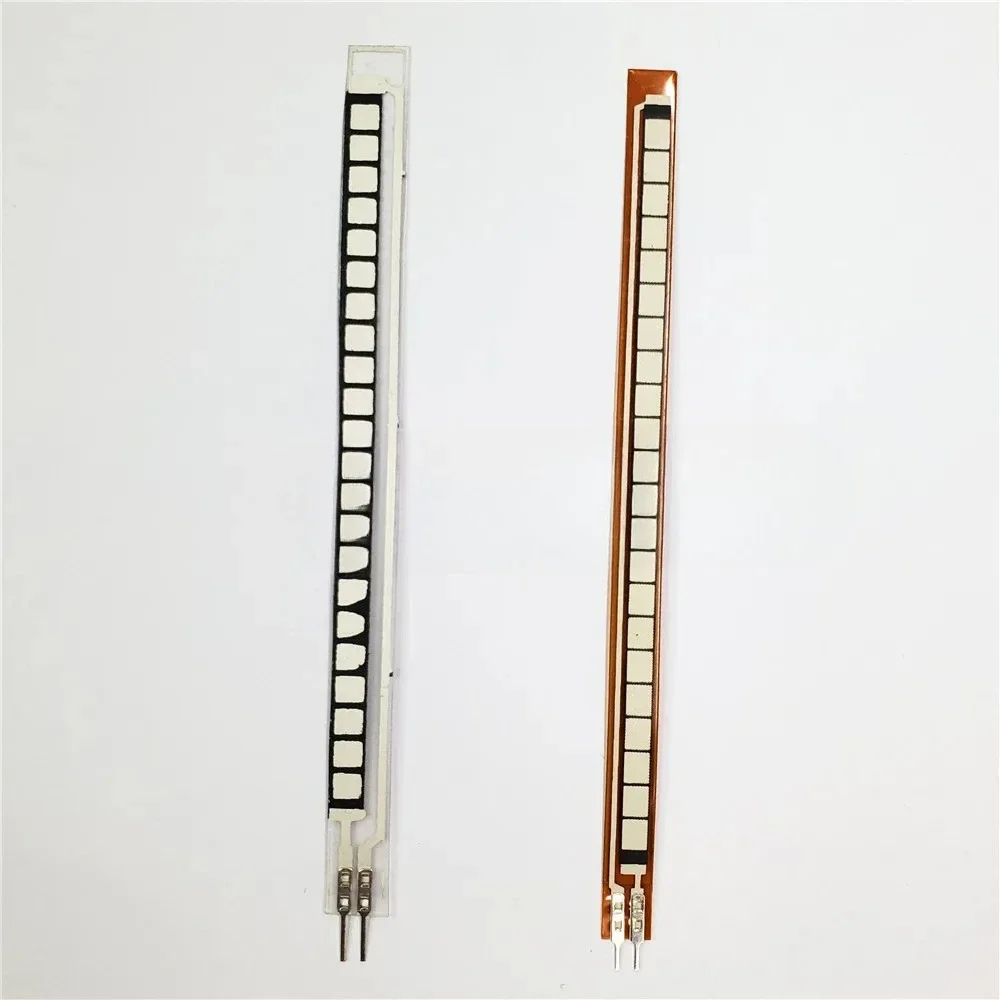

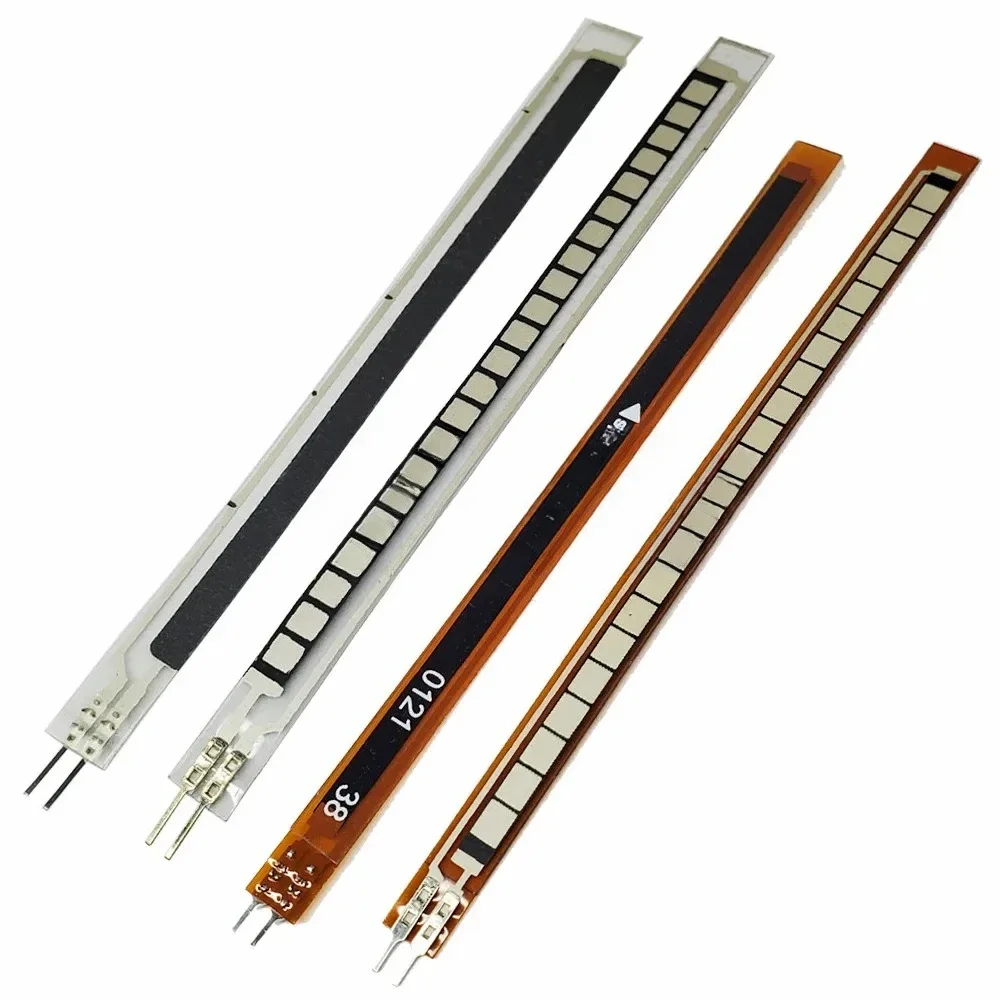

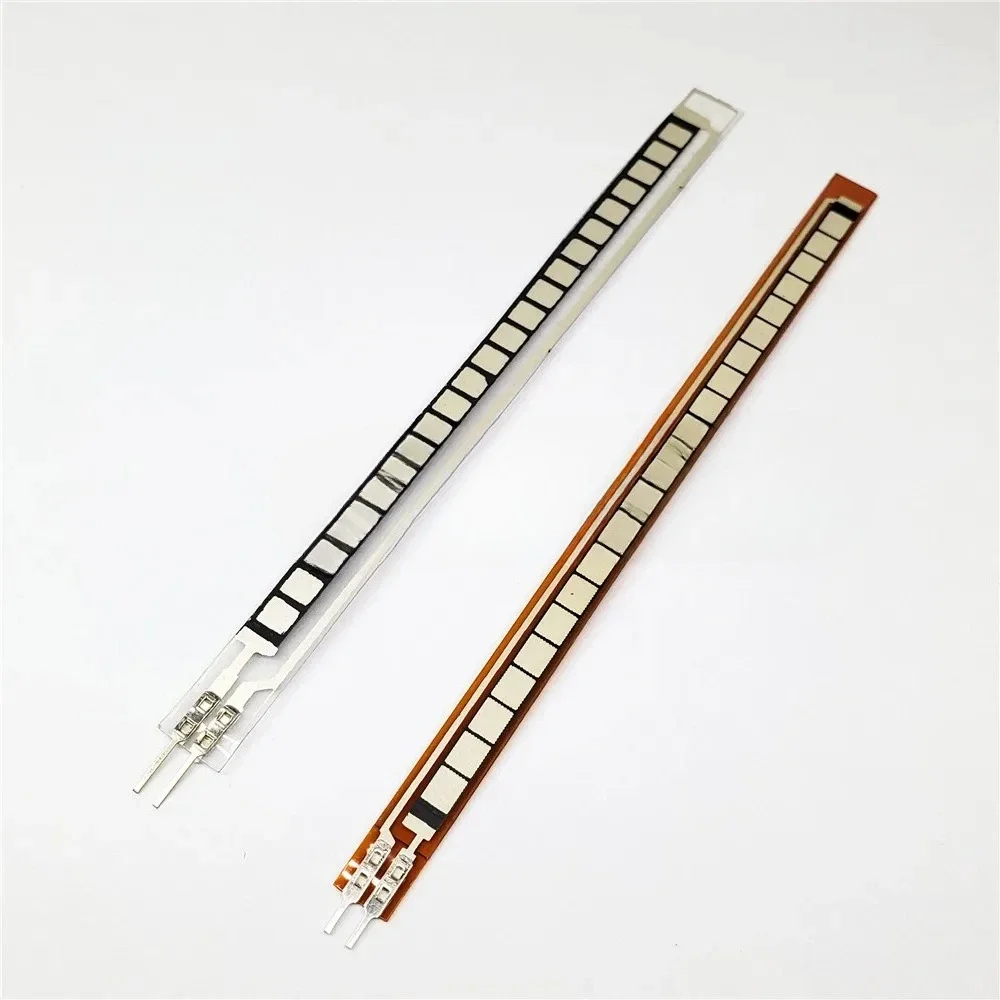

5 PCS 2.2/4.5 inch Bend Flex Sensor for Robotic Hand Power Electronic Glove Sensor Flex 2.2 Flex 4.5

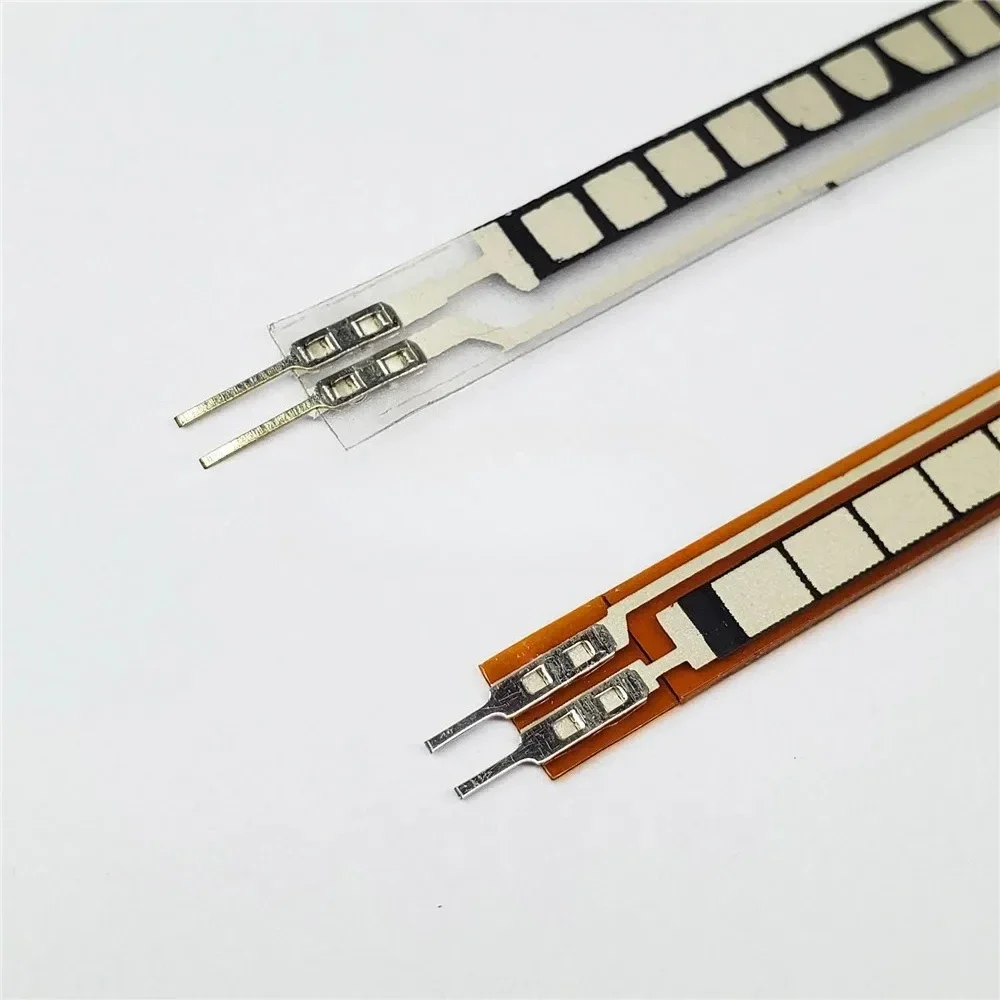

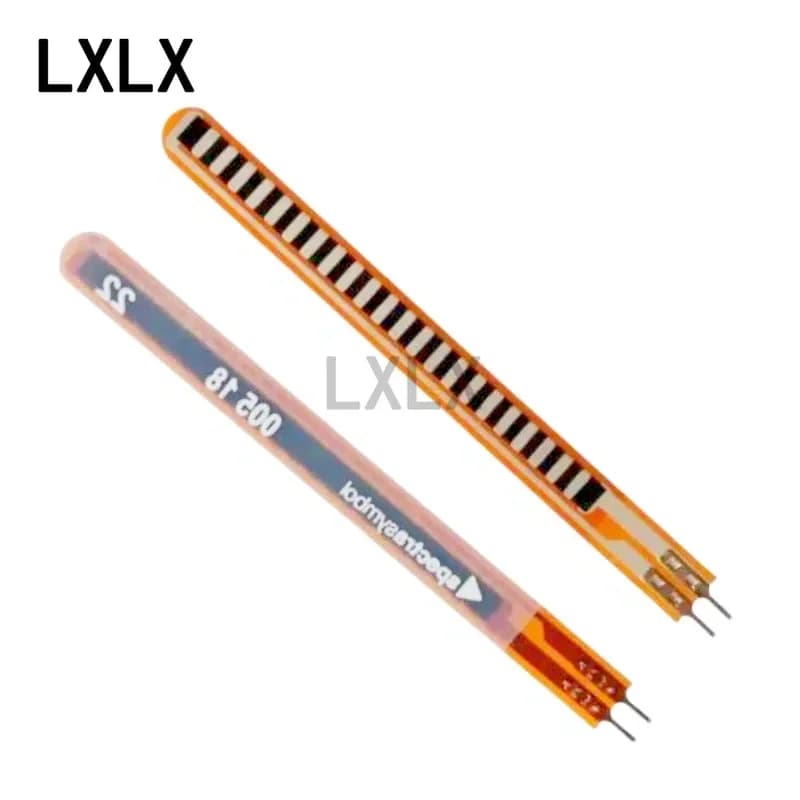

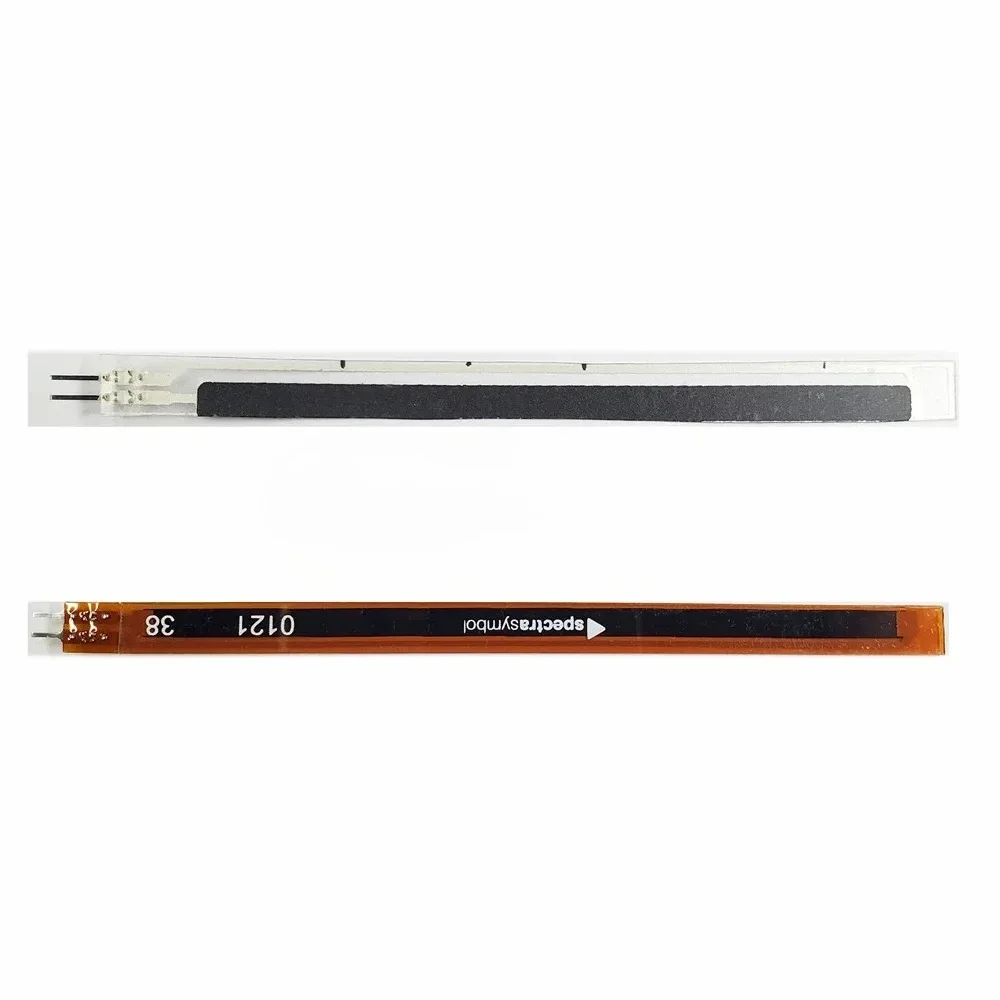

Description: A simple flex sensor 2.2" in length. As the sensor is flexed, the resistance across the sensor increases. Patented technology by Spectra Symbol - they claim these sensors were used in the originalNintendo Power Glove. I love the Nintendo Power Glove.The resistance of the flex sensor changes when the metal pads are on the outside of the bend (text on inside of bend)Connector is 0.1" spaced and bread board friendly. Check datasheet for full specifications.
Note: Please refrain from flexing or straining this sensor at the base. The usable range of the sensor can be flexed without a problem, but care should be taken to minimize flexing outside of the usable range. For best results, securely mount the base and bottom portion and only allow the actual flex sensor to flex.

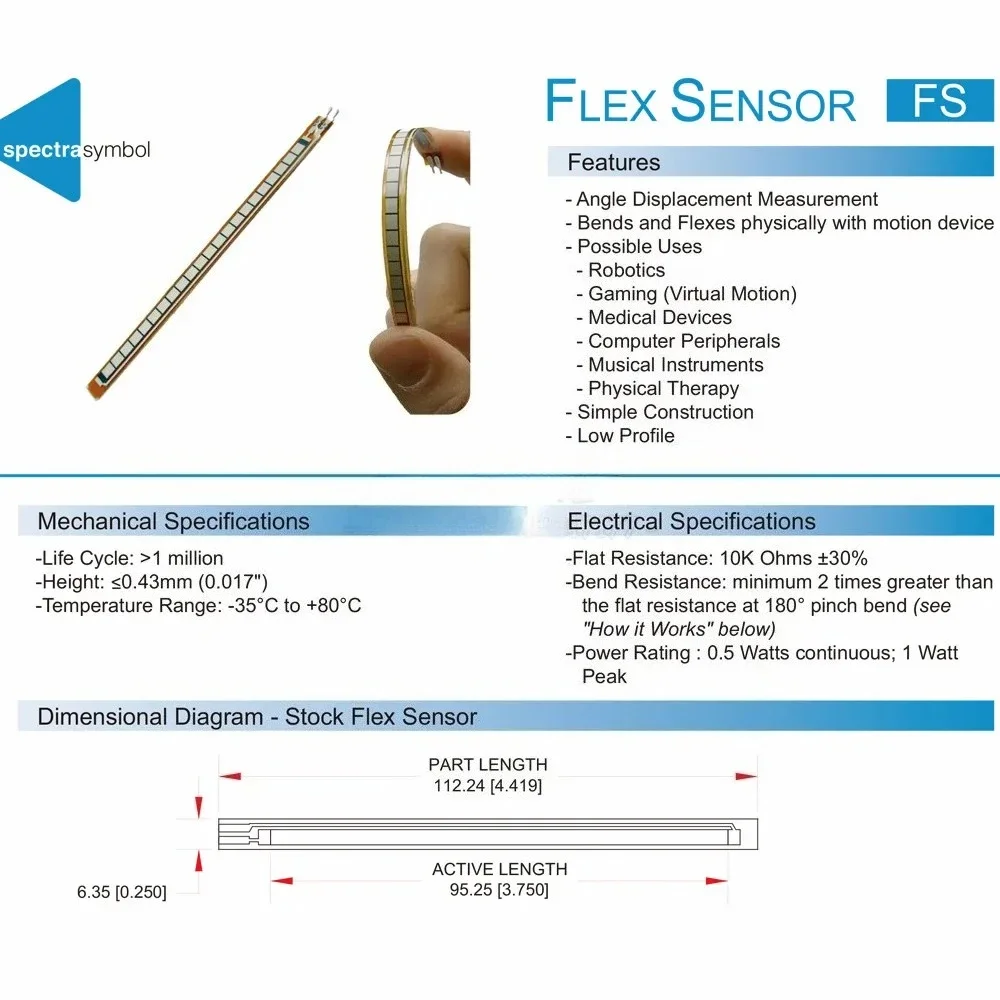

Features：
Angle Displacement Measurement
Bends and Flexes physically with motion device
Possible Uses
Simple Construction
Low Profile
Physical Therapy
Musical Instruments
Computer Peripherals
Medical Devices
Gaming (Virtual Motion)
Robotics

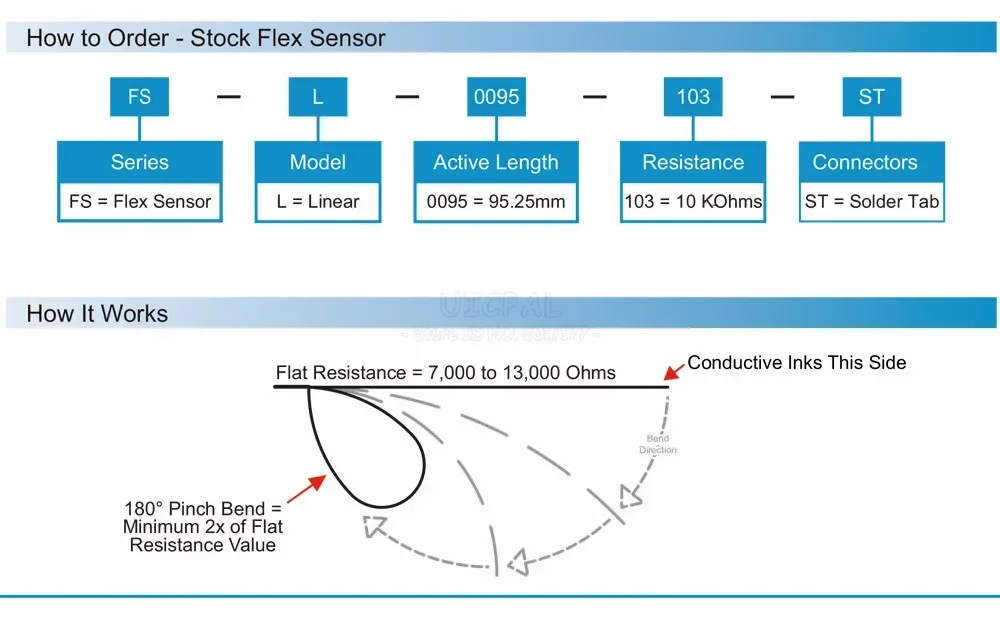

This is a bending sensor, 2.2' long, used in an electronic glove from Nintendo. When the metal of the sensor is bent outward, the resistance of the sensor changes, so that the curvature can be detected.
Non-bending state resistance: ~9000 ohms
90 degree bending resistance: ~14000 ohms
180 degree bending resistance: ~22000 ohms
Curvature-resistance curve relationship
