Guition HMI W5 Series (ESP32)

5.0" 800*480 IPS Display Module
Model No.: JC8048W550
Controller: ESP32-S3-WROOM-1-N16R8
Datasheet Link: http://pan.jczn1688.com/s/dedzl1

S​upport Guition HMI online Development Tools

https://guition.com/

Reminder

If you want to get the details information of this display, please add in your cart, and then view the link description on PC Browers.

JC8048W550 uses ESP32-S3-WROOM-1 Module as the main control, the main control is a dual-core MCU, integrated WI-FI and Bluetooth functions, the main frequency can reach 240MHz, 512KB SRAM, 384KB ROM, 8M PSRAM, Flash size is 16MB, 5.0 inch display resolution is 800*480, NTP (Without Touch Panel), RTP (Resistive Touch Panel), CTP (Capacitive Touch Panel) are optional.

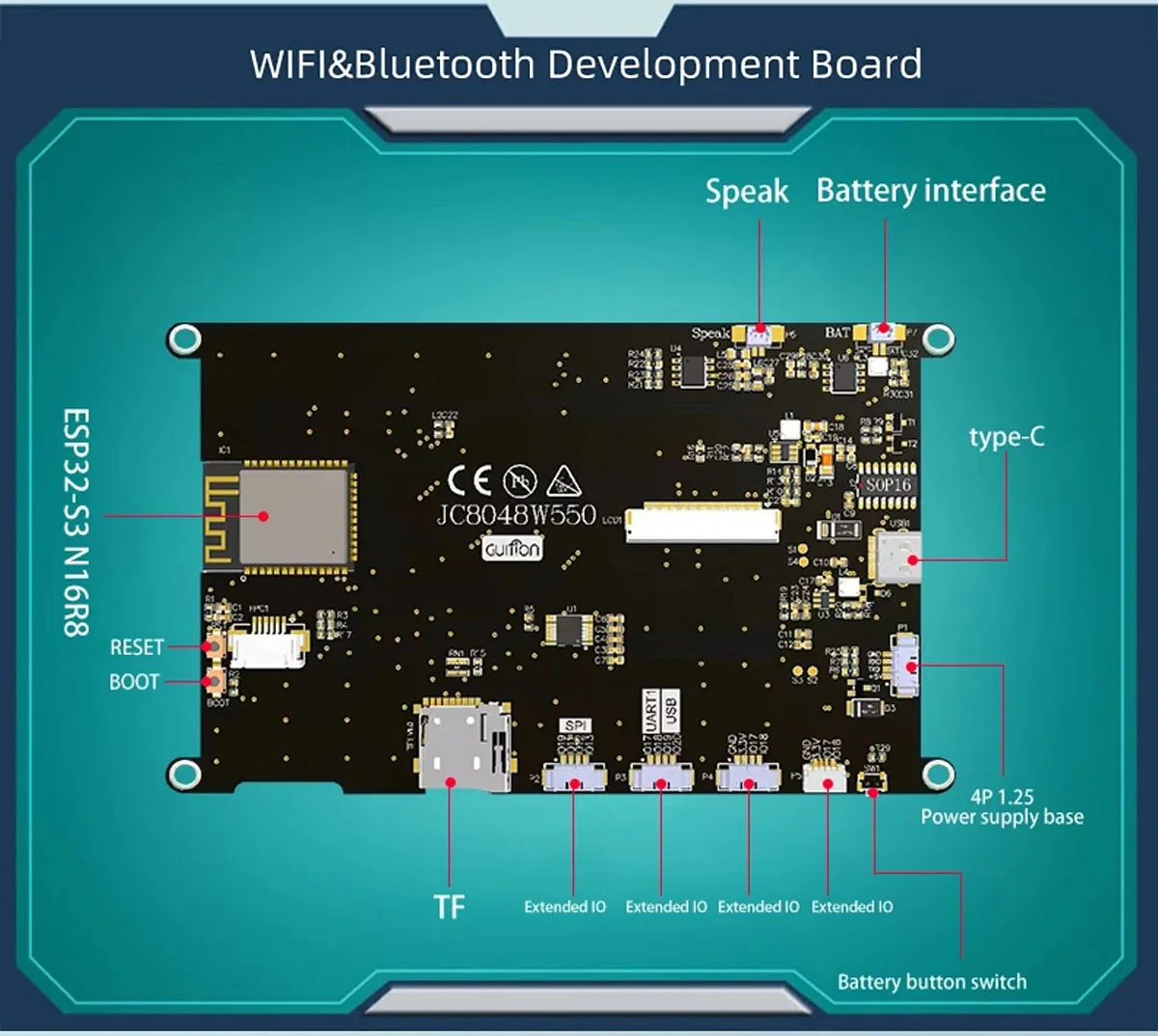

The Module includes LCD display screen, backlight control circuit, touch screen control circuit.

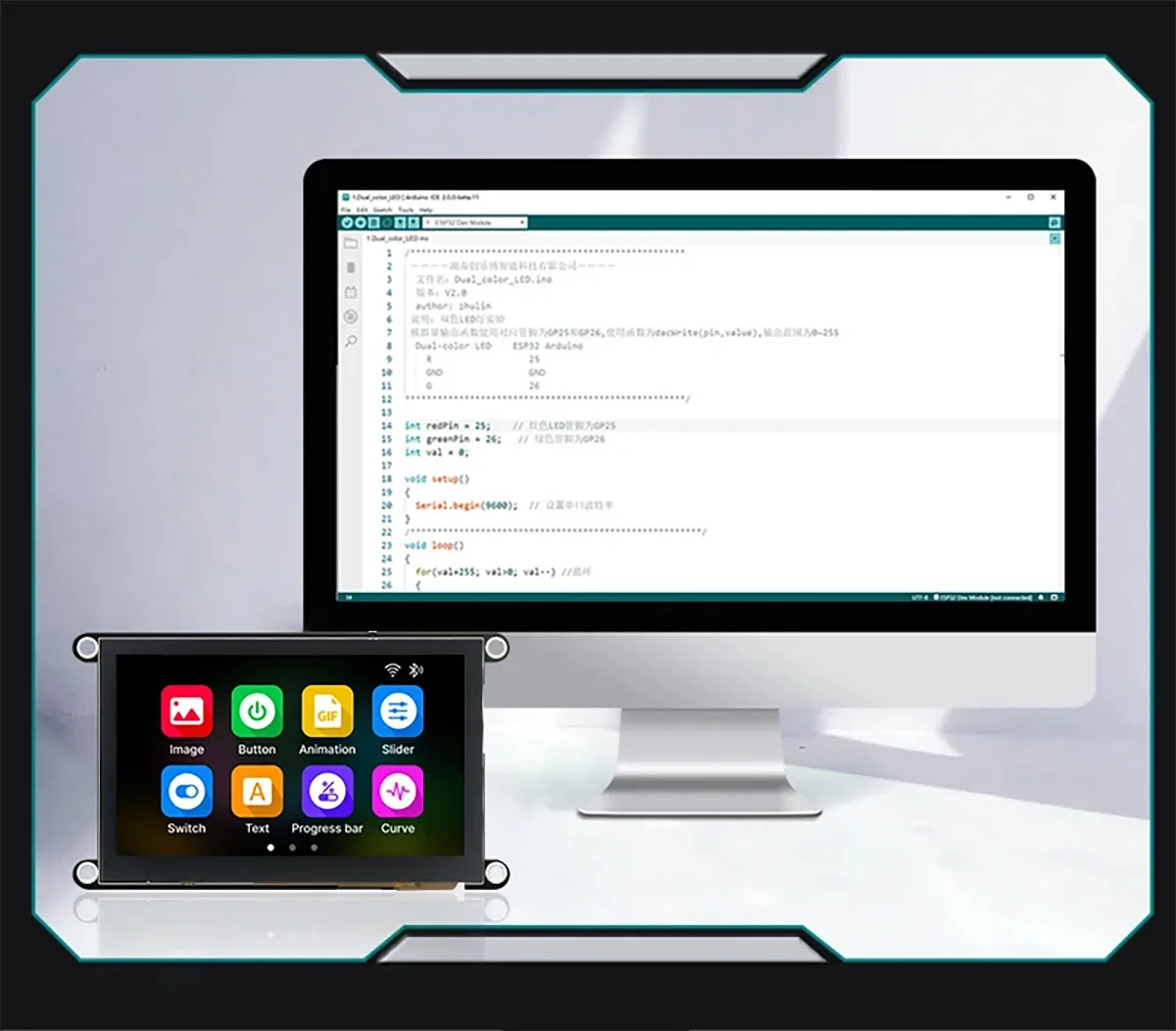

Reserve the TF card interface, Up to 10 IO available, this module supports development in Arduino IDE, ESP IDE, Micropython and GUITION.

Product Parameters

>> Display Color: RGB 65K Color
>> SKU 01: JC8048W550N (Without Touch Panel)
>> SKU 02: JC8048W550R (Resistive Touch Panel)
>> SKU 03: JC8048W550C (Capacitive Touch Panel)
>> Display Size: 5.0 Inch
>> Dispolay Type: TFT
>> Controller: ST7262
>> Resolution: 800*480 (Pixel)
>> Module Size: 134.00*80.00(mm)
>> Screw Hole (R1.60) Distance: 128.00*74.00(mm)
>> Effective Display Area: 108.00* 64.80(mm)
>> View Angle: IPS Full Angle
>> Operating Temperature: -20℃~70℃
>> Storage Temperature: -30℃~80℃
>> Operating Voltage: 5.0V
>> Power Consumption: About 260mA

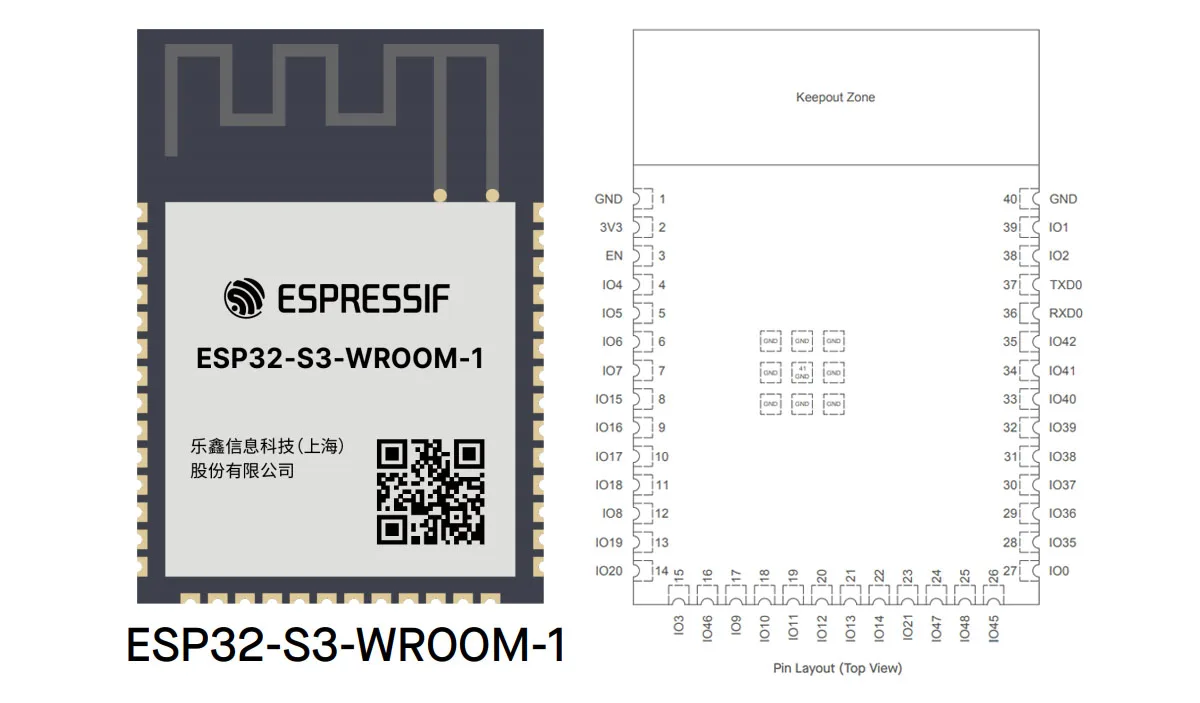

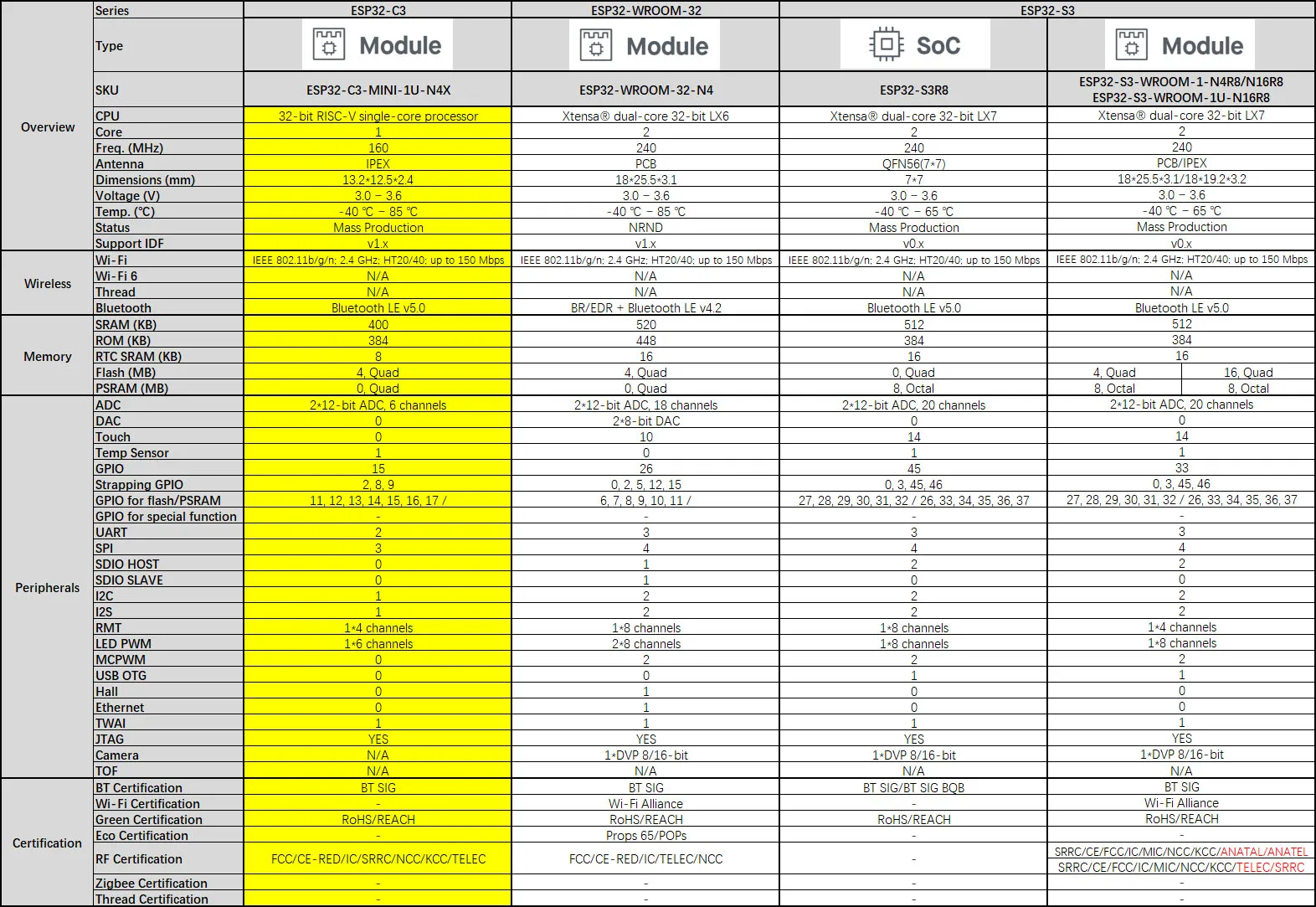

Controller (ESP32-S3-WROOM-1-N16R8)

Functions
