24GHz Radar Speed Sensor Support RS485/TTL, Measurement Range 1-240km/h & 120m Long Distance Detection, ±1KM/H High Accuracy
41.87$
41.87$
Quantity:
1
Availability:
Color
Ships From
Model Number
Card Payments
Crypto Payments
Easy return
Reliable Shipping
Product Intro

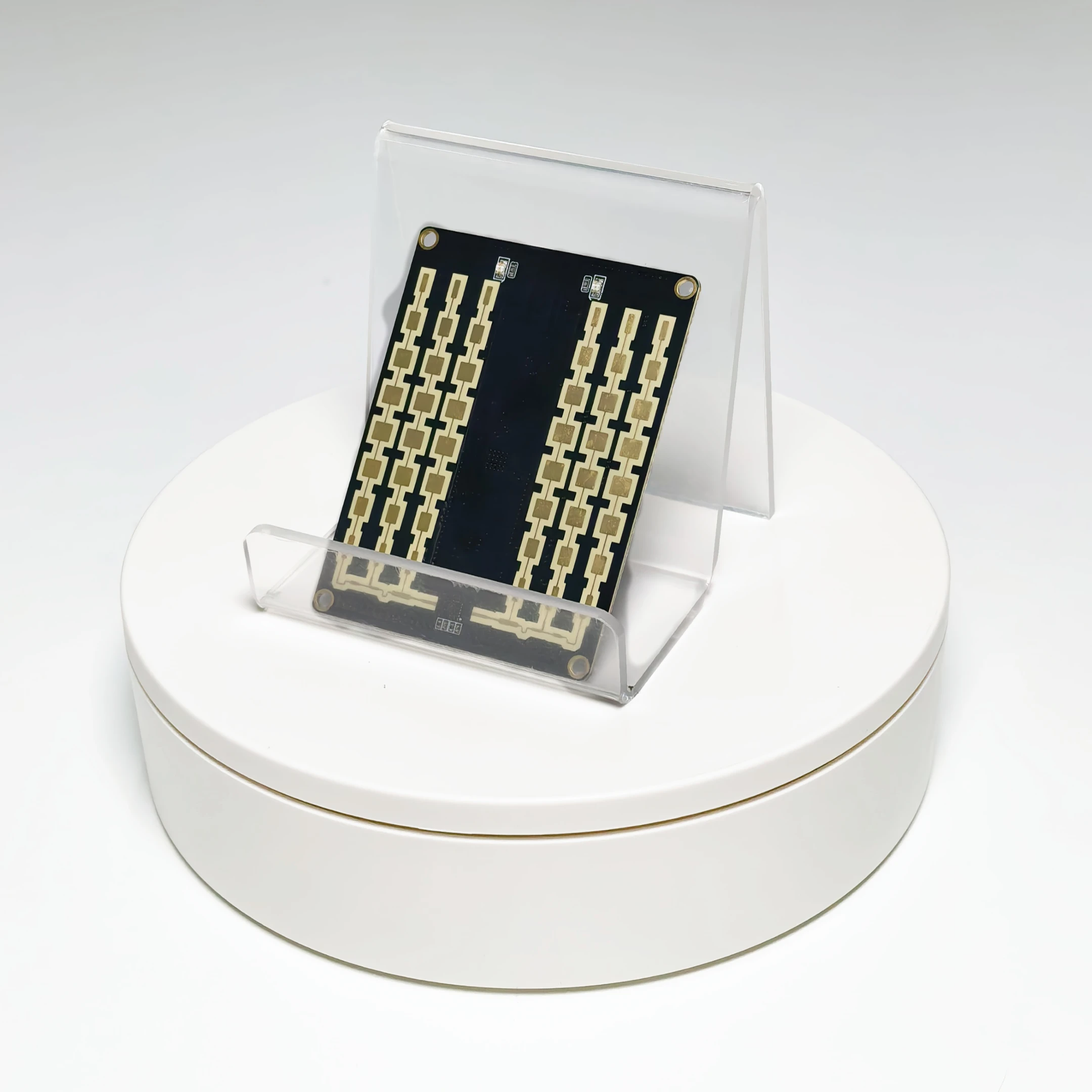

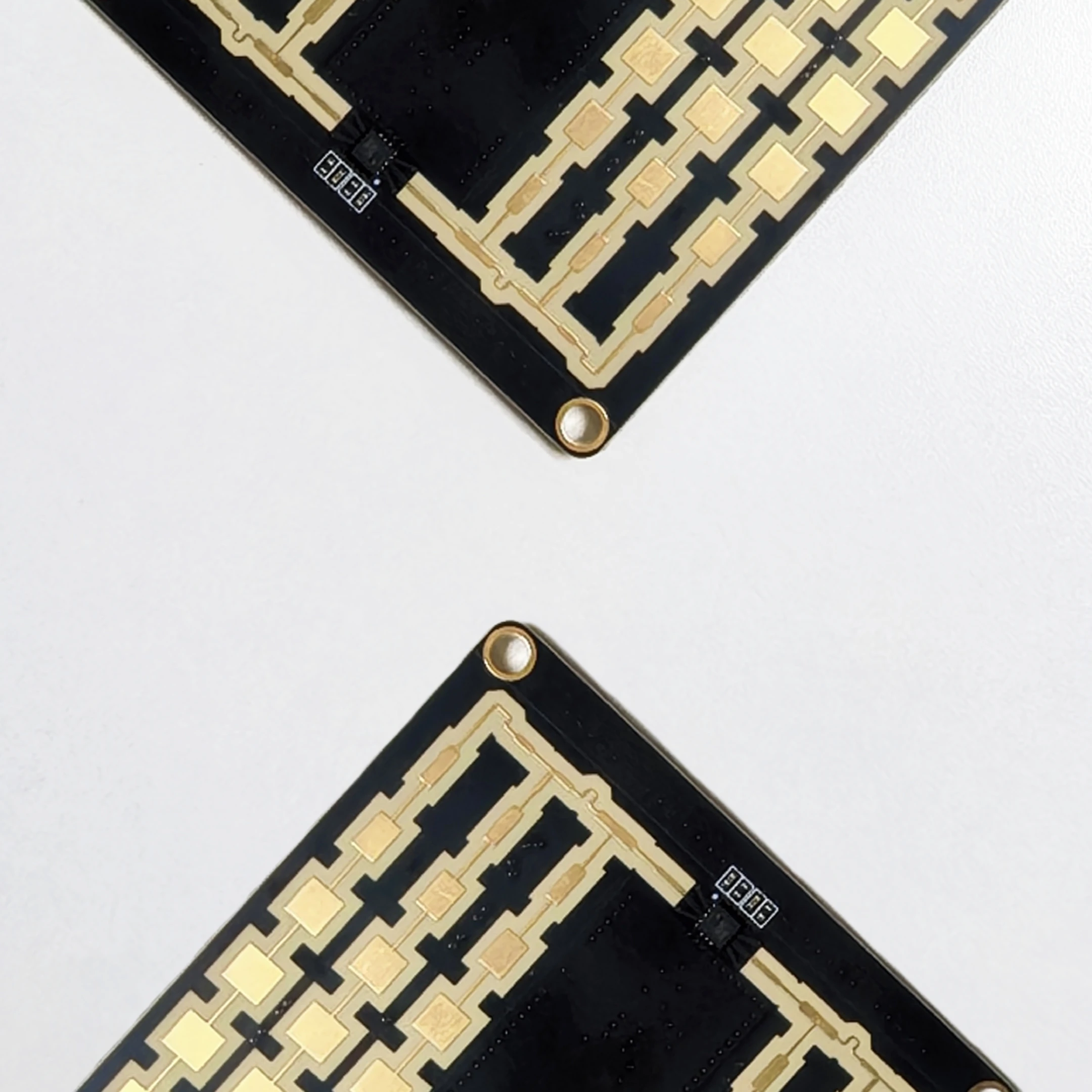

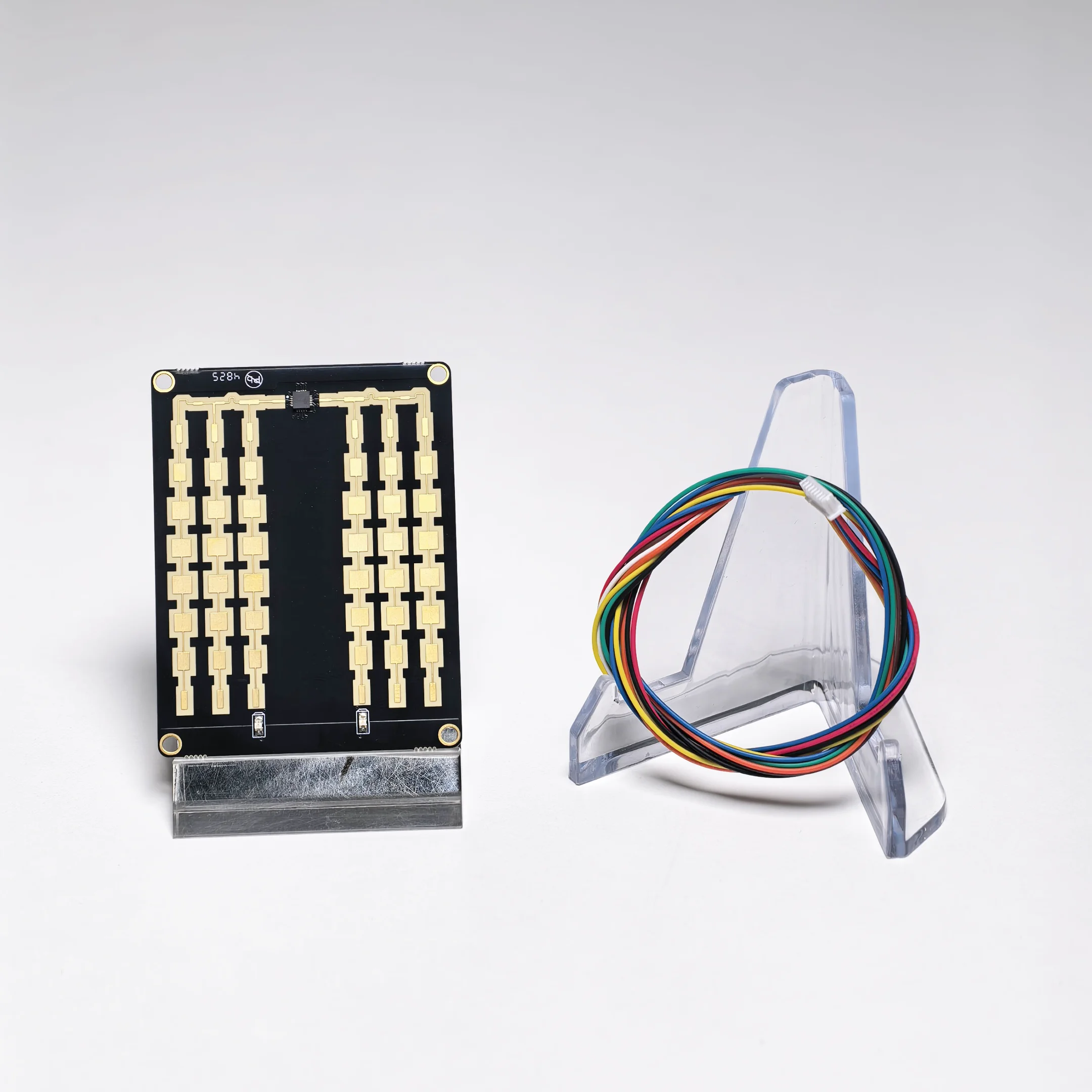

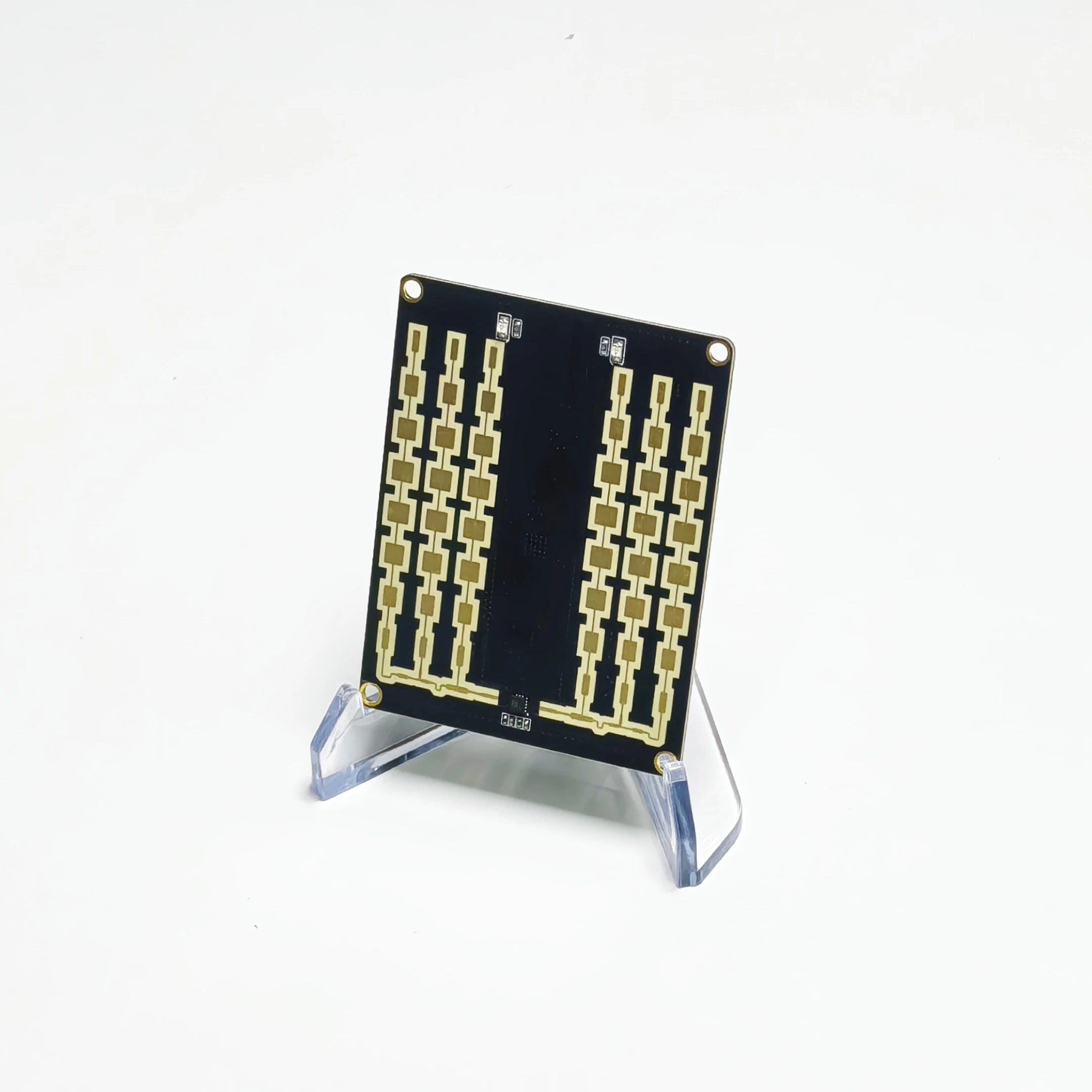

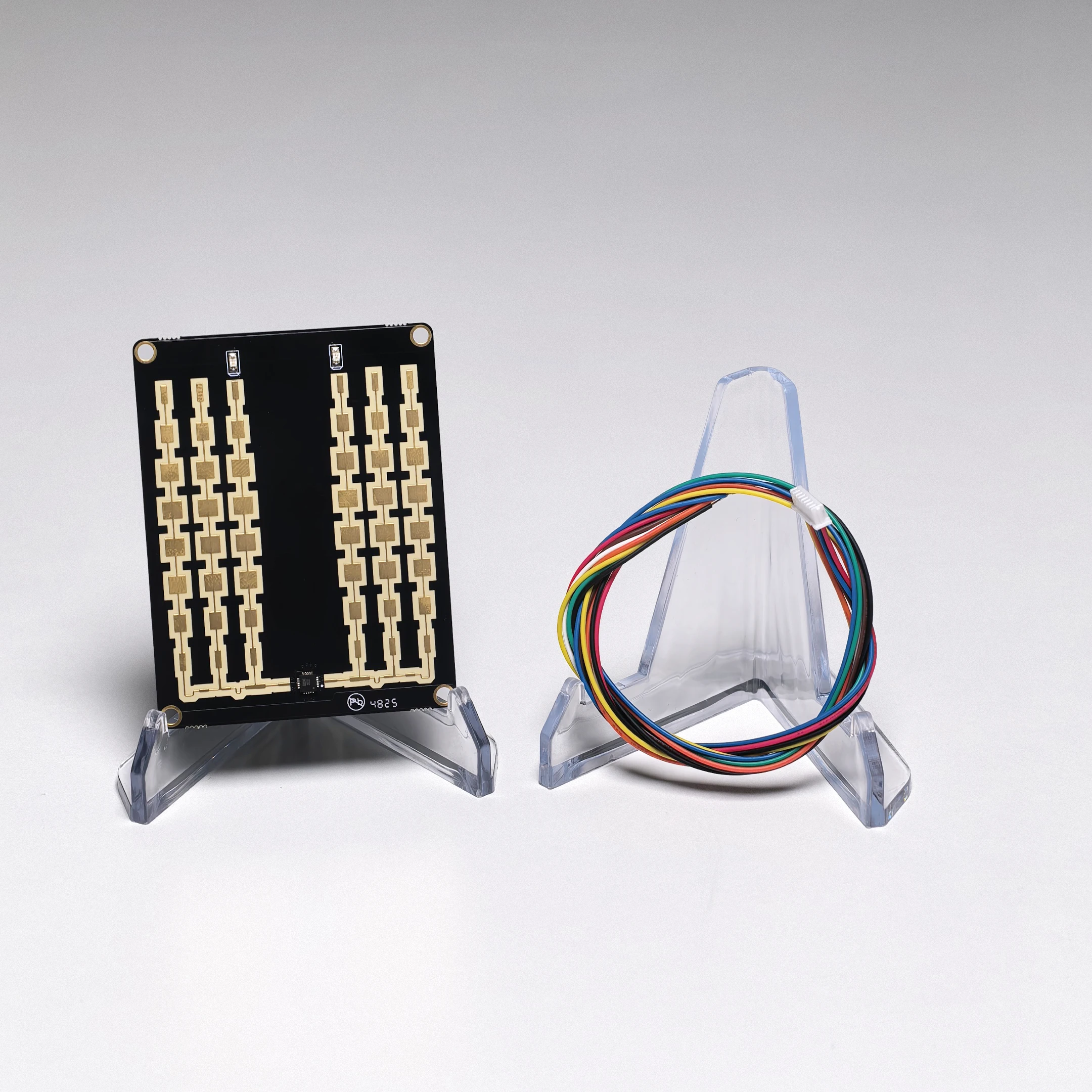

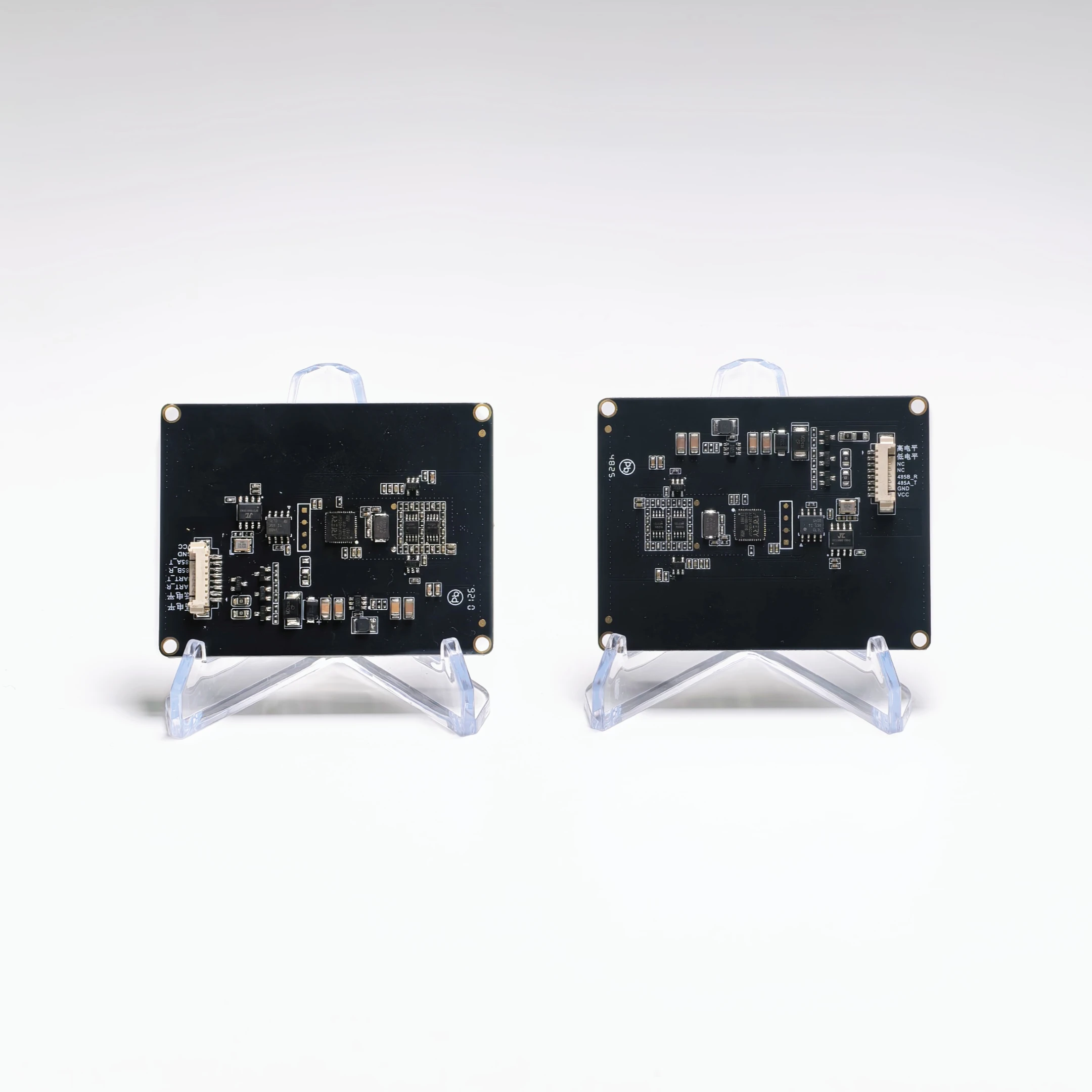

The TR21M speed radar is a millimeter-wave radar module integrating a microstrip antenna, RF circuit and signal processing circuit, which directly outputs the speed information of the target. It is widely applied to speed monitoring on various types of roads such as expressways, urban trunk roads, county and city grade roads, and urban and rural arterial roads.
Main parameters
◆ K-band radio frequency Integrated Circuit design;
◆ Frequency range : 24GHz
◆ Modulation mode : CW for detecting moving vehicles, detection distance ≥ 120m
◆ Support RS485/TTL serial port
◆ Baud rate : 9600bps
◆ Speed measurement range: 1KM/H to 240KM/H
◆ Speed measurement error : less than ±1KM/H
◆ Voltage : 9-24V, Current : ≤48mA@12V
◆ Output power (EIRP) : 20dBm
◆ Antenna Angle : Horizontal ±20°, Vertical ±8°
◆ Size : L 69 x W 53 x H 5 mm
Product Images

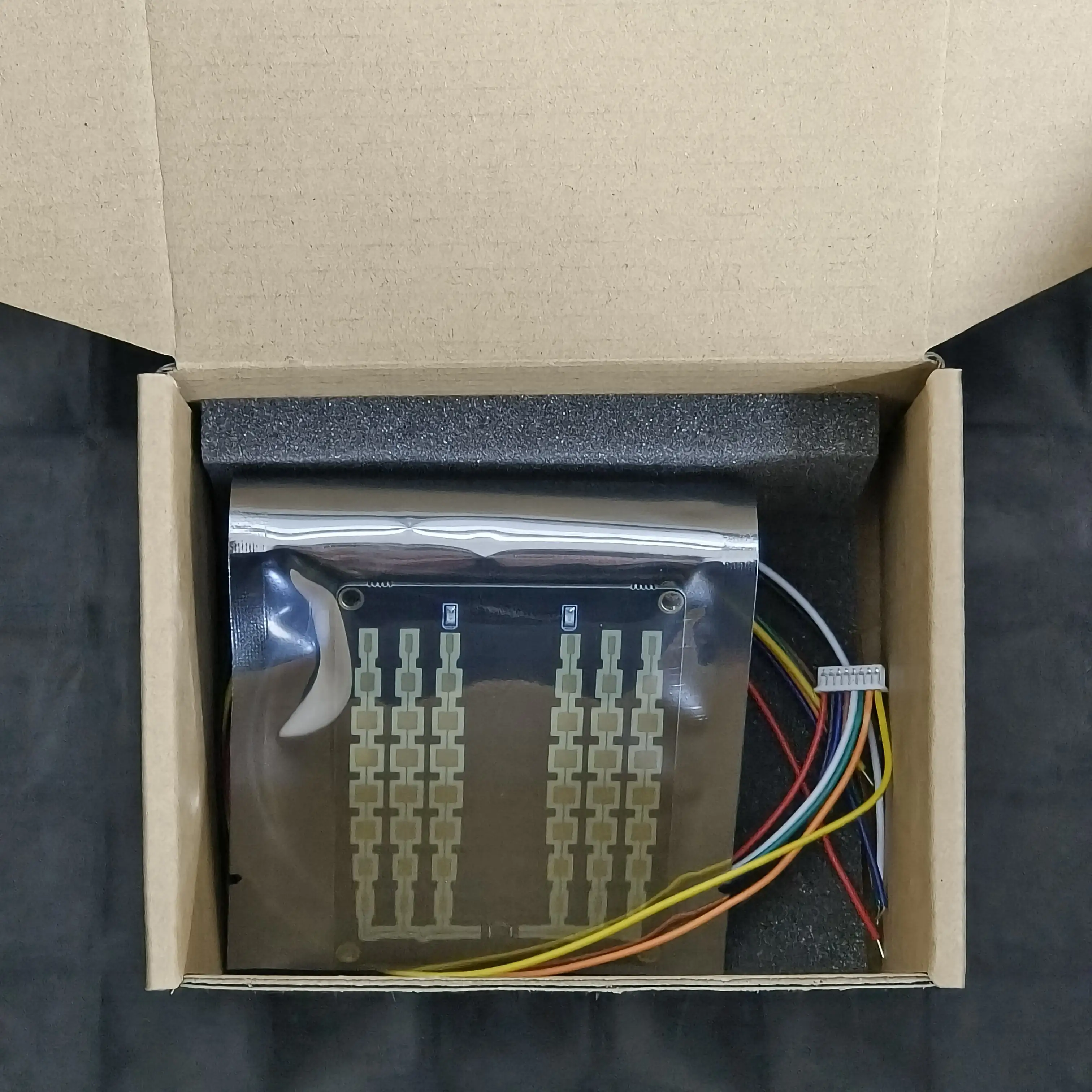

Package Contains
