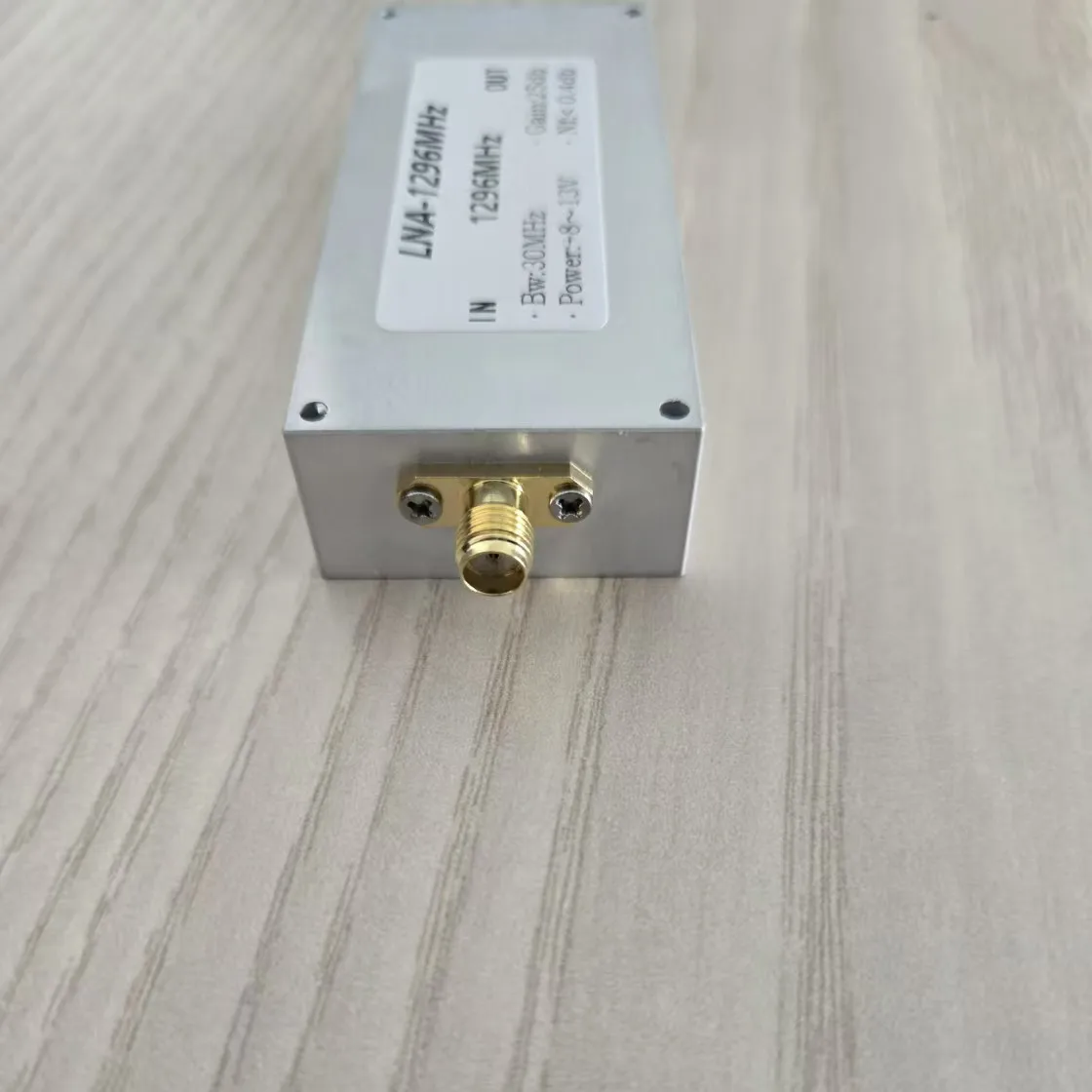

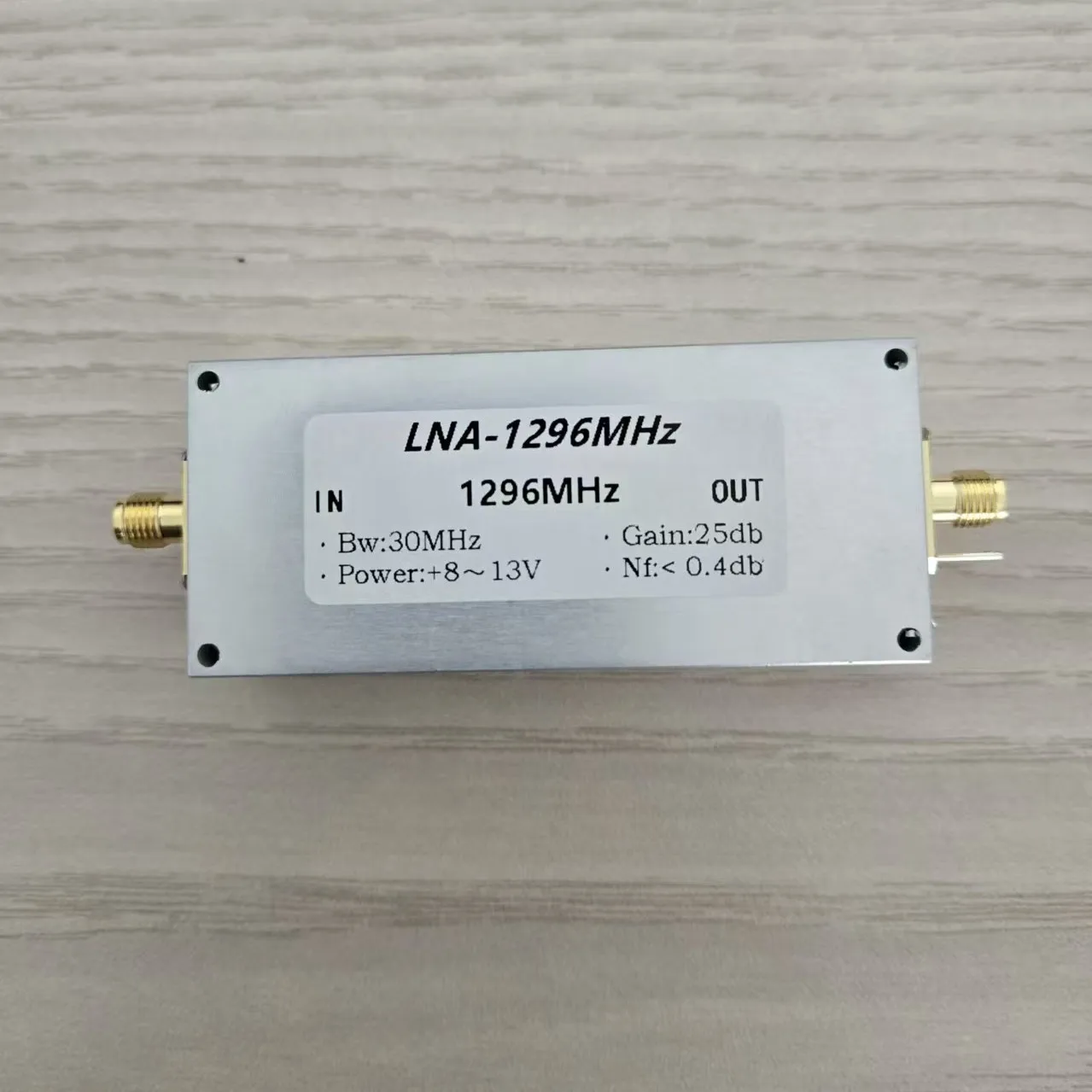

LNA bandpass low-noise antenna amplifier 1296MHz bandwidth 30MHz 25db broadband linear

Band type low-noise antenna amplifier with 25dB noise less than 0.4dB antenna preamplifier

1. Detailed product introduction:

This product is used for 1296MHz RF signal high fidelity, low-noise amplifier, to increase the receiving effect of RF equipment, expand the receiving distance, and increase the communication distance! The introduction is as follows:

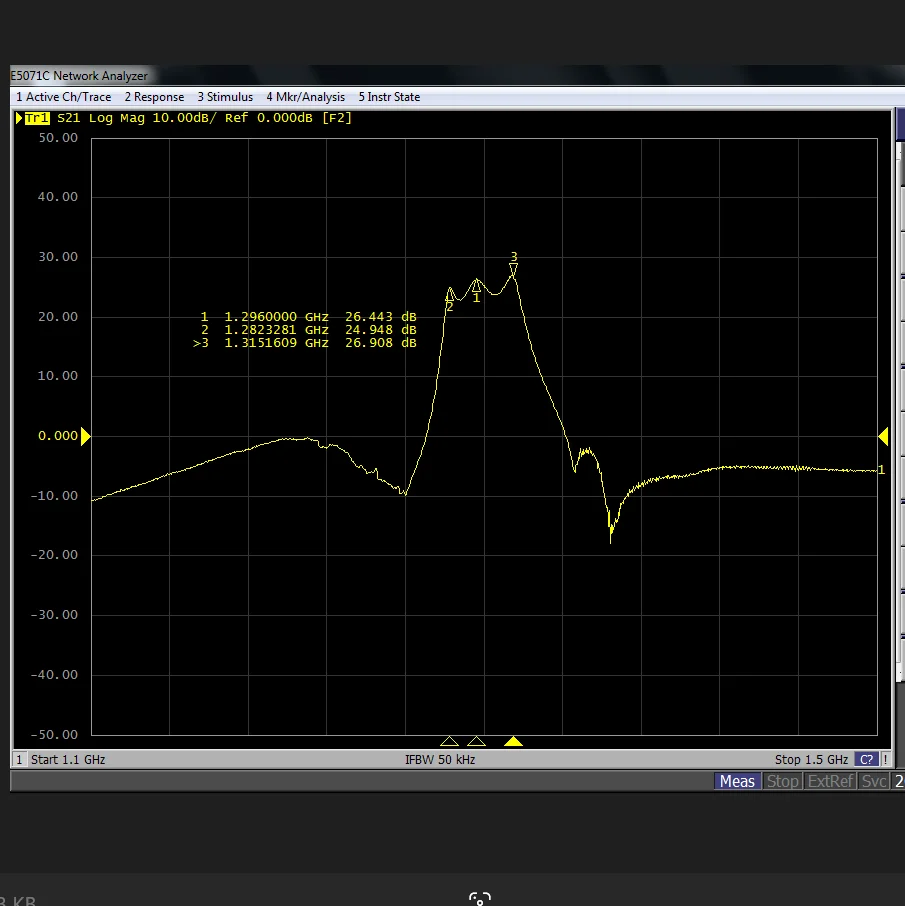

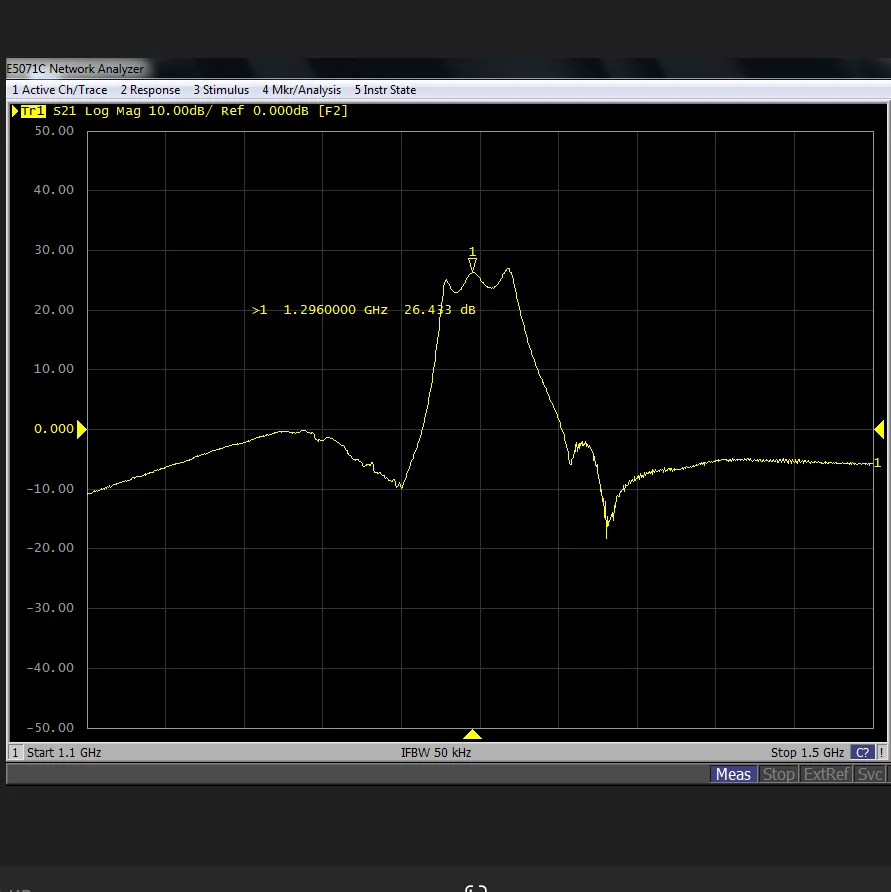

2. Amplifier gain: 25db

3. Noise factor: 0.4db. This noise factor is already very small, and the performance is excellent.

4. Power supply voltage: 8-13V DC can be directly connected to the battery for use.

5. Power consumption: 150mA

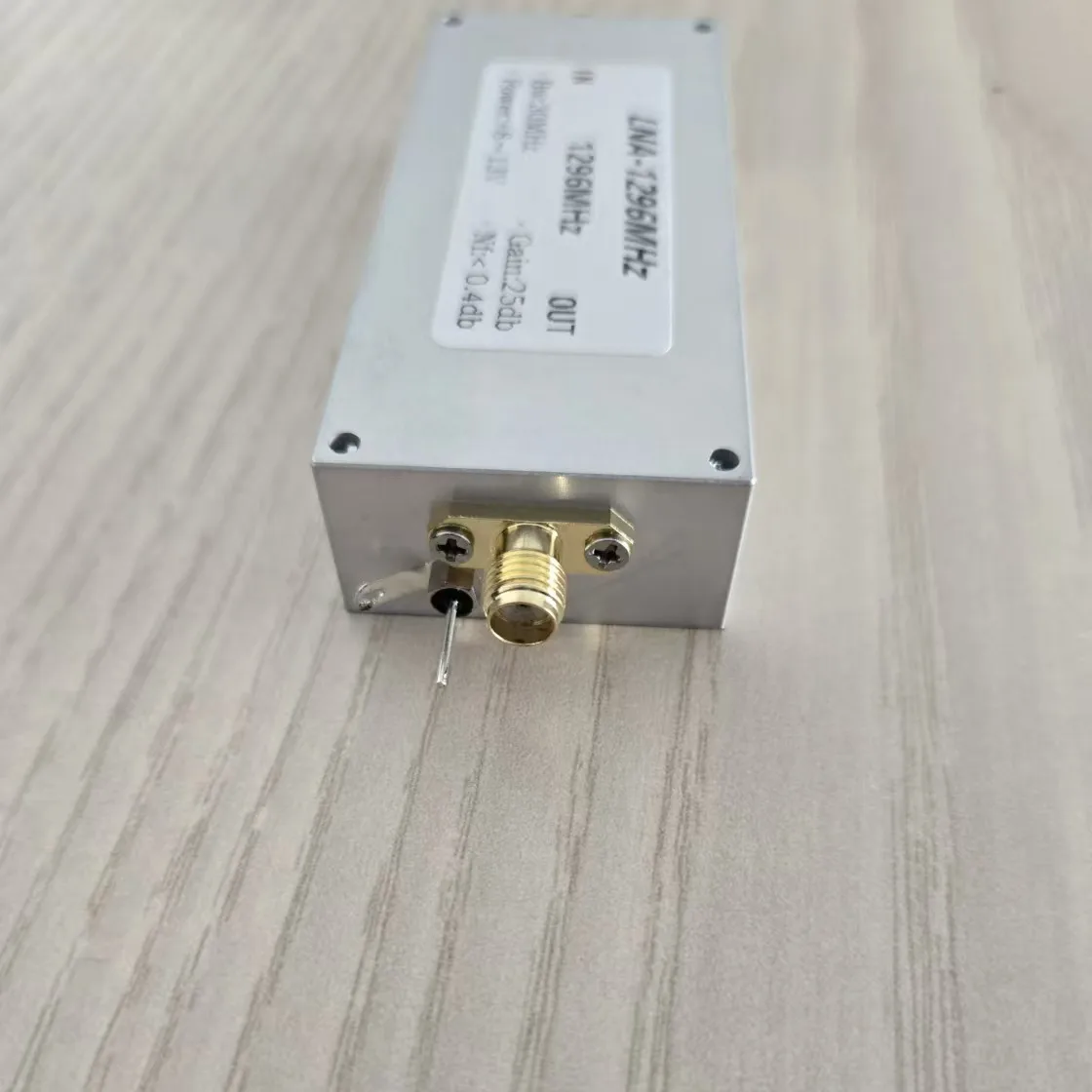

6. Power port: The center of the through core capacitor is the positive pole, and the outer shell is the negative pole

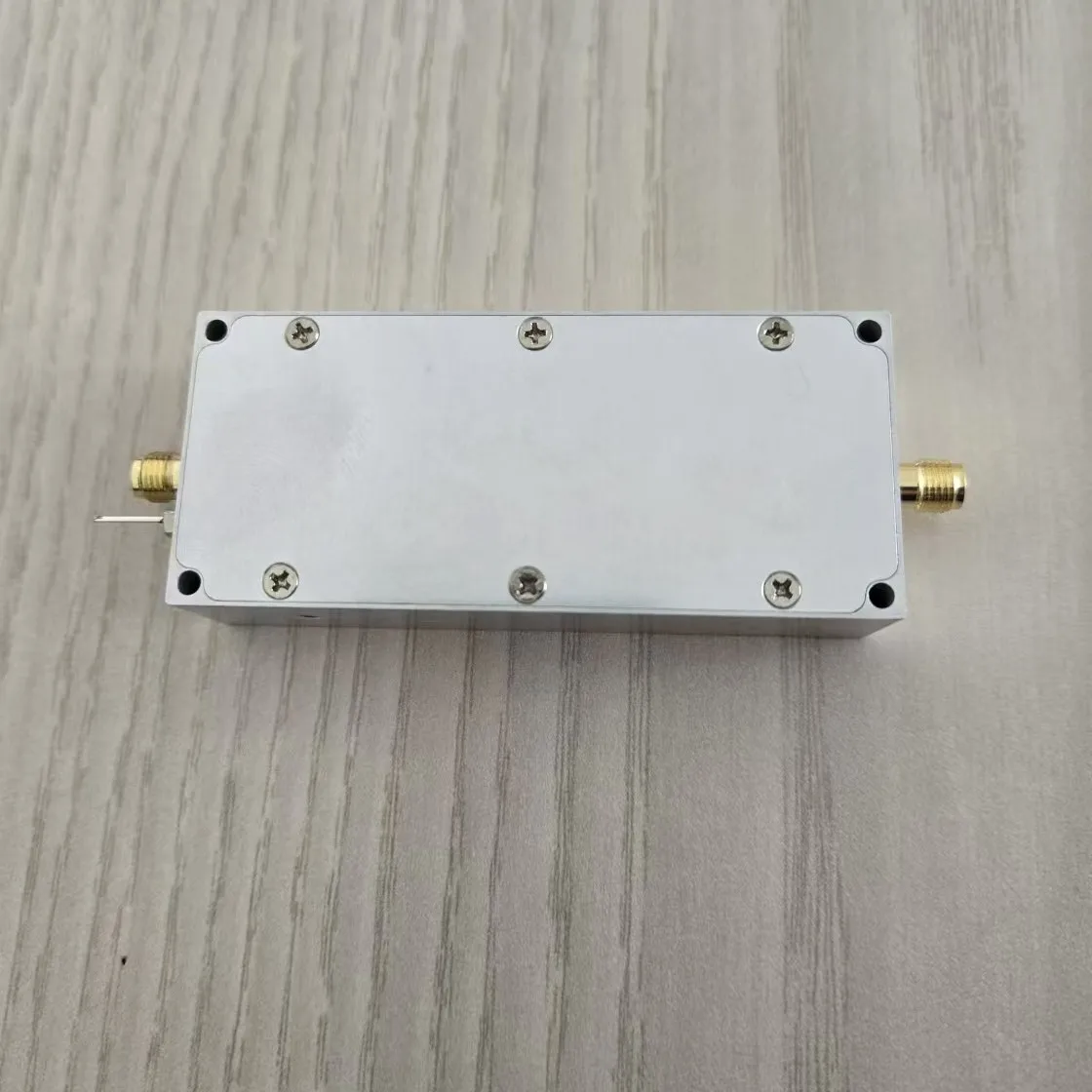

7. External dimensions: 96 * 33 * 17mm (including protruding parts)

8. Net weight: 80 grams

9. Special attention: The input power should not exceed+10dBm (10mw), and do not directly connect this amplifier for transmission with a walkie talkie, otherwise it will burn out! !!
