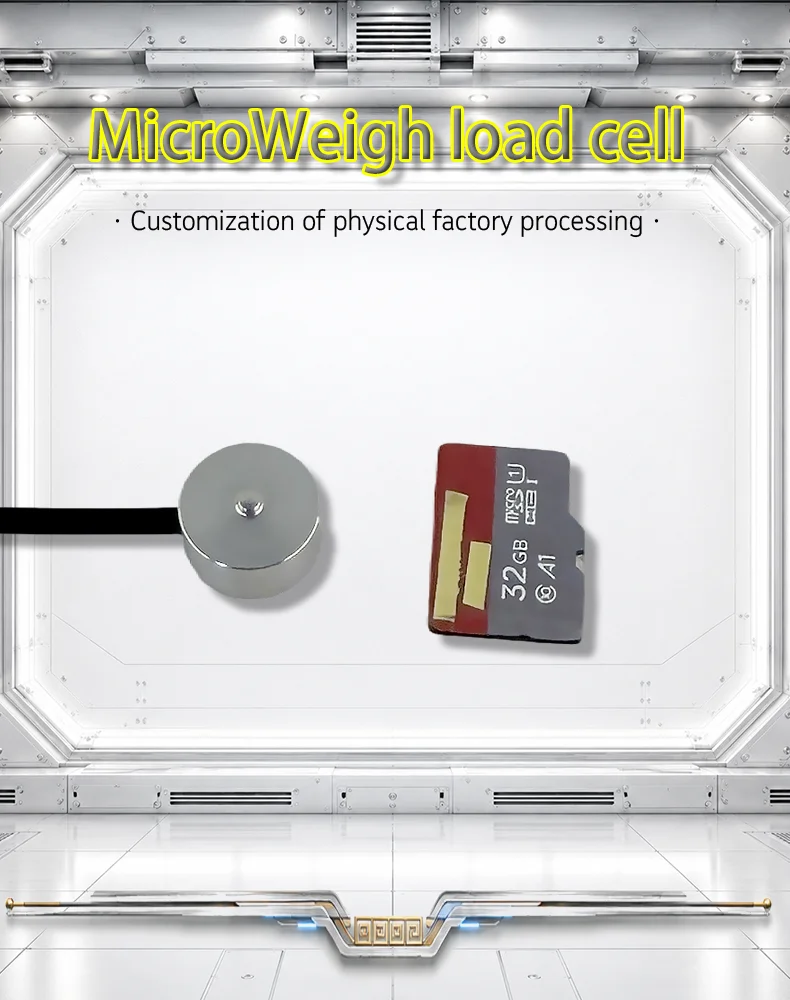

Micro Load Cell 5kg 10kg 20kg 30kg 50kg Miniature Compression Pressure Sensor Stainless Steel Force Transducer 10mm
88.31$
59.93$
Quantity:
1
Availability:
Color
Card Payments
Crypto Payments
Easy return
Reliable Shipping

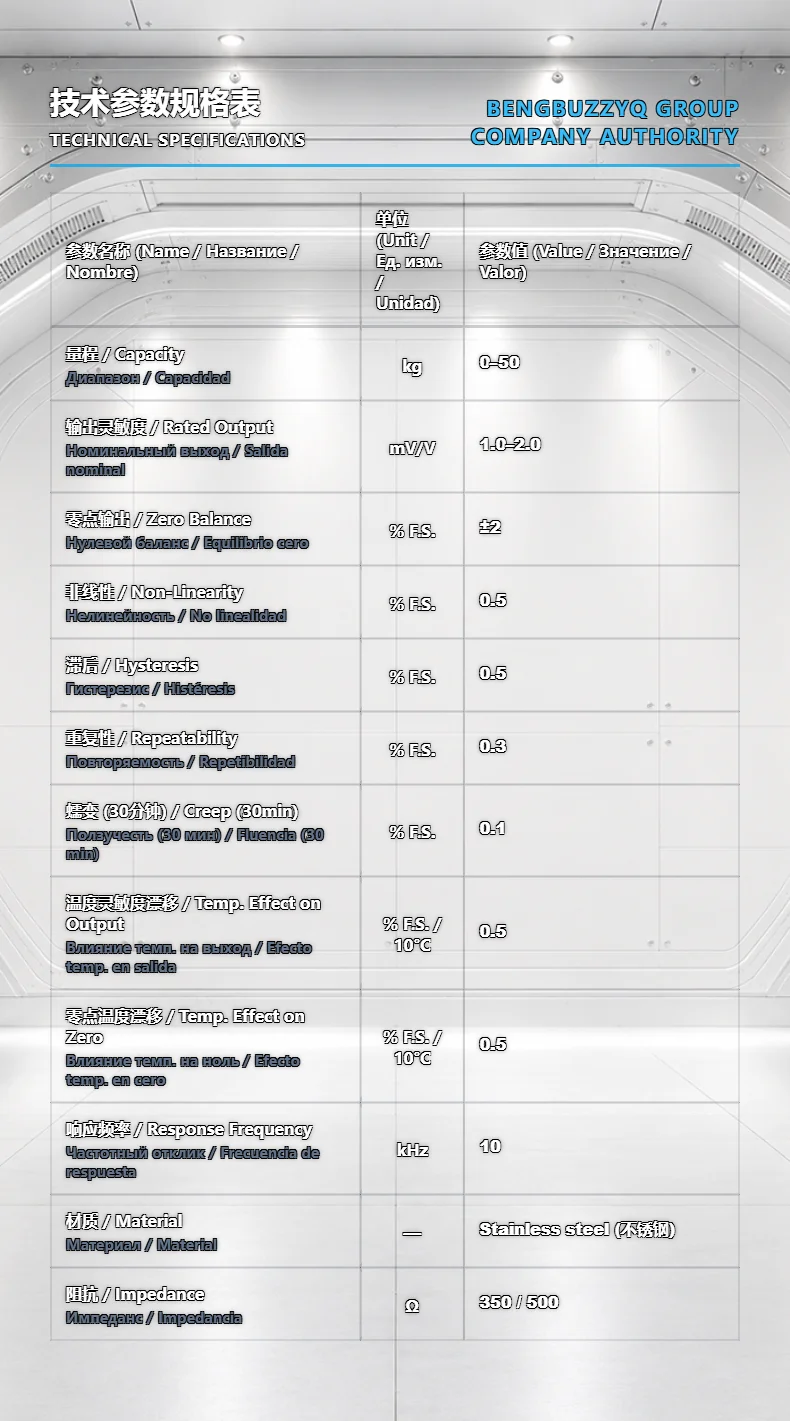

参数名称 (Name / Название / Nombre)
单位 (Unit / Ед. изм. / Unidad)
参数值 (Value / Значение / Valor)
量程
/ Capacity
kg
0–50
Диапазон / Capacidad
输出灵敏度
/ Rated Output
mV/V
1.0–2.0
Номинальный выход / Salida nominal
零点输出
/ Zero Balance
% F.S.
±2
Нулевой баланс / Equilibrio cero
非线性
/ Non-Linearity
% F.S.
0.5
Нелинейность / No linealidad
滞后
/ Hysteresis
% F.S.
0.5
Гистерезис / Histéresis
重复性
/ Repeatability
% F.S.
0.3
Повторяемость / Repetibilidad
蠕变
(30
分钟
)
/ Creep (30min)
% F.S.
0.1
Ползучесть (30 мин) / Fluencia (30 min)
温度灵敏度漂移
/ Temp. Effect on Output
% F.S. / 10°C
0.5
Влияние темп. на выход / Efecto temp. en salida
零点温度漂移
/ Temp. Effect on Zero
% F.S. / 10°C
0.5
Влияние темп. на ноль / Efecto temp. en cero
响应频率
/ Response Frequency
kHz
10
Частотный отклик / Frecuencia de respuesta
材质
/ Material
—
Stainless steel (不锈钢)
Материал / Material
阻抗
/ Impedance
Ω
350 / 500
Импеданс / Impedancia

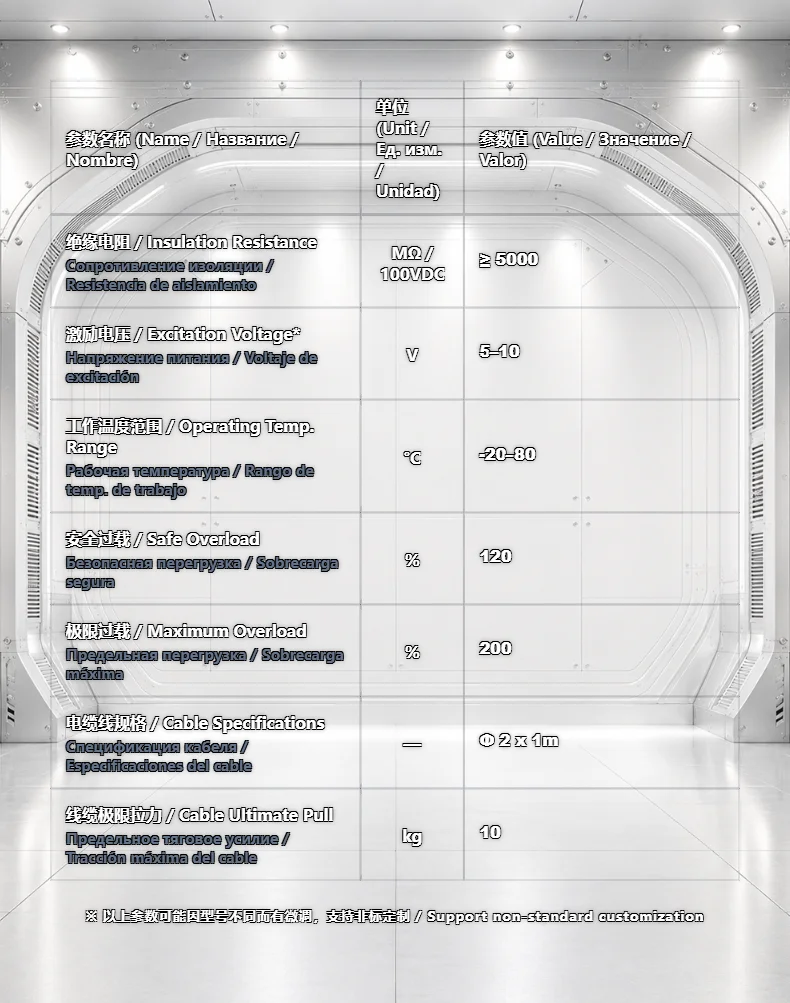

绝缘电阻
/ Insulation Resistance
MΩ / 100VDC
≥ 5000
Сопротивление изоляции / Resistencia de aislamiento
激励电压
/ Excitation Voltage*
V
5–10
Напряжение питания / Voltaje de excitación
工作温度范围
/ Operating Temp. Range
°C
-20–80
Рабочая температура / Rango de temp. de trabajo
安全过载
/ Safe Overload
%
120
Безопасная перегрузка / Sobrecarga segura
极限过载
/ Maximum Overload
%
200
Предельная перегрузка / Sobrecarga máxima
电缆线规格
/ Cable Specifications
—
Φ 2 x 1m
Спецификация кабеля / Especificaciones del cable
线缆极限拉力
/ Cable Ultimate Pull
kg
10
Предельное тяговое усилие / Tracción máxima del cable
Product Detailed Introduction:
The Load Cell is an advanced high-precision weighing sensor designed for a wide range of industrial applications. With a capacity of 0-50kg, this load cell provides ±0.5% F.S. non-linearity, ensuring highly accurate and reliable weight measurements. The stainless steel construction makes it highly durable and corrosion-resistant, ideal for use in harsh environments.

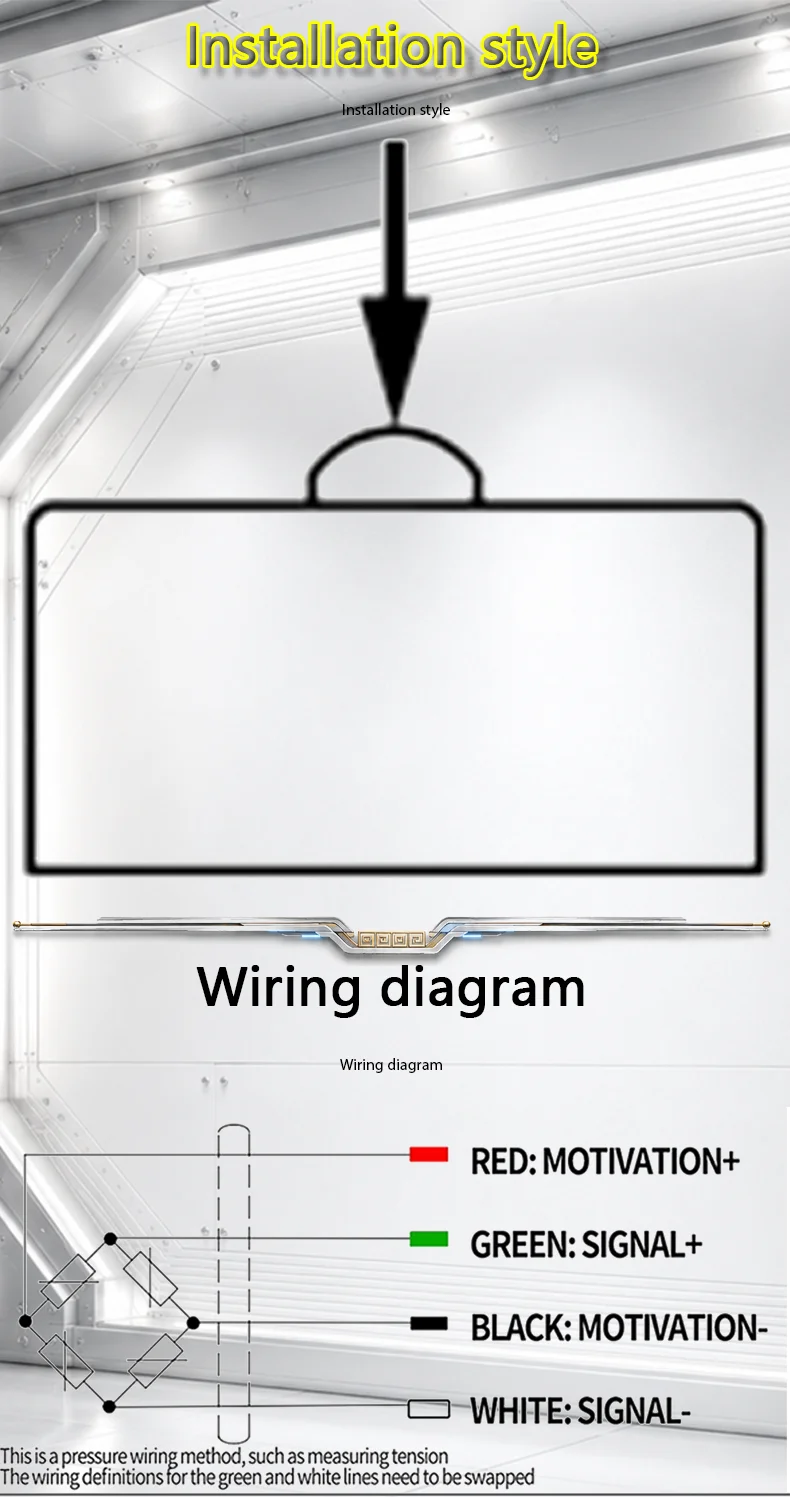

The load cell features temperature compensation, which minimizes the effects of temperature fluctuations on output, ensuring stable performance in various conditions. It also offers easy installation with clearly defined wiring instructions, including connections for motivation and signal. With a safe overload of 120% and a maximum overload of 200%, it is built to withstand demanding use without risk of damage.
Perfect for applications in industrial weighing systems, force measurement, and other high-precision measurement needs, the Load Cell is designed to integrate seamlessly with your system and provide reliable, long-term performance.
