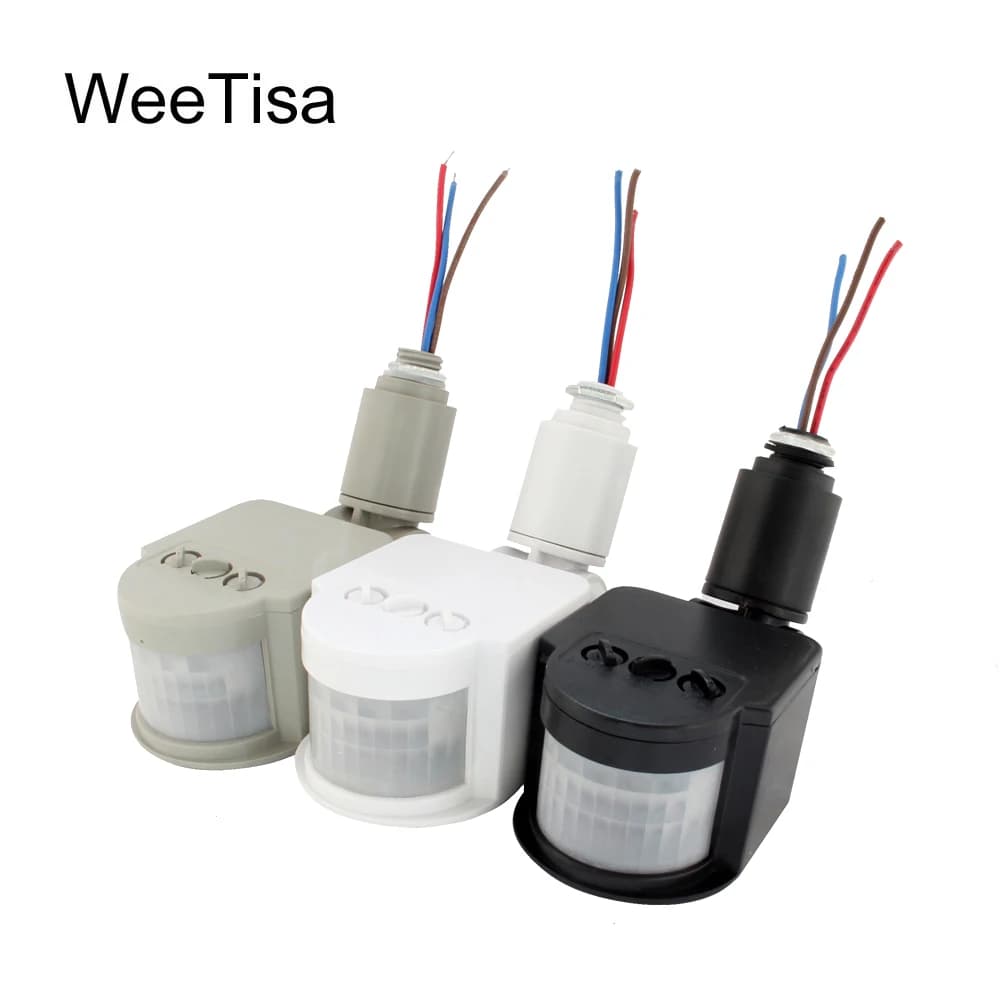

LED Motion Sensor 220V 110V 12V Automatic Infrared PIR Movement Detector Wall Mount Timer Outdoor 12 Volt Sensor Light Switch

LED Motion Sensor 220V 110V 12V Automatic Infrared PIR Movement Detector Wall Mount Timer Outdoor 12 Volt Sensor Light Switch

Descriptions:

1. Easy to install.

2. Automatic, convenient, safe and practical.

3. It has the function of power and detection indication.

4. The motion sensor can identify day and night automatically.

5. It has wide detection range made up of up and down, left and right service field.

6. This product is a new type of energy-saving lighting switch,

it adopts high sensitivity detector, integrate circuit and SMT.

7. It utilizes human motion infrared rays as control signal sources,

when one enters the detection field, it will start the controlled load at once.

Specifications:

Color: Grey, Black, White

Material: ABS

Working Rotation: 180 Degree

Voltage: AC85V~265V, DC 12V

Standard: LVD, EMC, CE, RoHS

IP Rating: Indoor application IP44

LUX Setting: 2-2000lux svr adjustable

Size: As shown on the picture

Induction lighting time: 5s~6min adjustable time

Detection distance: Approx 12M, installation 1.5-2.5M High

Output: Maximum 1000W incandescent lamp, 100W fluorescent lamp ,

Exhaust fan 100W, Motor 100W, Electric bell 100W

NOTE:

The item can be less sensitive if you go forward the detector,

but it can be sensitive if you go down the for cross section.

If the person stop moving under the motion sensor, it can't light on also.

When it is very hot in summer, then temperature of environment is nearly the same as people, it may not detect well.

Connection:
