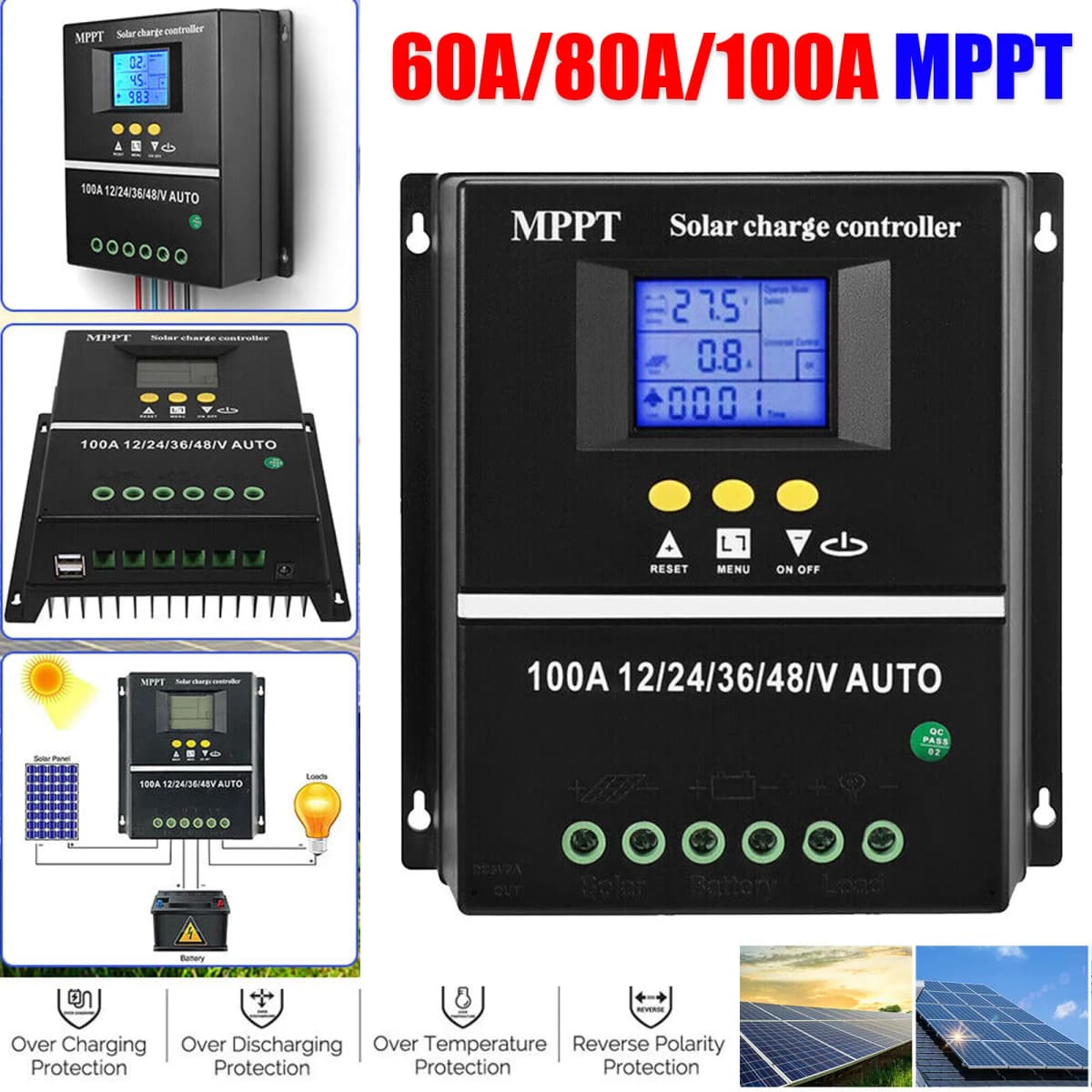

60/80/100A MPPT Solar Panel Charge Controller Regulator Dual-USB 12V/24V/36V/48V

Features：

- LCD Liquid Crystal Display: Large LCD display, support battery working status display, solar panel working status display, mode control display, load output status and each parameter display, normal and fault status display.

- 7 Operation Modes：Charging mode, light control mode, light control + time delay control mode, general control mode, manual control mode, timing control mode and test mode, the test mode is only for factory test use.

- 4 kinds of voltages automatic identification：It will automatic identify DC12V/24V, DC36V, DC48V by itself.

- Large-section Wiring Port: use large-section, large-spacing wiring ports, can be installed 16mm wire, the wire spacing of 7mm increases the insulation performance and the reliability of installation, effectively reduces current and voltage drop while reducing losses.

- Dual USB Charging Ports: The solar charge controller adopts a dual USB charging port design, which can charge two devices at the same time, and supports most of USB port devices, such as mobile phones, tablets, PSP game consoles, etc.

- Thickened Aluminum Alloy Heat Sink: The MOS tube is used to lock the heat sink design, the heat dissipation is more uniform, and there is no fear of the temperature rise caused by the MOS tube, the powerful heat dissipation capacity can operate normally in the environment of 55 ℃, at the same time, it is equipped with functions to prevent overcharge, overvoltage, DC output low voltage, high voltage protection and reverse polarity protection, etc.

Specification:

Maximum charging current: 60A/80A/100A

Rated output current: 30A/40A

Maximum input voltage of photovoltaic panels: 15V-23V(12V),  30V-45V(24V),  45V-69V(36V),  60V-90V(48V)

Maximum input power of photovoltaic panels: 1000W (12V), 2000W (24V), 3000W (36V), 4000W (48V)

Output voltage: DC12V/24V/36V/48V; DC5V/1.5Ax2USB

Support Battery: Lithium Battery & Lead Acid Battery

Working temperature: -25℃~55℃

Cooling method: heat sink self-cooling

Charging method: Focused MPPT modulation charging

Working mode: seven

Protection function: prevent overcharge, overvoltage/DC output low voltage, high voltage protection, reverse polarity protection, etc.

Note:

1.Please connect the battery to the controller first, and then the photovoltaic panel to ensure that the battery voltage is higher than (12V battery is higher than 10V; 24V battery is higher than 20V; 36V battery is higher than 30V; 48V battery is higher than 40V), otherwise it will cause voltage Identification error.

Package Included:

1 x Solar Charge Controller

1 x Manual
