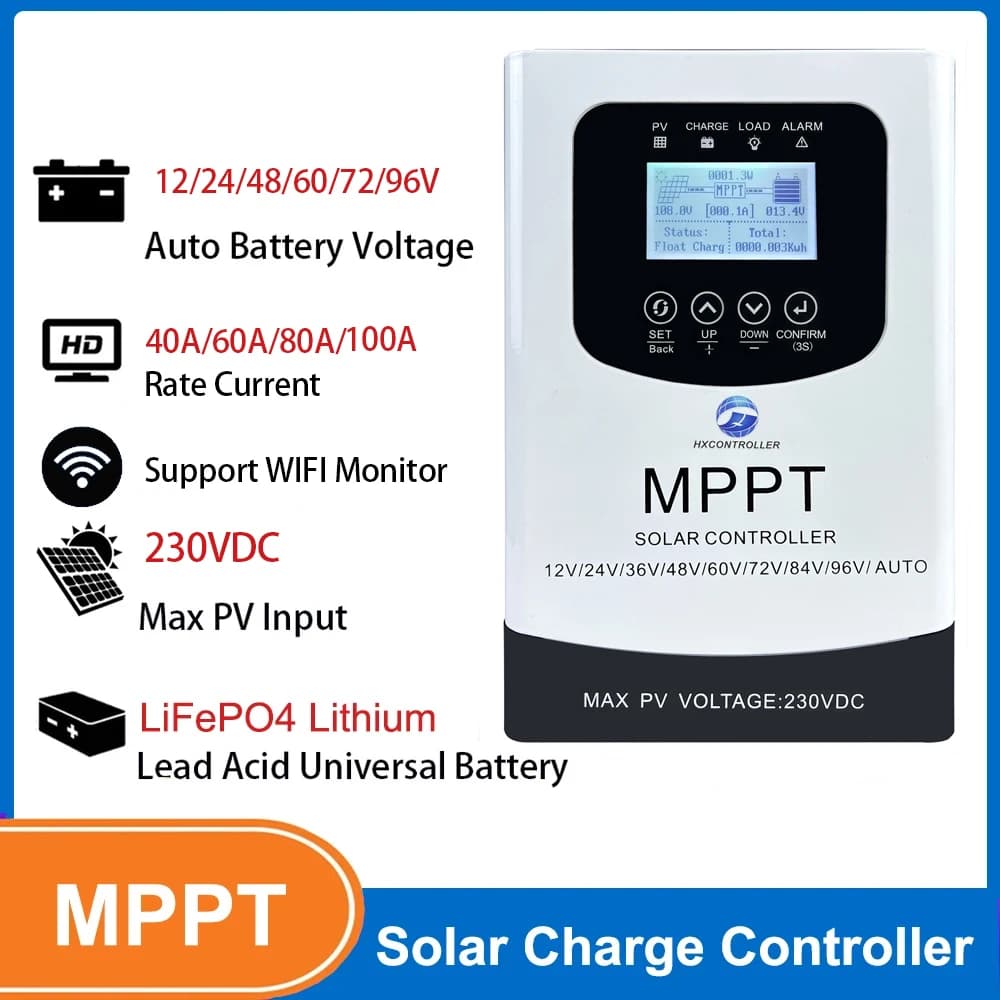

HXCONTROLLER 60A 80A MPPT Solar Charge Controller 230VDC For 12V 24V 48V 60V 72V 96V Lifepo4 Lithium GEL Lead Acid Ship From AU

MPPT controller features

This controller is used in solar off-grid power generation system to automatically adjust battery charging and discharging. It has an advanced tracking algorithm to obtain the maximum power of the solar cell components and charge the battery; at the same time, its low voltage disconnect (LVD) function can prevent the battery from over-discharging and causing damage.

The battery charging process of the MPPT controller is optimized to extend battery life and improve system performance. Its comprehensive self-test function and electronic protection function can avoid damage caused by installation errors and system failures. Although the controller is easy to operate and use, in order to allow you to better use all the functions of the controller and improve your photovoltaic system, please read the instructions and instructions in this manual carefully.

Features：

1. Advanced MPPT maximum power point tracking technology, the tracking efficiency is no less than 99.5%.

2. The LCD is designed to dynamically display the operation data and working status of the equipment.

3. Compatible with Seal, GEL, Flooded, LifePO4 battery charging(user battery can adjust charging by yourself.)

4. Dual USB 5V charging ports

5. 12V/24V/36V/48V/60V/72V/84V/96V automatic identification

6. Over-voltage protection

7. Over-current protection

8. Over temperature protection

9. Controller parameters display

10. With backlight display

11. Max input solar panel voltage is 230Vdc( this is voc voltage)

12. Support RS485 WIFI Device( If you need our wifi device, please buy it seperately)

CONTROLLER SIZE:

40A:  21.8*16.4*9CM

60A and 80A: 26.7*17.9*9.1cm

100A: 31.8*22.2*10.1CM

Installation safety distance:

Observe the following safety clearances and ensure that other equipment or objects are not within this range to ensure that there is enough space for heat dissipation.

Line connection method:

The correct wiring sequence of the solar controller is as follows:

1. First connect the positive and negative electrodes of the battery;

2. Connect the positive and negative poles of the DC load;

3. Finally, connect the positive and negative poles of the solar panel.
