FGTECH 0475 Firmware Galletto V54 EU Online Master Version No Need Activate Added More Function FGTECH V54 0475 Programmer

Online Version EU FGTECH V54 Firmware 0475 Supports BDM Function OBD K-CAN ECU Programmer Interface

What difference between FGTECH FW 0475 EU Version and FGTECH FW 0386 :

1.FW 0475 EU Version fixed all unstable problem and errors which FW 0386 had. MCU, EEPROM , Relay, Resistance, Led, Solder , Pin, Capacitor these all are corrected.

2. FW 0475 EU Version Adds new components, best usb bridge and relays. Work well with OBD / BDM / Boot / Tricore, However FW 0386  is not good at Tricore.

3. FW 0475 EU Version Adds much more and newer vehicles and ECU protocols than FW 0386.

4. FW 0475 EU Version Support more OS : Win XP / Win7 32bit and 64bit / Vista, However FW 0386 can only work well with win xp.

5. FW 0475 EU Version is unlocked version ,support online operation, means you can connect internet during use, However FW 0378 must disconnect internet during use.

6. FW 0475 EU Version inside PCB looks same as FW 0386, but the main program of pcb is different .

7. FW 0475 EU Version software version is same version V2012.02 as FW 0386 , But actually the software and driver is different. 0475 version software is more user-friendly.

FW 0475 Added More New vehicle and New  ECU Type Than FW 0386 :

11/12

OBD driver SSang-yong Del-phy DCM3.7 Read/Write, Checksum

11/12

OBD driver for Fer-rari 458 Italia MED9.6 Ecu Master and ECU Slave Read/Write, Checksum

10/12

OBD driver for Fi-at/Al-fa/Lan-cia Twi-nair/Mult-iair 8GMF and 8GSF Read/Write, Checksum

10/12

OBD driver for Ma-zda 5, Ma-zda 6 2.0 Diesel ECU RF8x Read/Write, Checksum

10/12

OBD driver for Ma-zda 5, Ma-zda 6 2.0 Diesel ECU RF7x Read/Write, Checksum

09/12

OBD driver for Sim-os 10.xx VA-G 1.2 TSI Read/Write, Checksum

09/12

OBD driver for CRD 3.xx Merc-edes 2200 CDI Read/Write, Checksum

09/12

Simos PCR2.1 VA-G 1.6 TDI Unlock Boot Tool - Read/Write EEPROM

09/12

OBD driver Sim-os PCR2.1 VA-G 1.6 TDI Read/Write, Checksum

08/12

RSA recognition Peu-geot Bip-per

08/12

RSA recognition Citr-oen Ne-mo

08/12

OBD driver Driver for writing Bo-sch EDC16C34/5 Peu-geot Bip-per Read/Write, Checksum

08/12

OBD drive Driver for writing Bo-sch EDC16C34/5 Citr-oen Ne-mo  Read/Write, Checksum

07/12

OBD driver Del-phi DCM3.5 for Ta-ta Sa-fari  Read/Write, Checksum

07/12

Checksum recognition for DCM3.7 Ssan-gyong

07/12

Checksum recognition for DCM3.7 Op-el and Sa-ab

07/12

Checksum recognition for DCM3.7 Ki-a  and Hyu-ndai

07/12

Boot Visteon ST10F275 RX-TX Mode

07/12

Boot ME7.9.10 ST10F275 RX-TX Mode

06/12

Checksum recognition for Denso Sub-aru Tri-beca

06/12

Boot Mitsu-bishi MH7203 Hyu-ndai

06/12

Checksum recognition for Denso Nis-san L200

06/12

Checksum recognition for Denso Nis-san X-Trail

06/12

OBD driver Op-el Simtec75 CAN  Read/Write, Checksum

05/12

OBD driver  Pors-che SDI3 CAN  Read/Write, Checksum

05/12

Cor-vette Utility CAN for change VIN, Code Align, Erase Errors

05/12

Corette Utility VPN for change VIN, Code Align, Erase Errors

05/12

OBD driver Reault SID305 CAN  Read/Write, Checksum

05/12

OBD driver Masrati ME9 CAN  Read/Write, Checksum

04/12

Tool Boot Hitaci Phase 3

04/12

Tool Boot Hitaci Phase 2

04/12

OBD driver Fi-at ME17.31 CAN  Read/Write, Checksum

04/12

Boot Mits-ubishi for L200 MH8102F

03/12

Boot Mitsu-bishi for Lan-cer EVO MH7202

03/12

Fi-at MJ8DF CAN Serial Injectors

03/12

Fi-at MJ8DF CAN Serial Injectors

02/12

OBD driver Fi-at MJ8DF CAN Read/Write, Checksum

02/12

OBD driver Fi-at MJ8DF K-line Read/Write, Checksum

02/12

OBD driver Merc-edes Del-phi CRD2.xx CAN Read/Write, Checksum

01/12

OBD driver Fo-rd Del-phi DCM3.5 CAN Read/Write, Checksum

01/12

OBD driver PS-A Delp-hi DCM3.5 CAN  Read/Write, Checksum

01/12

OBD driver VA-G Sim-os 3xx Boot mode 29F400 C167 Read/Write, Checksum

12/11

OBD driver VA-G Sim-os 9.1 Boot mode 29F400 C167 Read/Write, Checksum

12/11

OBD driver VA-G Sim-os 7.1 Boot mode 29F400 C167 Read/Write, Checksum

12/11

OBD driver VA-G Sim-os 33 K-line serial Read/Write, Checksum

12/11

OBD driver VA-G Sim-os 32 K-line serial Read/Write, Checksum

12/11

OBD driver VA-G Sim-os 3PG K-line serial Read/Write, Checksum

12/11

OBD driver VA-G Sim-os 3PE K-line serial Read/Write, Checksum

12/11

OBD driver VA-G Sim-os 3PD K-line serial Read/Write, Checksum

12/11

OBD driver VA-G Sim-os 3PC K-line serial Read/Write, Checksum

12/11

OBD driver VA-G Sim-os 3PA K-line serial Read/Write, Checksum

12/11

OBD driver VA-G Sim-os 9.1 K-line Read/Write, Checksum

11/11

JTAG MPC55xx

10/11

New password Triore Tprot V08-10

10/11

OBD driver Ren-ault Val-eo V40, Read/Write, Checksum

10/11

AUD Ren-esas

10/11

Boot Ren-esas

Description:

1. FG Tech Galletto 4 Master V54 BDM-Tri Core-OBD is a famous chip tuning tool for all cars, trucks, motorcycles, Marine, BDM MPCxx, BDM Boot Mode, checksum, BDM-TRICORE-OBD.

2. FGTech Galletto 4-Master this new system developed with high-speed USB2 technology is the fastest and most secure product on the market, it is easy to install and use by anyone.

Features of V54 0475:

Version: Firmware  0475, Software V2012.02

PC System:windows xp, vista, win7 32bit/64bit

Software Language: English, Spanish, French, Italian, German, Czech, Portuguese, Turkish

Compatible for cars (12V), trucks (24V), motorcycles, Marine, BDM MPCxx, BDM Boot Mode, checksum.

EU Online  Unlock version, can use directly, no need to activate.

It has Add BDM Function/ Tri-core/OBD K-CAN

Original FR232 USB bridge and relays

Support Online Operation. (There will be no damage to use it when connecting the internet

Working Operation Display:

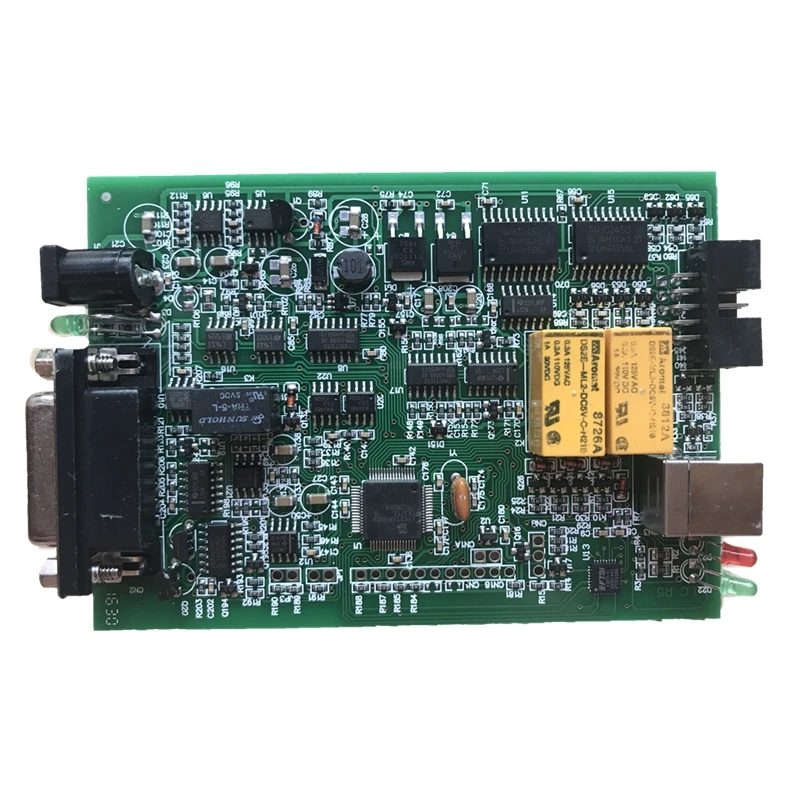

PCB Board Display:

FW0386 FGTech V54 Galletto 4 Master BDM-TriCore-OBD FunctionEOBD2:

Highlight of FGTECH V54:

Latest Version:V54

Computer System:  Support WIN XP&WIN7 32bits ONLY(close anti-virus program)

Unlock version,no need activate!More friendly than Fgtech v53 , much easier to operate

Language: Italiano, English, Deutsch, Francais, Espanol, Portugues, Czech, Turkish

Supports ECU Modle: For Cars/Trucks, motorcycles, Marine, BDM MPCxx, BDM Boot Mode Tricore, checksum

Note:Copy one,disconnet internet when install software. Do not update online,or device damaged and can not use any more.need send back repair.

Description:

FGTech Galletto 2-Master this new system developed with high-speed USB2 technology is the fastest and most secure product on the market, it is easy to install and use by anyone. Our system comes furnished complete with all Car, Truck, Motorbyke, Marine, BDM MPCxx , BDM Boot Mode Tricore, checksum.

FG Tech Galletto 4 Master V54 BDM-TriCore-OBD is a famous chip tuning tool for all cars, trucks, motorcycles, Marine, BDM MPCxx, BDM Boot Mode Tricore, checksum. This item cannot only work as FGTech Galletto 2-Master, but can also work for BDM-TriCore-OBD.

Boot Mode System TriCore:

Infineon Tricore Sak TC1766

Infineon Tricore Sak TC1767

Infineon Tricore Sak TC1792

Infineon Tricore Sak TC1796

Infineon Tricore Sak TC1797

NEW JTAG - BDM - for MOTOROLA - FREESCALE - INFINEON

Freescale MPC 5553/5554/5565/5566 NEXSUS PORT New IAW MJD 8F2 - Mair 8GMF

New Delphy DCM3.5xx DCM3.7xx TRW

for Motorola Freescale MPC 555/556/561/562/563/564/565

for Motorola MC 68332 - MC YQQCU - MC 68377 Trionic 5/7/8 For GM-OPEL-SAAB

for Motorola MC 68376 Campi 01 Lamborghini - Lotus

for Motorola MC 68336 MEMS D5 ROVER

for Motorola ZC 439615 - ZC 439507 IAW FIAT - VAG

New Line OBD protocols VPM For GM - Hummer-Corvette-Munstang-Blazer-Cadilac

New Line OBD protocols Tx-Rx - For Subaru - Mitsubischi - Hitachi - Denso ecu

All EDC17 MED17 is good always modify with Boot Mode tricore.

Automatic Checksum:

All old protocols included for Bosch MExx / EDCxx / Marelli / Siemens / Delpy / Lucas / Denso

Boot Mode C167x / ST10, Boot Mode Infineon Tricore With password for Bosch , Siemens

for Motorola MC68332 - MCYQQCU - MC68377 , MC68376 , MC68336, ZC439615 ,ZC439507

for Motorola Freescale MPC 555/556/561/562/563/564/565

Freescale MPC 5553/5554/5565/5566

BDM Tricore.

5-30V Car / Industrial Vehicles, L line / K line KWP, CAN

Can Bus V2.0 50Kb > 1000Kb

J1850 VPW PWM For GM -For FORD

Rx Tx RS232,

RS 485,

Automatic setup Pull up K-L line 250, 500, 1000 ohm,

Automatic setup termination Can bus 0, 60,120 ohm,

Master Version:

Recovery Mode Completa

Funzione scan tool per eliminare i DTC

Function scan tool for erase the DTC

Controllo tensione di batteria auto in tempo reale

Check tension of battery car in real time

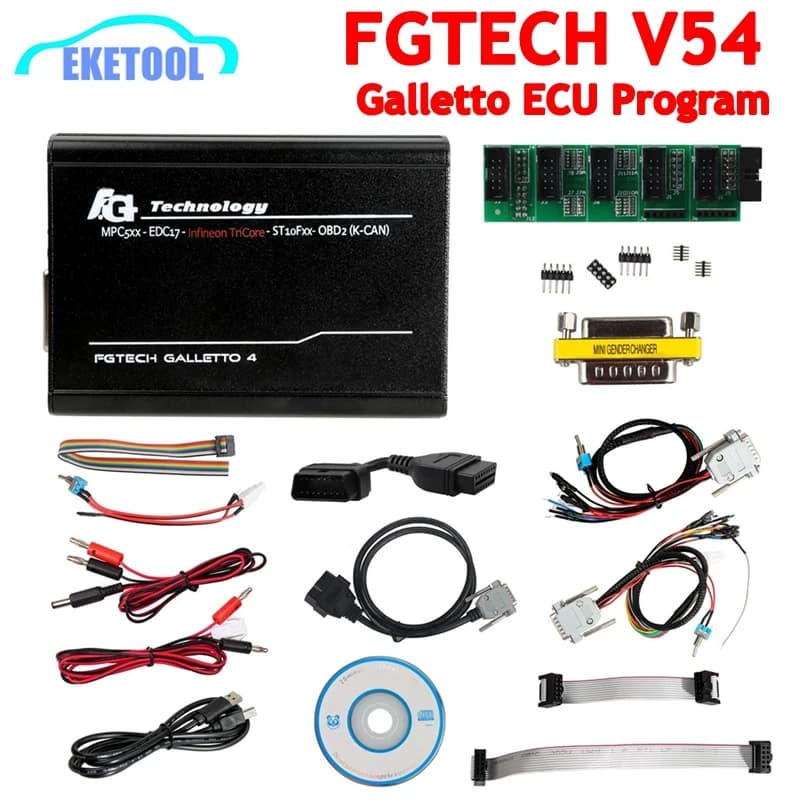

Package List:

1 x FGTECH Unit

1 x ECU cable for TriCore boot

1 x Adapter for BDM to CMD with bdm cables

3 x BDM adapters

6 x BDM connectors

2 x Power cable

1 x OBD2 cable

1 x USB cable

1 x CD
