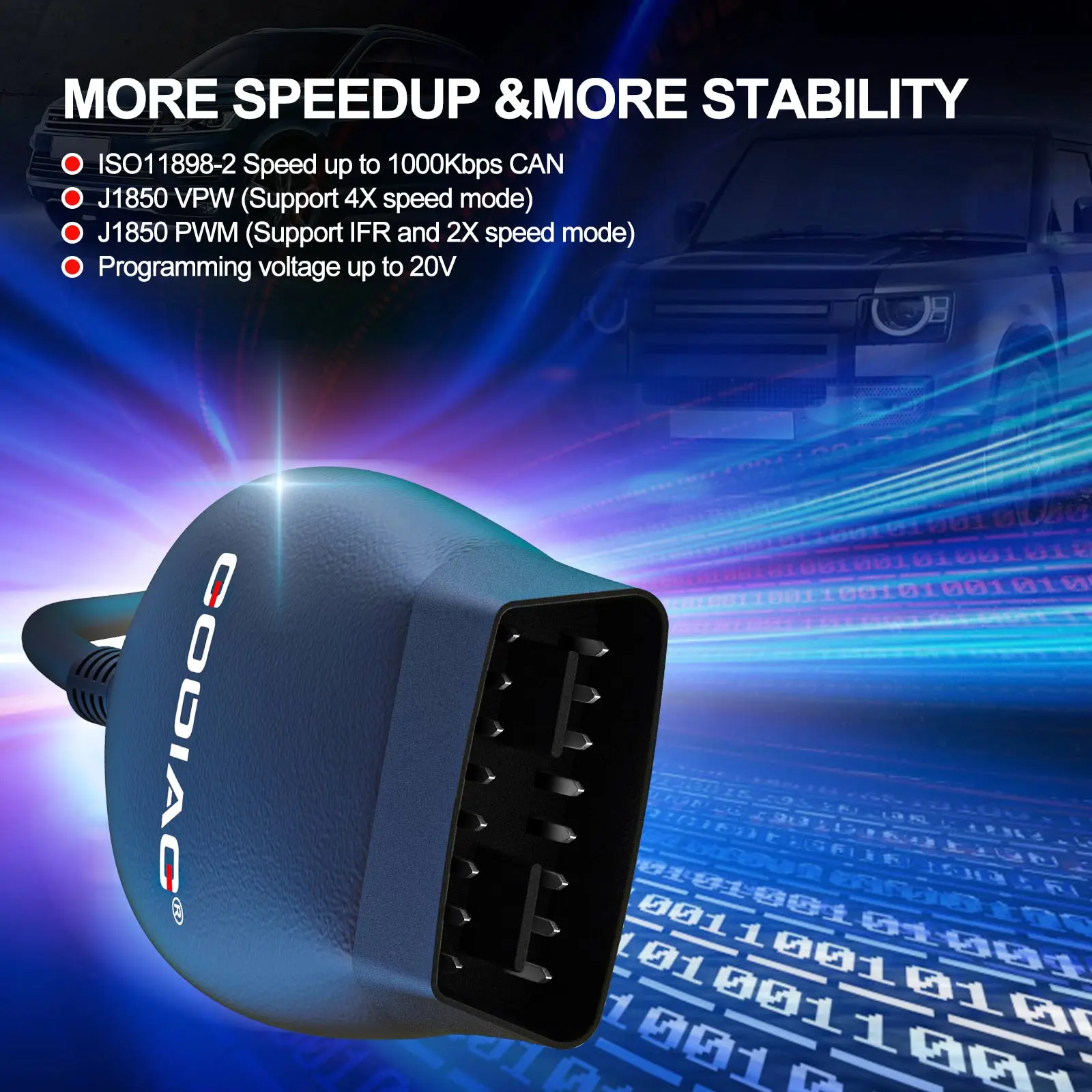

GODIAG GD101 GD 101 J2534 Compatible with J2534 Passthru & ELM327 Diagnose J1979 Compatible Vehicles Switch Mode Automatically

Godiag J2534 Compatible with J2534 Passthru & ELM327  Diagnose J1979 Compatible Vehicles Switch Mode Automatically

(Vehicle Network Communication Interface) is a device that works between diagnostic software and vehicle. It is compatible with J2534 Passthru and ELM327.

Product Functions:

1. Support most all of J2534 compatible software

2. Support most all of ELM327 software

3. Support ECU reprogramming in J2534 mode with programming voltage.

4. Supply free software for diagnosing J1979 compatible vehicles.

Product Highlights:

1. Support most all of J2534 compatible software(HDS, TIS, ODIS, JLR SDD, PCM...).

2. Support most all of ELM327 software(ELMConfig, Forscan, ScanMaster...).

3. Support ECU reprogramming in J2534 mode with programming voltage.

4. Supply free software for diagnosing J1979 compatible vehicles.

5. SupportWindows 8/10/11, 32/64bit

Supported languages of compatiable softwares:

ODIS software:English, Japanese, Portuguese, Romanian, Korean, Dutch, Polish, Turkish, Spanish, French, Italian, Croatian, Danish, German, Swedish, Finnish, Slovenian, Czech ,Russia, Greece, Chinese

For Toyota Techstream software :English, French, Spanish, Japanese, German, Italian, Russian, Turkish, Chinese

For Honda HDS software:English, German, Czech, Dutch, Finnish, French, Greek, Hungarian, Italian, Norwegian, Polish, Portuguese, Russian, Slovenian, Spanish, Swedish, Turkish, Japanese ,Chinese

JLR SDD software:German, English, Spanish, French, Italian, Dutch, Portuguese, Russian, Japanese, Chinese, Korean

Forscan software:English, Russian, Polish, Italian, German, Hungarian, Turkish, French, Latvian, Bosnian, Finnish, Romanian, Portuguese, Traditional Chinese, Simplified Chinese, Czech, Lithuanian, Slovak , Ukrainian

Scanmaster elm 327 software :English, Czech, German, Spanish, French, Hungarian, Italian, Polish, Serbian, Turkish, Danish, Croatian

Pcm-flash software:English, Russian

Note for pcm-flash 1.20: Customers need to buy a dongle (pcmtuner dongle ), and only supports the OBD part. It does not support bench, boot, vag, dsg and gearboxes.

J2534 protocol configuration:

1. ISO15765 (Standard/Extended frame).

2. ISO9141.

3. ISO14230.

4. J1850 PWM (Support IFR and 2X speed mode).

5. J1850 VPW (Support 4X speed mode).

6. Programming voltage.

7. Short to ground.

8. ELM327 with command set version 1.3a

Notice :Can't support MS-CAN

J2534 hardware configuration:

1. ISO11898-2 high speed CAN (OBDII PIN 6 and PIN 14. Speed up to 1000Kbps).

2. ISO9141 and ISO14230 K line (OBDII PIN 7 and PIN 15).

3. J1850 PWM (OBDII PIN 2 and PIN 10).

4. J1850 VPW (OBDII PIN 2).

5. Programming voltage (OBDII PIN 12 or PIN 13. Programming voltage up to 20V).

6. Short to ground (OBDII PIN 9. Short to OBDII PIN5).

7. Dimension(L*W*H): 95mm*55mm*23mm

8. Environmental:-20℃-45℃(-4℉-113℉)

9. Vehicle voltage requirements: 8-18V DC

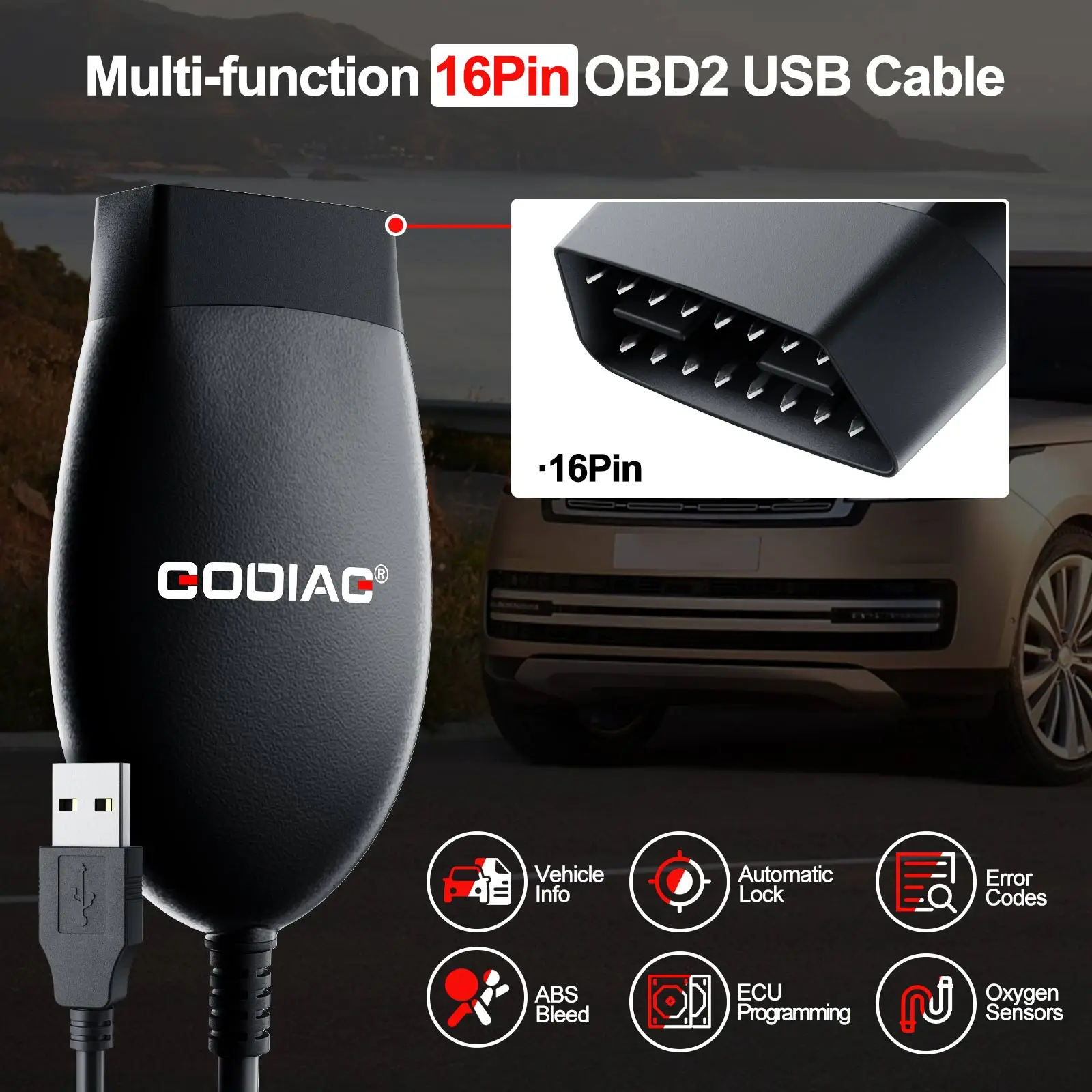

10. Vehicle connection: Molded DLC3(OBDII-16)

11. Host connection: USB 2.0

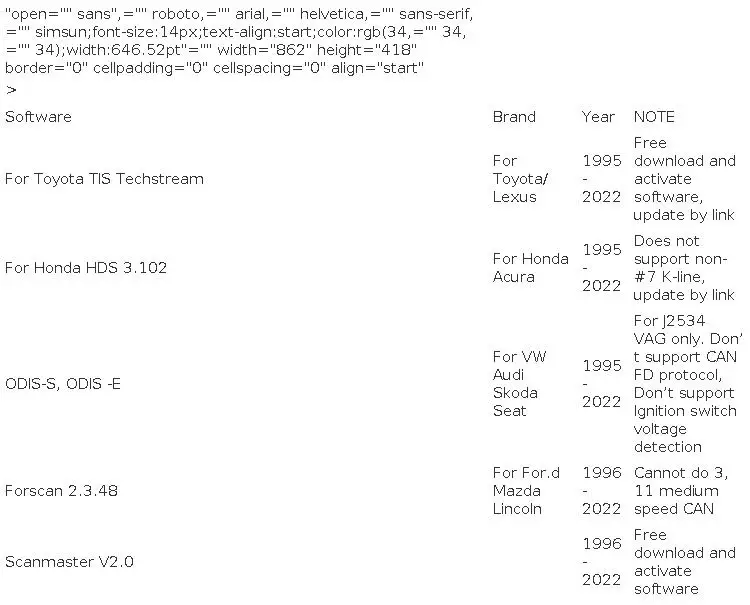

J2534 Function List:

Package Includes:

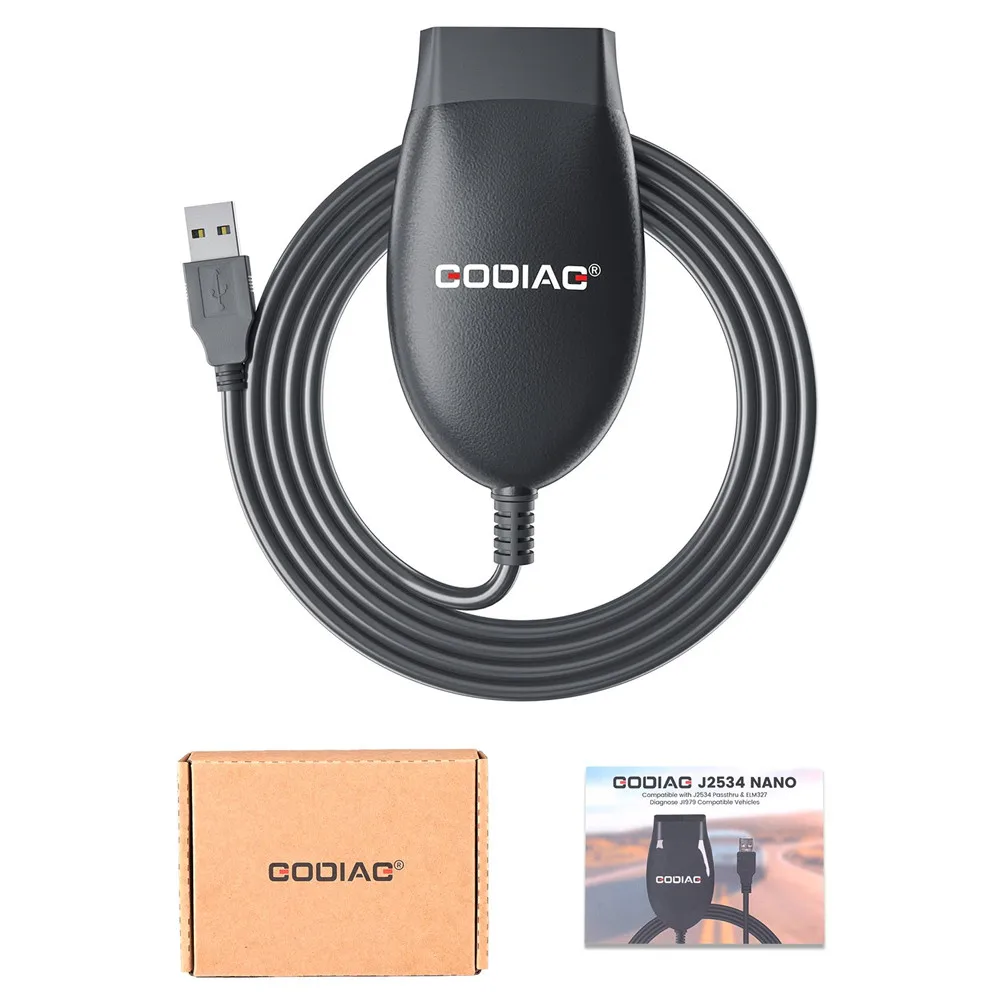

1pc x Godiag J2534
