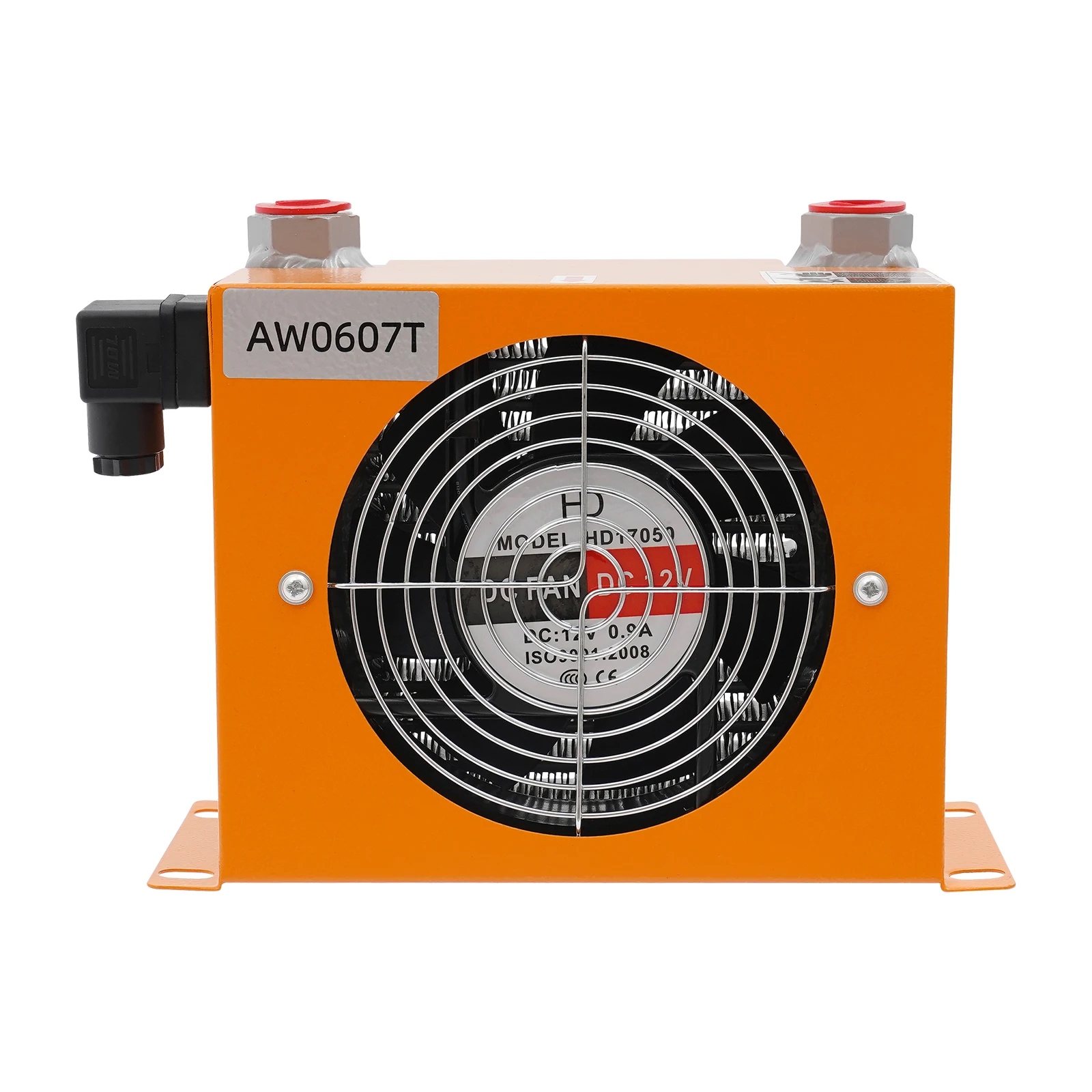

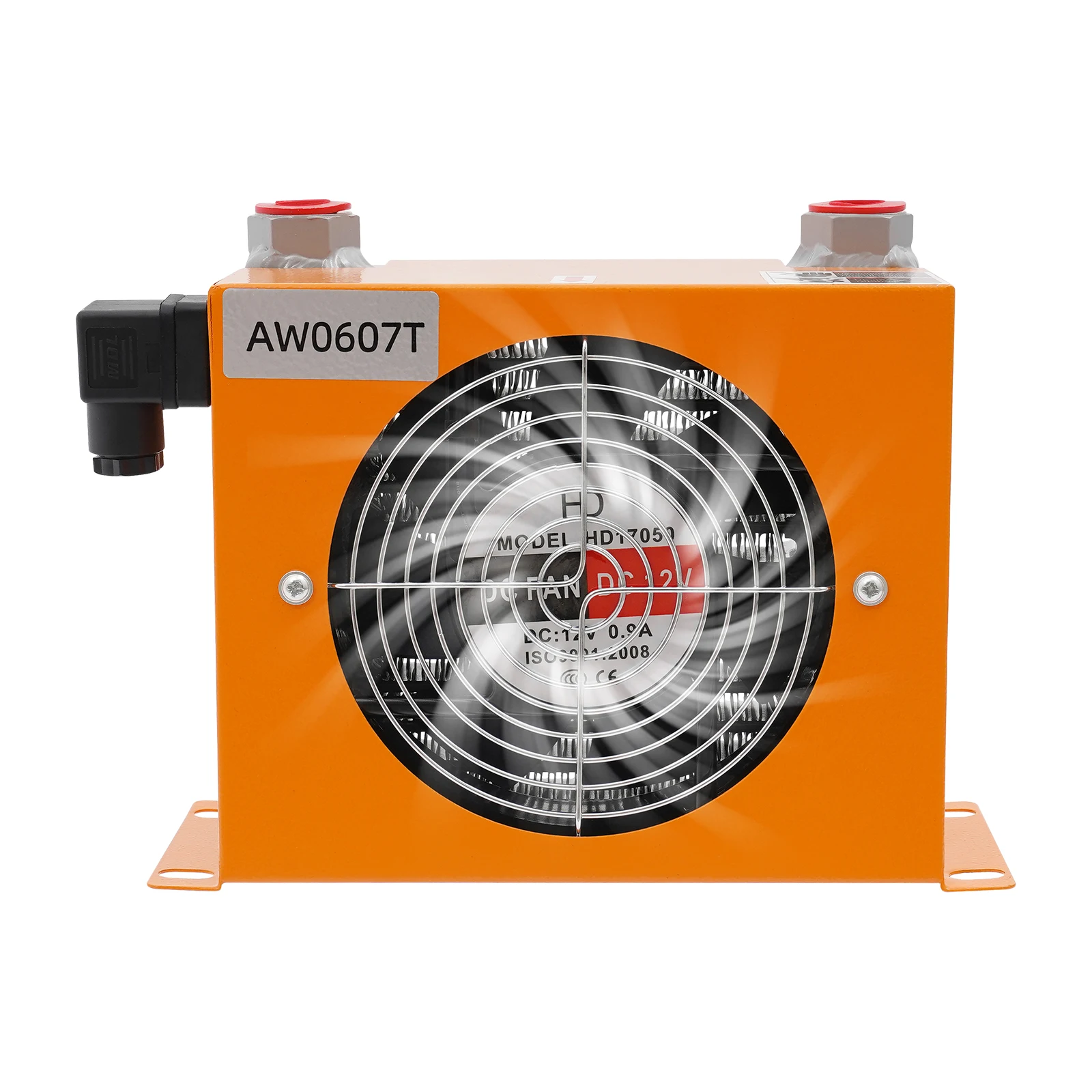

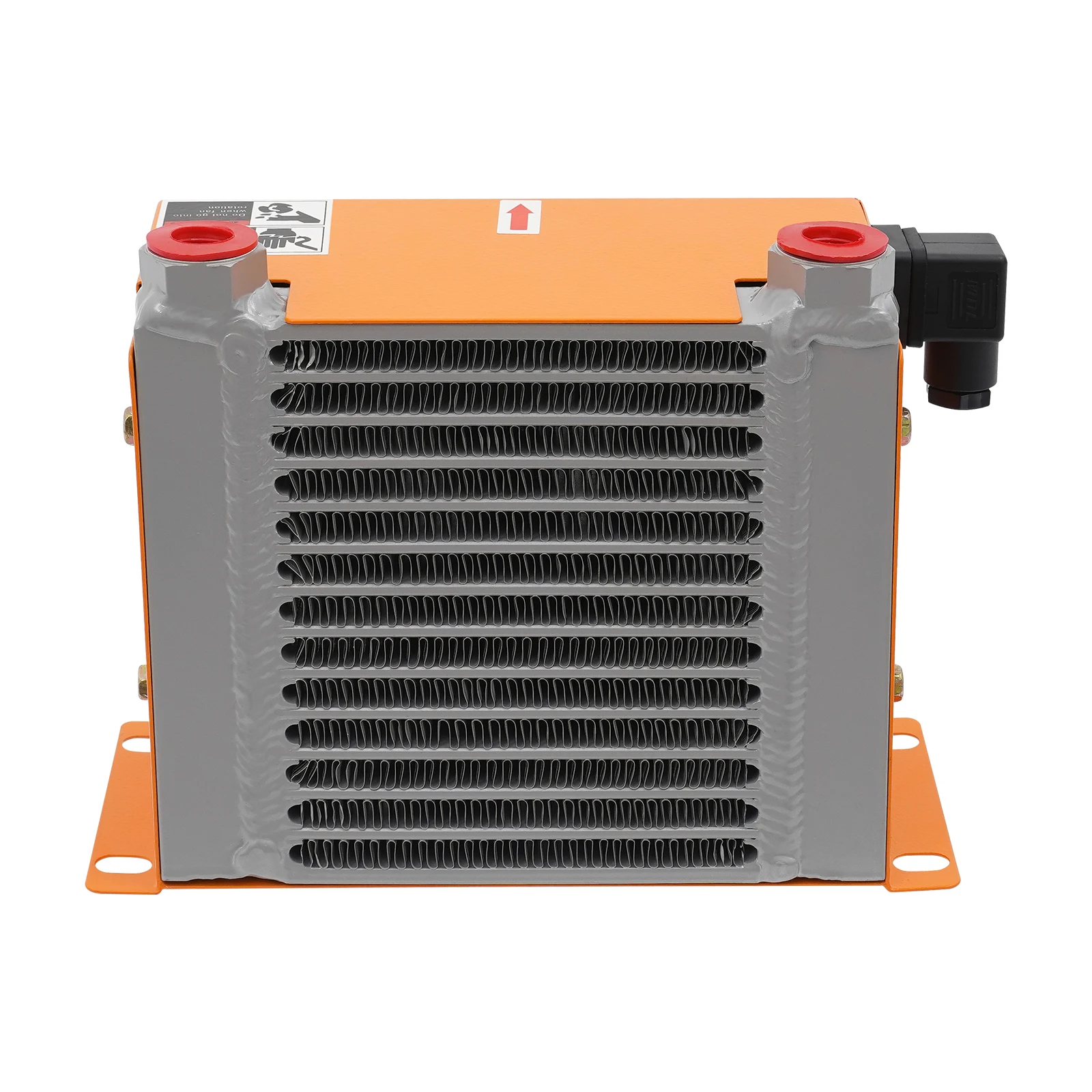

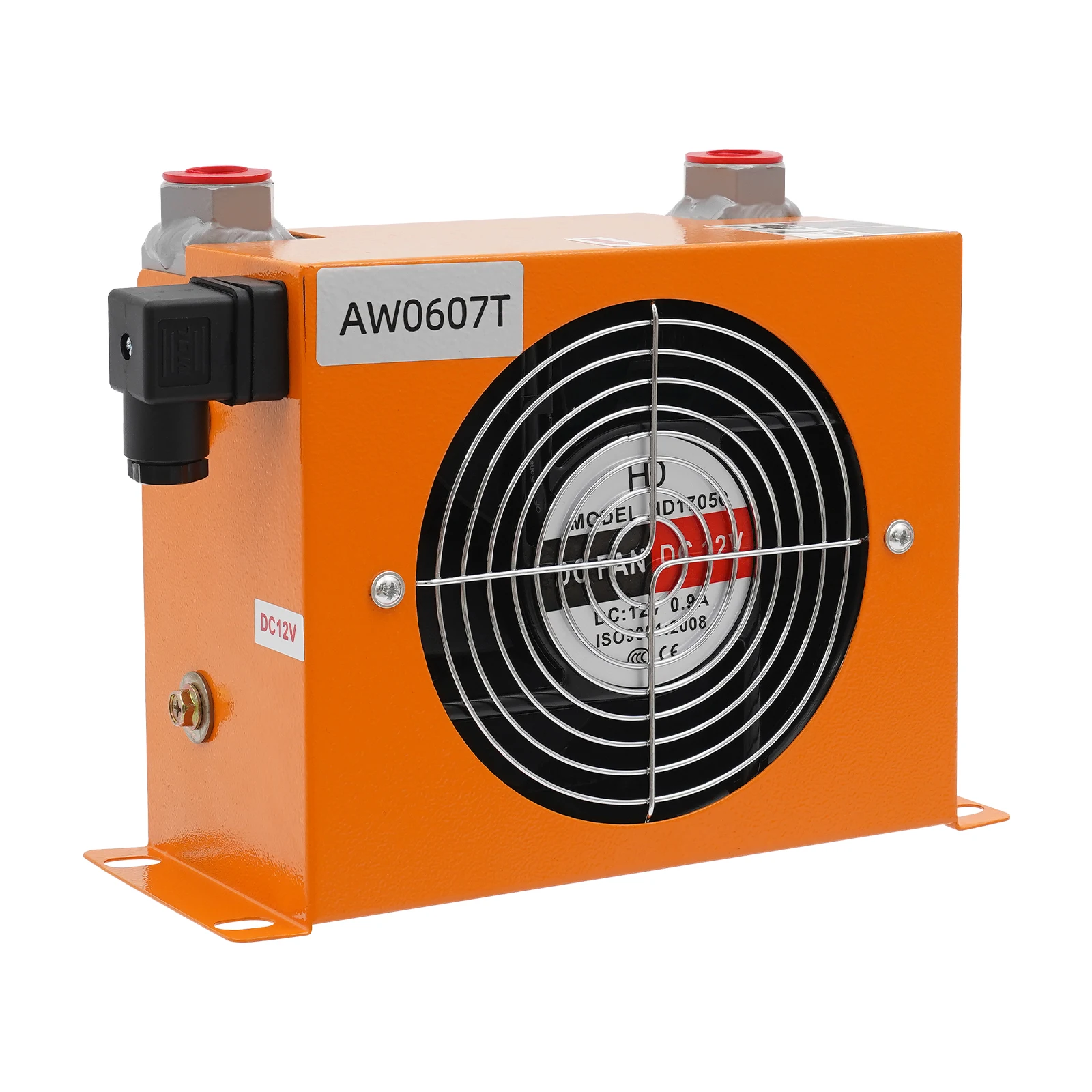

Hydraulic Oil Cooler, Air-Cooled Radiator Cooling Machine with High Density Fins for Industrial Machinery Vehicle Systems

Application

It is suitable for agricultural machinery, excavators, hydraulic mechanisms, mechanical equipment, industrial production lines, etc.

20L-12V

Specification

Color: Orange
Style: Modern
Material: Copper, Metal
Process: Welding, Spraying
Cooling Method: Air-cooled
Voltage: DC 12V
Current: 0.9A
Fan Power: 48W
Working Pressure: ≤2.0MPa
Cooling Capacity: 680Kcal/h
Thread Connection: ZG1/2
Rate of Flow: 20L/5.28Gal/min
Exhaust Volume: 200m³/h /118CFM
Exterior Cooling Area: 0.8㎡/8.61ft²
Fan Diameter: 17cm/6.69in
Product Size: 26.3*11.5*20cm/10.35*4.53*7.87in
Package Size: 27.7*24*13cm/10.91*9.45*5.12in
Gross Weight: 2.65kg/5.84lbs
Net Weight: 2.4kg/5.29lbs

60L-12V

Specification

Mount Type: Freestanding
Assembly Required: No
Style: Modern
Shape: Rectangular
Color: Orange
Material: Alloy
Process: Welding
Motor Type: All-Copper Motor
Voltage: DC12V
Flow Rate: 60LPM / 15.85GPM
Working Pressure: ≤2MPa
Fan Power: 38W
External Fin Cooling Area: 1.3m³
Fan Diameter: 170mm/6.69in
Cooling Capacity: 2300Kcal/H
Airflow Rate: 200m³/H
Connection Thread: ZG3/4
Overall Product Length: 32.3cm/12.72in
Product Size: 26*11.5*20cm/10.24*4.53*7.87in
Package Size: 34*23.5*14.7cm/13.39*9.25*5.79in
Gross Weight: 3.8kg/8.38lbs
Net Weight: 3.5kg/7.72lbs

Package Included

1* Hydraulic Oil Cooler
1* English Manual

Notes

1.Please check the style and size before purchasing.

2.Please read the instruction manual and labels completely before installation and use, and pay particular attention to the safety instructions included.

3.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement and make sure you do not mind before ordering.
