KINGBOLEN EDIAG ELITE Lifetime Free Update All System Car Diagnostic Tool Bidirectional OBD2 Scanner 15 Service Active Tester

KINGBOLEN EDIAG ELITE All System Diagnostic Tool + 15 Service + Bidirectional Control Lifetime Free Update

EDIAG ELITE Supports All Function Lifetime Free Update !!!

that mean All system Diagnose Function + 15 Service + Bidirectional Control Lifetime Free Update

EDIAG ELITE Supports CANFD and FCA , works more new cars !!!

CANFD :

it is the only product in this price range that is compatible with CAN-FD protocol and supports the latest For GM vehicles manufactured after 2020. Adopts advanced CRC algorithms to accommodate more data from 8 to 64 bytes in the CAN frame, which runs faster than other products and reduces the risk of undetected errors to greatly enhance the user experience.

For Onix 2020-2024, For Tracker 2020-2024, For Suburban 2021-2024, For Tahoe 2021-2024, For Montana 2024, For Silverado 2024, For Electra E5 2024, For Escalade 2021-2024, For Escalade ESV 2021-2024, For Sierra 2024, For Yukon 2021-202.2/2024, For Yukon XL 2021-202.2/2024, and For Chrysler Models including For Grand For Cherokee(WL) 2021-20203, For Grand For Wagoneer 2022-2024

FCA/SGW AutoAuth :

FCA SGW Access: For the 2018+ FCA vehicles (For Fiat, For Chrysler, For Jeep, For Alfa Romeo, etc.) equipped with the Security Gateway module, the LAUNCH X431 PRO3 ACE car scanner can help you to log in to the FCA account and perform diagnostic functions such as clearing DTCs, bi-directional tests, and calibrations.

For Renault SGW Access: Serve 2019+ For Renault SGW vehicles include for CLIO V, for CAPTUR II, for CAPTUR II CN, for MEGANE IV ph2, for ESPACE V ph2, for TALISMAN/SM6 ph2, for NEW ZOE, for ARKANA CN, for XM3/NEW ARKANA, for NEW SANDERO/LOGAN, etc. Unloking security gateway to perform service function, active test, coding, programming, etc.

Note : This Function need have the account in FCA Website first .

EDIAG ELITE Support Langauges :

English, French, Spanish, German, Italian, Portuguese, Japanese, Russian, Polish, Traditional Chinese, Turkish, Greek, Korean, Hungarian, Dutch, Vietnamese, Arabic, Persian, Khmer, Lao, Burmese, Thai

EDIAG ELITE Supports Bidirectional Control Function :

Bi-Directional Control capability and is capable of performing Active Tests to access vehicle-specific subsystems and component tests. The tester outputs commands to the ECU to drive the actuators in order to determine the integrity of the system or parts by reading the ECU data, or by monitoring the operation of the actuators .For example , x431 v have the ability to actuate relays, injectors, coils, or perform system tests, etc. Also it will actuate solenoids valve and actuators for active testing to identify the error easily moreover. The bidirectional functions are quite extensive. even open an e.g.r. valve and seeing the difference in idle response and oxygen sensor voltage. Please note: Active tests are NOT universal for all vehicles, check compatibility with VIN number before purchase. Active tests vary depending on the manufacturer, year, and model, and only the available tests display in the menu.

EDIAG ELITE Supports All System Diagnostic Function :

Ediag Elite can diagnose the electronic control system of prevailing vehicle models covering Asian, European, American and China. Full range car models and full car system diagnose make it a professional automotive diagnostic tool.
Diagnosis functions include: Read DTCs, Clear DTCs, Read datastream, Special functions etc;

To diagnose Brake Systemif you feel the brake pedal is mushy and notice unusual odor or noise, etc. A properly operating brake system is critical to ensure safe vehicle control and operation;

To diagnose Emission Systemif the system is affected by vehicle age or poor quality fuel. A good emission system reduces harmful gases to a large degree and protects you from being fined;

To diagnose Fuel systemif vehicle won’t start or “Check Engine” light is illuminated. Check car’s fuel system regularly ensures the best performance of your car with the lowest emissions;

To diagnose Transmissionif your car is slipping or difficult to shift. The system plays an important part in the overall performance of your car;

To diagnose Wiper Systemif you observe chattering or streaking wiper. If the car is not regularly checked, the accident might happen because you can’t see clearly;

To diagnose Light Systemif you see rapid signal blinking or dimming lights.

And many more ...

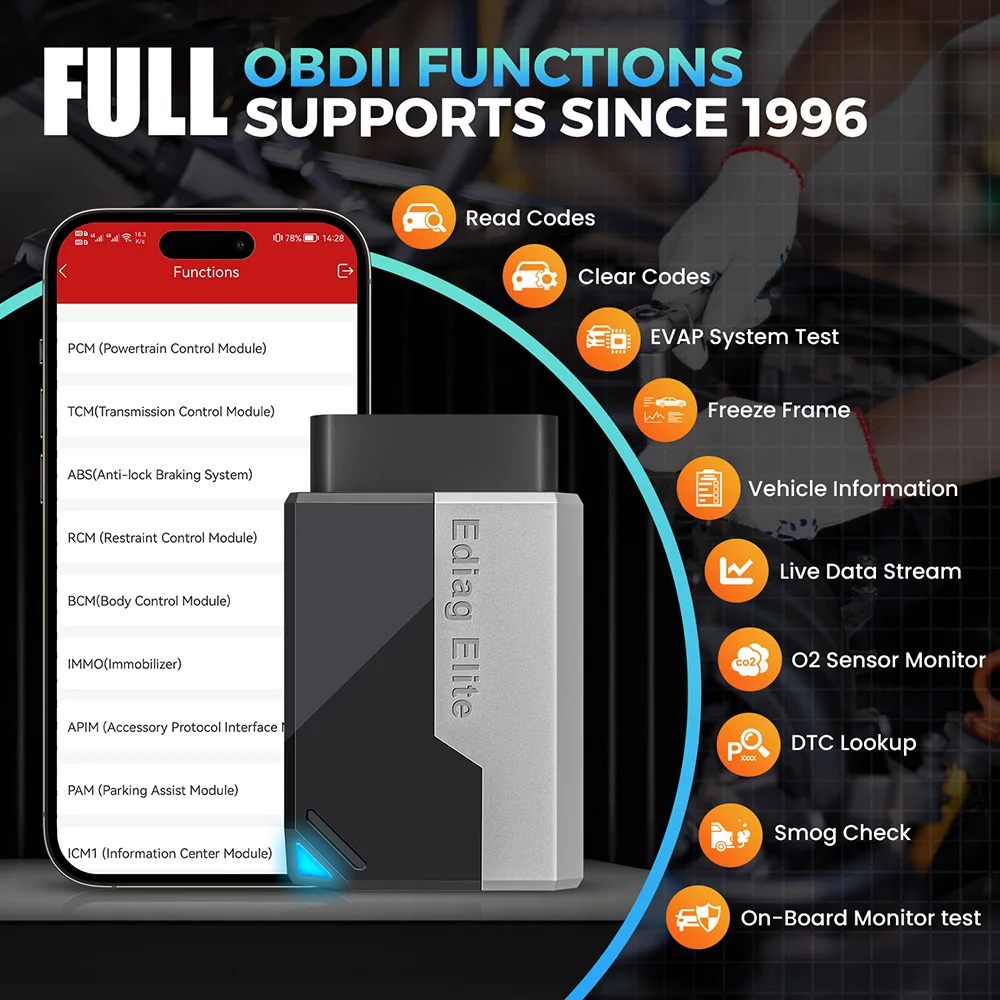

EDIAG ELITE Supports Full OBD2 Function :

Reading Codes
Show the detailed description of the Diagnostic Trouble Code (DTCs)

Erasing Codes & Reset
Turns off Check Engine Light (MIL), clears codes and resets monitors.

Data Stream
Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.

I/M Readiness Status
Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.

Read Live Data Stream
Show the information of continuous data stream from a vehicle in live graphic (waveform) display.

View Freeze Frame Data
Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.

O2 Sensor Test
Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer.

On-Board Monitor Test
Retrieves and displays test results for emission-related powertrain components and systems.

Read Vehicle Information
Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.

Component Test
Certain vehicle components can be actuated by commands sent from the scanner to test their operability

EDIAG ELITE Supports 15 Rset Service :

( pls note different reset function supports different cars , also supports some cars , not for all cars , pls contact us check the detailed car list , you also can check in the link directly : https://qcar.x431.com/qcar/#/pc/index?q=eyJsYW4iOiIxMDAyIn0%3D ）

1> AFS (Adaptive Front-lighting System) Reset

This function enables you to initialize the adaptive headlamp system.

2> ABS Bleeding

This function allows you to perform various bi-directional tests to check theoperating conditions of Anti-lock Braking System(ABS).
lt needs to be performed in the following cases:
1. When the ABS contains air.
2. When the ABS computer, ABS pump, brake master cylinder, brake cylinder,brake line, or brake fluid is replaced.

3> Battery Maintenance System Reset

This function enables you to perform a resetting operation on the monitoringunit of vehicle battery, in which the original low battery fault information will becleared and battery matching will be done.
lt needs to be performed in the following cases:1. The main battery is replaced.
2. The battery monitoring sensor is replaced.

4> Gearbox Matching

This function enables you to complete the gearbox self-learming to improvegear shifting quality.
lt needs to be performed in the following cases:When the gearbox is disassembled or repaired.

5> Electronic Parking Brake Reset

This function enables you to reset the brake pad after replacing the brake pad.lt needs to be performed in the following cases:
1.The brake pad and brake pad wear sensor are replaced.
2.The brake pad indicator lamp is on.
3.The brake pad sensor circuit is short, which is recovered.
4.The servo motor is replaced.

6> Diesel Particulate Filter (DPF) Regeneration

This function enables you to clear PM(Particulate Matter) from the DPF filterthrough continuous combustion oxidation mode (such as high temperatureheating combustion,fuel additive or catalyst reduce PM ignition combustion)to stabilize the filter performance.
lt needs to be performed in the following cases:
1. The exhaust back pressure sensor is replaced.
2. The PM trap is removed or replaced.
3. The fuel additive nozzle is removed or replaced.
4. The catalytic oxidizer is removed or replaced.
5. The DPF regeneration MlL is on and maintenance is performed.
6. The DPF regeneration control module is replaced.

7> EGR Adaption

This function is used to learn the EGR(Exhaust Gas Recirculation) valve afterit is cleaned or replaced.

8> Electronic Throttle Position Reset

This function enables you to make initial settings to throttle actuators andreturns the learned values stored on ECU to the default state. Doing so canaccurately control the actions of regulating throttle (or idle engine) to adjust theamount of air intake.

9> IMMo Service

This function enables you to perform the anti-theft key matching function, sothat the immobilizer control system on the car identifies and authorizes remotecontrol keys to normally use the car.
lt needs to be performed in the following cases:
When the ignition switch key, ignition switch,combined instrument panel,ECU,BCM, or remote control battery is replaced.

10> Injector Coding

This function enables you to write injector actual code or rewrite code inthe ECU to the injector code of the corresponding cylinder，so as to moreaccurately control or correct cylinder injection quantity.
lt needs to be performed in the following cases:
After the ECu or injector is replaced.

11> Oil Reset Service

This function enables you to reset the oil service for the engine oil life system,which calculates an optimal oil life change interval depending on the vehicle driving conditions and weather events.
lt needs to be performed in the following cases:
1. lf the service lamp is on, run car diagnostics first for troubleshooting.Afterthat, reset the driving mileage or driving time, so as to turn off the servicelamp and enable a new driving cycle.
2. lf the service lamp is not on, but you have changed the engine oil or electric
appliances that monitor oil life, you need to reset the service lamp.

12> Steering Angle Calibration

This function enables you to reset the steering angle,after replacing thesteering angle position sensor,replacing steering mechanical parts (such assteering gearbox,steering column, end tie rod, steering knuckie), performingfour-wheel alignment, or recovering car body.
To reset the steering angle, first find the relative zero point position for thecar to drive in straight line. Taking this position as reference,the ECU cancalculate the accurate angle for left and right steering.

13> Sunroof Initialization

This function enables you to set the sunroof lock off,closed when it rains,sliding / tilting sunroof memory function, temperature threshold outside the caretc.

14> Suspension Calibration

This function enables you to adjust the height of the body.
lt needs to be performed in the following cases:
1. When replacing the body height sensor， or control module in the airsuspension system.
2. When the vehicle height is incorrect.

15> TPMS Reset

This function is used to set the size parameters of the modified or replacedtire.

EDIAG ELITE OTHER Function :

1. 4in1 Graphic Live Date Real-Time Monitor Car Health

2. Diagnostic Report

3. Diagnostic Report Print

4. DTC LOOKUP

........

EDIAG ELITE Supports Car List :

For Aston Martin , For Audi , For AUSTHOLDEN , For MERCEDES-BENZ ,For BMW/ For Rolls Royce/ For Mini , For FIAT Brazil , For GM Brazil , For Changan , For GWM , For Changhe , For Chrysler/ For Dodge/ For Jeep , For Citroen , For Daewoo , For Daihatsu , Demo , For Soueast , EOBD/OBDII , For Ferrari , For Fiat/ For Abarth/ For Alfa Romeo/ For Lancia , For BYD , For Foton , For GM/ For Chevrolet/ For Cadillac/ For Buick , For Hafei , For Haima , For Honda/ For Acura , For Brilliance , For Hyundai , For INDIANMAHINDRA , For INDIANMARUTI , For INDIANTATA , For JMC , For Iveco , For JAC/JAC Refine , For Gonow , For Jinlong , For Isuzu/ For Isuzu (Thailand), For KARRY_TY , For KIA , For Land Rover/ For Jaguar , For Lifan , For SGMW/United Pakistan , For LUFENG , For Luxgen , For Perodua (Malaysia) , For Proton (Malaysia) , For Maserati , For Maxus , For Mazda , For Mitsubishi , For Nissan/ For Infiniti/ For GTR-Nissan , For Opel/ For Vauxhall/ For Opel (South Africa), For Peugeot , For Porsche , For Chery , For Qoros , For Renault/ For Dacia/ For Samsung-Renault , For Saab , For MG (SAIC), For Roewe (SAIC), For Seat , For SGM/ For Buick (China), For Skoda , For Smart , For Sprinter , For Ssangyong , For Subaru , For Suzuki , For Toyota/ For Lexus , For Ford , For VAZ , For Volvo , For VOLKSWAGEN , For Zotye , For ZX Auto , For ZZNISSAN

Pls Note the following brands cars does not shows in IOS sytem , if need them , pls use Android Phone to update , it will be ok :
For Changan , For GWM , For Changhe , For BYD , For Foton , For Hafei , For Haima ,For Brilliance , For INDIANMAHINDRA , For INDIANMARUTI , For INDIANTATA , For JMC , For Iveco , For JAC/JAC Refine , For Gonow , For Jinlong ,For KARRY_TY , For Lifan , For SGMW/United Pakistan , For LUFENG , For Maxus , For Chery , For Qoros , For VAZ ,For Zotye , For ZX Auto , For ZZNISSAN

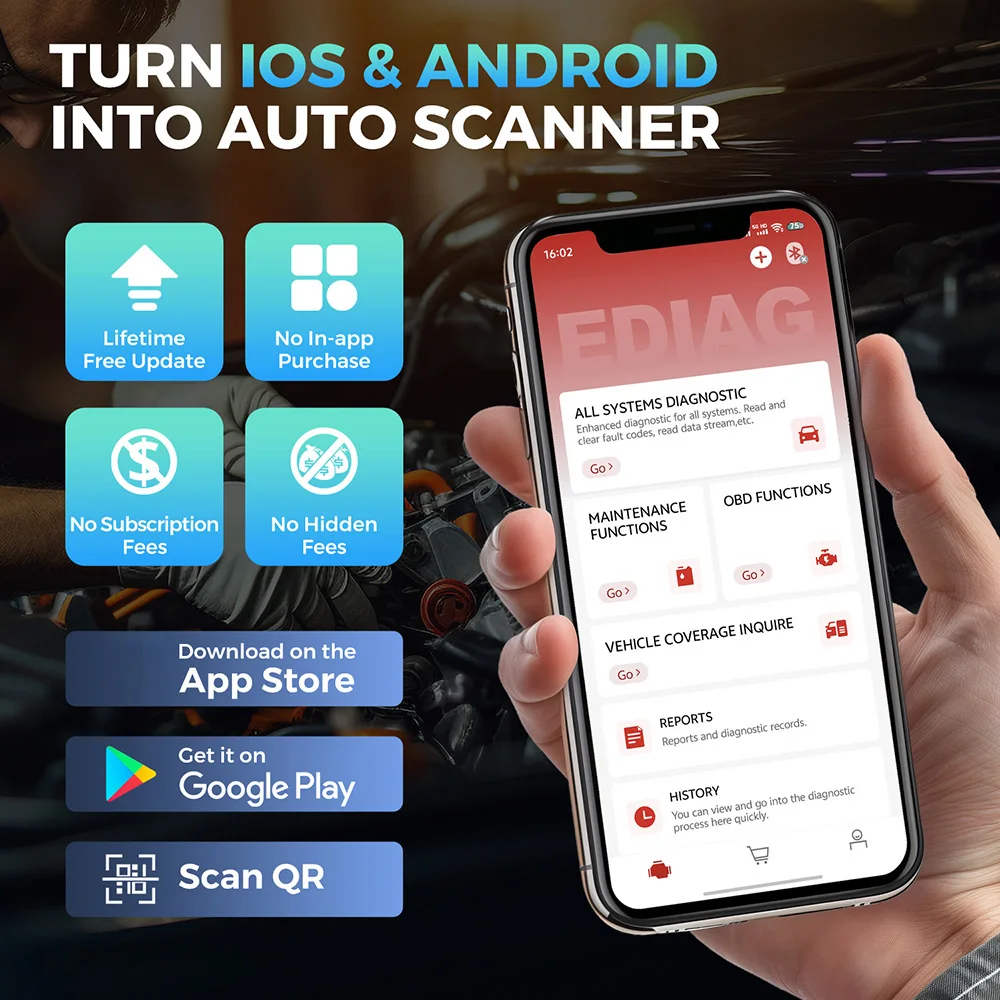

EDIAG ELITE Works with Android & IOS Phone , use EDIAG APP to use :

Step 1:Smartphone go to download EDIAG APP ( APP name : EDIAG )
Step 2 :open EDIAG APP , go to register .
Step 3 :Login to activate EDIAG ELITE .
Step 4 .:Plug EDIAG ELITE to your car , bluetooth connect,Download the software , then you can use it !

EDIAG ELITE PARAMETER :

Bluetooth Version : Bluetooth V5.2
Connection range: 33 feet/10m
Supports System : Android 5.0/iOS 9.0 or above
Support Protocol : Support OBDII protocol & EOBD protocol
Operating temperature : -10°C~50°C (32°F~122°F)

EDIAG ELITE PACKING LIST :

TYPE 1 :

TYPE 2 :
